HT5/07OD datasheet, PDF - EEWORLD Datasheet

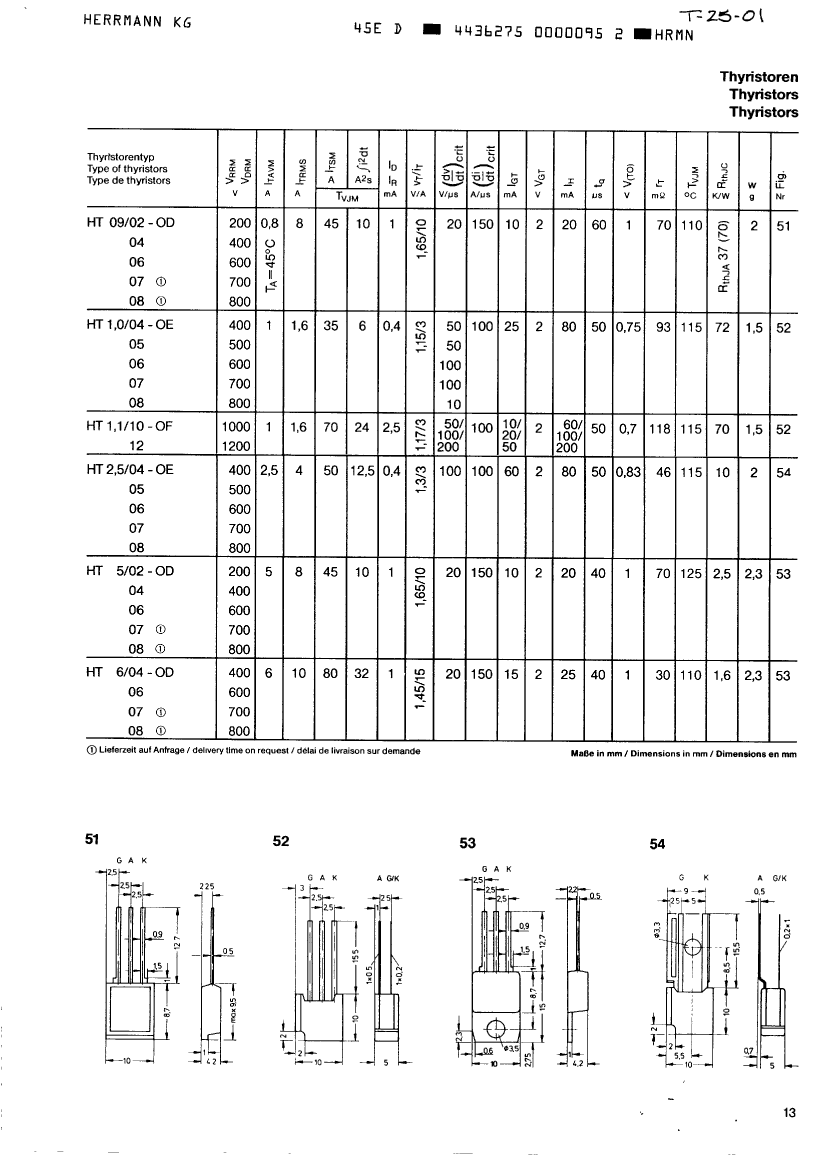

HT5/07OD: DescriptionSilicon Controlled Rectifier, 5000mA I(T), 700V V(DRM); CategoryAnalog mixed-signal IC Trigger device; File Size81KB，1 Pages; ManufacturerHerrmann Kg

Download Datasheet Parametric Compare View All

HT5/07OD Overview

Silicon Controlled Rectifier, 5000mA I(T), 700V V(DRM)

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Herrmann Kg
package instruction	,
Reach Compliance Code	unknown
Nominal circuit commutation break time	40 µs
Critical rise rate of minimum off-state voltage	20 V/us
Maximum DC gate trigger current	10 mA
Maximum DC gate trigger voltage	2 V
Maximum holding current	20 mA
JESD-609 code	e0
Maximum leakage current	1 mA
On-state non-repetitive peak current	45 A
Maximum on-state voltage	1.65 V
Maximum on-state current	5000 A
Maximum operating temperature	125 °C
Off-state repetitive peak voltage	700 V
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Trigger device type	SCR

	HT5/07OD	HT1.1/12OF	HT1.1/10OF	HT1.0/08OE	HT6/06OD	HT6/04OD
Description	Silicon Controlled Rectifier, 5000mA I(T), 700V V(DRM)	Silicon Controlled Rectifier, 1000mA I(T), 1200V V(DRM)	Silicon Controlled Rectifier, 1000mA I(T), 1000V V(DRM)	Silicon Controlled Rectifier, 1000mA I(T), 800V V(DRM)	Silicon Controlled Rectifier, 6000mA I(T), 600V V(DRM)	Silicon Controlled Rectifier, 6000mA I(T), 400V V(DRM)
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Nominal circuit commutation break time	40 µs	50 µs	50 µs	50 µs	40 µs	40 µs
Critical rise rate of minimum off-state voltage	20 V/us	100 V/us	50 V/us	10 V/us	20 V/us	20 V/us
Maximum DC gate trigger current	10 mA	10 mA	10 mA	25 mA	15 mA	15 mA
Maximum DC gate trigger voltage	2 V	2 V	2 V	2 V	2 V	2 V
Maximum holding current	20 mA	100 mA	60 mA	80 mA	25 mA	25 mA
JESD-609 code	e0	e0	e0	e0	e0	e0
Maximum leakage current	1 mA	2.5 mA	2.5 mA	0.4 mA	1 mA	1 mA
On-state non-repetitive peak current	45 A	70 A	70 A	35 A	80 A	80 A
Maximum on-state voltage	1.65 V	1.17 V	1.17 V	1.15 V	1.45 V	1.45 V
Maximum on-state current	5000 A	1000 A	1000 A	1000 A	6000 A	6000 A
Maximum operating temperature	125 °C	115 °C	115 °C	115 °C	110 °C	110 °C
Off-state repetitive peak voltage	700 V	1200 V	1000 V	800 V	600 V	400 V
surface mount	NO	NO	NO	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Trigger device type	SCR	SCR	SCR	SCR	SCR	SCR
Maker	Herrmann Kg	-	-	Herrmann Kg	Herrmann Kg	Herrmann Kg
