R114.780.000 Overview

RF Connector Adapter, SMB-SMB-SMB, Male-Male-Female

R114.780.000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Radiall
Reach Compliance Code	not_compliant
Adapter type	SMB-SMB-SMB
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR ADAPTER
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	GOLD (51) OVER NICKEL
Contact point gender	MALE-MALE-FEMALE
Contact material	NOT SPECIFIED
Coupling type	SNAP
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	1 dB
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Maximum operating frequency	4 GHz
Options	GENERAL PURPOSE
Panel mounting	NO

R114.780.000 Preview

TECHNICAL DATA SHEET

1/2

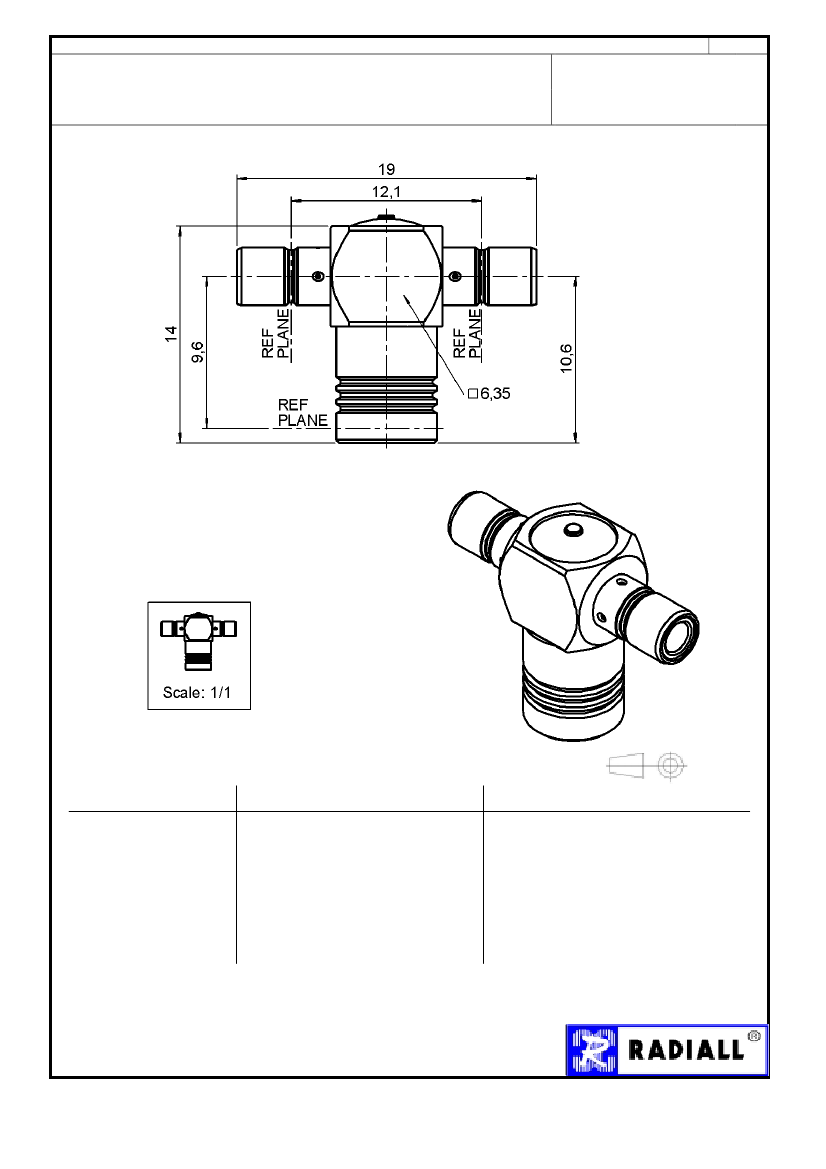

TEE MALE-MALE/FEMALE ADAPTER

-

R114.780.000

Series :

SMB

All dimensions are in mm.

.

pn

.

ao

COMPONENTS

BODY

CENTER CONTACT

OUTER CONTACT

INSULATOR

GASKET

OTHERS PARTS

-

MATERIALS

BRASS

BERYLLIUM COPPER

PTFE

-

BRASS

-

PLATINGS (

µm

)

GOLD 0.2 OVER NICKEL 2

GOLD 1.3 OVER NICKEL 2

GOLD 0.5 OVER NICKEL 2

GOLD 0.2 OVER NICKEL 2

-

Issue :

0210 C

In the effort to improve our products, we reserve the right to make changes judged to be

necessary.

TECHNICAL DATA SHEET

2/2

TEE MALE-MALE/FEMALE ADAPTER

-

PACKAGING

Standard

100

Unit

‘W’ option

Other

Contact us

R114.780.000

Series :

SMB

SPECIFICATION

ELECTRICAL CHARACTERISTICS

Impedance

Frequency

VSWR

NA

+

Insertion loss

RF leakage

-(

Voltage rating

Dielectric withstanding voltage

Insulation resistance

50

0-4

0.000

0.5

57

500

1000

Ω

GHz

x F(GHz) Maxi

Veff Maxi

Veff mini

MΩ mini

ENVIRONMENTAL

Operating temperature

Hermetic seal

Panel leakage

-65/+165

° C

NA

Atm.cm3/s

NA

√F(GHz)

dB Maxi

- F(GHz)) dB Maxi

OTHERS CHARACTERISTICS

Assembly instruction

Others :

-

NA

MECHANICAL CHARACTERISTICS

Center contact retention

Axial force – Mating end

Axial force – Opposite end

Torque

Recommended torque

Mating

Panel nut

10

N mini

10

N mini

NA

N.cm mini

NA

N.cm

NA

N.cm

Mating life

Weight

500

Cycles mini

0.000

g

Issue :

0210 C

In the effort to improve our products, we reserve the right to make changes judged to be

necessary.
