BTA312-800CT,127 datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> Trigger device> BTA312-800CT,127

BTA312-800CT,127: Description3Q Hi-Com Triac; CategoryAnalog mixed-signal IC Trigger device; File Size186KB，12 Pages; ManufacturerNXP; Websitehttps://www.nxp.com; Environmental Compliance

Download Datasheet Parametric View All

BTA312-800CT,127 Overview

3Q Hi-Com Triac

BTA312-800CT,127 Parametric

Parameter Name	Attribute value
Source Url Status Check Date	2013-06-14 00:00:00
Brand Name	NXP Semiconduc
Is it Rohs certified?	conform to
Maker	NXP
Parts packaging code	TO-220
package instruction	,
Contacts	3
Manufacturer packaging code	SOT78
Reach Compliance Code	_compli
Critical rise rate of minimum off-state voltage	300 V/us
Maximum DC gate trigger current	35 mA
Maximum DC gate trigger voltage	1.5 V
Maximum holding current	35 mA
JESD-609 code	e3
Maximum leakage current	2 mA
Maximum on-state voltage	1.6 V
Maximum operating temperature	150 °C
Minimum operating temperature	-40 °C
Maximum rms on-state current	12 A
Off-state repetitive peak voltage	800 V
surface mount	NO
Terminal surface	Tin (Sn)
Trigger device type	TRIAC
Base Number Matches	1

Preview

Download Datasheet

View All

BTA312-800CT

4 October 2012

3Q Hi-Com Triac

Product data sheet

1. Product profile

1.1 General description

Planar passivated high commutation three quadrant triac in a SOT78 (TO-220AB)

plastic package intended for use in circuits where high static and dynamic dV/dt and

high dI/dt can occur. This "series CT" triac will commutate the full RMS current at the

maximum rated junction temperature (T

= 150 °C) without the aid of a snubber. It is used

in applications where "high junction operating temperature capability" is required.

1.2 Features and benefits

•

3Q technology for improved noise immunity

•

High commutation capability with maximum false trigger immunity

•

High immunity to false turn-on by dV/dt

•

High junction operating temperature capability

•

High voltage capability

•

Less sensitve gate for high noise immunity

•

Planar passivated for voltage ruggedness and reliability

•

Triggering in three quadrants only

1.3 Applications

•

Applications subject to high temperature

•

Electronic thermostats (heating and cooling)

•

High power motor controls e.g. washing machines and vacuum cleaners

•

Rectifier-fed DC inductive loads e.g. DC motors and solenoids

1.4 Quick reference data

Table 1.

Symbol

DRM

TSM

T(RMS)

Quick reference data

Parameter

repetitive peak off-

state voltage

non-repetitive peak on- full sine wave; T

j(init)

= 25 °C;

state current

= 20 ms;

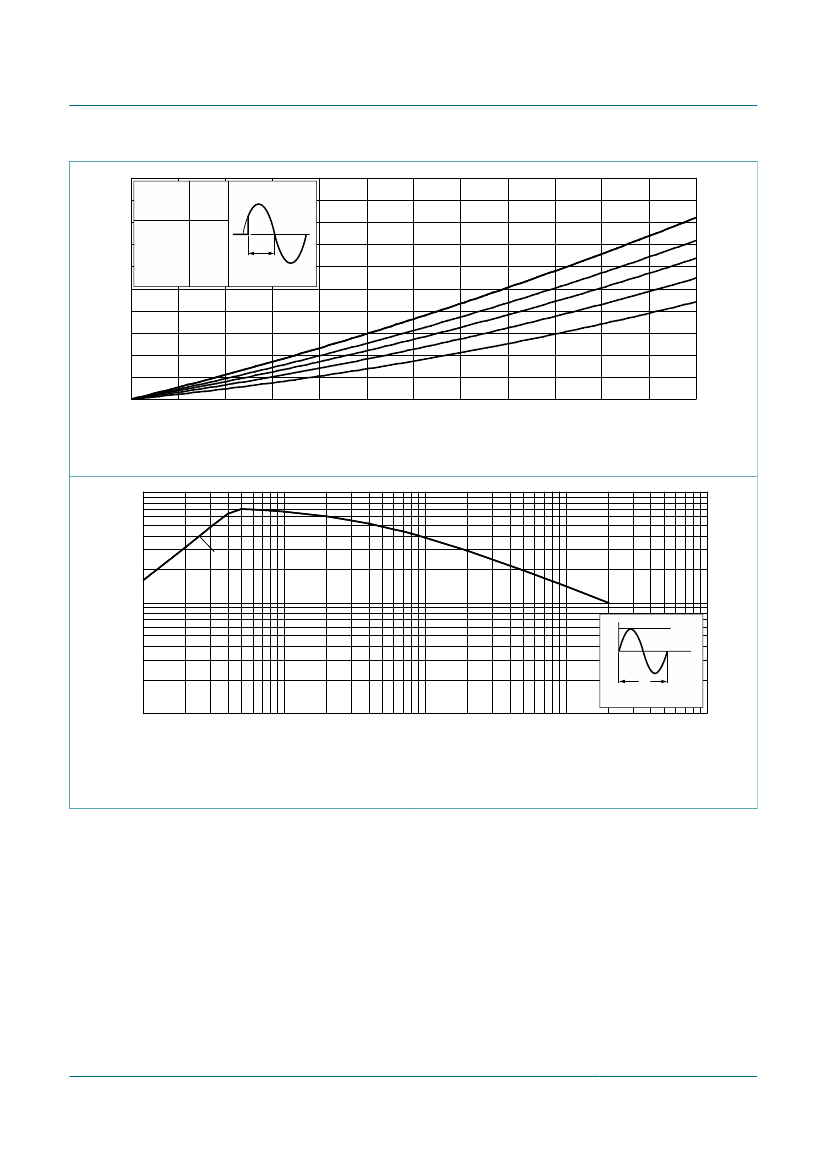

Fig. 4; Fig. 5

junction temperature

RMS on-state current

full sine wave; T

≤ 125 °C;

Fig. 1;

Fig. 2; Fig. 3

Conditions

Min

Typ

Max

800

100

150

Unit

°C
