Ordering number : EN*A1073
LC99119
Overview
1/4-type Optical Size
Frame Transfer NIR CCD for VGA
LC99119 is a 1/4-type optical size (Diagonal 4.57mm) Frame Transfer CCD (Charge-Coupled-Device) solid-state image
sensor with 330,000 effective pixels.
By combining it with LC99403 which is a dedicated signal processing IC, it is possible to compose a camera of 2.9V single
power supply with two chips. By combining it with LC99403, it is also possible to support EIA output.
Applications
Surveillance camera, general consumer product
Package Dimension
24-pin LCC (Ceramic, Leadless Chip Carrier Package)
Features
•
Optical size 1/4-type
•
Supports VGA formats
•
All-pixel readout (Progressive scan)
•
Variable-speed electronic shutter is available
•
Lead-free
Any and all SANYO Semiconductor Co.,Ltd. products described or contained herein are, with regard to
"standard application", intended for the use as general electronics equipment (home appliances, AV equipment,
communication device, office equipment, industrial equipment etc.). The products mentioned herein shall not be
intended for use for any "special application" (medical equipment whose purpose is to sustain life, aerospace
instrument, nuclear control device, burning appliances, transportation machine, traffic signal system, safety
equipment etc.) that shall require extremely high level of reliability and can directly threaten human lives in case
of failure or malfunction of the product or may cause harm to human bodies, nor shall they grant any guarantee
thereof. If you should intend to use our products for applications outside the standard applications of our
customer who is considering such use and/or outside the scope of our intended standard applications, please
consult with us prior to the intended use. If there is no consultation or inquiry before the intended use, our
customer shall be solely responsible for the use.
Specifications of any and all SANYO Semiconductor Co.,Ltd. products described or contained herein stipulate
the performance, characteristics, and functions of the described products in the independent state, and are not
guarantees of the performance, characteristics, and functions of the described products as mounted in the
customer
'
s products or equipment. To verify symptoms and states that cannot be evaluated in an independent
device, the customer should always evaluate and test devices mounted in the customer
'
s products or
equipment.
32608HKIM No.A1073-1/5
LC99119
Device Structure
•
Number of total pixels
•
Number of effective pixels
•
Number of active pixels
•
Number of optical blacks
696 (H)
×
523 (V)
652 (H)
×
503 (V)
646 (H)
×
497 (V)
H direction
Front
6 pixels
Rear
38 pixels
V direction
Upper
16 pixels
Lower
4 pixels
H direction
4 pixels
5.55μm (H)
×
5.55μm (V)
•
Dummy bits
•
Unit cell size
•
Parallel gate type CCD
•
Image area: 12 phase clock, Storage area: 3 phase clock, Horizontal area: 2 phase clock
•
High sensitive output amplifier

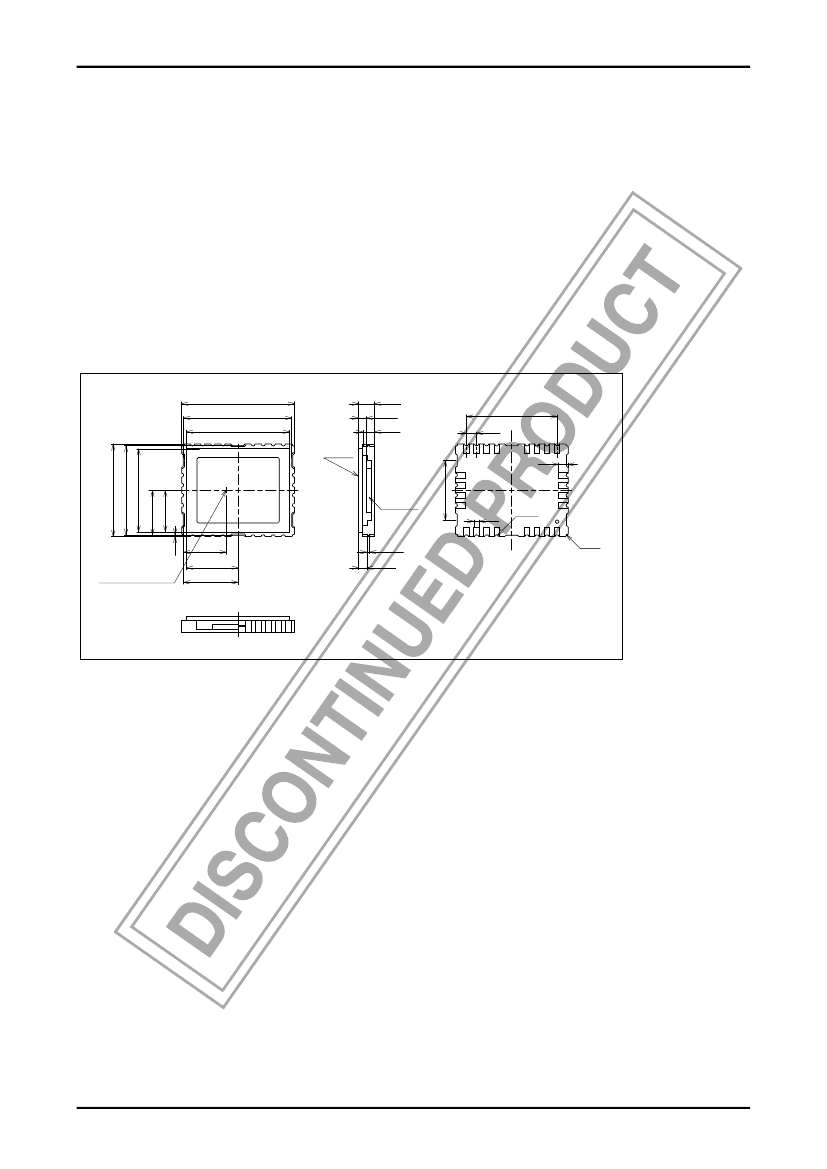

Package Dimensions
unit : mm (typ)
14.2
13.8
13.0
GLASS
2.05
0.975
1.49
11.43
1.27
1.2
11.7
11.3
10.5
5.65
5.25
SENSOR
0.7
7.5
R0.25
R0.3
0.2
5.4
6.5
6.9
0.2625
1.085
OPTICAL CENTER
SANYO : LC99169, LC99119
No.A1073-2/5
LC99119

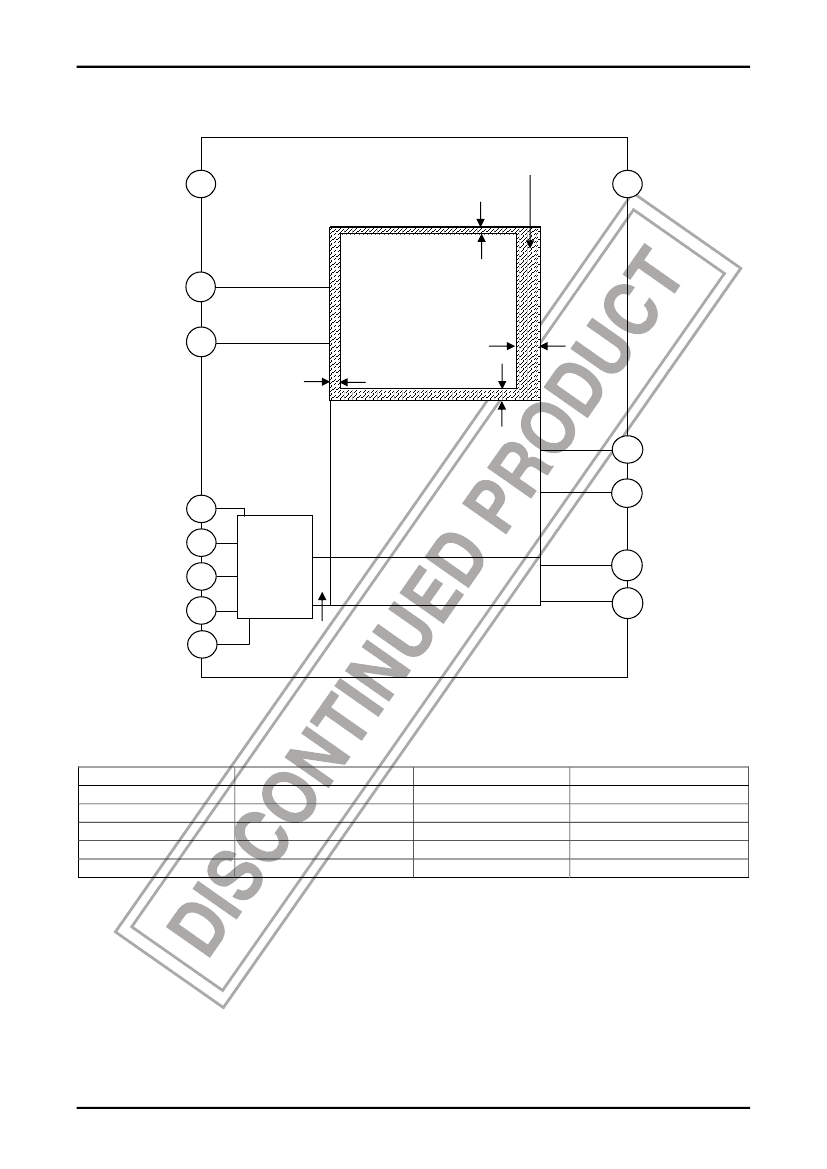

Block Diagram
Optical Black
PSUB
4 pixels
VOFD
PI1
to
PI12
6 pixels
IMAGE AREA
38 pixels
16 pixels
PS1
to
PS3
STORAGE AREA
VDD
PR
VRD
OPGND
4 dummy bits
VOUT
Output
Horizontal Shift Register (CCD)
PH1
PH2
Pin Functions
Symbol
PSUB
PI1 to PI12
VDD
PR
VRD
Description
P-substrate
Image area clock
Power supply voltage
Reset gate
Reset drain
Symbol
OPGND
VOUT
VOFD
PS1 to PS3
PH1 to PH2
Description
Output GND
CCD output
Overflow drain
Storage area clock
Horizontal area clock
No.A1073-3/5
LC99119

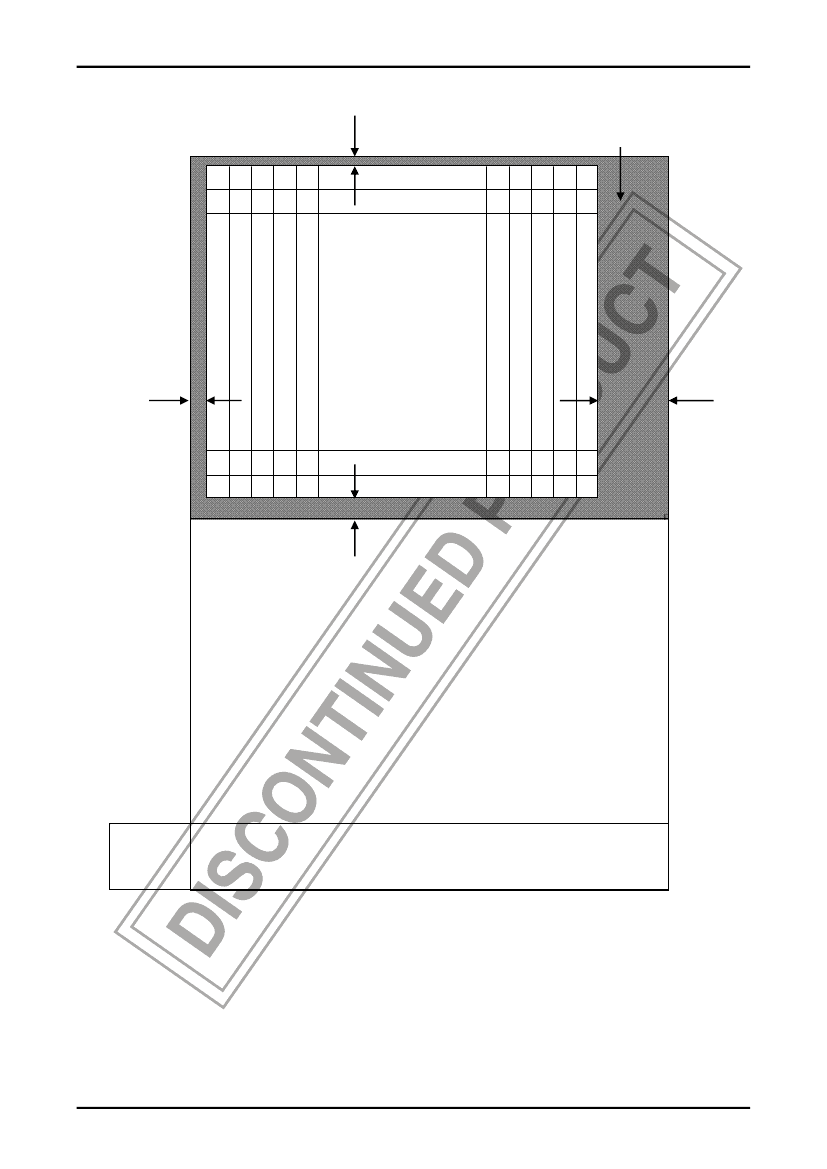

Pixel Array
• • •
4 pixels
649
648
650
651
652
Optical Black
1
503
502
•
•
•
2
3
4
5
IMAGE AREA
Effective Pixels
652 (H)
×
503 (V)
6 pixels
38 pixels
2
1
16 pixels
STORAGE AREA
All Pixels
696 (H)
×
523 (V)
Dummy bits
4 pixels
Horizontal Shift Register (696 pixels)
No.A1073-4/5
LC99119

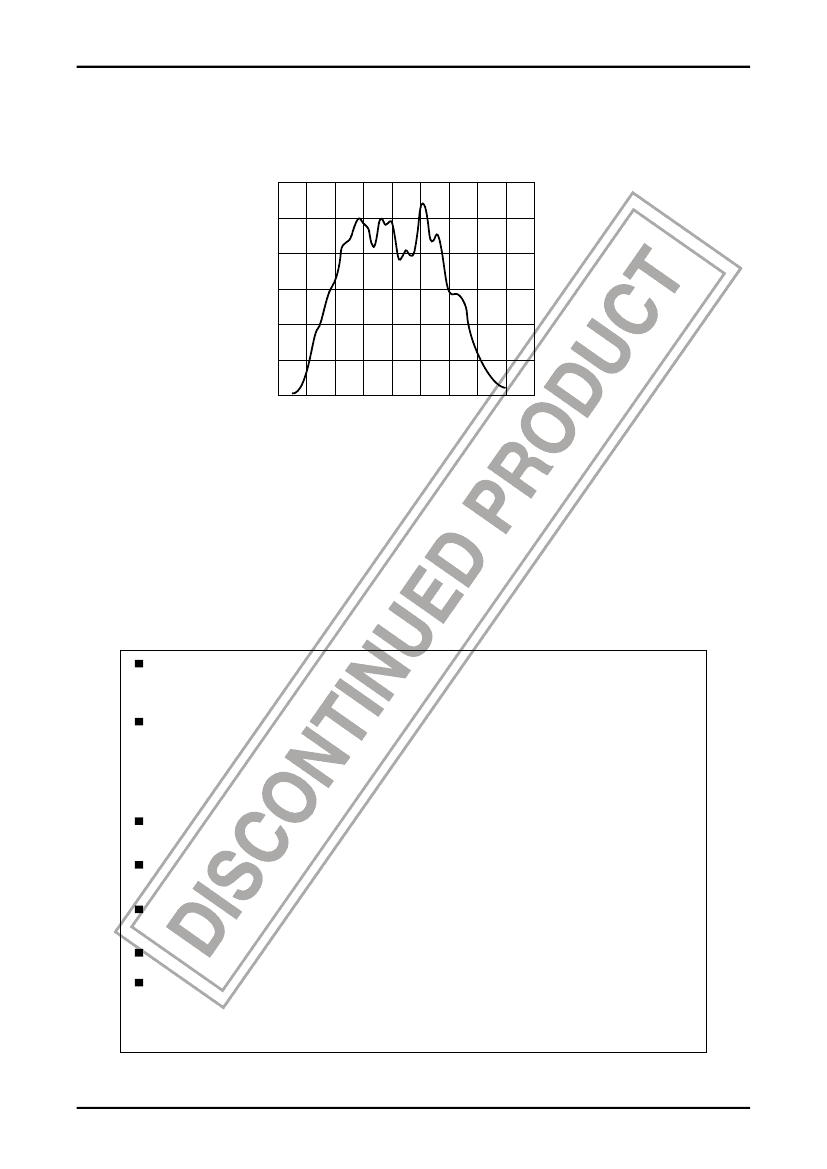

Spectral Response Characteristics
Example of standard sample: without lens and IR cut filter
120
100
Response - %
80
60
40
20
0
300
400
500
600
700
800
900
1000
1100
1200
Wavelength - nm
ICCD00002
Relative value against the maximum value under the visible light condition.
