Z852308VEC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> Z852308VEC

Z852308VEC: DescriptionSerial I/O Controller, 2 Channel(s), 0.25MBps, CMOS, PQCC44, PLASTIC, LCC-44; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，42 Pages; ManufacturerZilog, Inc.; Websitehttps://www.zilog.com/

Download Datasheet Parametric Compare View All

Z852308VEC Overview

Serial I/O Controller, 2 Channel(s), 0.25MBps, CMOS, PQCC44, PLASTIC, LCC-44

Z852308VEC Parametric

Parameter Name	Attribute value
Parts packaging code	LCC
package instruction	QCCJ,
Contacts	44
Reach Compliance Code	unknow
Other features	MODEM CONTROL I/OS USABLE AS GENERAL PURPOSE I/OS; 10 X 19 FRAME STATUS FIFO
boundary scan	NO
maximum clock frequency	8.5 MHz
letter of agreement	ASYNC, BIT; SYNC, BYTE; SYNC, HDLC; SYNC, SDLC; BISYNC; EXT SYNC
Data encoding/decoding methods	NRZ; NRZI-SPACE; BIPH-MARK(FM1); BIPH-SPACE(FM0); BIPH-LEVEL(MANCHESTER)
Maximum data transfer rate	0.25 MBps
External data bus width	8
JESD-30 code	S-PQCC-J44
length	16.5862 mm
low power mode	NO
Number of DMA channels
Number of I/O lines
Number of serial I/Os	2
Number of terminals	44
On-chip data RAM width
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified
RAM (number of words)	0
Maximum seat height	4.57 mm
Maximum slew rate	10 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
width	16.5862 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
Base Number Matches	1

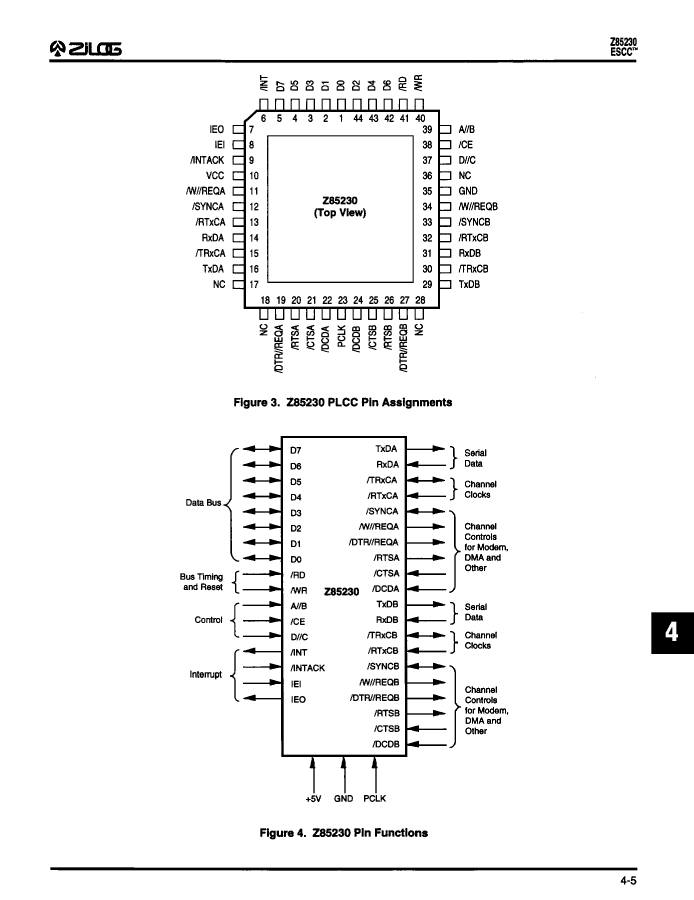

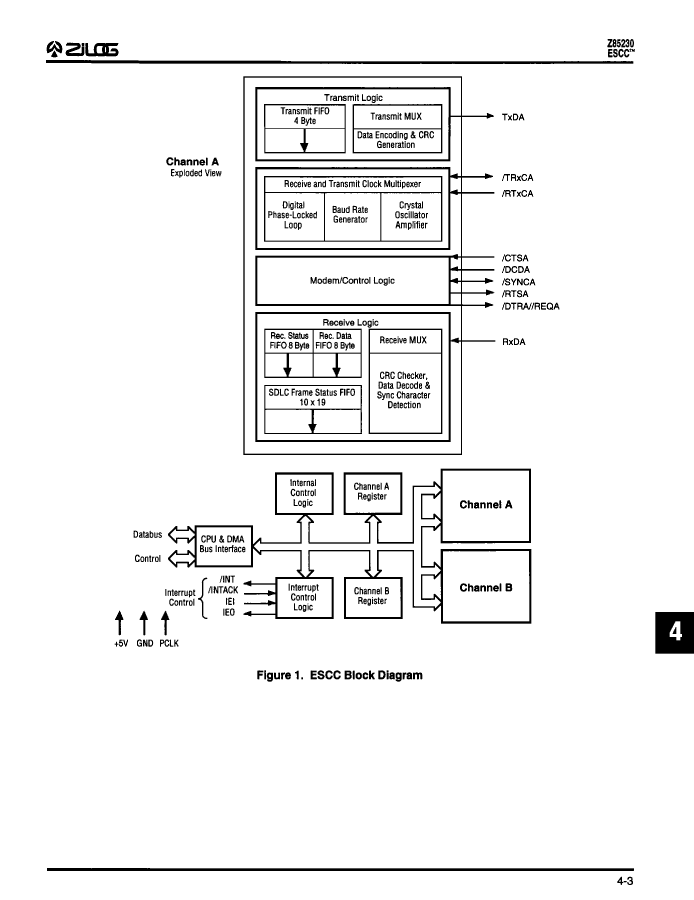

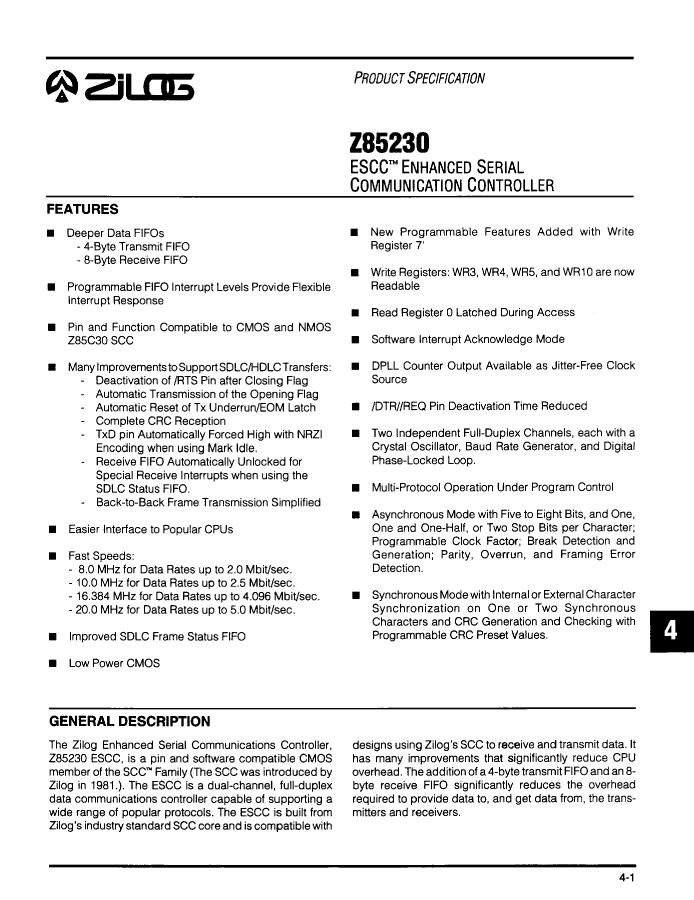

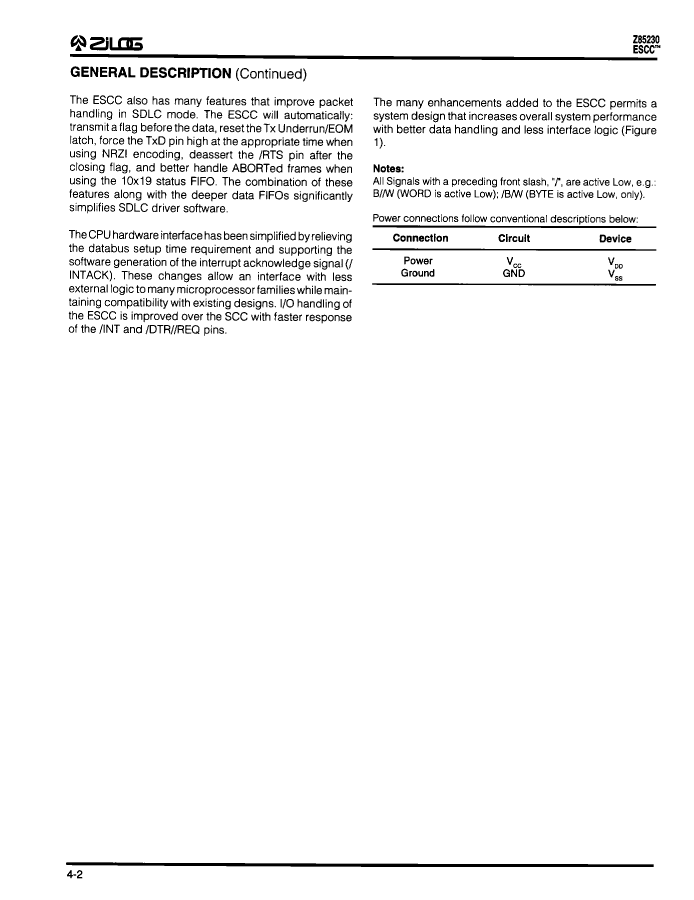

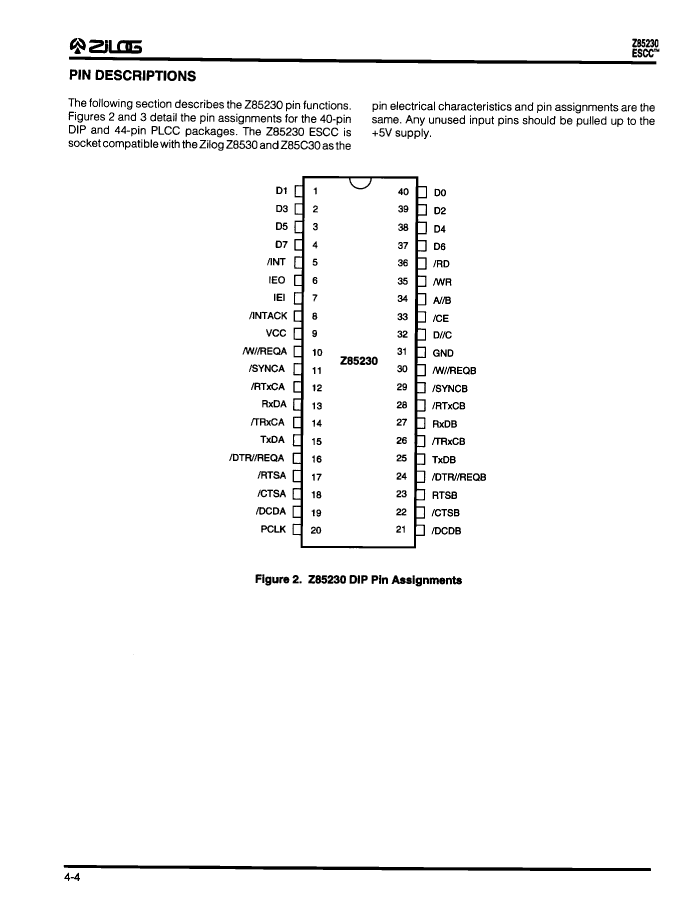

Preview

Download Datasheet

View All

Z852308VEC Related Products

	Z852308VEC	Z852308VSC	Z852308PEC	Z852308PSC
Description	Serial I/O Controller, 2 Channel(s), 0.25MBps, CMOS, PQCC44, PLASTIC, LCC-44	Serial I/O Controller, 2 Channel(s), 0.25MBps, CMOS, PQCC44, PLASTIC, LCC-44	Serial I/O Controller, 2 Channel(s), 0.25MBps, CMOS, PDIP40, PLASTIC, DIP-40	Serial I/O Controller, 2 Channel(s), 0.25MBps, CMOS, PDIP40, PLASTIC, DIP-40
Parts packaging code	LCC	LCC	DIP	DIP
package instruction	QCCJ,	QCCJ,	DIP,	DIP,
Contacts	44	44	40	40
Reach Compliance Code	unknow	unknow	unknown	unknown
Other features	MODEM CONTROL I/OS USABLE AS GENERAL PURPOSE I/OS; 10 X 19 FRAME STATUS FIFO	MODEM CONTROL I/OS USABLE AS GENERAL PURPOSE I/OS; 10 X 19 FRAME STATUS FIFO	MODEM CONTROL I/OS USABLE AS GENERAL PURPOSE I/OS; 10 X 19 FRAME STATUS FIFO	MODEM CONTROL I/OS USABLE AS GENERAL PURPOSE I/OS; 10 X 19 FRAME STATUS FIFO
boundary scan	NO	NO	NO	NO
maximum clock frequency	8.5 MHz	8.5 MHz	8.5 MHz	8.5 MHz
letter of agreement	ASYNC, BIT; SYNC, BYTE; SYNC, HDLC; SYNC, SDLC; BISYNC; EXT SYNC	ASYNC, BIT; SYNC, BYTE; SYNC, HDLC; SYNC, SDLC; BISYNC; EXT SYNC	ASYNC, BIT; SYNC, BYTE; SYNC, HDLC; SYNC, SDLC; BISYNC; EXT SYNC	ASYNC, BIT; SYNC, BYTE; SYNC, HDLC; SYNC, SDLC; BISYNC; EXT SYNC
Data encoding/decoding methods	NRZ; NRZI-SPACE; BIPH-MARK(FM1); BIPH-SPACE(FM0); BIPH-LEVEL(MANCHESTER)	NRZ; NRZI-SPACE; BIPH-MARK(FM1); BIPH-SPACE(FM0); BIPH-LEVEL(MANCHESTER)	NRZ; NRZI-SPACE; BIPH-MARK(FM1); BIPH-SPACE(FM0); BIPH-LEVEL(MANCHESTER)	NRZ; NRZI-SPACE; BIPH-MARK(FM1); BIPH-SPACE(FM0); BIPH-LEVEL(MANCHESTER)
Maximum data transfer rate	0.25 MBps	0.25 MBps	0.25 MBps	0.25 MBps
External data bus width	8	8	8	8
JESD-30 code	S-PQCC-J44	S-PQCC-J44	R-PDIP-T40	R-PDIP-T40
length	16.5862 mm	16.5862 mm	52.325 mm	52.325 mm
low power mode	NO	NO	NO	NO
Number of serial I/Os	2	2	2	2
Number of terminals	44	44	40	40
Maximum operating temperature	100 °C	70 °C	100 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	QCCJ	DIP	DIP
Package shape	SQUARE	SQUARE	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	CHIP CARRIER	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.57 mm	4.57 mm	4.24 mm	4.24 mm
Maximum slew rate	10 mA	10 mA	10 mA	10 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL
Terminal form	J BEND	J BEND	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	2.54 mm	2.54 mm
Terminal location	QUAD	QUAD	DUAL	DUAL
width	16.5862 mm	16.5862 mm	15.24 mm	15.24 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL	SERIAL IO/COMMUNICATION CONTROLLER, SERIAL
