BR16
Half-Size Crystal Can
Welded • DPDT
Dry Circuit to 2 Amps
•
UNIVERSAL CONTACTS…
permit operation from dry circuit to rated load with the same contact set.
•
UNIQUE HEAT SINK/MAGNETIC FLUX CONDUCTOR…
improves heat dissipation characteristics— insures
lower temperature rise.
•
SPECIALLY-DESIGNED MAGNETIC CIRCUIT…
locates armature inside coil for more efficient switching
action.
SPECIFICATIONS
GENERAL
Contact Arrangement
.......................... 2PDT (2 Form C)
Weight.......................................................
0.25 oz approx.
Designed to meet the requirements of MIL-PRF-39016.
PERFORMANCE
Contact Rating
(Note 1)
Resistive .........................................2 Amps @ 28 VDC
or 115V 400 Hz
(Case Ungrounded)
Low Level ............................ 10-50 µA @ 10-50 mv DC
or peak AC (Note 4)
Life
...................................100,000 operations minimum
o
@ rated load, 125 C
Pull In Power
............................................175 mw approx.
Operate/Release Time
...................................... 4 ms max
excluding bounce time at nominal coil voltage
Contact Bounce Time......
2 ms max @ 2 Amps 28 VDC
Contact Resistance
Before Life....................... 0.050 Ohms max @ 2 Amps
and 6 VDC
After Life .......................... 0.100 Ohms max @ 2 Amps
and 6 VDC
Notes:
1.
For case grounded loads and other ratings, consult the
factory.
For applications requiring other shock and vibration
levels, consult the factory.
3.
4.
2.
For other ratings consult the factory.
Relay contacts which have switched high level currents
are no longer suitable for switching low level loads.
ENVIRONMENTAL
o
o
Temperature Range
............................... -65 C to +125 C
Vibration
(Note 2)............................... 0.4" DA 10 - 38 Hz,
20 G's 38 - 2,000 Hz
Shock (Operating)
(Note 2) ........................ 50 G's 11 ms
ELECTRICAL CHARACTERISTICS
Duty Cycle........................................................Continuous
Insulation Resistance
o
10,000 megohms @ 500V 25 C
o
1,000 megohms @ 500V 125 C
Dielectric Strength:
Sea Level:
Contact to Case ................................... 1,000 VRMS
Contact to Coil ..................................... 1,000 VRMS
Coil to Case ............................................ 500 VRMS
Across Open Contacts ........................... 500 VRMS
70,000 Feet
All points.................................................. 350 VRMS
14930 E. Alondra Blvd., La Mirada, CA 90638-5752 (714) 994-6500 FAX (714) 994-3013
W: 2000 Rev. 2
BR16
COIL DATA:
MODEL BR16 PART NUMBER
NOMINAL COIL VOLTAGE
MAXIMUM COIL VOLTAGE
PULL IN VOLTAGE (MAX @ +125 C)
PULL IN VOLTAGE (MAX)
DROP OUT VOLTAGE (MIN)
COIL RESISTANCE ± 10% @ 25 C
o
o
BR16-50()()-6V
6 VDC
7.3 VDC
4.4 VDC
3 VDC
0.3 VDC
50 OHMS
BR16-190()()-12V
12 VDC
14.8 VDC
8.4 VDC
6 VDC
0.6 VDC
190 OHMS
BR16-900()()-26V
26 VDC
32 VDC
18 VDC
13 VDC
1.3 VDC
900 OHMS
BR16-2.8K()()-48V
48 VDC
59 VDC
33 VDC
24 VDC
2.4 VDC
2.8K OHMS
Relay Type
Nominal coil resistance
Terminal style
Mounting Type
Nominal coil voltage
BR16
SCHEMATIC
TERMINAL VIEW
-
900
A
1
-
26V

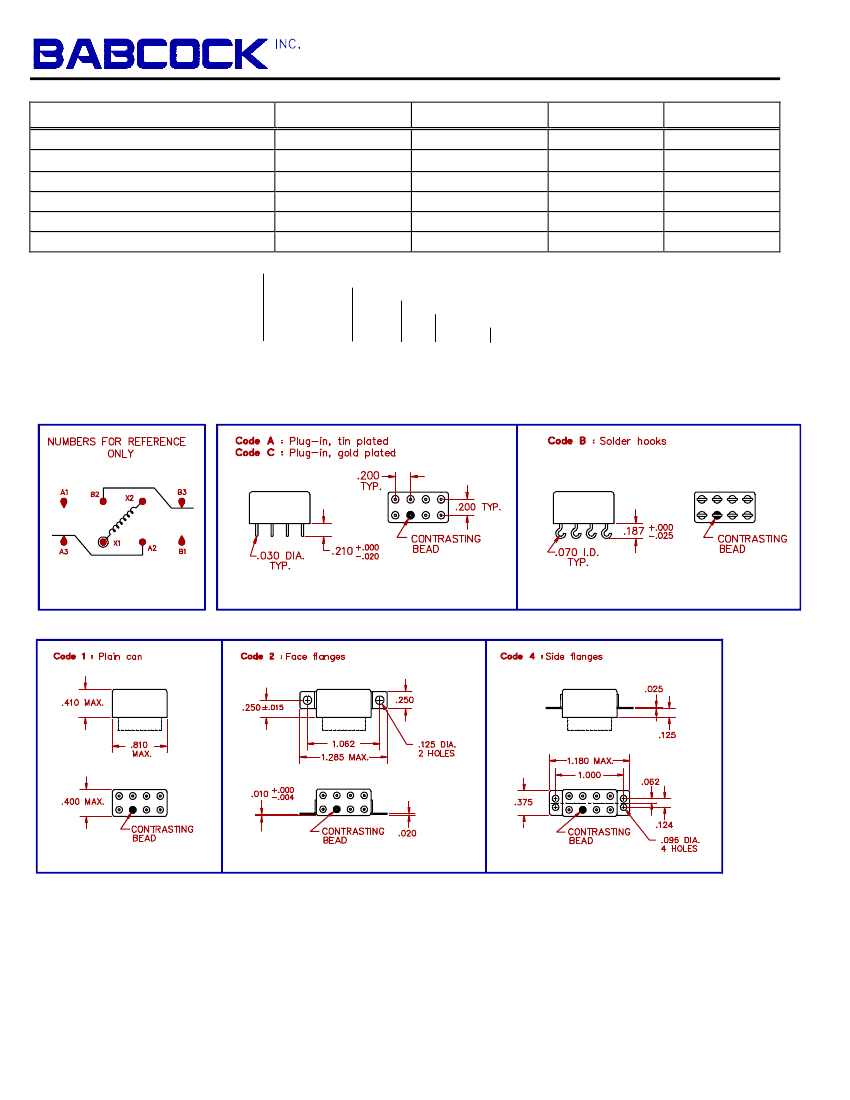

TERMINAL STYLES
MOUNTING CODES
GENERAL NOTES
• Unless otherwise specified, all tests made at nominal
o
coil voltages, @ 25 C.
• For special coil variations, switching configurations,
terminals styles and mounting types, consult the factory.
• Unless otherwise specified, tolerances on decimal
dimensions are ± .010".
• Specifications contained herein are subject to change
without notice.
W: 2000 Rev. 2
14930 E. Alondra Blvd., La Mirada, CA 90638-5752 (714) 994-6500 FAX (714) 994-3013
