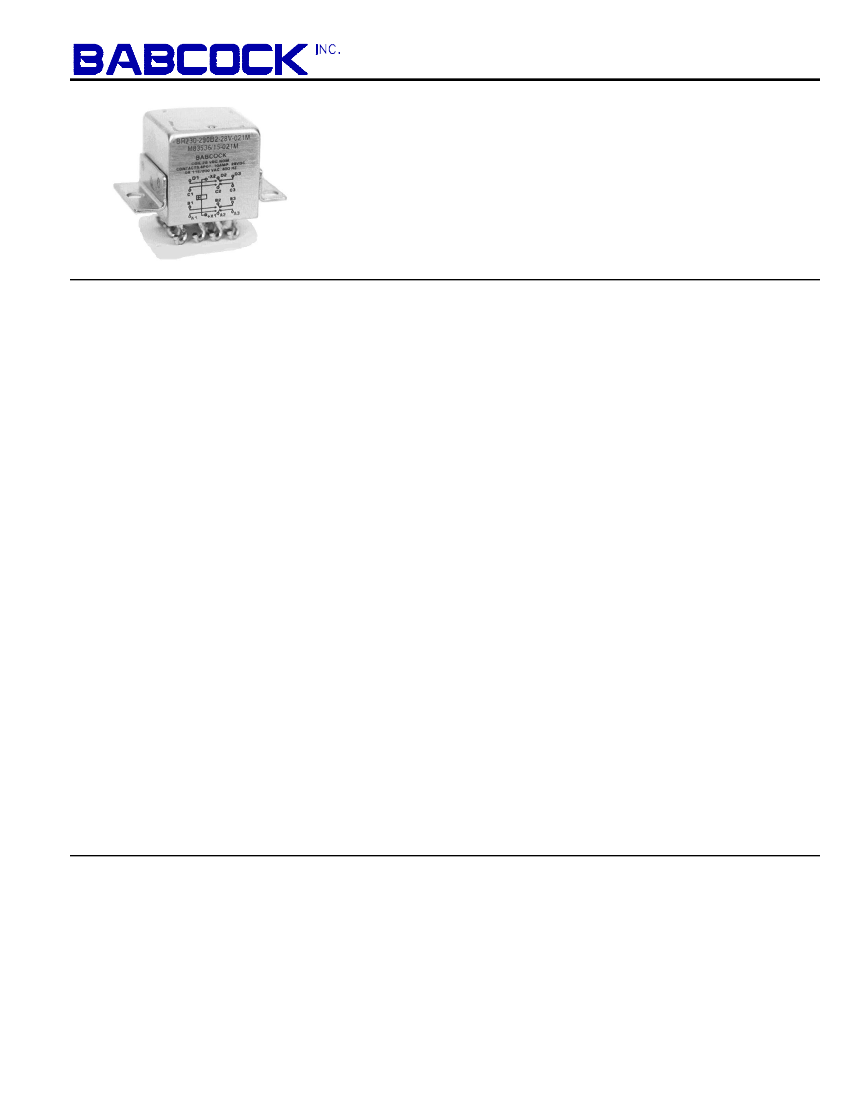

BR230
Miniature
10 Amps • 4PDT
To MIL-PRF-83536
SPECIFICATIONS
GENERAL
Operate/Release Time:
Contact Arrangement
.......................... 4PDT (4 Form C)
Weight..........................................................3.0
oz approx.
Designed to meet the requirements of MIL-PRF-83536
PERFORMANCE
Contact Rating
(Note 1):
Resistive ................................... 10 Amps @ 28 VDC or
115/208V 400 Hz
(Case Grounded)
Inductive ................................ 8 Amps @ @ 28 VDC or
115/208V 400 Hz
(Case Grounded)
2.5 Amps @ 115/208V 60 Hz
(Case Grounded)
Motor........................................... 4 Amps @ 28 VDC or
115/208V 400 Hz
(Case Grounded)
2 Amps @ 115/208V 60 Hz
(Case Grounded)
Lamp .......................................... 2 Amps @ 28 VDC or
115/208V 400 Hz
(Case Grounded)
1.5 Amps @ 115/208V 60 Hz
(Case Grounded)
.....................100,000 operations minimum @ rated
o
resistive load, 125 C
Pull In Power
............................................500 mw approx.
Life
DC Coil
AC Coil
15 ms max 50 ms max
Excluding bounce time at nominal coil voltage
Contact Bounce Time.......................................
1 ms max
@ rated contact load, 28 VDC
Contact Voltage Drop:
Before Life............................. 150 mv max @ 10 Amps
and 6 VDC
After Life ................................ 175 mv max @ 10 Amps
and 6 VDC
ENVIRONMENTAL
o
o
Temperature Range
............................... -70 C to +125 C
Vibration
(Note 2).............................. 0.12" DA 10 - 70 Hz
30 G's 70 - 3,000 Hz
Shock (Operating)(Note
2) ......................... 200 G's 6 ms
ELECTRICAL CHARACTERISTICS
Duty Cycle........................................................Continuous
Insulation Resistance...............................
100 megohms
o
@ 500V 25 C
Dielectric Strength:
Sea Level:
Contact to Case ................................... 1,250 VRMS
Contact to Coil ..................................... 1,250 VRMS
Coil to Case ......................................... 1,000 VRMS
Across Open Contacts ........................ 1,250 VRMS
80,000 Feet:
All Points ................................................. 350 VRMS
MIL-PRF-83536/15 QUALIFIED to ER level M
Notes:
1. For other ratings consult the factory.
2.
For applications requiring higher shock and
vibration, consult the factory.
3.
AC coil line frequency 50 to 400 Hz.
14930 E. Alondra Blvd., La Mirada, CA 90638-5752 (714) 994-6500 FAX (714) 994-3013
W:2000 Rev. 7
BR230
COIL DATA:
MODEL BR230 PART NUMBER
BR230-20()()-6V
BR230-78()()-12V
BR230-290()()-28V
BR230-890()()-48V
BR230AC-()()-115V
(Note 3)
NOMINAL COIL VOLTAGE
MAXIMUM COIL VOLTAGE
PULL IN VOLTAGE (MAX @ +125 C)
DROP OUT VOLTAGE (MAX)
COIL RESISTANCE ± 10% @ 25 C
o
o
6 VDC
8 VDC
4.5 VDC
1.8 VDC
20 OHMS
12 VDC
15 VDC
9 VDC
3.5 VDC
78 OHMS
28 VDC
29 VDC
18 VDC
5.1 VDC
290 OHMS
48 VDC
59 VDC
36 VDC
11 VDC
890 OHMS
115 VAC
122 VAC
90 VAC
5 - 30 VAC
I = 0.04 AMPS
--------------------------------------------------------------------------- Relay Type
--------------------------------------------------- Nominal coil resistance
---------------------------------------- Terminal style
------------------------------- Mounting Type
------------------ Nominal coil voltage
BR230

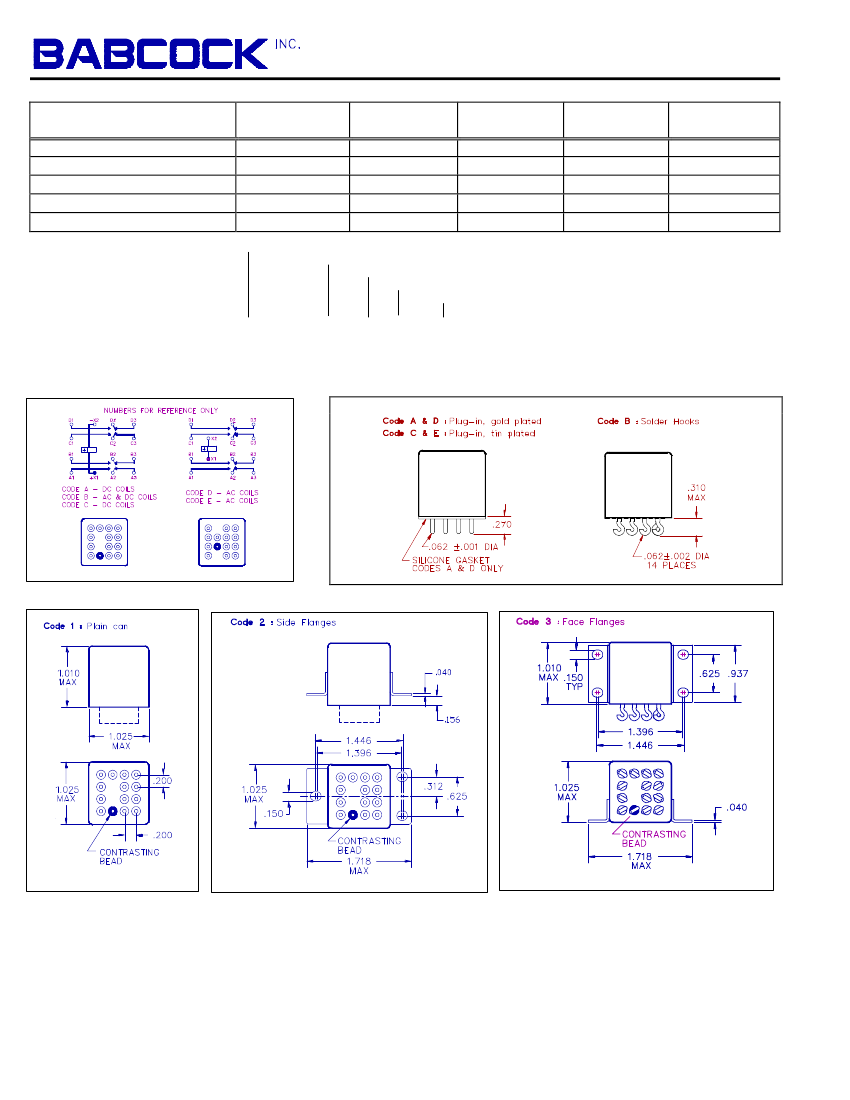

SCHEMATIC
TERMINAL VIEWS
-
290
C
2
-
28V
TERMINAL STYLES
MOUNTING CODES
GENERAL NOTES
• Unless otherwise specified, all tests made at nominal coil
o
voltages, @ 25 C.
• For special coil variations, switching configurations,
terminals styles and mounting types, consult the factory.
• Unless otherwise specified, tolerances on decimal
dimensions are ± .010".
• Specifications contained herein are subject to change
without notice.
W:2000 Rev. 7
14930 E. Alondra Blvd., La Mirada, CA 90638-5752 (714) 994-6500 FAX (714) 994-3013
