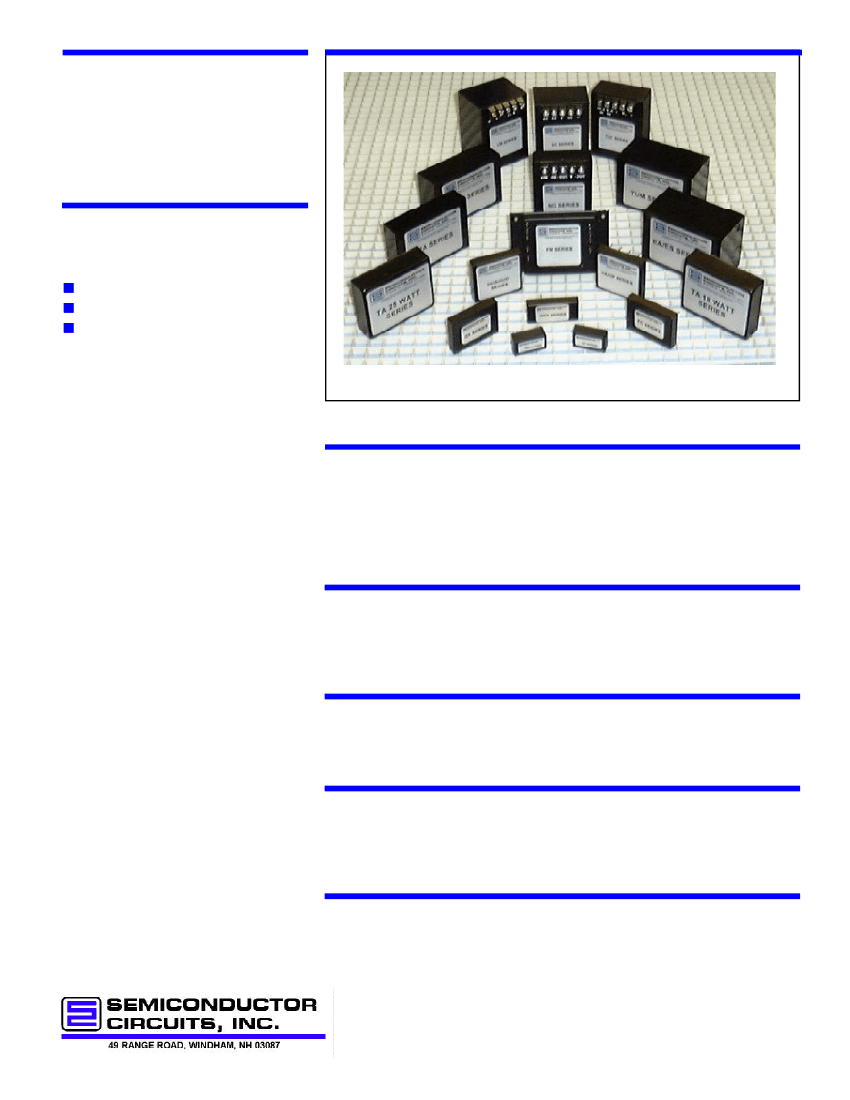

AC/DC
1-3 Watts
Single/Dual Outputs
SQ Series
High performace design
Ultra-low noise
Continuous short circuit
protection
Specifications
T
he SQ Series boast over a
decade of reliable, field proven
service and are the recognized
industry standard for high performance
AC/DC power supplies.
These economy priced units are
packaged to provide the user with
maximum space utilization in PC Board
applications having high density.
Features include MTBF’s of greater
than 150,000 hours, lower case tem-
perature rise (to 18°C cooler) and the
high in-circuit performance. This
higher efficiency results in lower
ambient temperatures and greater
system reliability. Dual output tracking
is standard.
INPUT
Voltage and Frequency
Standard
Suffix I
Suffix N
Suffix K
Suffix K2
105 to 125 Vac - 50 to 440 Hz
200 to 252 Vac - 50 to 60 Hz
90 to 110 Vac - 50 to 60 Hz
200 to 252 Vac - 50 to 60 Hz
105 to 125/210 to 250 Vac
OUTPUT
Voltage Tolerance
Ripple and Noise (PARD)
Short Circuit Protection
Temperature Coefficient
± 1%
1mV RMS
Current Limiting
0.02% / °C
GENERAL
I/O Isolation
Suffix I
1500 Vac
2500 Vac
ENVIRONMENTAL
Operating Temperature Range
Storage Temperature Range
Cooling
-25°C to +71°C-No Derating
-25°C to +85°C
Free-air Convection
All specifications are typical at nominal line and full load at 25°C unless otherwise noted and
are subject to change without notice.
SQ Series Ordering Information
Output
Voltage
5 Vdc
5 Vdc
12Vdc
±12Vdc
±12Vdc
±15Vdc
±15Vdc
±15Vdc
Output
Current
200mA
500mA
100mA
±50mA
±100mA
±30mA
±50mA
±100mA
Line
Regulation
0.25%
0.25%
0.25%
0.25%
0.25%
0.25%
0.25%
0.25%
Load
Regulation
0.4%
0.4%
0.4%
0.25%
0.25%
0.25%
0.25%
0.25%
Case
1
2
1
1
2
1
1
2
Model
SQ11-020
SQ11-050
SQ12-010
SQ22-010
SQ22-020
SQ23-006
SQ23-010
SQ23-020
Dimensions and Connections
CASE 1
0.88
(23)
1.25
(32)
CASE 2
.15 MIN.
(3.81)
.040 DIA. TYP.
(1.01)
1
3
.15 MIN.
(3.81)
1
.850
(21.59)
.040 DIA. TYP.
(1.01)
3
2.00
(50.80)
1.660
(42.16)
4
2.5
(63.5)
.850
(21.59)
2.0
(50.8)
4-40 insert
0.10 deep
2 plcs.
1.1
(28)
4
2
.17
(4.32) .15
(3.81)
1.700
(43.18)
2.00
(50.80)
5
.15
(3.81)
2
.25
(6.35) .17
(4.32)
.98
(24.8)
5
1.1
(28)
BOTTOM VIEW
ALL DIMENSIONS ARE IN INCHES (mm)
.15
(3.81)
1.96
(49.8)
2.30
(58.4)
BOTTOM VIEW
ALL DIMENSIONS ARE IN INCHES (mm)
PIN CONNECTIONS
Single Output
1. AC in high
2. AC in neutral
3. - Vdc out
4. No connect
5. + Vdc out
PIN CONNECTIONS
Dual Outputs
1. AC in high
2. AC in neutral
3. - Vdc Out
4. Output Common
5. + Vdc Out
NOTES:
1. Ripple measured with a 3.3 mf tantalum capacitor
across each output.
6/08/99
All specifications are typical at nominal line and full load at 25°C unless otherwise noted and
are subject to change without notice.
