5G536F-80T-FREQ

Description
CMOS/TTL Output Clock Oscillator, 1MHz Min, 50MHz Max, ROHS COMPLIANT, SMD, 6 PIN
CategoryPassive components    oscillator
File Size188KB,2 Pages
ManufacturerEuroquartz
Websitehttp://www.euroquartz.co.uk/
Environmental Compliance
Download Datasheet Parametric View All

5G536F-80T-FREQ Overview

CMOS/TTL Output Clock Oscillator, 1MHz Min, 50MHz Max, ROHS COMPLIANT, SMD, 6 PIN

5G536F-80T-FREQ Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerEuroquartz
Reach Compliance Codecompliant
Other featuresTRI-STATE; ENABLE/DISABLE FUNCTION; SYMMETRY 55/45 AND FREQUENCY DEVIATION 200 PPM ALSO AVAILLABLE
Maximum control voltage1.5 V
Minimum control voltage0.5 V
maximum descent time6 ns
Frequency Adjustment - MechanicalNO
Frequency offset/pull rate80 ppm
frequency stability100%
linearity10%
Installation featuresSURFACE MOUNT
Maximum operating frequency50 MHz
Minimum operating frequency1 MHz
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Oscillator typeCMOS/TTL
Output load2 TTL, 15 pF
physical size5.0mm x 3.2mm x 1.2mm
longest rise time6 ns
Maximum supply voltage5.5 V
Minimum supply voltage4.5 V
Nominal supply voltage5 V
surface mountYES
maximum symmetry60/40 %
EURO
QUARTZ

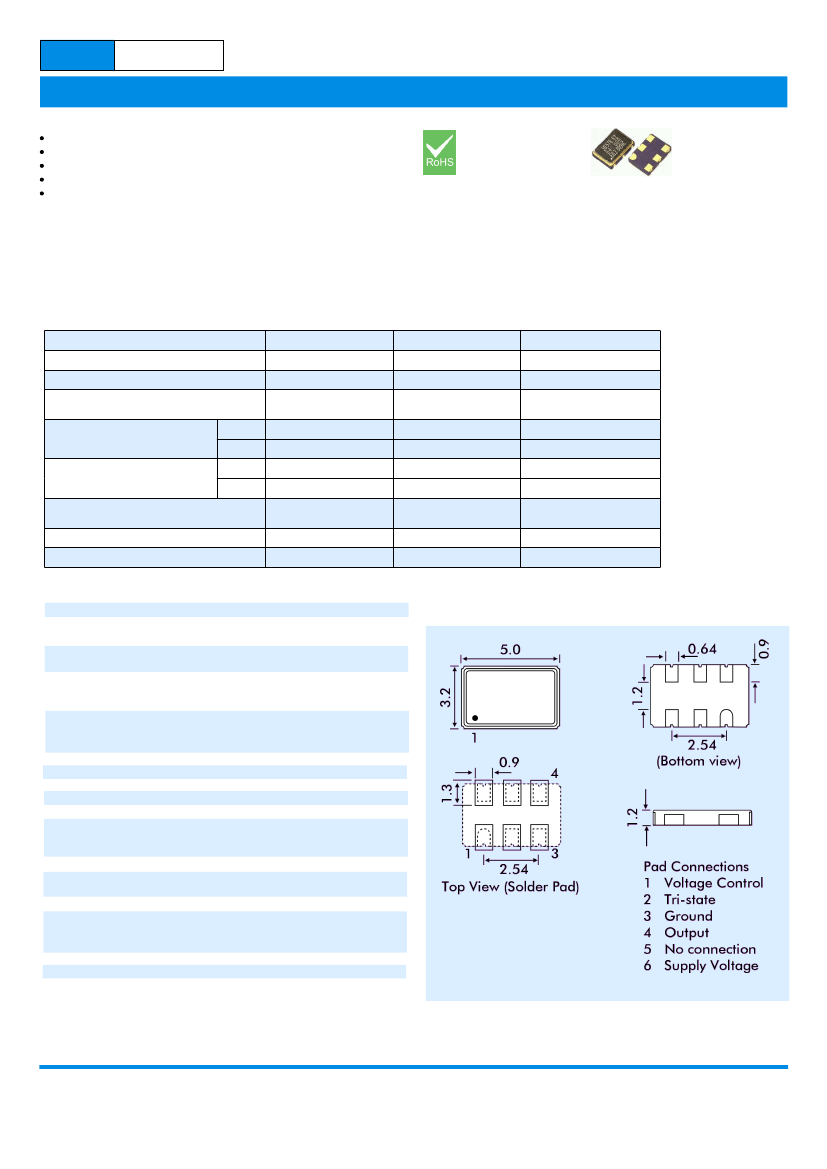

5.0 x 3.2 x 1.2mm 6 pad SMD
Industry-standard 5 x 3.2 x 1.2mm 6 pad SMD package
Frequency range 625kHz to 50.0MHz
CMOS/TTL Output
Supply Voltage 1.8, 3.3 or 5.0VDC
Integrated Phase Jitter 1ps maximum
G536 VCXO
625.0kHz ~ 50.0MHz
Page 1 of 2
DESCRIPTION & APPLICATIONS
G536 VCXOs are packaged in the industry-standard 5 x 3.2 x 1.2mm,
6 pad SMD package. G series VCXOs use fundamental mode crystal
oscillators for low phase noise. Applications include phase lock loop,
SONET/ATM, set-top boxes, MPEG , audio/video modulation, video
game consoles, Fibre Channel, FPGAs, Data Acquisition and HDTV.
SUPPLY VOLTAGE-DEPENDENT SPECIFICATION
Input Voltage (Vdd):
Frequency Range*:
Output Waveform:
Initial Frequency Accuracy:
TTL:
Output Logic HIGH '1'
CMOS:
TTL:
Output Logic LOW '0'
Frequency Deviation Range:
Control Voltage Centre
Control Voltage Range:
GENERAL SPECIFICATION
Frequency Stability:
Frequency Change
vs. Input Voltage:
Input Voltage:
Output Load
TTL:
CMOS:
Rise/Fall Time
TTL:
CMOS:
Duty Cycle:
Integrated Phase Jitter:
Period Jitter RMS:
Period Jitter Peak to Peak:
Start-up time:
Current Consumption:
6ns max, 4ns typ. (0.4V to 2.4V)
6ns max, 4ns typ. (20%~80% Vdd)
50±10% standard, 50±5% option
1ps maximum (12kHz to 20MHz)
2.0ps typical
14ps
10ms max., 3ms typical
10 to 45mA, frequency dependant
(27MHz: 10mA typical at 3.3V,
20mA typical at 5.0VDC)
6% typical, 10% maximum
10kHz min., measured at Vcont =
1.65V or2.5V.
1MΩ typical
Monotonic and Positive, increasing
control voltage increases output
frequency.
±3ppm per year maximum
RoHS Compliant and lead (Pb) free
No connection to Tris-State pad or
Vdd -0.5V min. is applied.
Tri-State pad grounded or +0.5V
max. is applied.
2TTL gates
15pF
See table
±5ppm max. (V
DD
±5%)
+1.8V±5%, +3.3V±5% or
5.0V±10%
OUTLINE & DIMENSIONS
CMOS:
Vdd = +1.8VDC ±5% Vdd = +3.3VDC ±5% Vdd = +5.0VDC ±10%
16.0MHz ~ 50.0MHz
TTL/CMOS
To tune to nominal fr.
with Vc=0.9±0.15V
----
1.62V (min.)
----
0.183V (max.)
Standard: ±80ppm
(min.)
0.9VDC
0V to 1.8V
0.625MHz ~ 50.0MHz
TTL/CMOS
To tune to nominal fr.
with Vc=1.65±0.2V
2.4V (min.)
2.97V (min.)
0.4V (max.)
0.33 (max.)
Standard: ±80ppm
(min.)
1.62VDC
0.3V to 3.0V
1.0MHz ~ 50.0MHz
TTL/CMOS
To tune to nominal fr.
with Vc=2.5±0.2V
2.4V (min.)
4.5V (min.)
0.4V (max.)
0.5V (max.)
Std: ±80ppm (min.)
±200ppm available
2.5VDC
0.5V to 1.5V
Linearity:
Modulation Bandwidth:
Input Impedance:
Slope Polarity:
Ageing:
RoHS Status:
Tri-State
Enable:
Disable:
