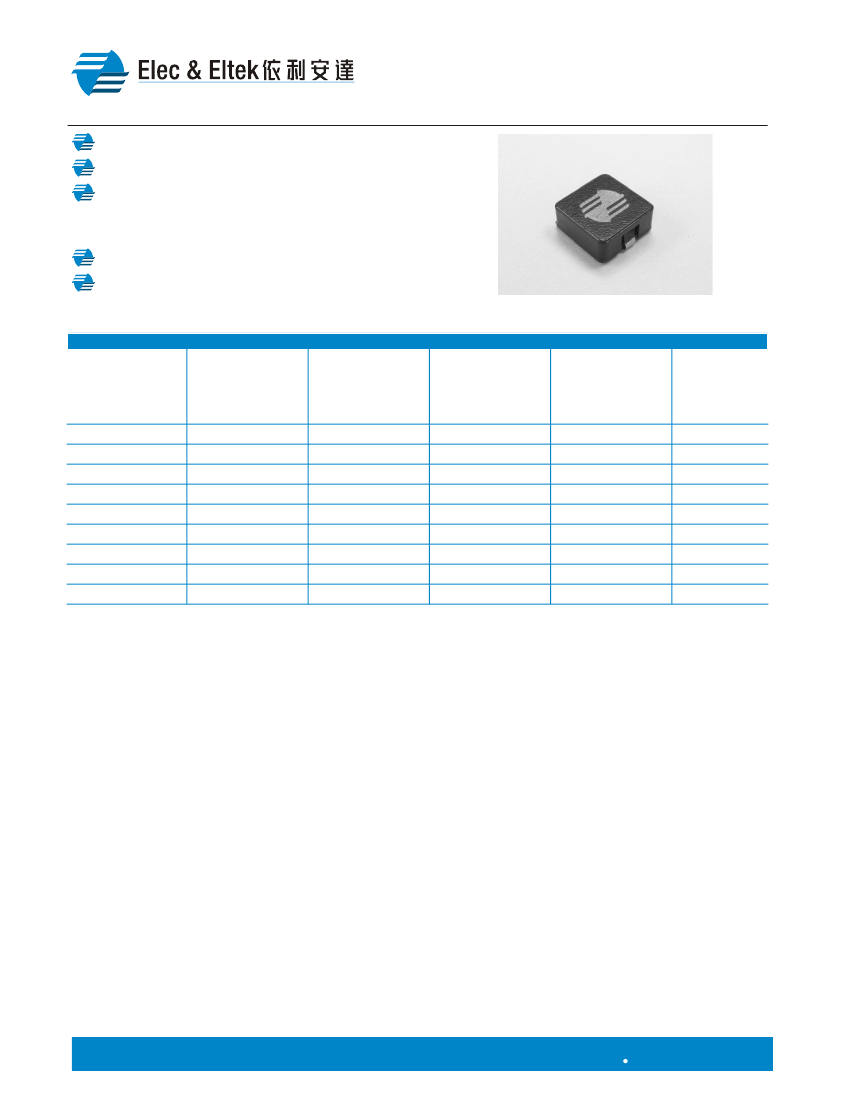

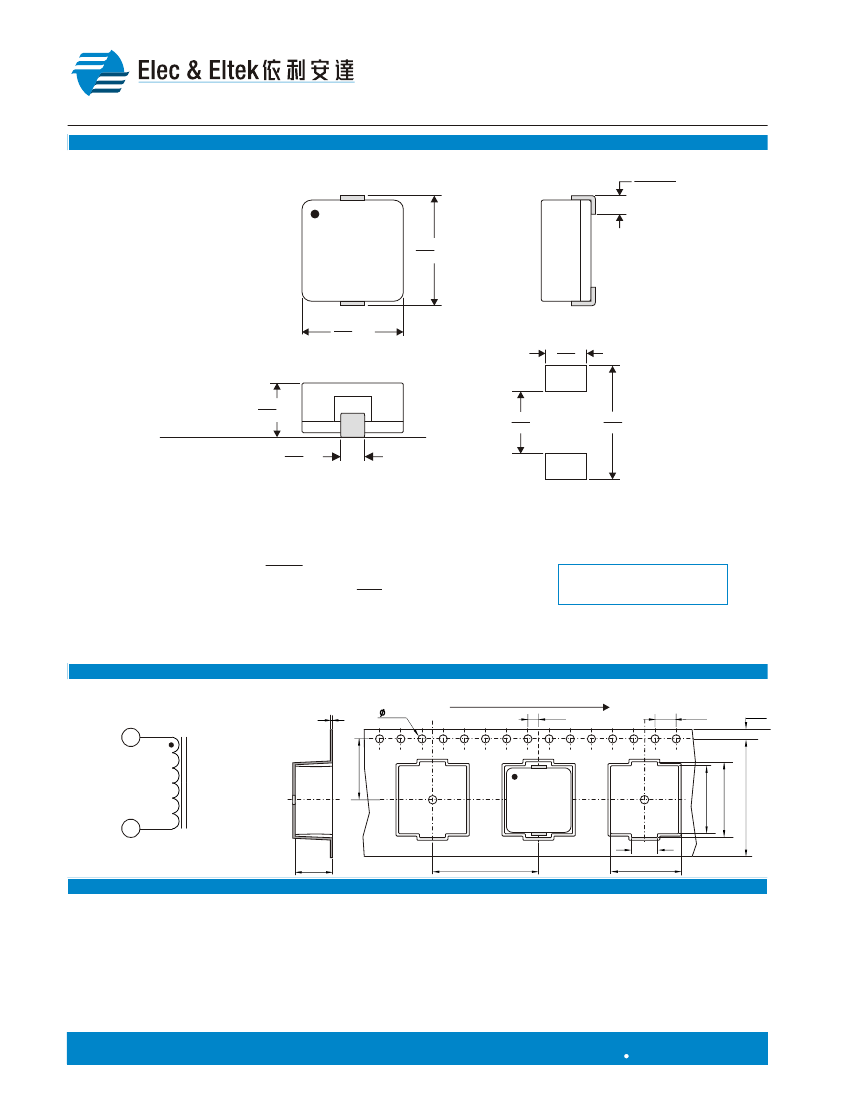

E & E Magnetic Products Limited
HIGH CURRENT
SMT POWER INDUCTORS
RIS1265A Series
Used in high power application
Large permissible DC current
Ideal for computers and portable power devices,
DC-DC converters, energy storage applications
and Input-Output filter applications
Operating temperature -55°C to +125°C
RoHS compliant
E
LECTRICAL
S
PECIFICATION @
25°C
Part
Number
Inductance
@0Adc
(mH±20%)
0.47
0.56
0.68
0.82
1.00
1.50
2.20
3.30
6.80
2
DCR
(mW Max)
1.20
1.40
1.60
1.90
2.00
3.00
4.20
6.80
14.00
Saturation
Current
Isat(A)
51
46
42
38
35
28
23
19
13
3
Heating
Current
Irms(A)
41
37
35
33
32
27
22
18
11.5
4
Marking
(XXXY)
R47M
R56M
R68M
R82M
1R0M
1R5M
2R2M
3R3M
6R8M
RIS1265A-R47MF
RIS1265A-R56MF
RIS1265A-R68MF
RIS1265A-R82MF
RIS1265A-1R0MF
RIS1265A-1R5MF
RIS1265A-2R2MF
RIS1265A-3R3MF
RIS1265A-6R8MF
Notes:
1. Ordering Information: RIS1265A - bbbaFc.
RIS1265A
a
bbb
F
c
= Product Type.
= Tolerance of Inductance (M =
±20%).
= Inductance value in uH (i.e. R68 = 0.68uH; 6R8 = 6.8uH ).
= Internal Control Code.
= Packaging Code (T = Tape & Reel Packaging in 13 inch Reel).
2. Inductance is tested at 100kHz, 0.1Vrms, 0Adc.
3. Saturation current, Isat, is the DC current at which the inductance of the component drops by 20% typical at ambient
temperature of 25°C.
4. Heating current, Irms, is the current required to raise the part temperature by approximately 40°C.
5. The part temperature (ambient temperature + temperature rise) should not exceed the upper limit of the operating
temperature under worst case operating conditions. Circuit design, component placement, PWB trace size and
thickness, airflow and other cooling provisions all affect the part temperature. Part temperature should be verified
in the end application.
1/F., Harbour View 1, No.12 Science Park East Avenue, Phase II, Hong Kong Science Park, Shatin, N.T. Hong Kong
Tel: (852) 2954 3333
Fax: (852) 2954 3304
1
PI128(02)
Revised in 06/12
E & E Magnetic Products Limited
HIGH CURRENT
SMT POWER INDUCTORS
RIS1265A Series
S
CHEMATICS
M
ECHANICAL
D
IMENSIONS
.091±.012
2.30±0.30
1
1265A
XXXYF
(DATE)
2
.543
13.80 Max
.510
12.95 Max
.205
5.20
.256 Max
6.50
Reference or
Gauge Plane
.307
7.80
2
.559
14.20
.165 Typ
4.20
Recommended
Pad Layout
Notes:
6. All dimensions are specified in inches with higher precedence in mm.
mm
7. U
nless otherwise specified, all tolerances are
±
.010
.
0.25
Weight (in gram)
Tape & Reel
:
:
3.5 typ.
350 / reel
S
CHEMATIC
1.55
P
ACKAGING
USER DIRECTION OF UNREELING
0.40
2.0
4.0
1.75
1
11.50
1265A
XXXYF
(DATE)
13.40
14.60
2
5.00
7.00
20.00
13.10
FOR MORE INFORMATION, PLEASE CONTACT
HEADQUARTER
1/F., Harbour View 1, No.12 Science Park East Avenue,
Phase II, Hong Kong Science Park, Shatin, N.T.
Hong Kong
Tel: (852) 2954 3333 Fax: (852) 2954 3304
Email: eempl@eleceltek.com
Website: http://www.eleceltek.com / www.eemagnetic.com
