DATA SHEET
SILICON POWER TRANSISTOR
2SD1695
NPN SILICON EPITAXIAL TRANSISTOR (DARLINGTON CONNECTION)
FOR LOW-FREQUENCY POWER AMPLIFIERS AND LOW-SPEED SWITCHING
The 2SD1695 is a Darlington connection transistor and
incorporates a dumper diode between the collector and emitter and
a constant voltage diode and protection elements between the
collector and base. This transistor is ideal for drives in solenoid and
actuators.

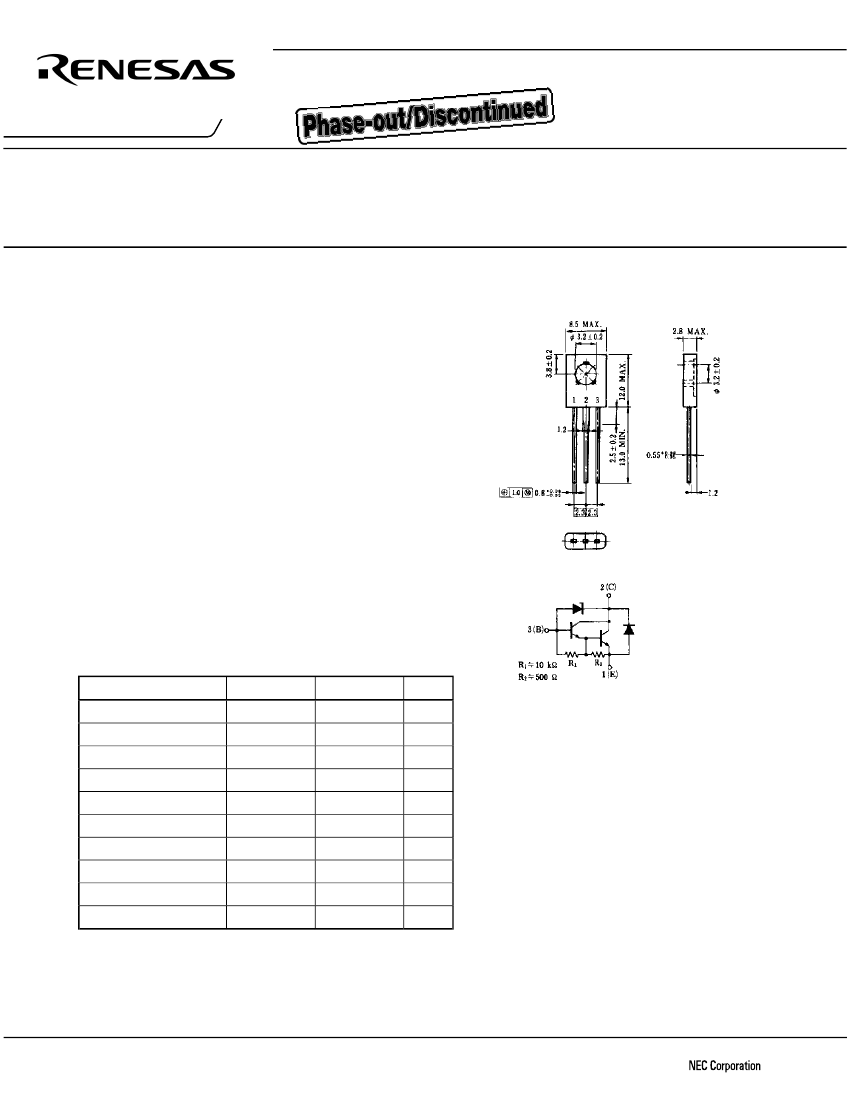

PACKAGE DRAWING (UNIT: mm)
FEATURES
• On-chip protection elements enable time and cost reduction.
C to E: Dumper diode
C to B: Constant diode
• Low collector saturation voltage
QUALITY GRADES
• Standard
Please refer to “Quality Grades on NEC Semiconductor Devices”
(Document No. C11531E) published by NEC Corporation to know
the specification of quality grade on the devices and its
recommended applications.
Electrode Connection
1. Emitter
2. Collector
3. Base
4. Collector (fin)

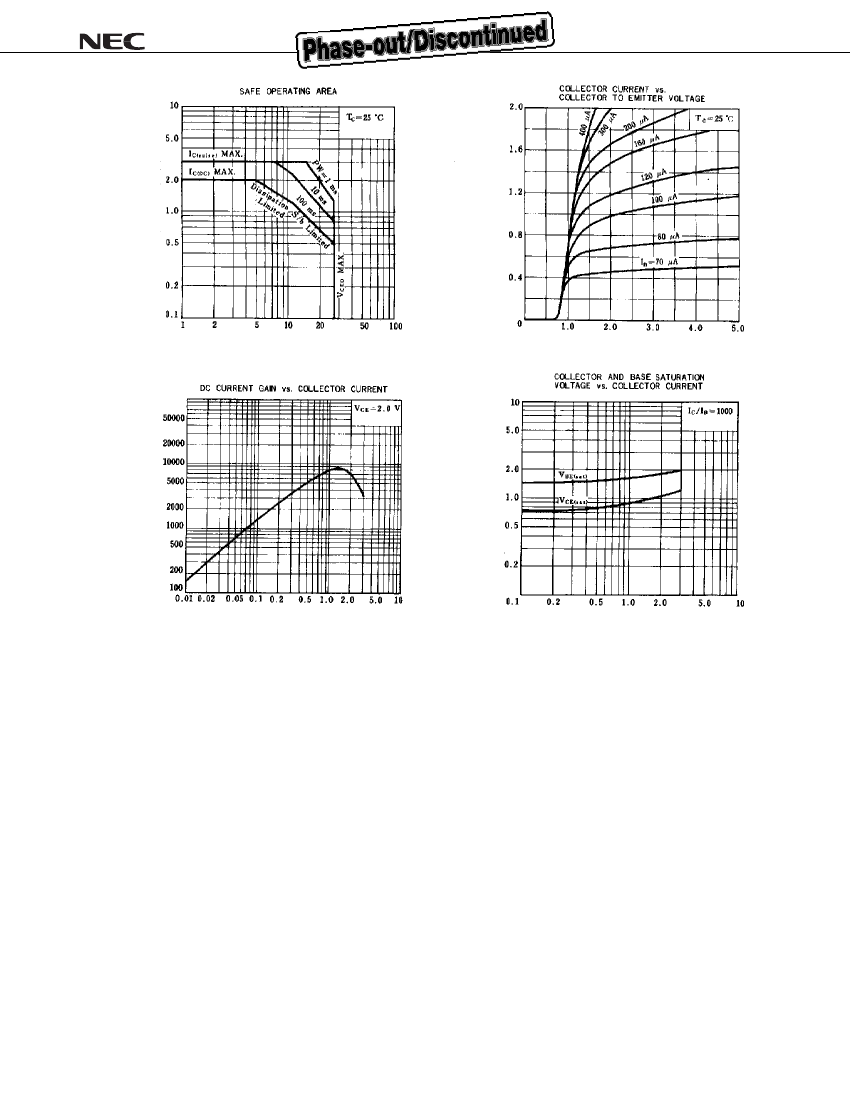

ABSOLUTE MAXIMUM RATINGS (Ta = 25°C)
°
Parameter
Collector to base voltage
Collector to emitter voltage
Emitter to base voltage
Collector current (DC)
Collector current (pulse)
Base current (DC)

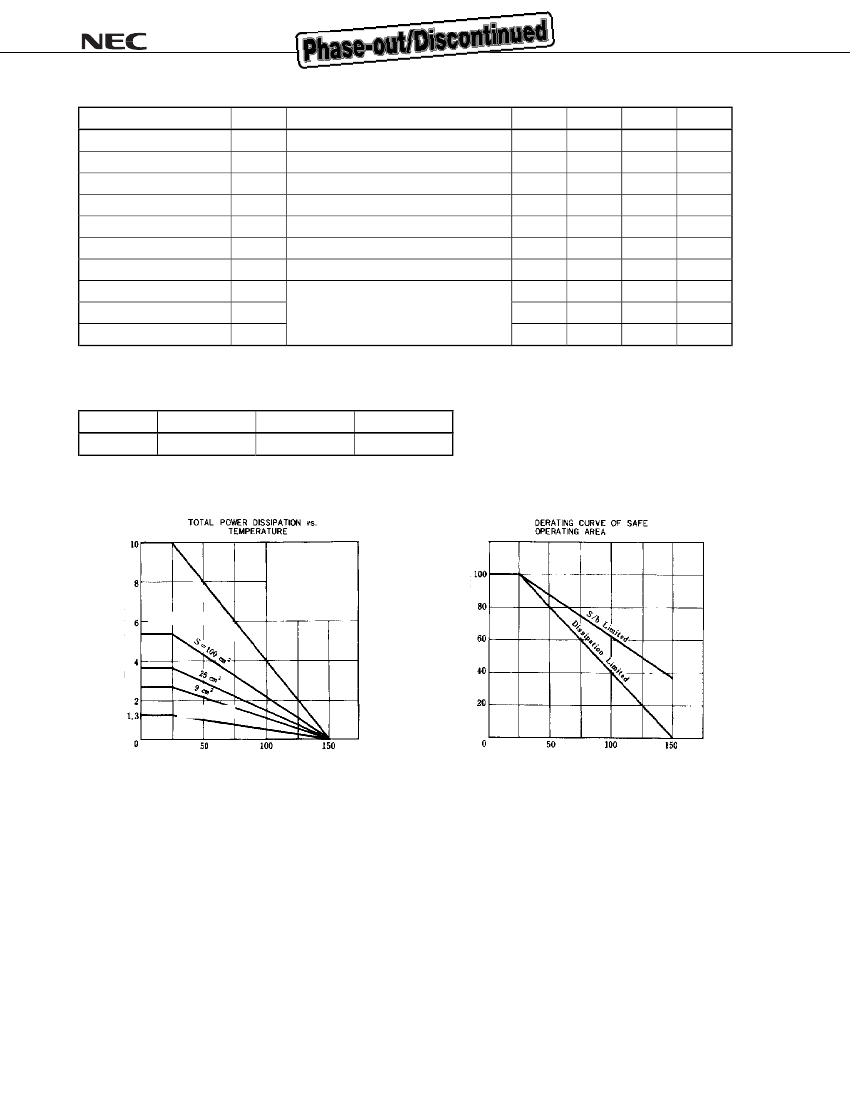

Total power dissipation
Total power dissipation
Junction temperature
Storage temperature
Symbol
V
CBO
V
CEO
V
EBO
I
C(DC)
I
C(pulse)
*
I
B(DC)
P
T
(Ta = 25°C)
P
T
(Tc = 25°C)
T
j
T
stg
Ratings
31
±4
31
±4
8.0
±2.0
±3.0
0.2
1.3
10
150
−55
to +150
Unit
V
V
V
A
A
A
W
W
°C
°C
* PW
≤
10 ms, duty cycle
≤
50%
The information in this document is subject to change without notice. Before using this document, please
confirm that this is the latest version.
Not all devices/types available in every country. Please check with local NEC representative for
availability and additional information.
Document No. D16138EJ1V0DS00
Date Published April 2002 N CP(K)
Printed in Japan
©
