R570652005: DescriptionRF Coaxial Relay, SPDT, Latched, 0.32A (Coil), 12VDC (Coil), 3840mW (Coil), 12400MHz, DC Input, DC Output, Panel Mount; CategoryMechanical and electronic products relay; File Size84KB，2 Pages; ManufacturerRadiall; Websitehttps://www.radiall.com/

Download Datasheet Parametric View All

R570652005 Overview

RF Coaxial Relay, SPDT, Latched, 0.32A (Coil), 12VDC (Coil), 3840mW (Coil), 12400MHz, DC Input, DC Output, Panel Mount

R570652005 Parametric

Parameter Name	Attribute value
Maker	Radiall
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	TNC, BUILT-IN SELF CUT OFF
body width	22.9 mm
body height	48 mm
Body length or diameter	67 mm
Characteristic impedance	50 Ω
Maximum coil current (DC)	0.32 A
Coil power	3840 mW
Coil resistance	38 Ω
Maximum coil voltage (DC)	12 V
Coil/Input Power Type	DC
Contact/Output Power Type	DC
Electrical life	1000000 Cycle(s)
Maximum insertion loss	0.5 dB
Manufacturer's serial number	R570
Installation features	PANEL MOUNT
Maximum operating frequency	12400 MHz
Minimum operating frequency
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	67mm X 22.9mm X 48mm
Relay action	LATCHED
Relay function	SPDT
Relay type	RF COAXIAL RELAY
surface mount	NO
switching time	15 ms
Termination type	CONNECTOR
voltage standing wave ratio	1.5

Preview

Download Datasheet

View All

COAXIAL

SWITCHES

N - TNC - BNC

-

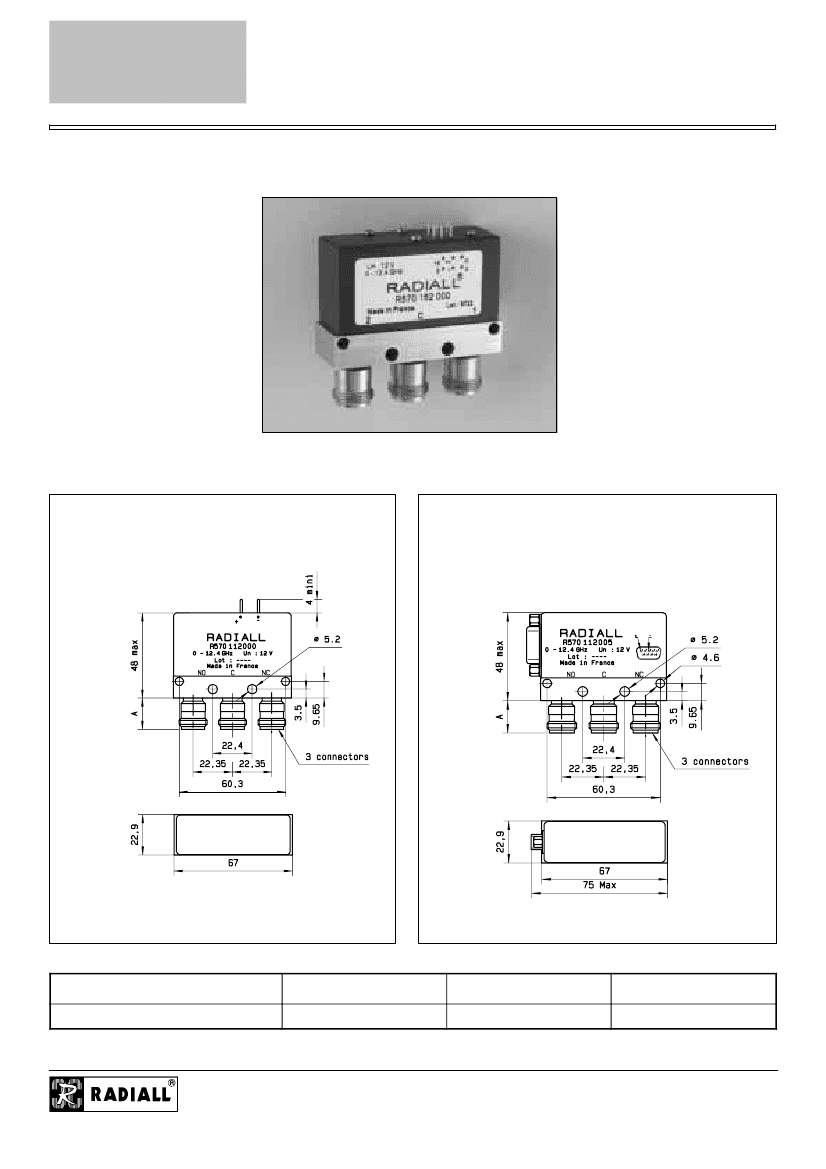

COAXIAL SPDT up to 12.4 GHz --- RAMSES Concept

R570 . . .

Connectors RF

0

1

2

5

6

:

N

up to 3 GHz

N

up to 12.4 GHz

BNC

up to 3 GHz

TNC

up to 3 GHz

TNC

up to 12.4 GHz

. . .

Actuator terminal

0

: Solder Pins

5

: D SUB

Options

0

1

3

4

:

Without option

Positive common (2)(3)

With suppression diodes (1)

With suppression diodes and

positive common (2)(3)

Type

1

2

3

4

5

6

:

Failsafe

Failsafe + I.C.

Latching

Latching + I.C.

Latching + S.C.O.(1)

Latching + S.C.O. + I.C.(1)

TTL option

I.C.

:

Indicator contact.

S.C.O.

:

Self Cut Off

(1)

:

Suppression diodes are already included in Self cut-

-off and

TTL options

(2)

:

TTL option is not available with this option

(3)

: Positive common must be specified only with Type 3, 4, 5 or 6

N / TNC

BNC

DC - 3

3-8

1.35

.35

70

50

Break Before Make

8 - 12.4

1.50

.50

60

DC - 1

1.15

.15

85

1-2

1.20

.20

80

2-3

1.25

.25

75

0

: Without TTL driver

1

: With TTL driver (1)

Actuator voltage

2

: 12 Vdc

3

: 28 Vdc

GENERAL SPECIFICATIONS - RF PERFORMANCES

Connectors

Frequency range

V.S.W.R. (max)

Insertion Loss (max)

Isolation (min)

Impedance

Switching sequence

dB

W

GHz

DC - 1

1.15

.15

85

1-2

1.20

.20

80

DC - 3 / DC - 12.4

2-3

1.25

.25

75

GENERAL SPECIFICATIONS - ADDITIONAL SPECIFICATIONS

Operating mode

Actuator voltage (nominal)

Coil resistance (±10%)

Operating current at 23_C

_

Average power

Peak power

TTL INPUT

Indicator rating

Switching time (max)

Life

Connectors

Actuator terminals

Operating temperature range

Storage temperature range

ms

kW

High level

Low level

Vdc

W

mA

12

34

350

Failsafe or Latching

Failsafe

28

200

140

1.5 (1

ms,

1 ‰)

2.2 to 5.5 V

0 to 0.8 V

1 W - 30 V - 100 mA

-

15

1 10

6

cycles

N - TNC - BNC

-

Solder pins or D SUB 9 PINS

12

38

320

Latching

28

225

125

See Power Rating Chart page 9

_

C

_

C

-

-40, +85

-

-55, +85

20
