2SB920LS: DescriptionTRANSISTOR,BJT,PNP,80V V(BR)CEO,5A I(C),TO-220AB; CategoryDiscrete semiconductor The transistor; File Size296KB，3 Pages; ManufacturerON Semiconductor; Websitehttp://www.onsemi.cn

Download Datasheet Parametric Compare View All

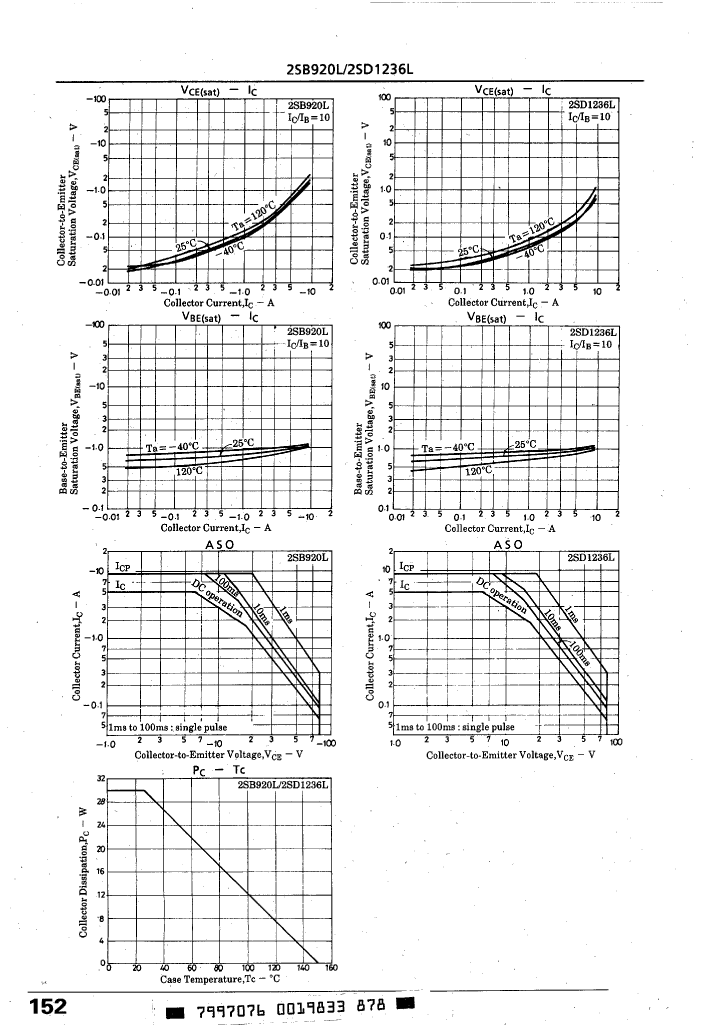

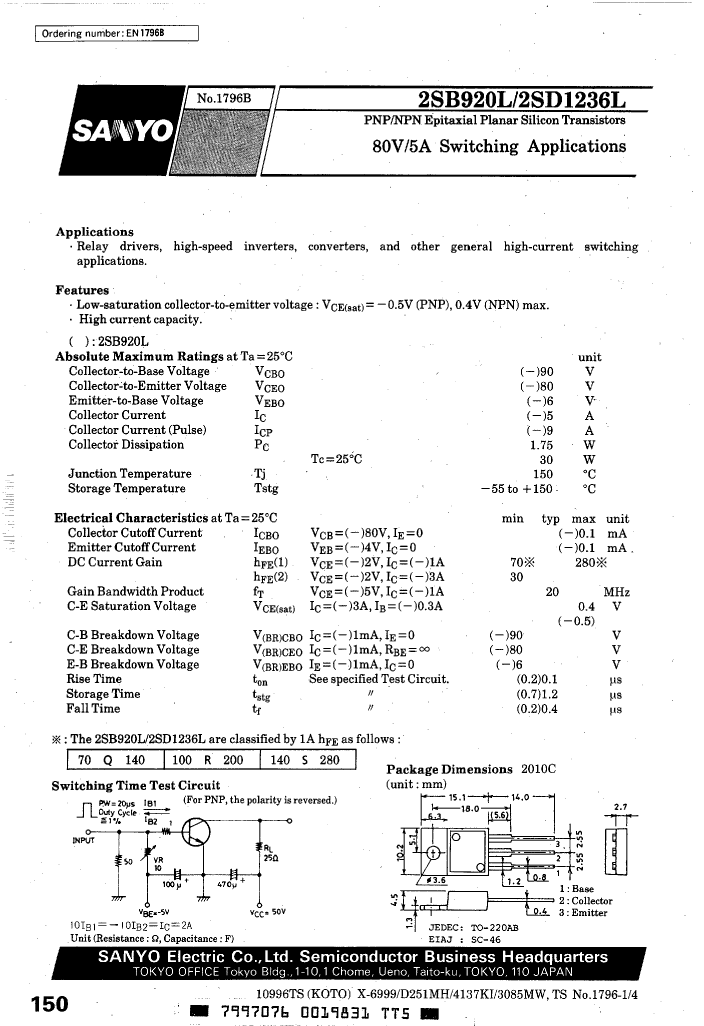

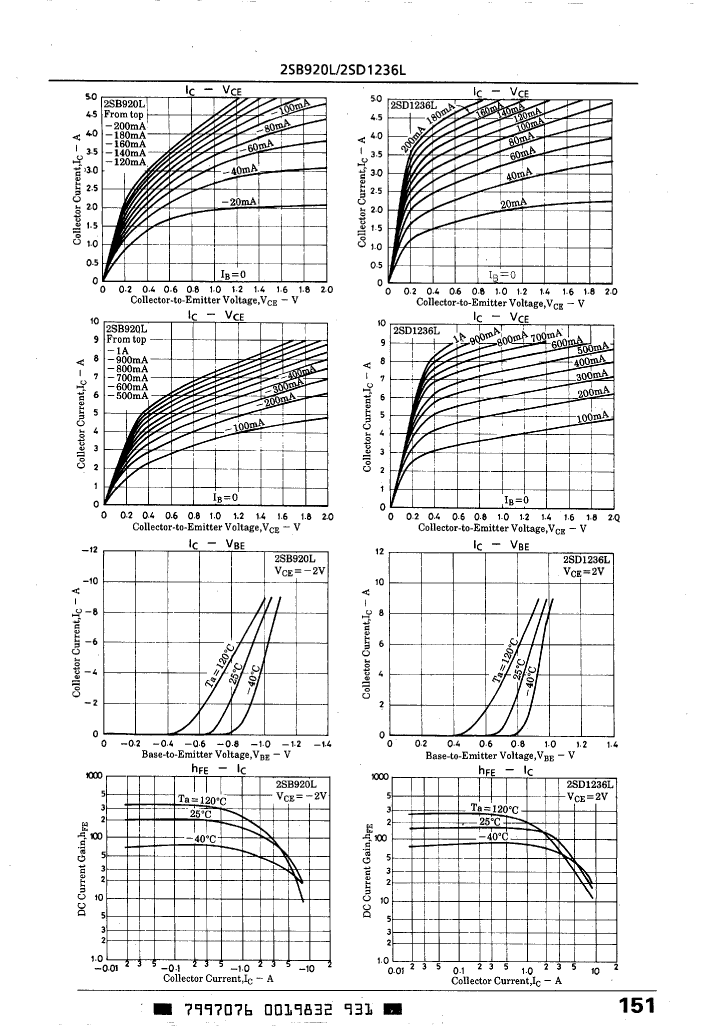

2SB920LS Overview

TRANSISTOR,BJT,PNP,80V V(BR)CEO,5A I(C),TO-220AB

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	compli
Maximum collector current (IC)	5 A
Configuration	Single
Minimum DC current gain (hFE)	140
Maximum operating temperature	150 °C
Polarity/channel type	PNP
Maximum power dissipation(Abs)	30 W
surface mount	NO
Nominal transition frequency (fT)	20 MHz
Base Number Matches	1

	2SB920LS	2SD1236L	2SD1236LR	2SB920LQ
Description	TRANSISTOR,BJT,PNP,80V V(BR)CEO,5A I(C),TO-220AB	TRANSISTOR,BJT,NPN,80V V(BR)CEO,5A I(C),TO-220AB	TRANSISTOR,BJT,NPN,80V V(BR)CEO,5A I(C),TO-220	TRANSISTOR,BJT,PNP,80V V(BR)CEO,5A I(C),TO-220AB
Reach Compliance Code	compli	compli	compli	compli
Maximum collector current (IC)	5 A	5 A	5 A	5 A
Configuration	Single	Single	Single	Single
Minimum DC current gain (hFE)	140	70	100	70
Maximum operating temperature	150 °C	150 °C	140 °C	150 °C
Polarity/channel type	PNP	NPN	NPN	PNP
Maximum power dissipation(Abs)	30 W	30 W	1.7 W	30 W
Nominal transition frequency (fT)	20 MHz	20 MHz	20 MHz	20 MHz
Base Number Matches	1	1	1	1
surface mount	NO	-	NO	NO
