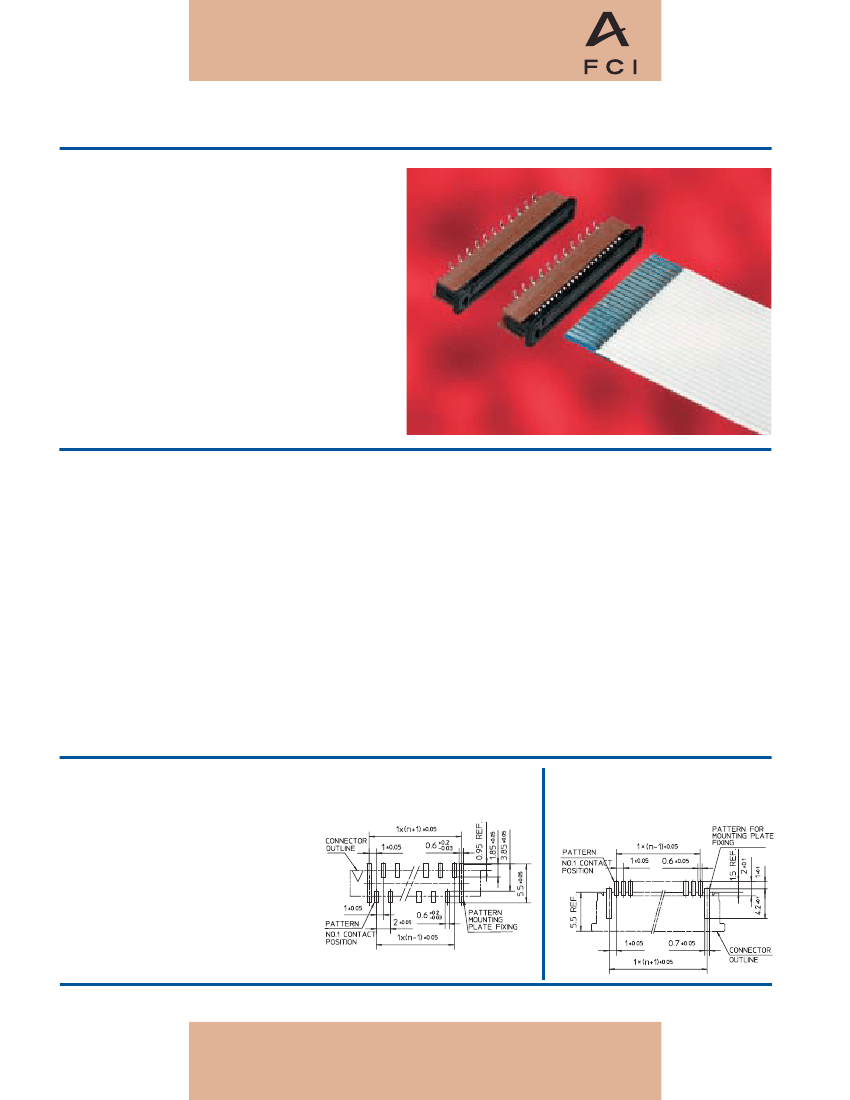

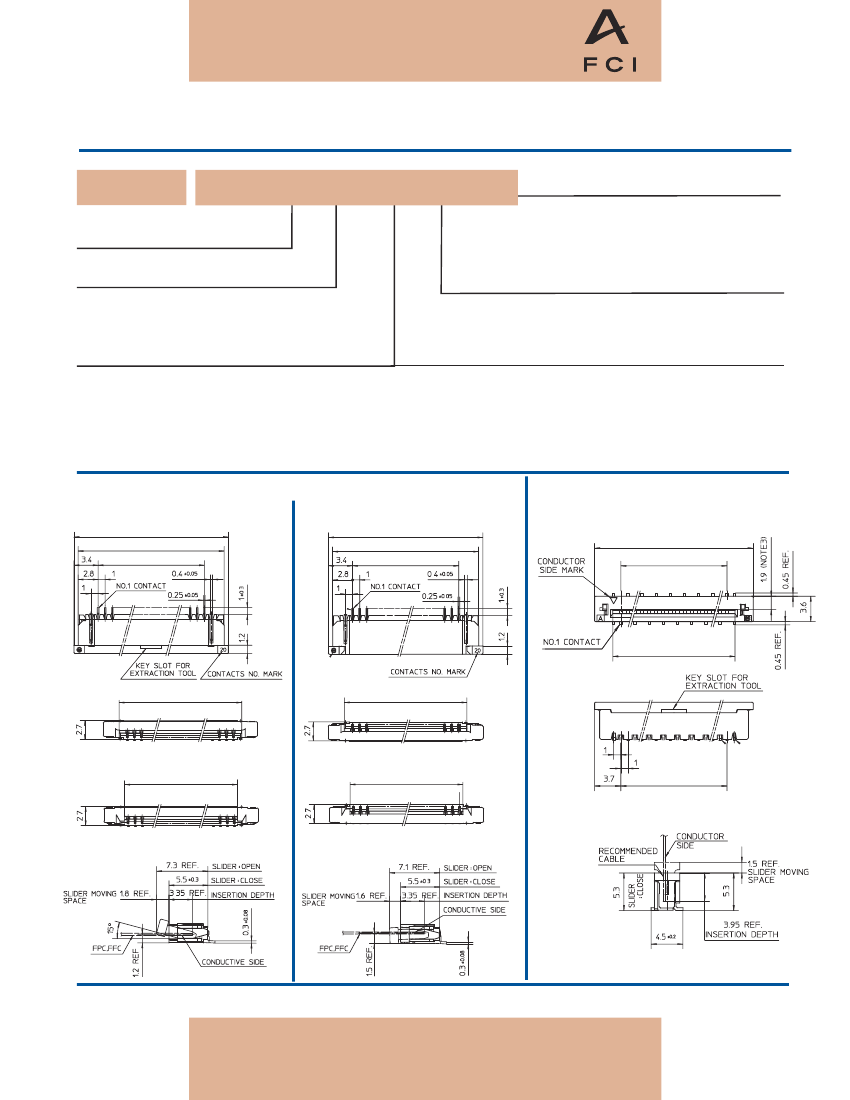

SFW series - ZIF / SMT
1.00 mm Spacing for FFC / FPC / CIC
Features
■
Available in 4 to 30 positions (right angle)
and 4 to 32 positions (straight)
■
Top and Bottom contacts
■
Cable lock option
■
Optional mounting devices (straight)
■
Excellent cable retention with
small size slider
Benefits
■
The Gas-Tight, High pressure (GTH) contact system ensures a low cost connection
with reliability equal to gold plating.
■
The Zero Insertion Force (ZIF) connection allows an increased number of
mating cycles with minimal wear.
■
The ZIF pre-holding process provides a stable and reliable mating operation.
■
The slider ensures maximum cable retention with a minimum size.
■
The cable lock option provides cable strain relief as well as full retention of cable.
■
Fork shaped contacts mean stable and low contact resistance.
■
Product variations cover a broad range of application.
■
Optional mounting devices provide PCB hold-down and strain relief for SMT tails,
highly desirable for lower positions.
Technical Data
Material
Housing
:
For Right angle version:
PPS, glass reinforced, UL94V-0
For FPC / FCC :
housing color: Brown (with cable-lock: Black)
slider color : Black (with cable-lock: Brown)
For CIC :
housing color: Brown (with cable-lock: Black)
slider color : Black (with cable-lock: Brown)
For Vertical version:
Heat-resisting Resin, glass reinforced, UL94V-0
housing color: Brown; slider color : Black
Contact
: Phosphor Bronze, Tin alloy plated
PC Board pattern
(component side)
Straight
Right angle
Technical Support / Drawings / Specifications :
www.fciconnect.com
12
The most flexible solution
SFW series - ZIF / SMT
1.00 mm Spacing for FFC / FPC / CIC
Ordering Data
Series
SFW 20 R - 1 ST E1
4 to 30
Number of contacts
Packaging
Right angle E1 = tape-and-reel 2000 pcs
E3 = tape-and-reel 200 pcs
Straight
E1 = tape-and-reel 1000 pcs
Terminal type
R = Right angle
S = Straight
Straight terminal not available on: 7, 9, 11, 12,
13, 14, 21, 25, 27, 29, 31, 32 positions
Cable type
1 = FPC/FFC downside contact
2 = FPC/FFC upside contact
3 = FPC (with cable-lock) downside contact
4 = FPC (with cable-lock) upside contact
(cable types 1, 3, 4, 5, 7, 8 for side entry only)
PCB mounting
ST
= SMT type
STM = SMT with mounting device (top entry only)
5
6
7
8
=
=
=
=
CIC
CIC
CIC
CIC
downside contact
upside contact
(with cable-lock) downside contact
(with cable-lock) upside contact
Dimensions
Right angle
downside contact
upside contact
_
1 x total no. of pos +5.8 +
0.20
_
1 x total no. of pos +4.6 +
0.20
_
1 x total no. of pos -1.0 +
0.20
_
1 x total no. of pos +5.8 +
0.20
_
1 x total no. of pos +4.6 +
0.20
_
1 x total no. of pos -1.0 +
0.20
Straight
_
1 x total no. of pos +6.4 +
0.20
_
1 x total no. of pos -1.0 +
0.20
_
1 x total no. of pos -1.24 +
0.20
_
1 x total no. of pos +1.3 +
0.10
_
1 x total no. of pos +1.3 +
0.10
without cable lock
_
1 x total no. of pos -0.08 +
0.10
without cable lock
_
1 x total no. of pos -0.08 +
0.10
_
1 x total no. of pos -1.0 +
0.20
with cable lock
with cable lock
Circuitry Type
For Recommended Circuitry type see page 27 and 28
Technical Support / Drawings / Specifications /
www.fciconnect.com
Dimensions in mm
The most flexible solution
13
