QEN14BHRJQ2510.000MHZ datasheet, PDF

QEN14BHRJQ2510.000MHZ: DescriptionHCMOS/LSTTL Output Clock Oscillator, 10MHz Nom, DIL-14; CategoryPassive components oscillator; File Size433KB，3 Pages; ManufacturerRakon Limited; Environmental Compliance

Download Datasheet Parametric View All

QEN14BHRJQ2510.000MHZ Overview

HCMOS/LSTTL Output Clock Oscillator, 10MHz Nom, DIL-14

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Rakon Limited
Reach Compliance Code	unknown
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
frequency stability	25%
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	10 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	HCMOS/LSTTL
Output load	5 LS TTL, 15 pF
physical size	20.7mm x 13.1mm x 5.08mm
longest rise time	10 ns
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	NO
maximum symmetry	45/55 %

FREQUENCY

QEN14

DIL14 Pin Full Size XO – Communications Equipment Application

Specification (Rev-B)

Electrical Characteristics ......................................................P01

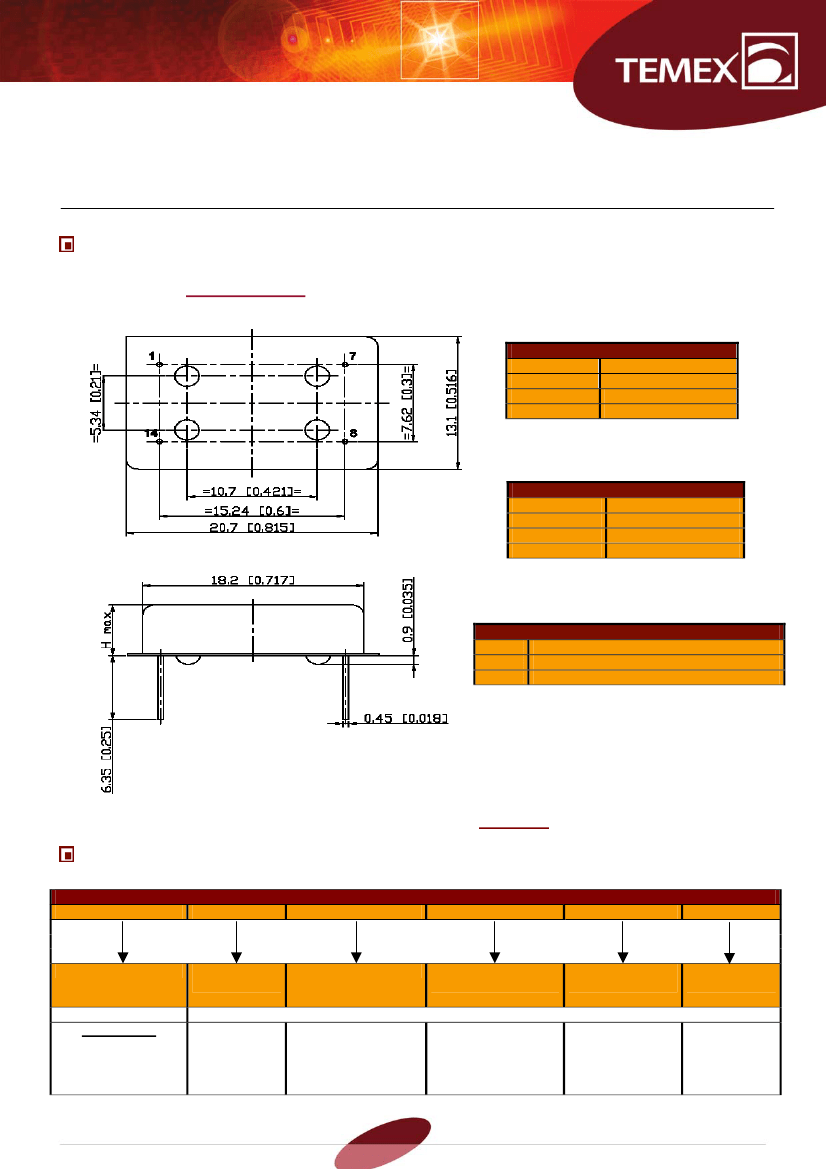

Mechanical Characteristics ...................................................P02

Ordering Information .............................................................P02
