SJT06RT

Description
MIL Series Connector, Aluminum Alloy, Female; Male, Crimp Terminal, Plug
CategoryThe connector    The connector
File Size331KB,1 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric Compare View All

SJT06RT Overview

MIL Series Connector, Aluminum Alloy, Female; Male, Crimp Terminal, Plug

SJT06RT Parametric

Parameter NameAttribute value
MakerAmphenol
Reach Compliance Codeunknown
Other featuresSTANDARD: MIL-DTL-38999, MAX CONTACTS (SERIES)=128
Back shell typeSOLID
Body/casing typePLUG
Connector typeMIL SERIES CONNECTOR
Contact point genderFEMALE; MALE
Coupling typeBAYONET
DIN complianceNO
empty shellNO
Environmental characteristicsMOISTURE RESISTANT
Filter functionNO
IEC complianceNO
MIL complianceYES
Manufacturer's serial numberSJT
Mixed contactsNO
Installation typeCABLE
OptionsGENERAL PURPOSE
Shell surfaceANODIC; CADMIUM PLATED; CHROMATE; ELECTROLESS NICKEL; OLIVE DRAB CADMIUM PLATED
Shell materialALUMINUM
Housing size8; 10; 12; 14; 16; 18; 20; 22; 24
Termination typeCRIMP

SJT06RT Preview

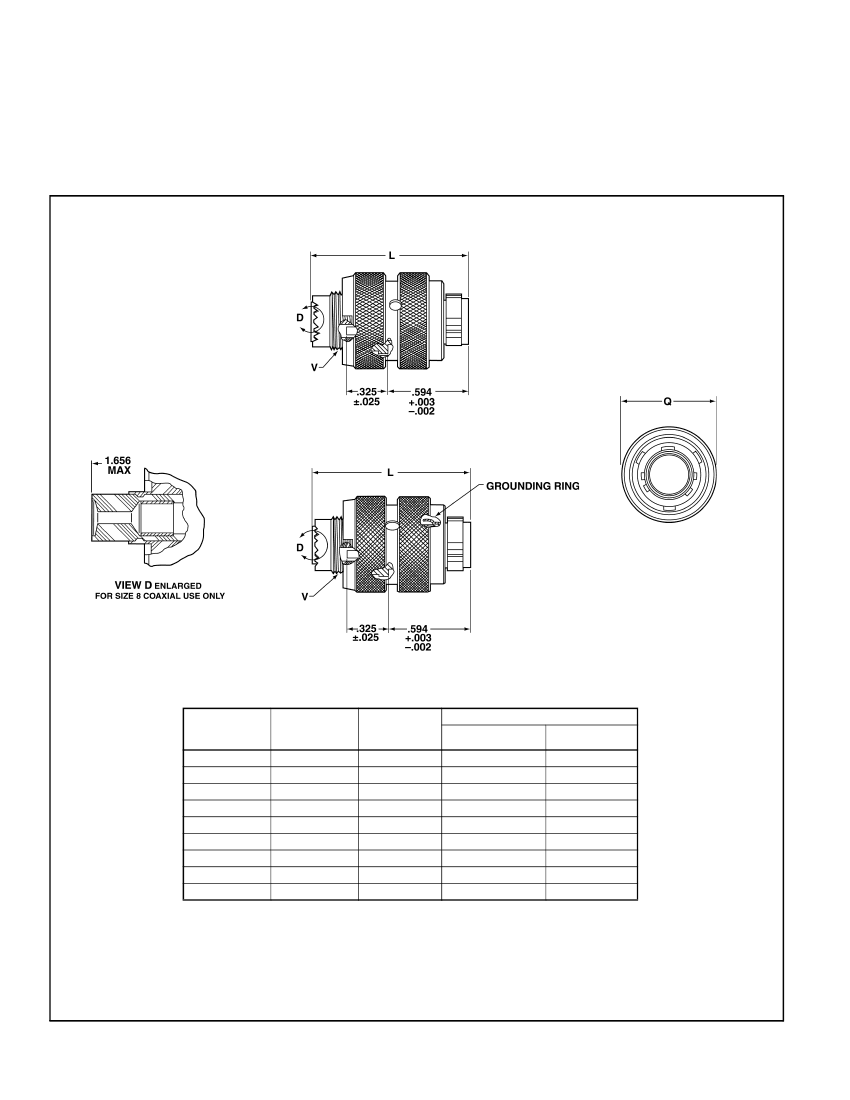

SJT06RT/SJTG06RT –
crimp
straight plug/straight plug
(with grounding fingers)
*SJT06RT-XX-XXX
*SJTG06RT-XX-XXX
* To complete order, see page 20
V Thread
Shell
Size
8
10
12
14
16
18
20
22
24
L
Max
1.219
1.219
1.219
1.219
1.219
1.219
1.219
1.219
1.258
Q
Dia. Max.
.734
.844
1.016
1.141
1.265
1.391
1.500
1.625
1.750
Class 2A
UNEF (Plated)
.4375-28
.5625-24
.6875-24
.8125-20
.9375-20
1.0625-18
1.1875-18
1.3125-18
1.4375-18
Modified
Major Dia.
.421 – .417
.542 –
.667 –
.791 –
.916 –
.538
.663
.787
.912
1.034 – 1.030
1.158 – 1.154
1.283 – 1.279
1.408 – 1.404
All dimensions for reference only.
12

SJT06RT Related Products

SJT06RT SJTG06RT SJTG06RT-22-35S014
Description MIL Series Connector, Aluminum Alloy, Female; Male, Crimp Terminal, Plug MIL Series Connector, Aluminum Alloy, Female; Male, Crimp Terminal, Plug 100 CONTACT(S), ALUMINUM ALLOY, FEMALE, MIL SERIES CONNECTOR, CRIMP, PLUG
Maker Amphenol Amphenol Amphenol
Reach Compliance Code unknown unknown unknown
Other features STANDARD: MIL-DTL-38999, MAX CONTACTS (SERIES)=128 STANDARD: MIL-DTL-38999, MAX CONTACTS (SERIES)=128 STANDARD: MIL-DTL-38999, COMPATIBLE CONTACT: 10-407035-725
Back shell type SOLID SOLID SOLID
Body/casing type PLUG PLUG PLUG
Connector type MIL SERIES CONNECTOR MIL SERIES CONNECTOR MIL SERIES CONNECTOR
Contact point gender FEMALE; MALE FEMALE; MALE FEMALE
Coupling type BAYONET BAYONET BAYONET
DIN compliance NO NO NO
empty shell NO NO NO
Environmental characteristics MOISTURE RESISTANT MOISTURE RESISTANT MOISTURE RESISTANT
Filter function NO NO NO
IEC compliance NO NO NO
MIL compliance YES YES YES
Manufacturer's serial number SJT SJTG SJTG06RT
Mixed contacts NO NO NO
Installation type CABLE CABLE CABLE AND PANEL
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
Shell surface ANODIC; CADMIUM PLATED; CHROMATE; ELECTROLESS NICKEL; OLIVE DRAB CADMIUM PLATED ANODIC; CADMIUM PLATED; CHROMATE; ELECTROLESS NICKEL; OLIVE DRAB CADMIUM PLATED CADMIUM PLATED
Shell material ALUMINUM ALUMINUM ALUMINUM ALLOY
Housing size 8; 10; 12; 14; 16; 18; 20; 22; 24 8; 10; 12; 14; 16; 18; 20; 22; 24 22
Termination type CRIMP CRIMP CRIMP
