MP7616BBS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> MP7616BBS

MP7616BBS: DescriptionD/A Converter, 1 Func, Parallel, Word Input Loading, 2us Settling Time, PDSO24,; CategoryAnalog mixed-signal IC converter; File Size198KB，4 Pages; ManufacturerMicro Power Systems

Download Datasheet Parametric Compare View All

MP7616BBS Overview

D/A Converter, 1 Func, Parallel, Word Input Loading, 2us Settling Time, PDSO24,

MP7616BBS Parametric

Parameter Name	Attribute value
Maker	Micro Power Systems
Reach Compliance Code	unknown
Maximum analog output voltage	10 V
Minimum analog output voltage
Converter type	D/A CONVERTER
Input format	PARALLEL, WORD
JESD-30 code	R-PDSO-G24
Maximum linear error (EL)	0.015%
Number of digits	16
Number of functions	1
Number of terminals	24
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Nominal settling time (tstl)	2 µs
Maximum slew rate	0.1 mA
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal location	DUAL

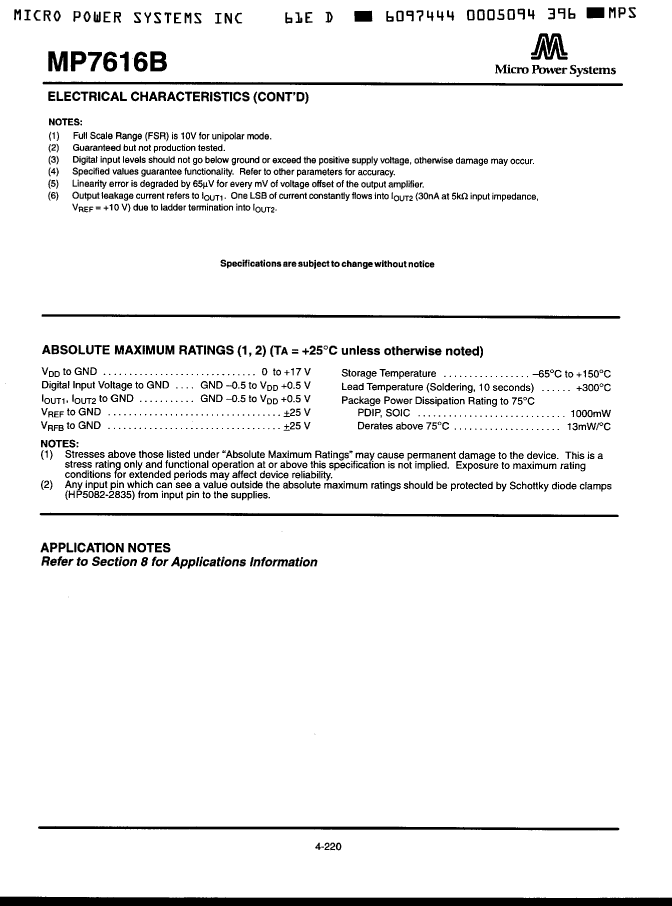

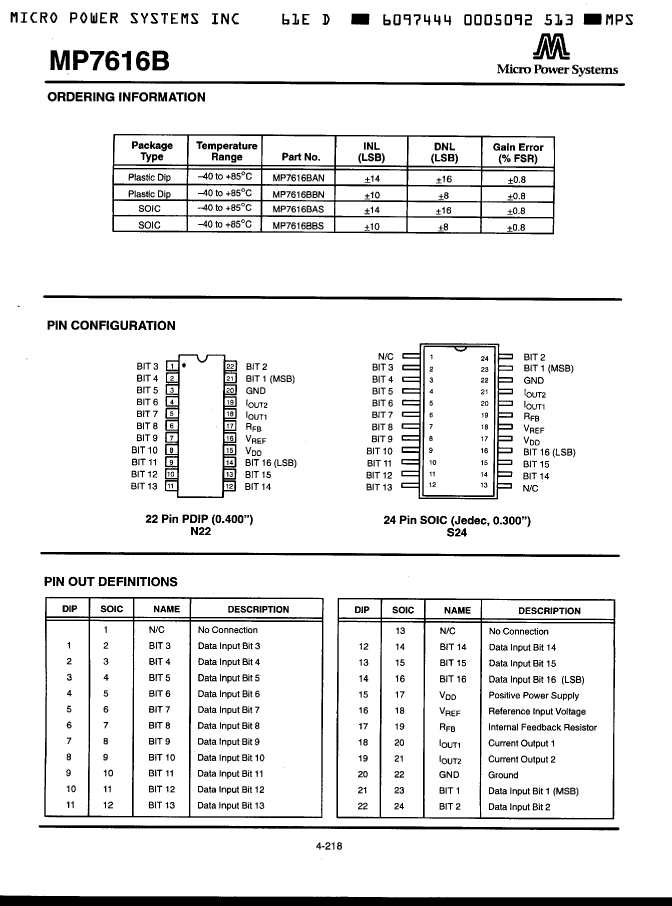

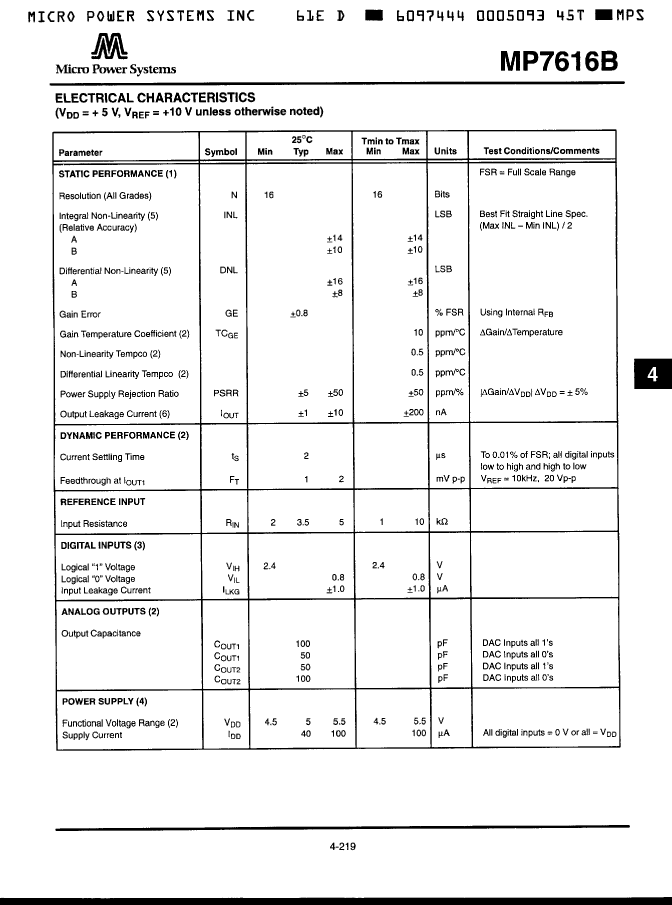

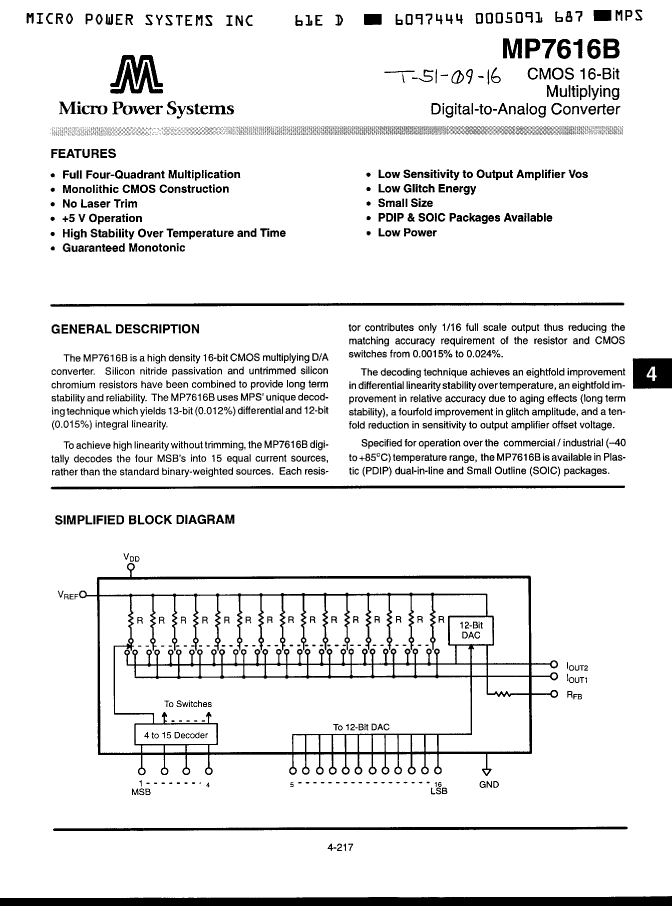

Preview

Download Datasheet

View All

MP7616BBS Related Products

	MP7616BBS	MP7616BAS	MP7616BAN	MP7616BBN
Description	D/A Converter, 1 Func, Parallel, Word Input Loading, 2us Settling Time, PDSO24,	D/A Converter, 1 Func, Parallel, Word Input Loading, 2us Settling Time, PDSO24,	D/A Converter, 1 Func, Parallel, Word Input Loading, 2us Settling Time, PDIP22,	D/A Converter, 1 Func, Parallel, Word Input Loading, 2us Settling Time, PDIP22,
Maker	Micro Power Systems	Micro Power Systems	Micro Power Systems	Micro Power Systems
Reach Compliance Code	unknown	unknown	unknown	unknown
Maximum analog output voltage	10 V	10 V	10 V	10 V
Converter type	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER
Input format	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD
JESD-30 code	R-PDSO-G24	R-PDSO-G24	R-PDIP-T22	R-PDIP-T22
Maximum linear error (EL)	0.015%	0.021%	0.021%	0.015%
Number of digits	16	16	16	16
Number of functions	1	1	1	1
Number of terminals	24	24	22	22
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal settling time (tstl)	2 µs	2 µs	2 µs	2 µs
Maximum slew rate	0.1 mA	0.1 mA	0.1 mA	0.1 mA
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL
