2SD1950VL-AZ: Description2000mA, 25V, NPN, Si, SMALL SIGNAL TRANSISTOR, POWER, MINIMOLD, SC-62, 3 PIN; CategoryDiscrete semiconductor The transistor; File Size255KB，4 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

2SD1950VL-AZ Overview

2000mA, 25V, NPN, Si, SMALL SIGNAL TRANSISTOR, POWER, MINIMOLD, SC-62, 3 PIN

2SD1950VL-AZ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	SC-62
package instruction	SMALL OUTLINE, R-PSSO-F3
Contacts	3
Reach Compliance Code	compli
ECCN code	EAR99
Shell connection	COLLECTOR
Maximum collector current (IC)	2 A
Collector-emitter maximum voltage	25 V
Configuration	SINGLE
Minimum DC current gain (hFE)	1200
JESD-30 code	R-PSSO-F3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	NPN
Maximum power dissipation(Abs)	2 W
Certification status	Not Qualified
surface mount	YES
Terminal form	FLAT
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	350 MHz
Base Number Matches	1

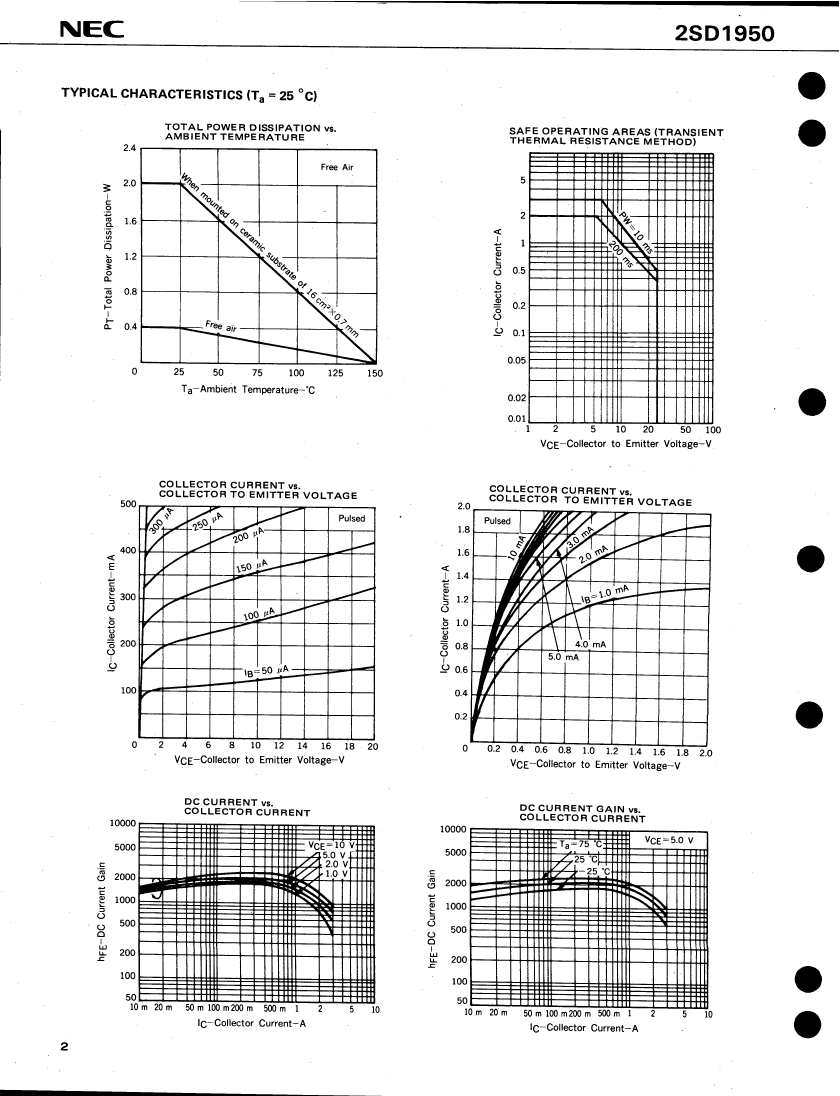

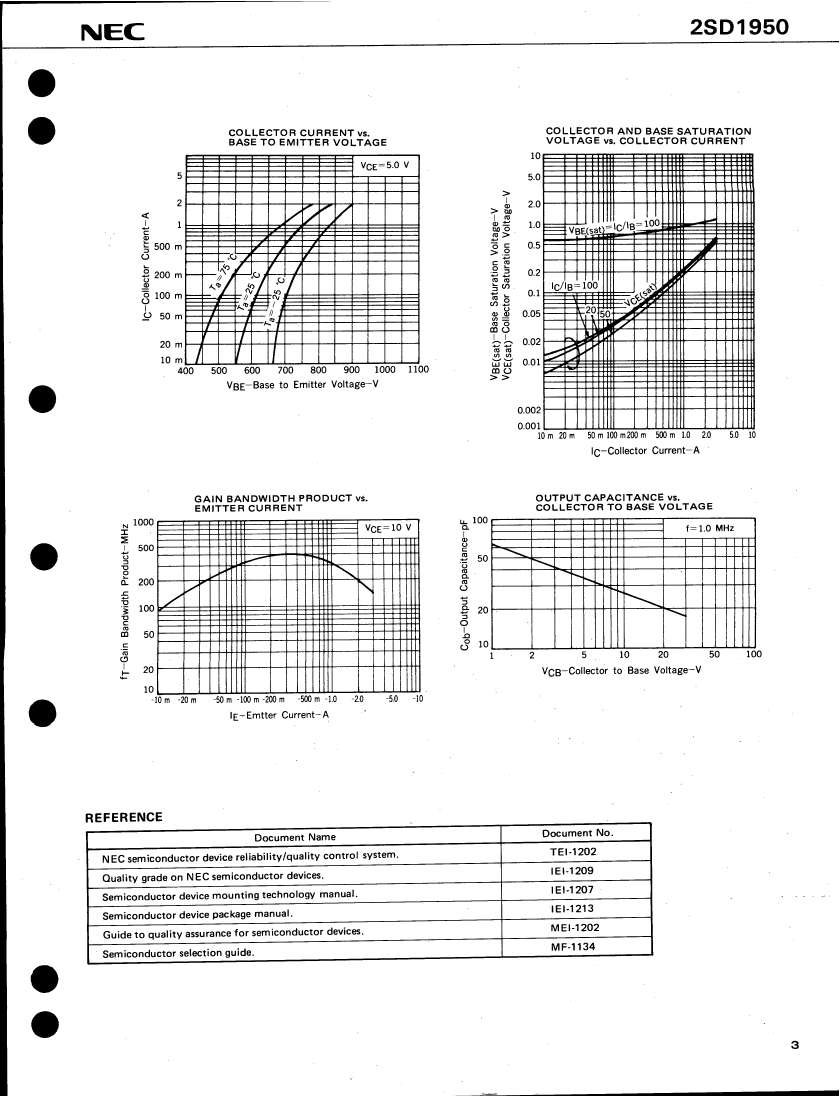

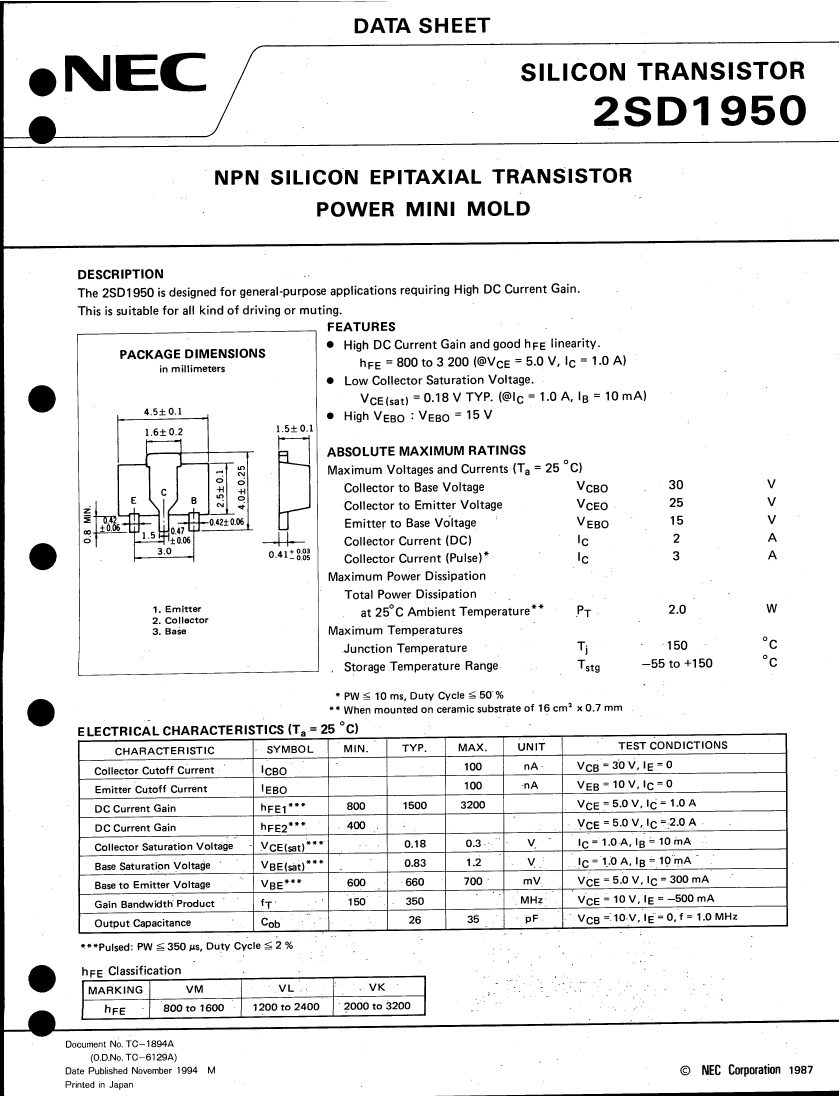

Preview

Download Datasheet

View All

2SD1950VL-AZ Related Products

	2SD1950VL-AZ	2SD1950VK-AZ	2SD1950VM-AZ
Description	2000mA, 25V, NPN, Si, SMALL SIGNAL TRANSISTOR, POWER, MINIMOLD, SC-62, 3 PIN	2000mA, 25V, NPN, Si, SMALL SIGNAL TRANSISTOR, POWER, MINIMOLD, SC-62, 3 PIN	2000mA, 25V, NPN, Si, SMALL SIGNAL TRANSISTOR, POWER, MINIMOLD, SC-62, 3 PIN
Is it lead-free?	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to
Parts packaging code	SC-62	SC-62	SC-62
package instruction	SMALL OUTLINE, R-PSSO-F3	SMALL OUTLINE, R-PSSO-F3	SMALL OUTLINE, R-PSSO-F3
Contacts	3	3	3
Reach Compliance Code	compli	compli	compli
ECCN code	EAR99	EAR99	EAR99
Shell connection	COLLECTOR	COLLECTOR	COLLECTOR
Maximum collector current (IC)	2 A	2 A	2 A
Collector-emitter maximum voltage	25 V	25 V	25 V
Configuration	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	1200	2000	800
JESD-30 code	R-PSSO-F3	R-PSSO-F3	R-PSSO-F3
Number of components	1	1	1
Number of terminals	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Polarity/channel type	NPN	NPN	NPN
Maximum power dissipation(Abs)	2 W	2 W	2 W
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES
Terminal form	FLAT	FLAT	FLAT
Terminal location	SINGLE	SINGLE	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
transistor applications	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	350 MHz	350 MHz	350 MHz
Base Number Matches	1	1	1
