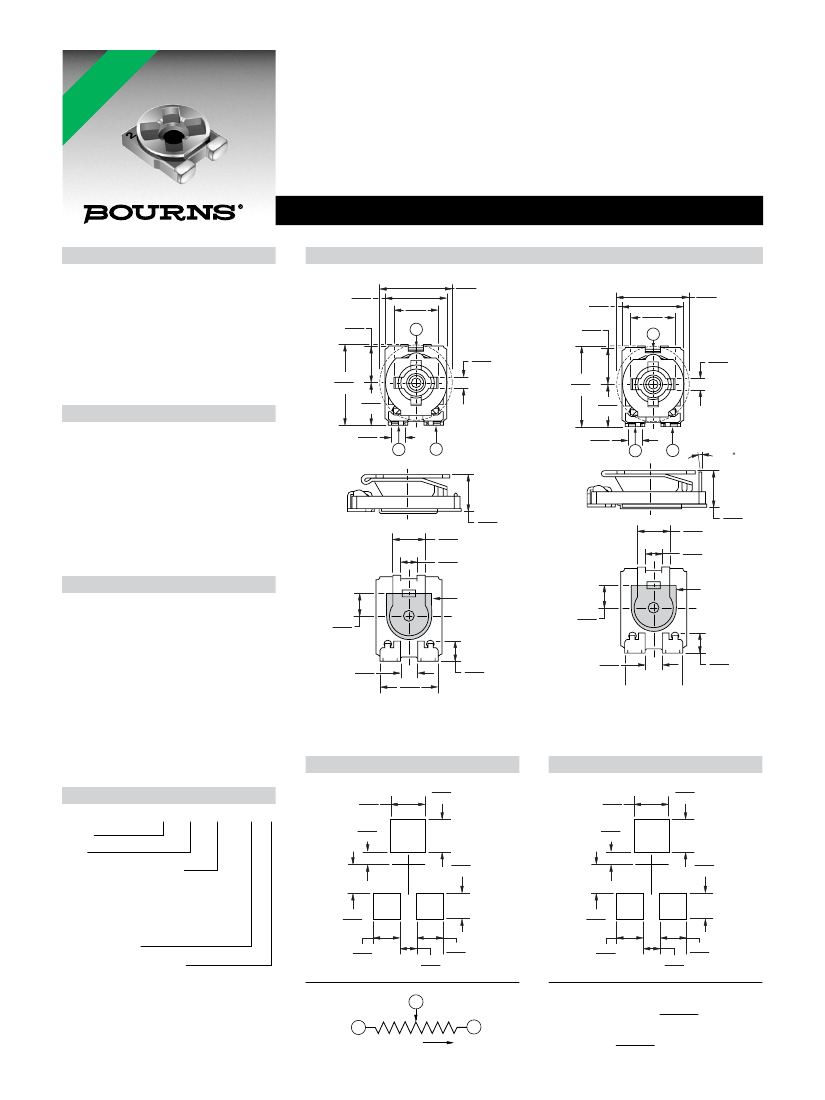

TC33 - 3 mm SMD Trimpot
®
Trimming Potentiometer
Electrical Characteristics
Standard Resistance Range
......................100 ohms to 1 megohm
(see standard resistance table)
Resistance Tolerance ........... ±25 % std.
Absolute Minimum Resistance
≤
1 K Ohms .................. 20 ohms max.
>1 K Ohms .................2 % max. of TR
Contact Resistance Variation .. 5 % max.
Resolution ................. Essentially infinite
Adjustment Angle ...................200 ° min.
Environmental Characteristics
Power Rating (50 VDC max.)
70 °C ...................................... 0.1 watt
Temperature Range ... -40 °C to +100 °C
Temperature Coefficient ... ±250 ppm/°C
Humidity .......................-40 °C, 95 %RH
TRS max. ...................................... ±5 %
Load Life
........@ 70 °C rated power 1000 hours
TRS ±5 %
Rotational Cycling ...................20 cycles
TRS ±5 %
Physical Characteristics
Torque............... 0.98-11.76 mN-m max.
Mechanical Angle*
..................... Continuous; 270 ° ±20 °
Marking..................... Part marking code
Standard Packaging .. 2000 pcs./7 ” reel
Adjustment Tool..............................H-90
*The lower limit of the rotational angle
standard is 250 °, but there is non-valid
rotational range of 10 % or less on each
end.
Aqueous cleaning not recommended.
How To Order

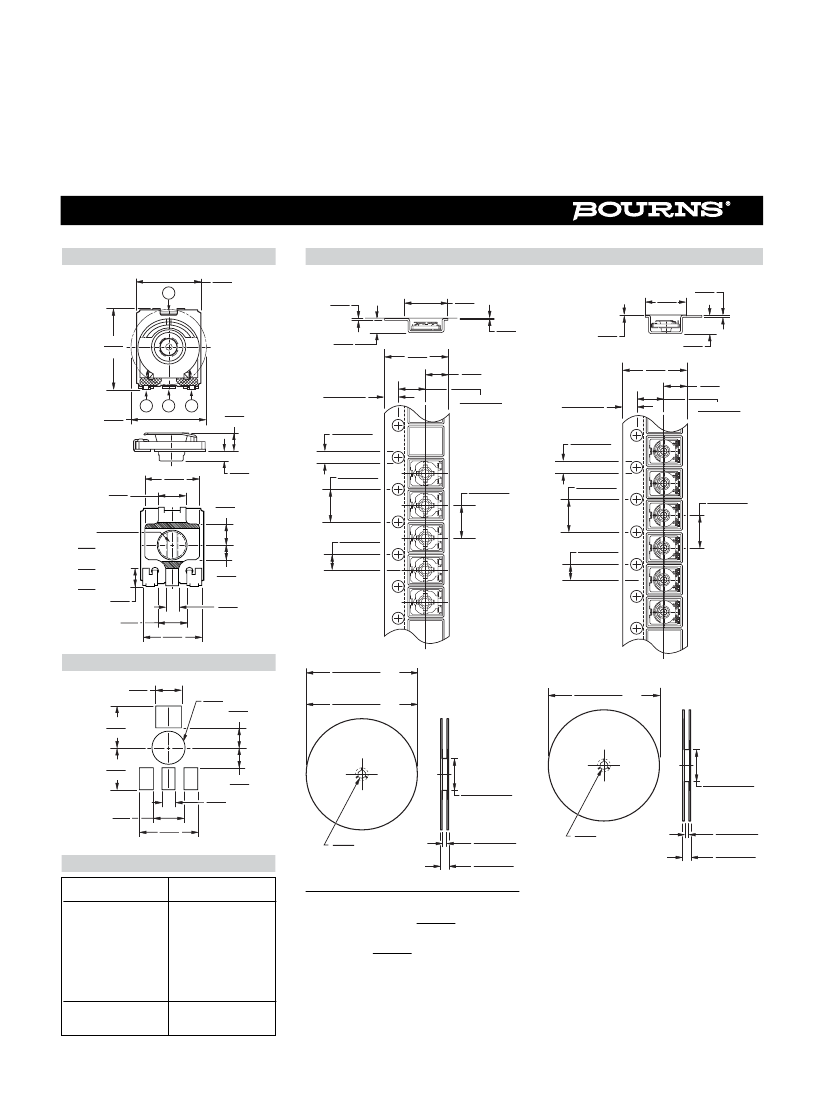

Product Dimensions
TC33X-1
3.0
(.118)
1.75
(.069)
2.1
(.083)
2
0.5
(.020)
3.8
(.150)
2.0
(.079)
0.65
(.026)
3.8
(.150)
2.0
(.079)
0.65
(.026)
3.6
(.142)
TC33X-2
3.0
(.118)
1.75
(.069)
3.6
(.142)
2.1
(.083)
2
0.5
(.020)
1
3
1
3
0~15
1.5
(.059)
0.75
(.030)
1.2
(.047)
1.5
(.059)
0.75
(.030)
1.2
(.047)
1.0
(.039)
SEE
MOUNTING
NOTE
BELOW
1.0
(.039)
SEE
MOUNTING
NOTE
BELOW
0.8
(.031)
2.7
(.106)
0.9
(.035)
0.8
(.031)
2.7
(.106)
0.9
(.035)
Mounting Note:
The gray area can be used to apply cement to hold the unit
in place during board processing, if required.
Mounting Note:
The gray area can be used to apply cement to hold the unit
in place during board processing, if required.
Recommended Land Pattern
1.6
(.063)
0.7
(.028)
1.2
(.047)
1.5
(.059)
Recommended Land Pattern
1.6
(.063)
0.7
(.028)
1.2
(.047)
1.5
(.059)
TC33 B - 1 - 103 E
Model
Style
Standard Product Indicator
TC33B:
-1 = Single Slot Bottom Adjust
TC33X:
-1 = Continuous Rotation
-2 = Rotational Stop
Resistance Code
Embossed Tape Designator
E = 2000 pcs./7 ” Reel (B Style)
E = 2500 pcs./7 ” Reel (X Style)
G = 9000 pcs./13 ” Reel (X Style)
CCW
1.2
(.047)
1.2
(.047)
1.2
(.047)
1.2
(.047)
1.2
(.047)
1.2
(.047)
0.8
(.031)
0.8
(.031)
2
1
WIPER
DIMENSIONS:
3
CW
MM
(INCHES)
EXCEPT WHERE NOTED
