Part Number

Search

5082-315H-00000

Description
Smart/Normal 7 Seg Numeric LED Display, Red, 10mm
CategoryLED optoelectronic/LED    photoelectric
File Size88KB,10 Pages
ManufacturerHP(Keysight)
Websitehttp://www.semiconductor.agilent.com/
Download Datasheet Parametric View All

5082-315H-00000 Overview

Smart/Normal 7 Seg Numeric LED Display, Red, 10mm

5082-315H-00000 Parametric

Parameter NameAttribute value
Reach Compliance Codeunknow
colorRED
ConfigurationCOMMON ANODE, 1 DIGIT WITH DECIMAL POINT
Display height10 mm
Maximum forward current0.015 A
Number of functions1
Maximum operating temperature100 °C
Minimum operating temperature-20 °C
Optoelectronic device typesSMART/NORMAL 7 SEG NUMERIC LED DISPLAY
Base Number Matches1

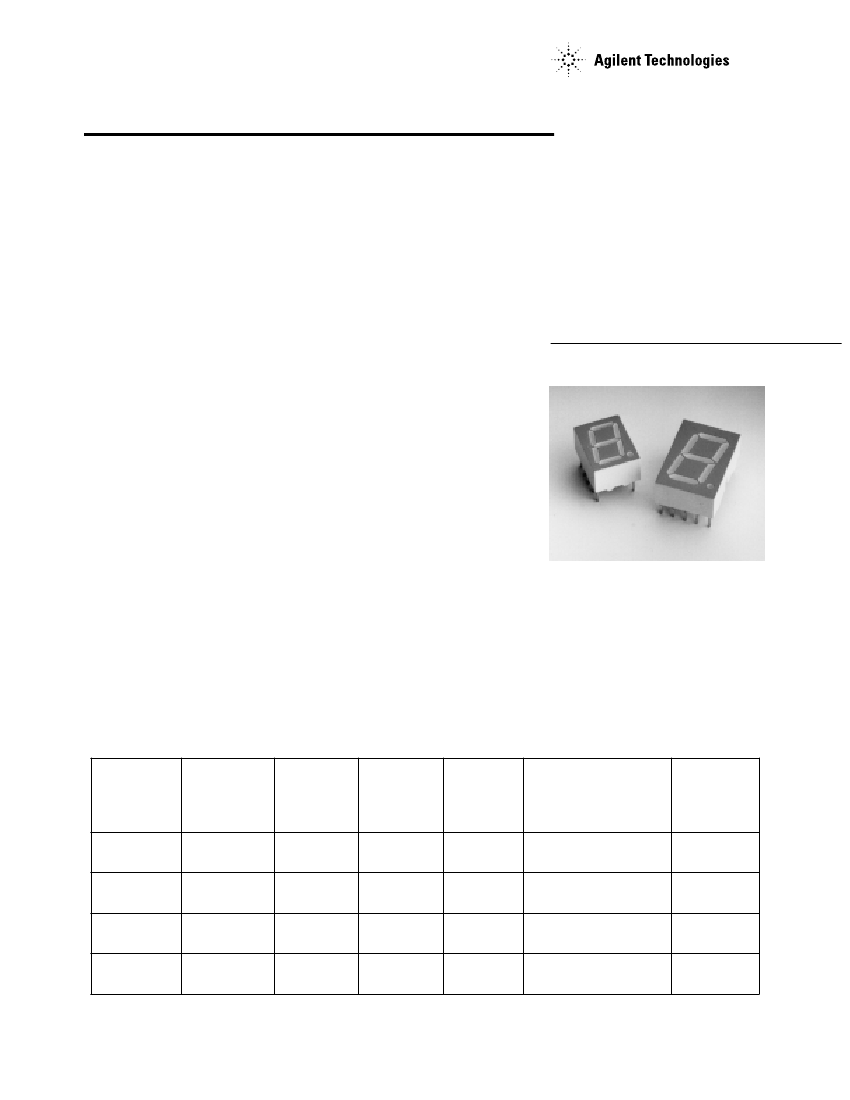

10 mm and 13 mm Slim Font
Seven Segment Displays
Technical Data
HDSP-315x Series
HDSP-316x Series
HDSP-515x Series
HDSP-516x Series
Features
• Excellent Appearance
• Slim Font Design
• Mitered Corners, Evenly
Illuminated Segments
• Gray Face for Optimum
On/Off Contrast
• Choice of Colors: DH AlGaAs
Red, High Efficiency Red
(HER), Yellow, and Green
• Low Current Available,
AlGaAs Red and HER Choice
of Character Size: 10 mm
and 13 mm
±
50
°
Viewing Angle
• Characterized for Luminous
Intensity
Description
The HDSP-31xx-51xx Series of
displays incorporates a new slim
font character design. This slim
font features narrow width,
specially mitered segments to give
a fuller appearance to the
illuminated character. Faces of
these displays are painted a
neutral gray for enhanced on/off
contrast.
All devices are available in either
common anode or common
cathode configuration with right
hand decimal point. Low current
versions are available in either
AlGaAs red or HER.
Devices
AlGaAs
Red Low
Current
HDSP-
315H
316H
515H
516H
HER
Std.
Current
HDSP-
315E
316E
515E
516E
HER
Low
Current
HDSP-
315L
316L
515L
516L
Yellow
Std.
Current
HDSP-
315Y
316Y
515Y
516Y
Green
Std.
Current
HDSP-
315G
316G
515G
516G
Description
Common Anode,
10 mm Display
Common Cathode,
10 mm Display
Common Anode,
13 mm Display
Common Cathode,
13 mm Display

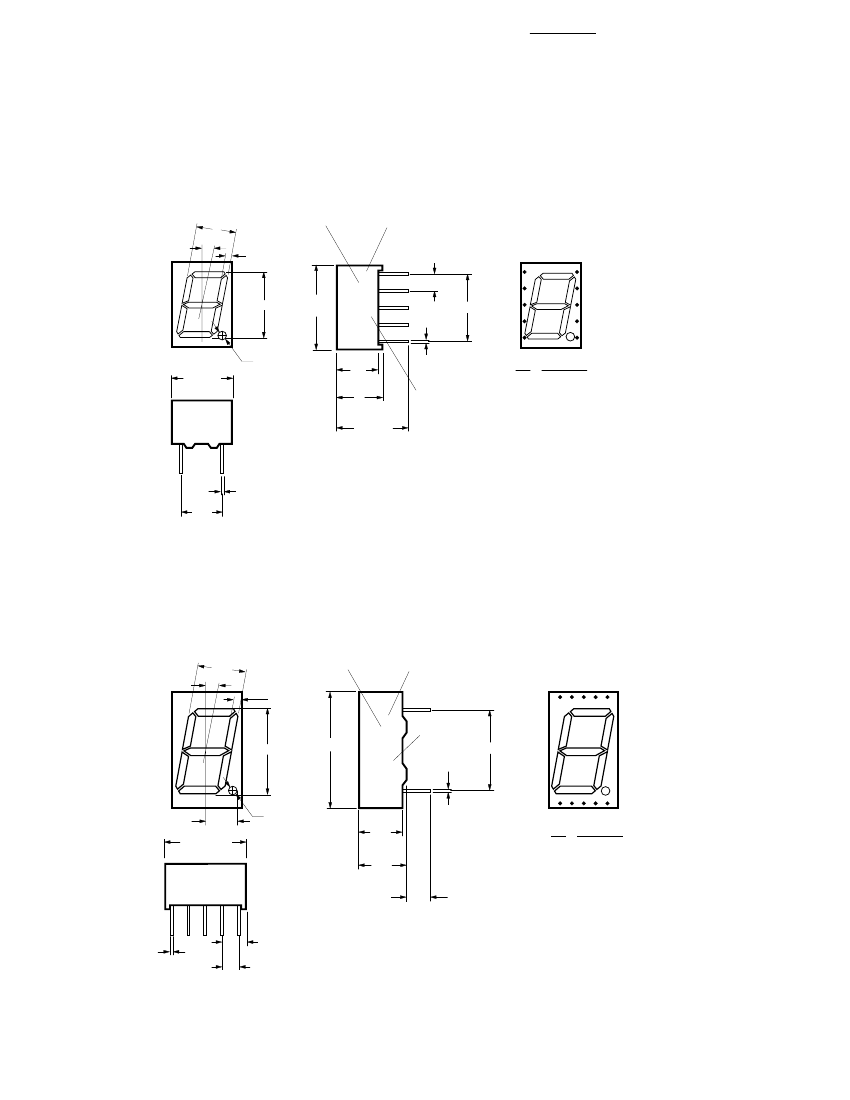

Package
Drawing
A
B
A
B
