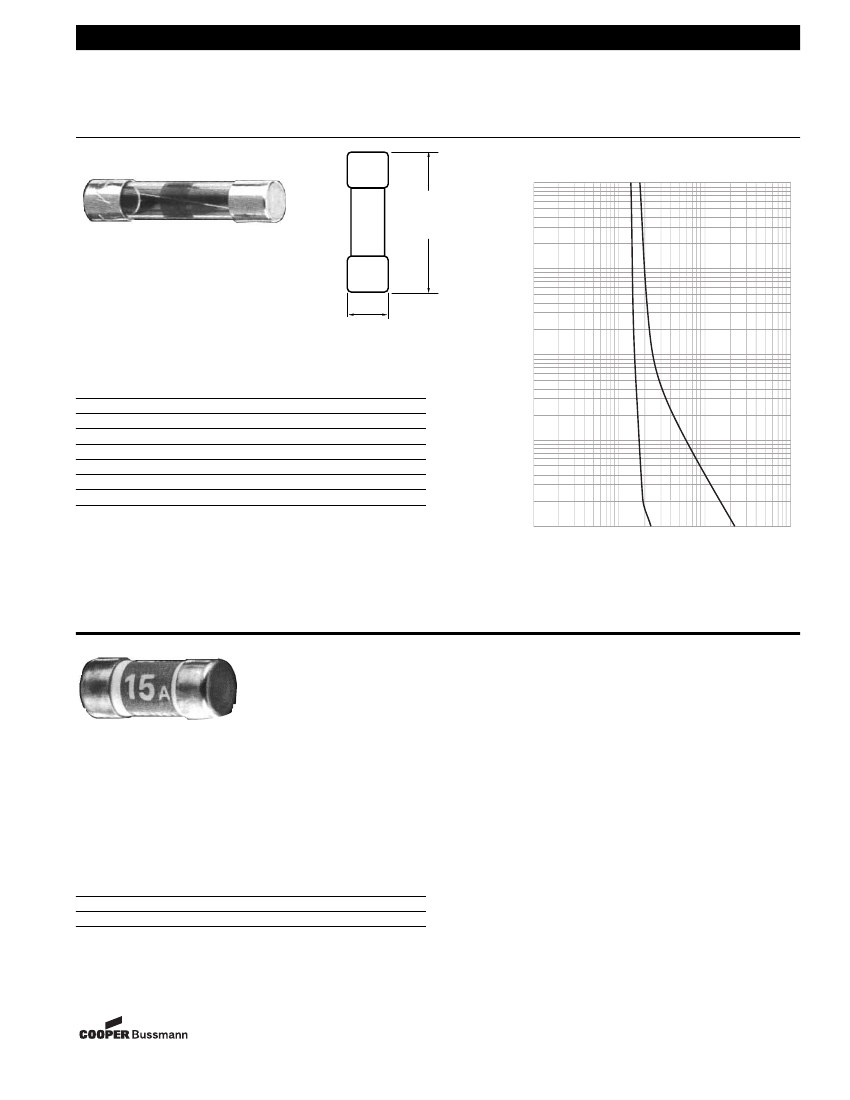

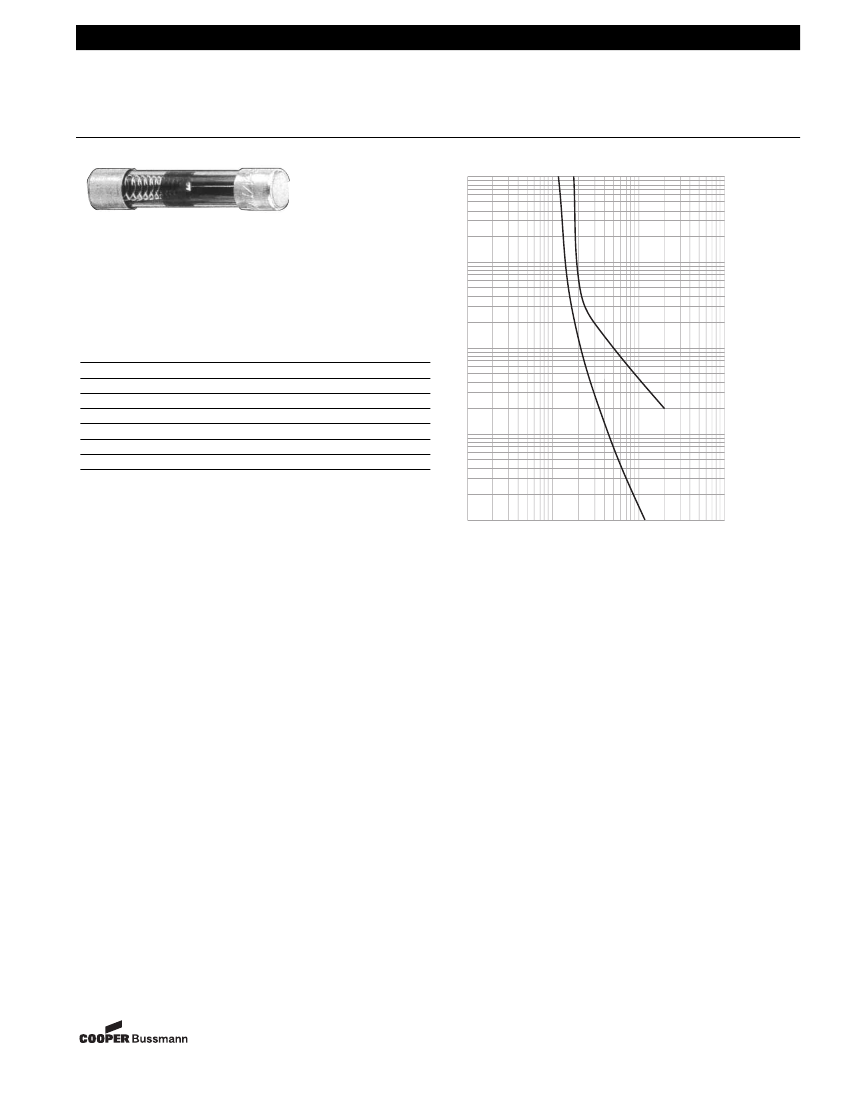

Bussmann
®
Ferrule Type
TDC10, TDC11
and TDC120
Envelope Characteristic Curves
100
31.8mm
(+0.8mm)
(–0.4mm)
10
TIME IN SECONDS
CATALOG SYMBOL: TDC10
FAST-ACTING
1/4 x 1-1/4
5.35mm
BRITISH STANDARD APPROVAL; BS2950
(±0.1mm)
AVAILABLE ONLY IN BULK QUANTITIES
INTERRUPTING RATING = 10 TIMES RATED CURRENT
Electrical Ratings (Catalog Symbol and Amperes)
1000 Volts AC
TDC10-50mA
TDC10-60mA
TDC10-100mA
TDC10-150mA
TDC10-250mA
—
750 Volts AC
TDC10-500mA
500 Volts AC
TDC10-750mA
350 Volts AC
TDC10-1A
—
250 Volts AC
TDC10-1.5A
TDC10-2A
TDC10-3A
TDC10-5A
150 Volts AC
TDC10-7A
100 Volts AC
TDC10-10A
32 Volts AC
TDC10-12A
TDC10-15A
TDC10-20A
TDC10-25A
1
.1
• Glass.
• For instruments, electronic circuits, and small appliances.
• Mount in Buss HTB panel mounted, HB series PC board
fuseholders, HHB and HFB in-line fuseholders, and Series
8000 fuseblocks.
• Complies with British Standard BS-2950A.
.1
TIMES RATED CURRENT
CE logo denotes compliance with European Union Low Voltage Directive
(50-1000V AC, 75-1500V DC). Contact Bussmann Application Engineering
at 314-527-1270 for more information.
CATALOG SYMBOL: TDC120
FAST-ACTING
10mm x 26mm
BRITISH STANDARD APPROVAL; BS1361
ASTA APPROVAL
IEC 269-3
16,500 AIC
AVAILABLE ONLY IN BULK QUANTITIES
Electrical Ratings (Catalog Symbol and Amperes)
240 Volts AC
TDC120-15A
12-28-98
SB98107
Rev. A
Form No. TDC10, TDC11, and TDC120
Page 1 of 2
BIF Doc #2043
100
10
1
.01
Bussmann
®
Ferrule Type
TDC10, TDC11
and TDC120
Envelope Characteristic Curves
100
TIME IN SECONDS
CATALOG SYMBOL: TDC11
TIME LAG
1/4” x 1-1/4”
AVAILABLE ONLY IN BULK QUANTITIES
INTERRUPTING RATING = 10 TIMES RATED CURRENT
Electrical Ratings (Catalog Symbol and Amperes)
1000 Volts AC
TDC11-50mA
TDC11-60mA
TDC11-100mA
TDC11-150mA
TDC11-250mA
—
750 Volts AC
TDC11-500mA
500 Volts AC
TDC11-750mA
350 Volts AC
TDC11-1A
—
250 Volts AC
TDC11-1.5A
TDC11-2A
TDC11-3A
TDC11-5A
—
—
150 Volts AC
TDC11-7A
100 Volts AC
TDC11-10A
—
—
—
10
1
.1
• Glass.
• For circuits with high inrush currents.
• Mount in Buss HTB panel mounted, HB series PC board
fuseholders, HHB and HFB in-line fuseholders, and Series
8000 fuseblocks.
.1
TIMES RATED CURRENT
The only controlled copy of this BIF document is the electronic read-only version located on the Bussmann Network Drive. All other copies of this BIF document are by definition uncontrolled. This bulletin is intended to
clearly present comprehensive product data and provide technical information that will help the end user with design applications. Bussmann reserves the right, without notice, to change design or construction of any
products and to discontinue or limit distribution of any products. Bussmann also reserves the right to change or update, without notice, any technical information contained in this bulletin. Once a product has been select-
ed, it should be tested by the user in all possible applications.
12-28-98
SB98107
Rev. A
Form No. TDC10, TDC11, and TDC120
Page 2 of 2
BIF Doc #2043
100
10
1
.01
