CMDJ-MDC11-08-A

Description
Circular DIN Connector, 8 Contact(s), Female, Board Mount, Solder Terminal, Locking, Receptacle
CategoryThe connector    The connector
File Size105KB,1 Pages
ManufacturerCentral Semiconductor
Download Datasheet Parametric View All

CMDJ-MDC11-08-A Overview

Circular DIN Connector, 8 Contact(s), Female, Board Mount, Solder Terminal, Locking, Receptacle

CMDJ-MDC11-08-A Parametric

Parameter NameAttribute value
MakerCentral Semiconductor
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresROHS COMPLIANT
subject depth0.374 inch
Body/casing typeRECEPTACLE
Connector typeCIRCULAR DIN CONNECTOR
Contact to complete cooperationAG
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
Contact resistance30 mΩ
Contact styleRND PIN-SKT
DIN complianceYES
Dielectric withstand voltage250VAC V
Durability5000 Cycles
maximum insertion force44.0352 N
Insulation resistance50000000 Ω
insulator materialGLASS FILLED POLYBUTYLENE TEREPHTHALATE
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of ports1
Maximum operating temperature105 °C
Minimum operating temperature-25 °C
polarization keyPOLAR PIN POSITION
Rated current (signal)2 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.138 inch
Termination typeSOLDER
Total number of contacts8
Evacuation force-minimum value8.0064 N

CMDJ-MDC11-08-A Preview

1
2
3
4
5
6
7
8
9
A
A
B
C
SPECIFICATIONS
Voltage rating:
Current rating:
Contact material:
Contact plating:
Contact resistance:
Ground terminal:
Body material:
Insulation resistance:
Withstanding:
Insertion force:
Withdrawal force:
100 VAC, 12 VDC
1 amp AC, 2 amps DC
PBR
Silver
30 milliohms max.
BSR tin plated
PBT with 30% glass fiber
50 megohms min. at 250 VDC
250 VAC/1-min.
1-4.5 kg
0.8-3.0 kg
B
C
D
D
E
E
F
RoHS compliant
Rev.
Description
Date
Approved
Drawing
Name
Approved Howard
Checked Lizzy
Drawn Tina
0.0 ± 0.35
1
2
3
4
F
Date
08/10/99
08/10/99
08/10/99 Part No.:
Central Components Manufacturing
440 Lincoln Blvd., Middlesex, New Jersey 08846
Phone 732 469-5720 888 288-5152 Fax 732 469-1919
G
CMDJ-MDC11-XX-A
7
8
9
0.00 ± 0.20 Angles ± 3’
UNIT: mm
5
6

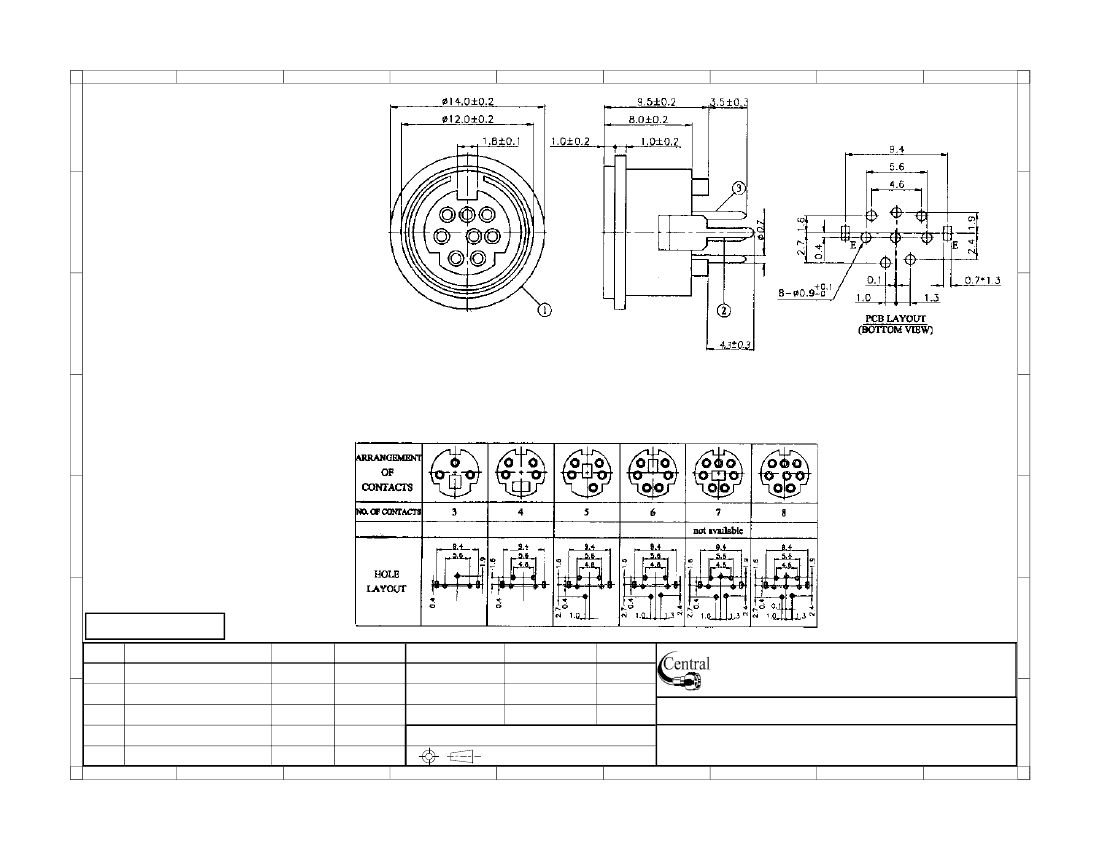

Description: Mini DIN socket, straight type
