BZY47-C180 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BZY47-C180

BZY47-C180: DescriptionZener Diode, 180V V(Z), 6%, 2W,; CategoryDiscrete semiconductor diode; File Size75KB，2 Pages; ManufacturerFCI / Amphenol

Download Datasheet Parametric View All

BZY47-C180 Overview

Zener Diode, 180V V(Z), 6%, 2W,

BZY47-C180 Parametric

Parameter Name	Attribute value
Maker	FCI / Amphenol
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	SINGLE
Diode type	ZENER DIODE
Maximum dynamic impedance	350 Ω
Number of components	1
Maximum operating temperature	175 °C
Maximum power dissipation	2 W
Nominal reference voltage	180 V
surface mount	NO
Maximum voltage tolerance	6%

Preview

Download Datasheet

View All

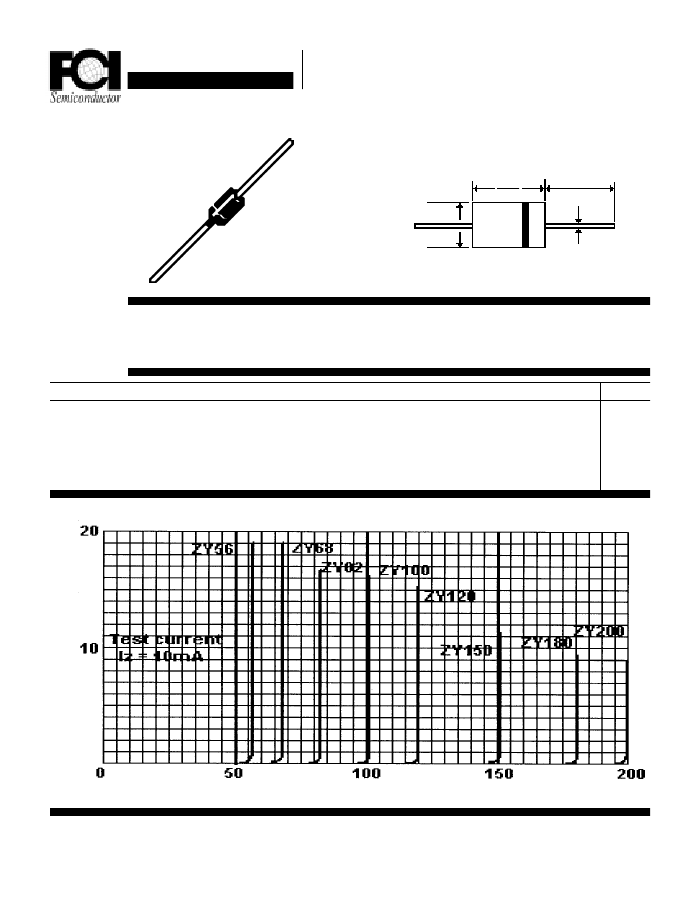

Data Sheet

2 Watt

ZENER DIODES (3.3V to 200V)

Mechanical Dimensions

JEDEC

D0-15

.104

.140

.230

.300

1.00 Min.

BZY47C3V3...C200

Description

.031 typ.

Features

PRO ELECTRON REGISTRATION

HIGH SURGE CAPABILITY...50 W @ 10mA

Maximum Ratings

DC Power Dissipation with T

= > = 70

°C

...P

Junction to Ambient Thermal Resistance...R

θJA

Lead Temperature...T

Operating & Storage Temperature Range...T

STRG

Breakdown Characteristics

WIDE VOLTAGE RANGE...3.3 to 200V

MEETS UL SPECIFICATION 94V-0

Units

°C

/ W

°C

BZY47C3V3...C200

............................................. 2.0 ...............................................

............................................. 52.5 ...............................................

............................................. 3 0 0 ...............................................

......................................... -65 to 175 ..........................................

Zener Current (mA)

Zener Voltage (Volts)

Page 12-6
