DBCIDC568AS1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> DBCIDC568AS1

DBCIDC568AS1: DescriptionHEADER CONNECTOR,CABLE MNT,PLUG,68 CONTACTS,SKT,0.079 PITCH,IDC TERMINAL,BLACK; CategoryThe connector The connector; File Size66KB，1 Pages; ManufacturerAlpha 3 Manufacturing; Environmental Compliance

Download Datasheet Parametric Compare View All

DBCIDC568AS1 Overview

HEADER CONNECTOR,CABLE MNT,PLUG,68 CONTACTS,SKT,0.079 PITCH,IDC TERMINAL,BLACK

DBCIDC568AS1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Alpha 3 Manufacturing
Reach Compliance Code	unknown
body width	0.161 inch
subject depth	0.217 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	3000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	DBCIDC5
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	68

Preview

Download Datasheet

View All

IDC

Industry compatible

Competitively priced

Gold Plated contacts

2.0mm Pitch

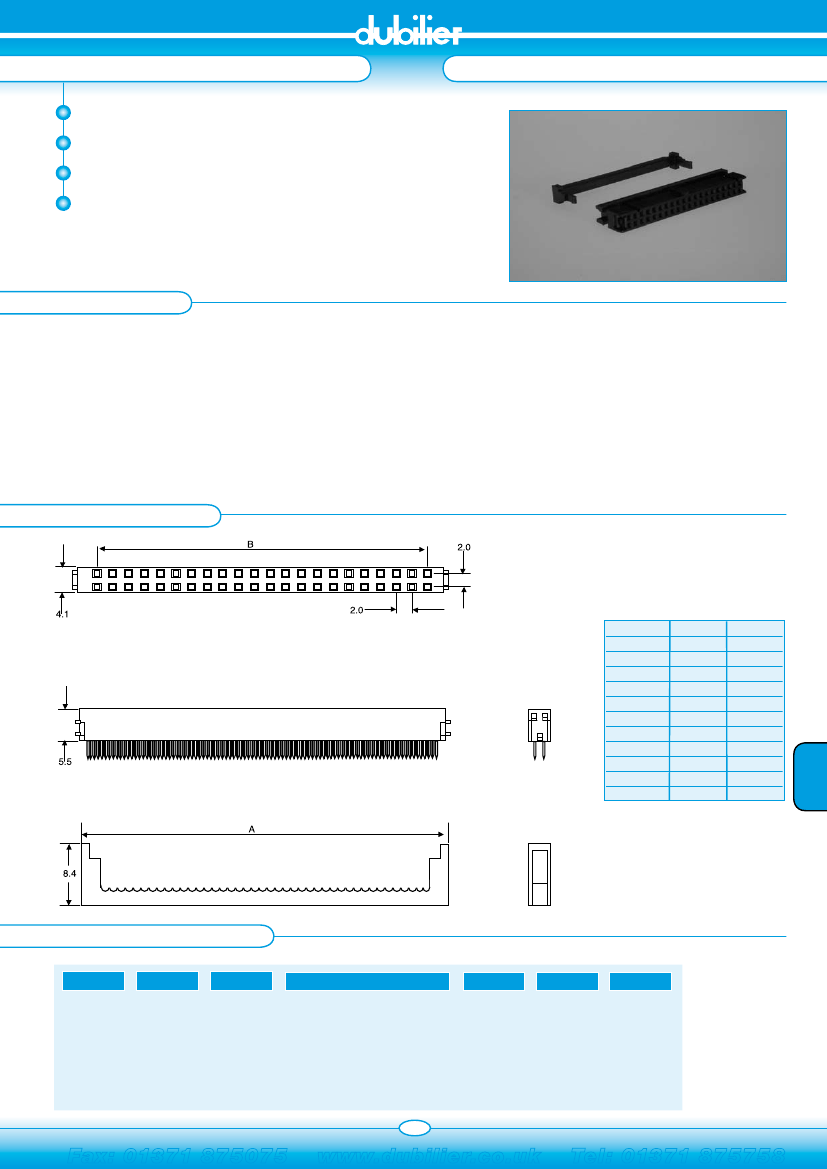

IDC CABLE SOCKET 2mm PITCH

SPECIFICATION

Material & Finish

Contact Material:

Insulator Material:

Current Rating:

Contact Resistance:

Insulator Resistance:

Dielectric withstanding

Voltage:

Operating Temperature:

Phosphor Bronze

PBT & Glass - Fibre Reinforced UL -94V-0

1 A DC

30mΩ Max

3000mΩ Min

500v AC for one minute

-40˚C to + 105˚C

OUTLINE DRAWING

POSITION A B

25.20

18.00

27.20

20.00

29.20

22.00

31.20

24.00

35.20

28.00

39.20

32.00

41.20

34.00

45.20

38.00

49.20

42.00

55.20

48.00

73.20

66.00

SECTION 15

ORDERING INFORMATION

DBC

Dubilier

Connectors

IDC

Connectors

Series

20=20way

22=22way

24=24way

26=26way

30=30way

34=34way

Nº of Ways

36=36way

40=40way

44=44way

50=50way

68=68way

Contact Material

Bronze

Contact Plating

S =Selective

Gold

Colour

1=Black

329

Fax: 01371 875075

www.dubilier.co.uk

Tel: 01371 875758

DBCIDC568AS1 Related Products

	DBCIDC568AS1	DBCIDC520AS1	DBCIDC544AS1	DBCIDC524AS1	DBCIDC522AS1	DBCIDC536AS1	DBCIDC530AS1
Description	HEADER CONNECTOR,CABLE MNT,PLUG,68 CONTACTS,SKT,0.079 PITCH,IDC TERMINAL,BLACK	HEADER CONNECTOR,CABLE MNT,PLUG,20 CONTACTS,SKT,0.079 PITCH,IDC TERMINAL,BLACK	HEADER CONNECTOR,CABLE MNT,PLUG,44 CONTACTS,SKT,0.079 PITCH,IDC TERMINAL,BLACK	HEADER CONNECTOR,CABLE MNT,PLUG,24 CONTACTS,SKT,0.079 PITCH,IDC TERMINAL,BLACK	HEADER CONNECTOR,CABLE MNT,PLUG,22 CONTACTS,SKT,0.079 PITCH,IDC TERMINAL,BLACK	HEADER CONNECTOR,CABLE MNT,PLUG,36 CONTACTS,SKT,0.079 PITCH,IDC TERMINAL,BLACK	HEADER CONNECTOR,CABLE MNT,PLUG,30 CONTACTS,SKT,0.079 PITCH,IDC TERMINAL,BLACK
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
body width	0.161 inch	0.161 inch	0.161 inch	0.161 inch	0.161 inch	0.161 inch	0.161 inch
subject depth	0.217 inch	0.217 inch	0.217 inch	0.217 inch	0.217 inch	0.217 inch	0.217 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contactor design	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN
Contact to complete cooperation	AU	AU	AU	AU	AU	AU	AU
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V
Insulation resistance	3000000000 Ω	3000000000 Ω	3000000000 Ω	3000000000 Ω	3000000000 Ω	3000000000 Ω	3000000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	DBCIDC5	DBCIDC5	DBCIDC5	DBCIDC5	DBCIDC5	DBCIDC5	DBCIDC5
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Match contact row spacing	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	2	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Rated current (signal)	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Guideline	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Termination type	IDC	IDC	IDC	IDC	IDC	IDC	IDC
Total number of contacts	68	20	44	24	22	36	30
Maker	Alpha 3 Manufacturing	Alpha 3 Manufacturing	Alpha 3 Manufacturing	Alpha 3 Manufacturing	-	-	-
