MC68HC05SB7VF datasheet, PDF - EEWORLD Datasheet

MC68HC05SB7VF: DescriptionMicrocontroller, 8-Bit, MROM, 6805 CPU, 2.1MHz, CMOS, PDSO28; CategoryThe embedded processor and controller Microcontrollers and processors; File Size405KB，9 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

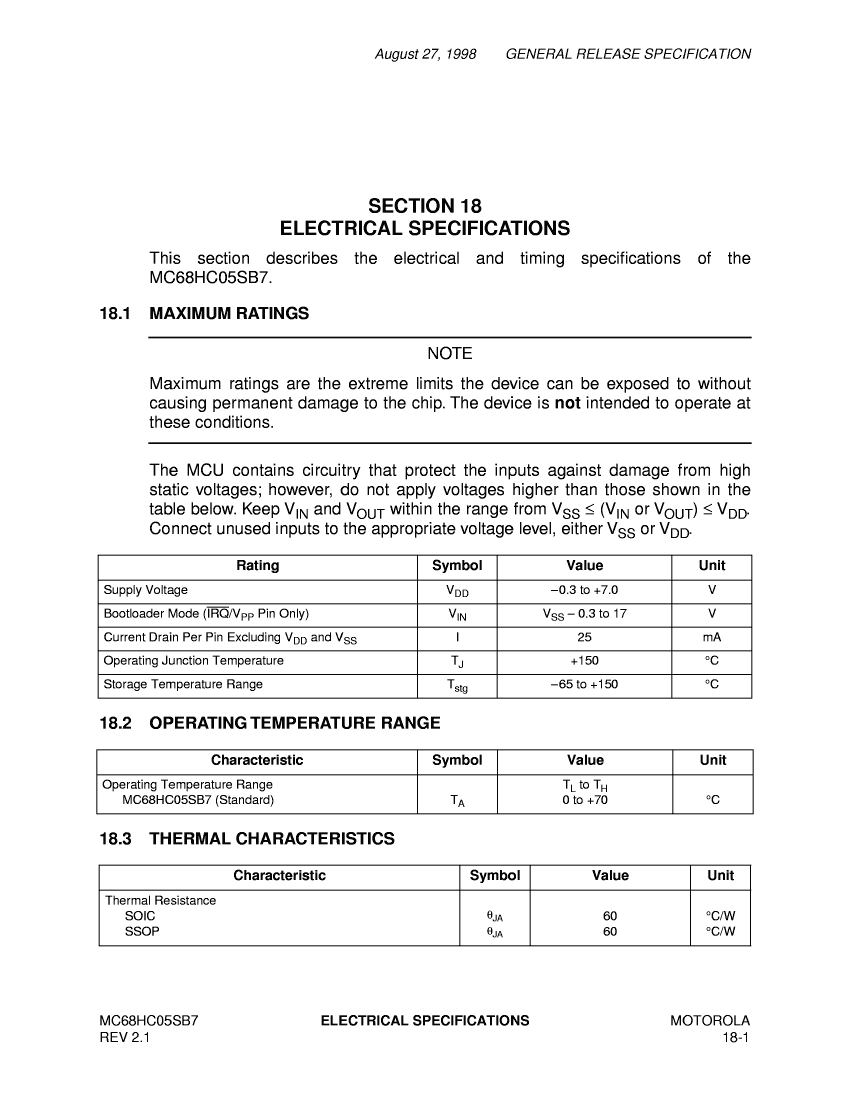

MC68HC05SB7VF Overview

Microcontroller, 8-Bit, MROM, 6805 CPU, 2.1MHz, CMOS, PDSO28

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Motorola ( NXP )
package instruction	SSOP, SSOP28,.3
Reach Compliance Code	unknown
bit size	8
CPU series	6805
JESD-30 code	R-PDSO-G28
JESD-609 code	e0
Number of terminals	28
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Encapsulate equivalent code	SSOP28,.3
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	224
rom(word)	6144
ROM programmability	MROM
speed	2.1 MHz
Maximum slew rate	8 mA
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	DUAL

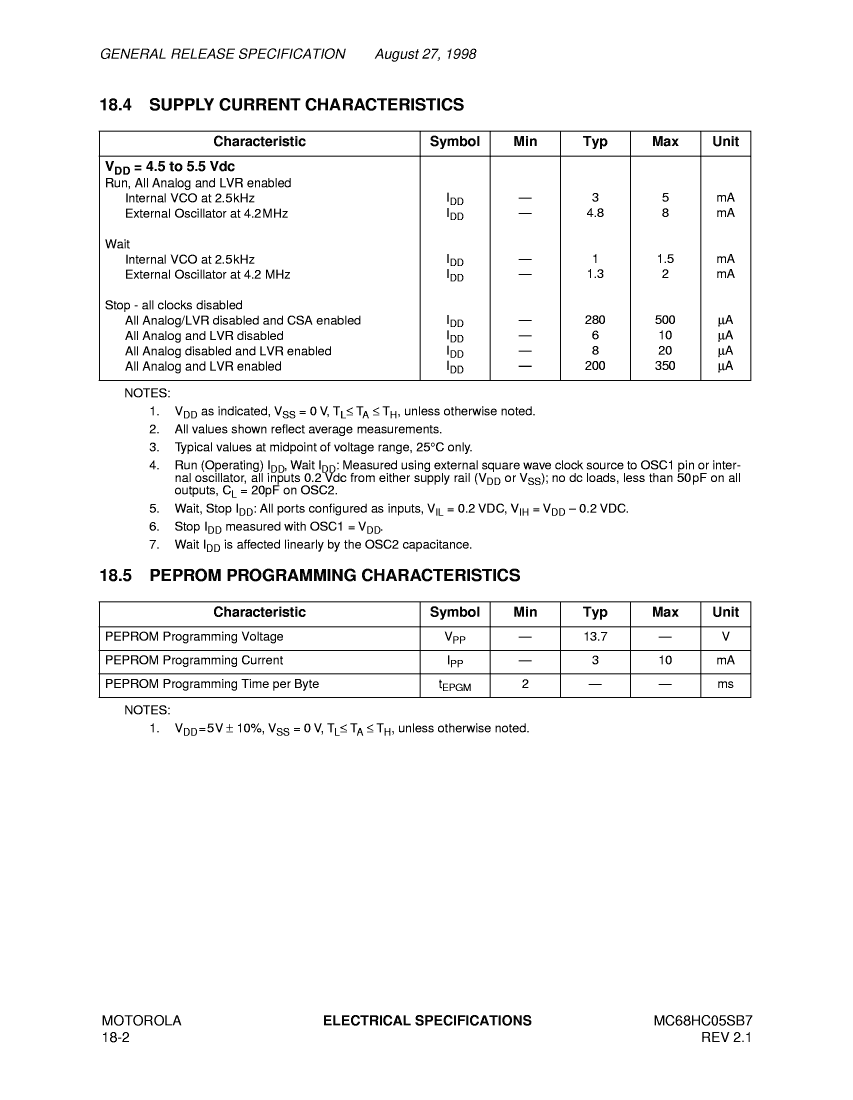

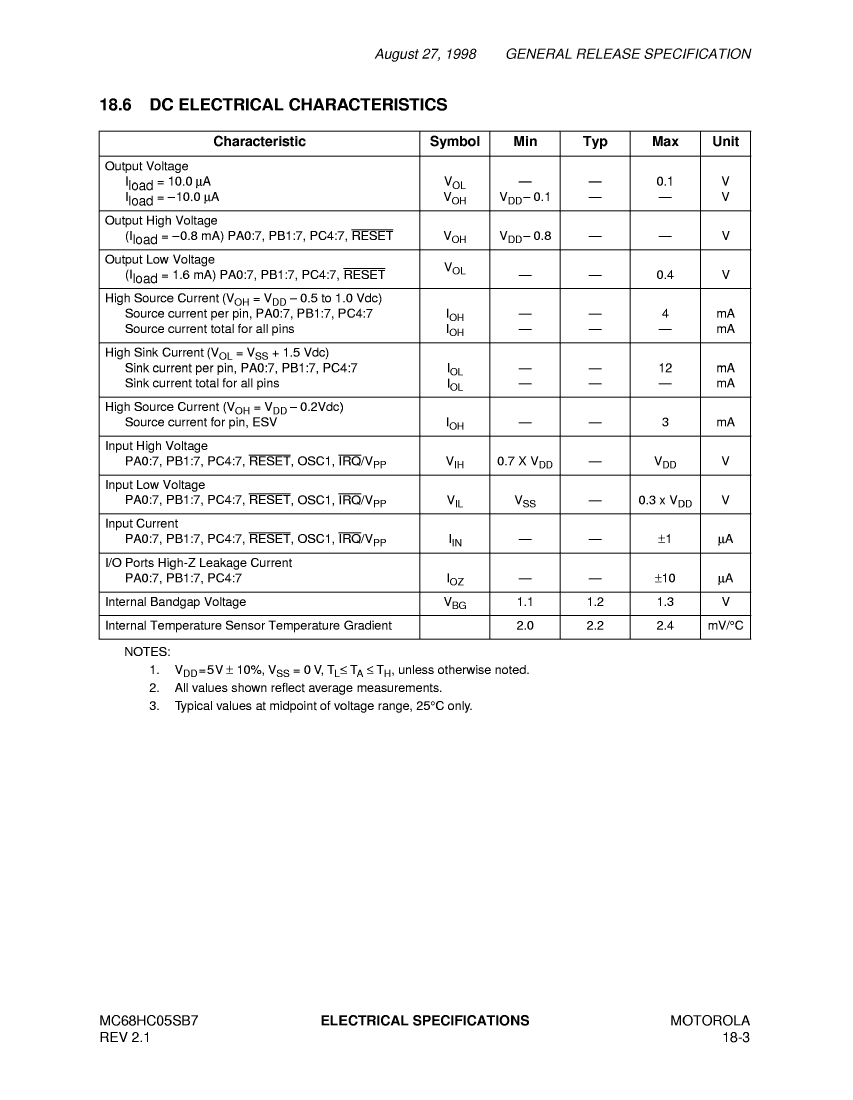

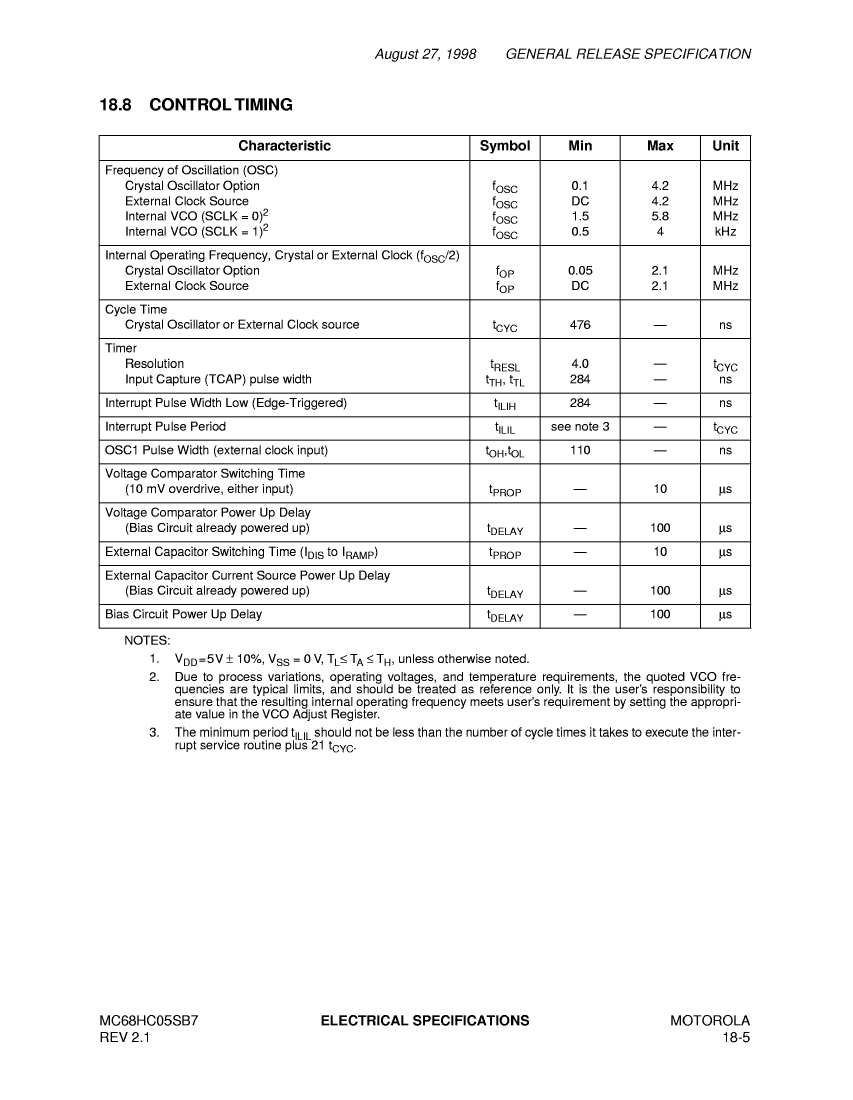

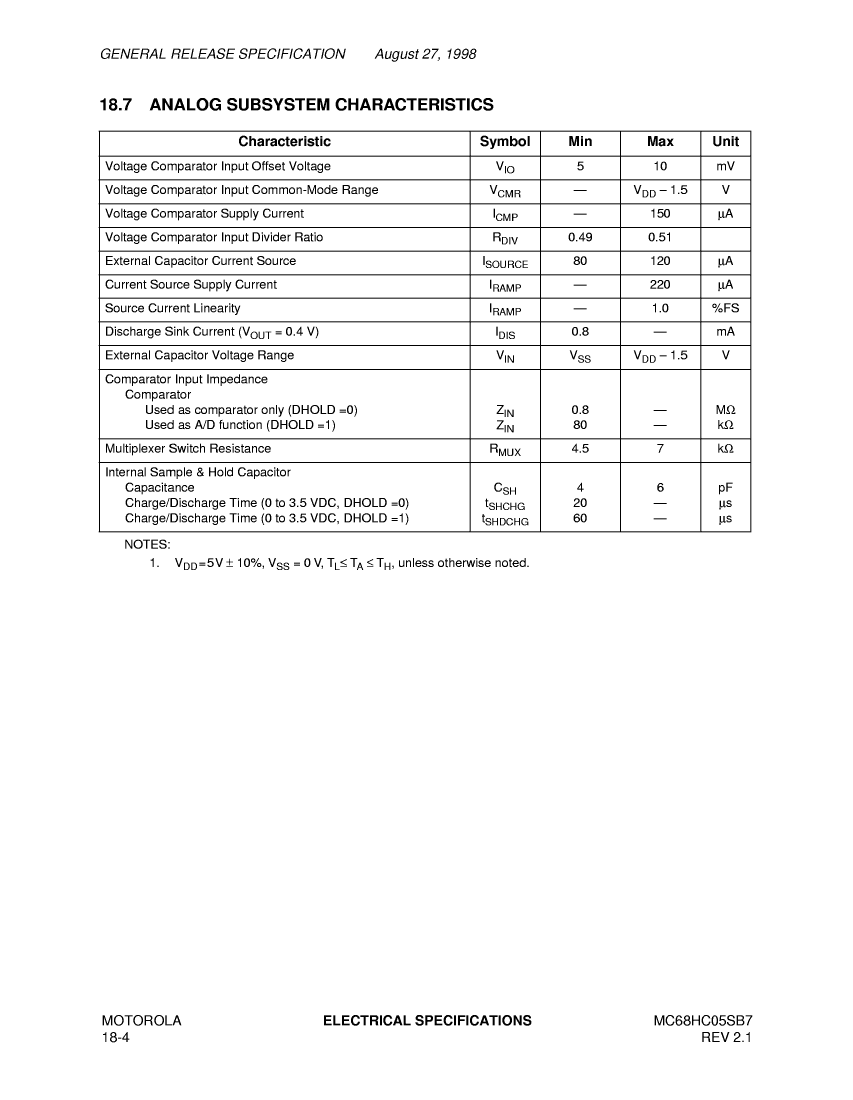

	MC68HC05SB7VF
Description	Microcontroller, 8-Bit, MROM, 6805 CPU, 2.1MHz, CMOS, PDSO28
Is it Rohs certified?	incompatible
Maker	Motorola ( NXP )
package instruction	SSOP, SSOP28,.3
Reach Compliance Code	unknown
bit size	8
CPU series	6805
JESD-30 code	R-PDSO-G28
JESD-609 code	e0
Number of terminals	28
Maximum operating temperature	70 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Encapsulate equivalent code	SSOP28,.3
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, SHRINK PITCH
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	224
rom(word)	6144
ROM programmability	MROM
speed	2.1 MHz
Maximum slew rate	8 mA
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	DUAL
