GD4002BB Overview

NOR Gate, 4000/14000/40000 Series, 2-Func, 4-Input, CMOS, PDIP14, DIP-14

GD4002BB Parametric

Parameter Name	Attribute value
Maker	Goldstar Electron Co., Ltd.
package instruction	DIP-14
Reach Compliance Code	unknown
series	4000/14000/40000
JESD-30 code	R-PDIP-T14
Logic integrated circuit type	NOR GATE
Number of functions	2
Number of entries	4
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	110 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	15 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	THROUGH-HOLE
Terminal location	DUAL

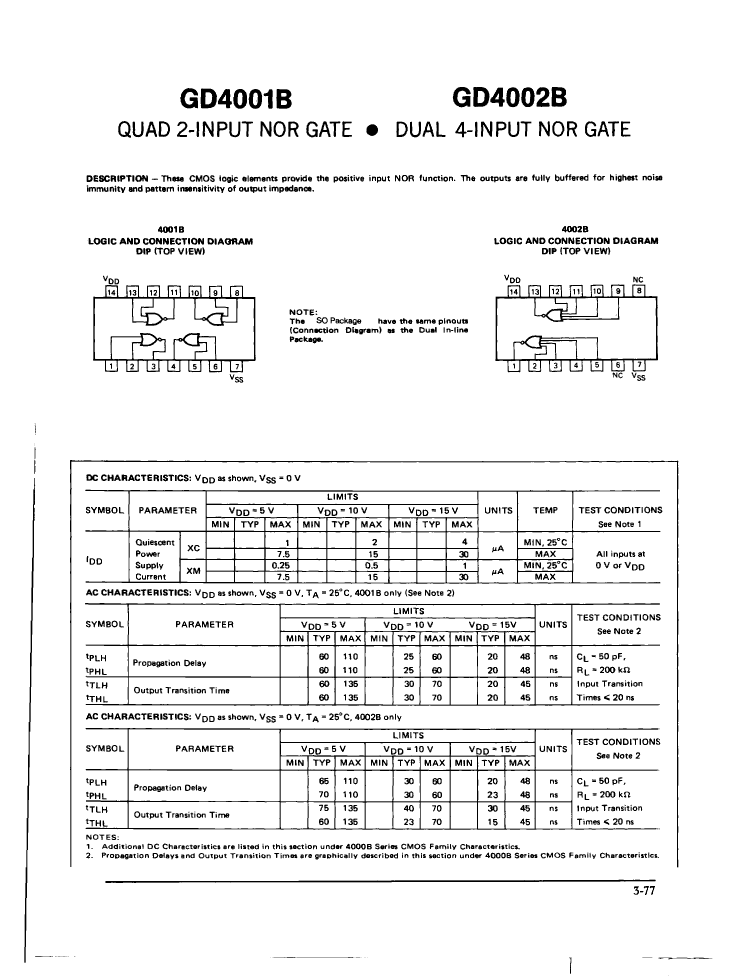

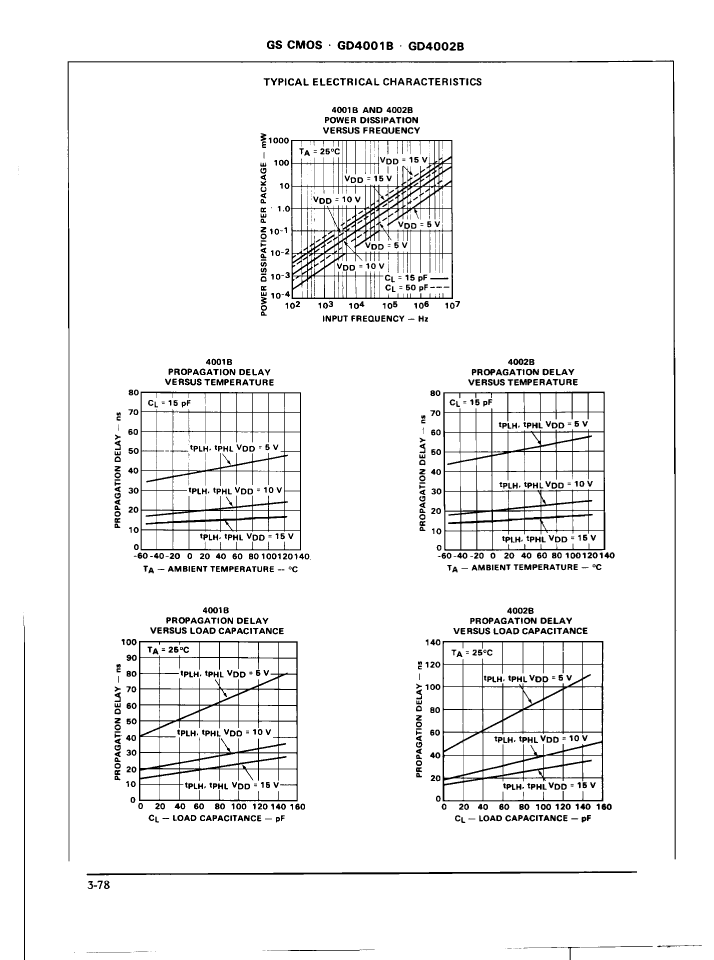

Preview

Download Datasheet

View All

GD4002BB Related Products

	GD4002BB	GD4001BJ	GD4002BJ	GD4002B	GD4002BD	GD4001BD	GD4001B
Description	NOR Gate, 4000/14000/40000 Series, 2-Func, 4-Input, CMOS, PDIP14, DIP-14	NOR Gate, 4000/14000/40000 Series, 4-Func, 2-Input, CMOS, CDIP14,	NOR Gate, 4000/14000/40000 Series, 2-Func, 4-Input, CMOS, CDIP14,	NOR Gate, 4000/14000/40000 Series, 2-Func, 4-Input, CMOS, PDIP14,	NOR Gate, 4000/14000/40000 Series, 2-Func, 4-Input, CMOS, PDSO14,	NOR Gate, 4000/14000/40000 Series, 4-Func, 2-Input, CMOS, PDSO14,	NOR Gate, 4000/14000/40000 Series, 4-Func, 2-Input, CMOS, PDIP14,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
series	4000/14000/40000	4000/14000/40000	4000/14000/40000	4000/14000/40000	4000/14000/40000	4000/14000/40000	4000/14000/40000
JESD-30 code	R-PDIP-T14	R-CDIP-T14	R-CDIP-T14	R-PDIP-T14	R-PDSO-G14	R-PDSO-G14	R-PDIP-T14
Logic integrated circuit type	NOR GATE	NOR GATE	NOR GATE	NOR GATE	NOR GATE	NOR GATE	NOR GATE
Number of functions	2	4	2	2	2	4	4
Number of entries	4	2	4	4	4	2	2
Number of terminals	14	14	14	14	14	14	14
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE
propagation delay (tpd)	110 ns	110 ns	110 ns	110 ns	110 ns	110 ns	110 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V	15 V	15 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V	3 V	3 V	3 V	3 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	YES	YES	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING	GULL WING	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	Goldstar Electron Co., Ltd.	-	Goldstar Electron Co., Ltd.	Goldstar Electron Co., Ltd.	Goldstar Electron Co., Ltd.	Goldstar Electron Co., Ltd.	Goldstar Electron Co., Ltd.
Load capacitance (CL)	-	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
