GD54LS107AJ datasheet, PDF - EEWORLD Datasheet

GD54LS107AJ: DescriptionJ-K Flip-Flop, 2-Func, Master-slave Triggered, TTL, CDIP14,; Categorylogic logic; File Size156KB，4 Pages; ManufacturerLG Semicon Co., Ltd.

Download Datasheet Parametric Compare View All

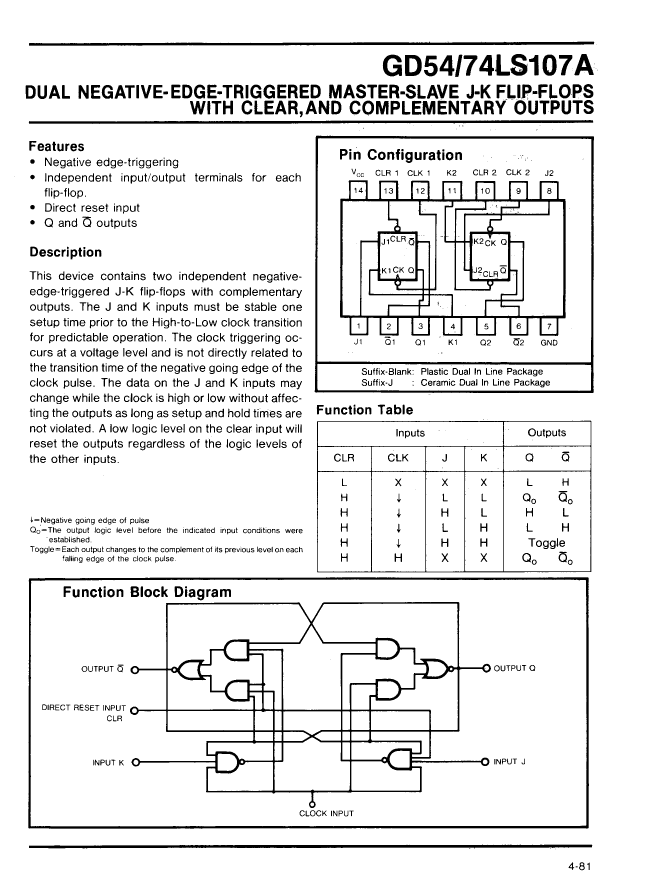

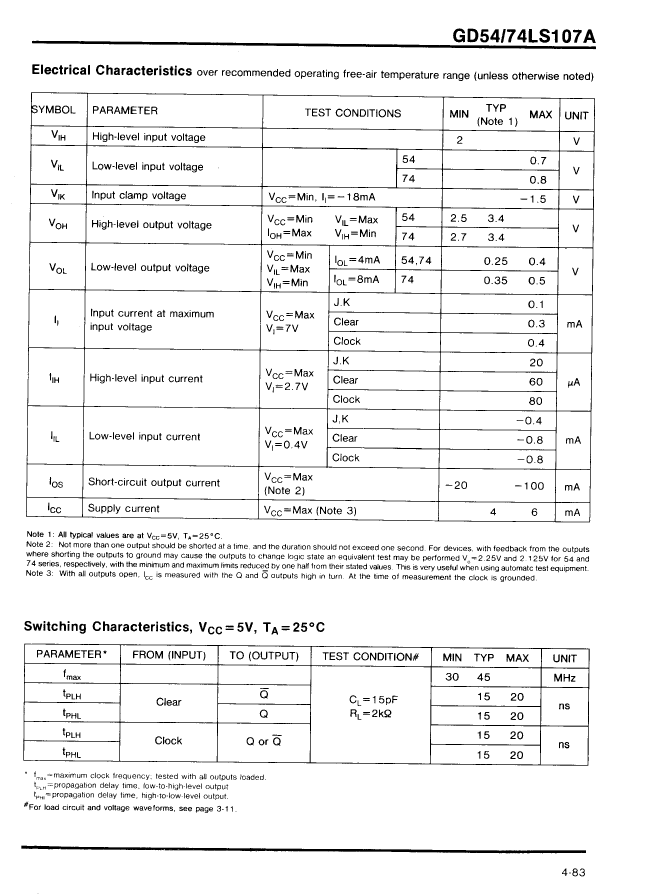

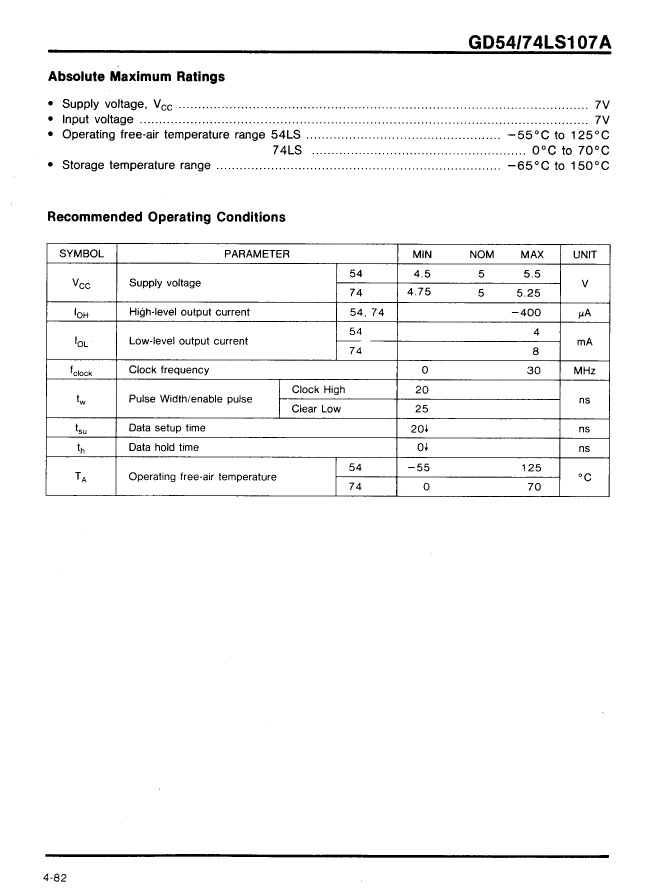

GD54LS107AJ Overview

J-K Flip-Flop, 2-Func, Master-slave Triggered, TTL, CDIP14,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	LG Semicon Co., Ltd.
package instruction	DIP, DIP14,.3
Reach Compliance Code	unknown
JESD-30 code	R-XDIP-T14
JESD-609 code	e0
Logic integrated circuit type	J-K FLIP-FLOP
Maximum Frequency@Nom-Sup	30000000 Hz
MaximumI(ol)	0.004 A
Number of functions	2
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Maximum supply current (ICC)	6 mA
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Trigger type	MASTER-SLAVE

	GD54LS107AJ	GD74LS107A	GD74LS107AJ
Description	J-K Flip-Flop, 2-Func, Master-slave Triggered, TTL, CDIP14,	J-K Flip-Flop, 2-Func, Master-slave Triggered, TTL, PDIP14,	J-K Flip-Flop, 2-Func, Master-slave Triggered, TTL, CDIP14,
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	LG Semicon Co., Ltd.	LG Semicon Co., Ltd.	LG Semicon Co., Ltd.
package instruction	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3
Reach Compliance Code	unknown	unknown	unknown
JESD-30 code	R-XDIP-T14	R-PDIP-T14	R-XDIP-T14
JESD-609 code	e0	e0	e0
Logic integrated circuit type	J-K FLIP-FLOP	J-K FLIP-FLOP	J-K FLIP-FLOP
Maximum Frequency@Nom-Sup	30000000 Hz	30000000 Hz	30000000 Hz
MaximumI(ol)	0.004 A	0.008 A	0.008 A
Number of functions	2	2	2
Number of terminals	14	14	14
Maximum operating temperature	125 °C	70 °C	70 °C
Package body material	CERAMIC	PLASTIC/EPOXY	CERAMIC
encapsulated code	DIP	DIP	DIP
Encapsulate equivalent code	DIP14,.3	DIP14,.3	DIP14,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
power supply	5 V	5 V	5 V
Maximum supply current (ICC)	6 mA	6 mA	6 mA
Certification status	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	NO	NO	NO
technology	TTL	TTL	TTL
Temperature level	MILITARY	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
Trigger type	MASTER-SLAVE	MASTER-SLAVE	MASTER-SLAVE
