BCR20A8R datasheet, PDF - EEWORLD Datasheet

BCR20A8R: DescriptionTRIAC, 400V V(DRM), 20A I(T)RMS; CategoryAnalog mixed-signal IC Trigger device; File Size265KB，5 Pages; ManufacturerMitsubishi; Websitehttp://www.mitsubishielectric.com/semiconductors/

Download Datasheet Parametric Compare View All

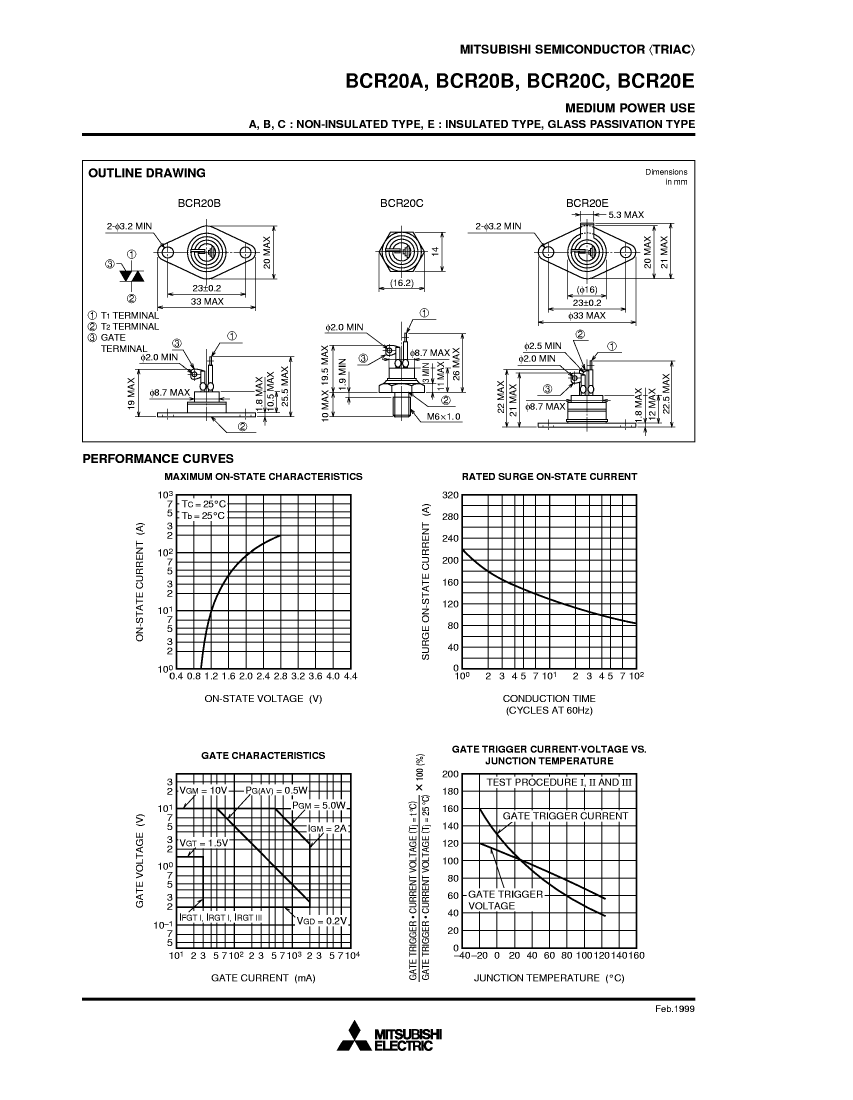

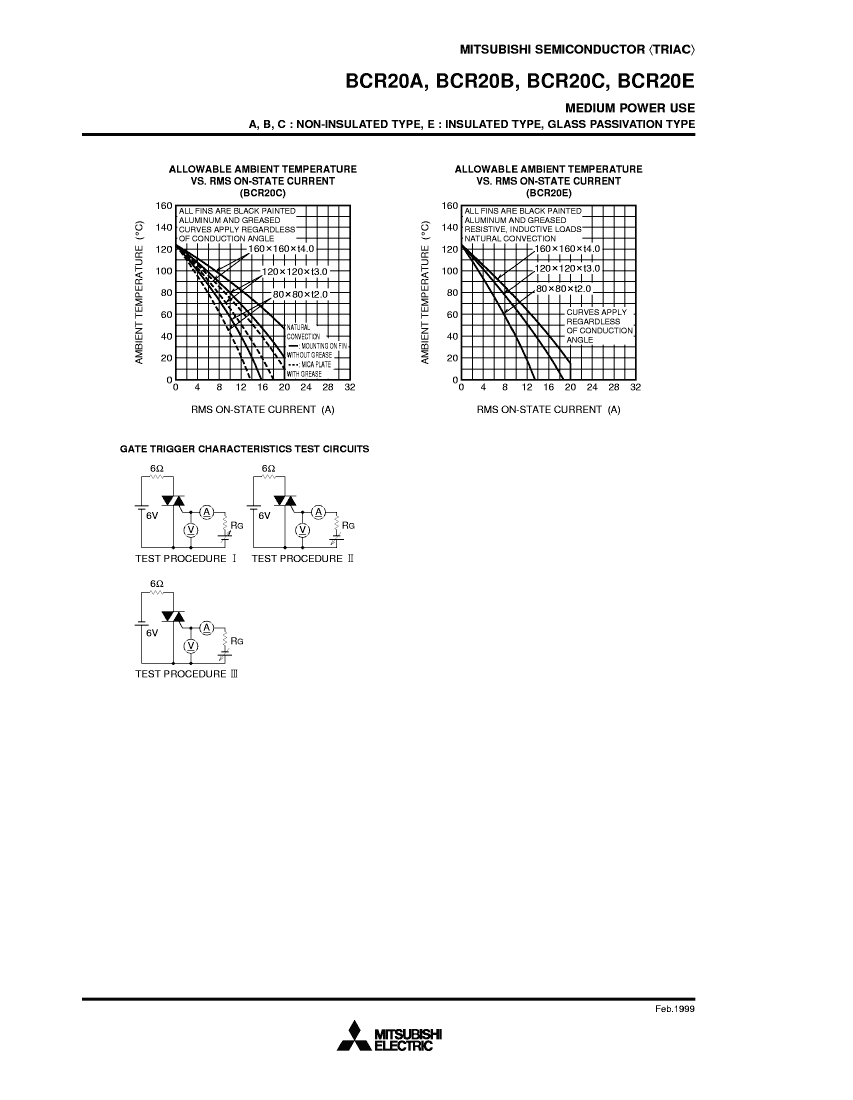

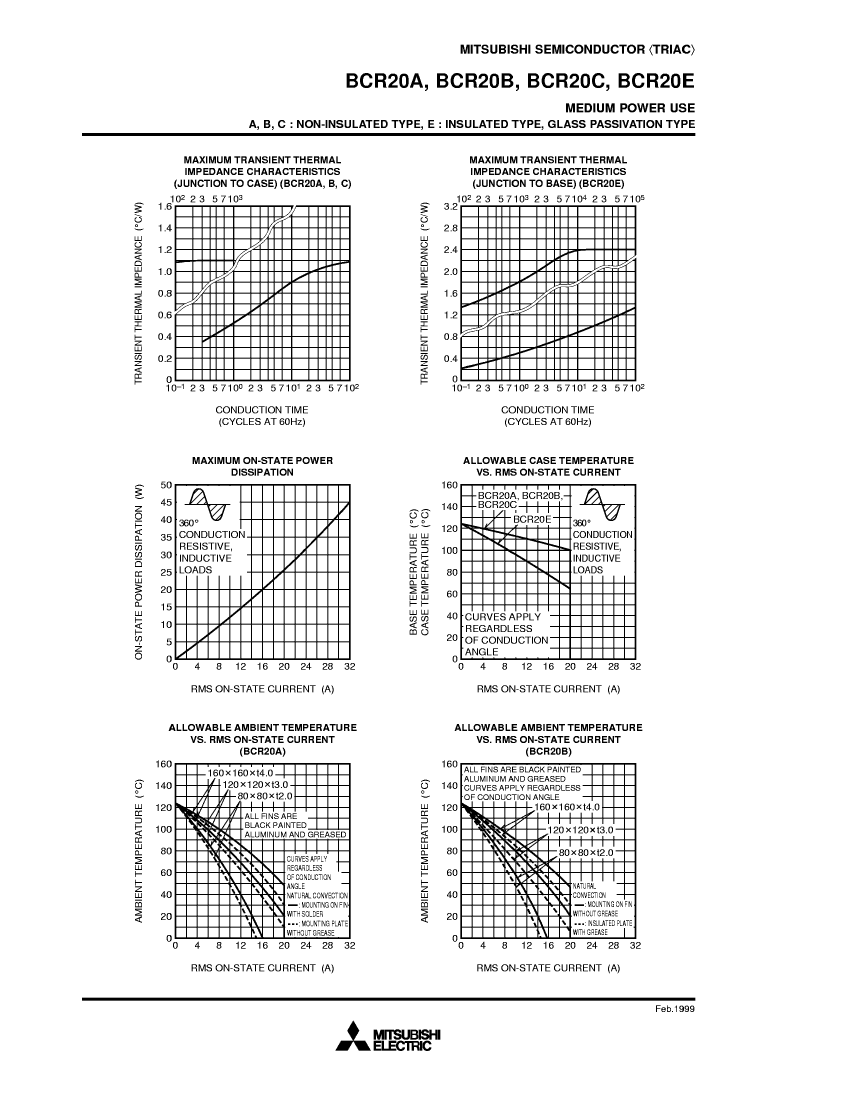

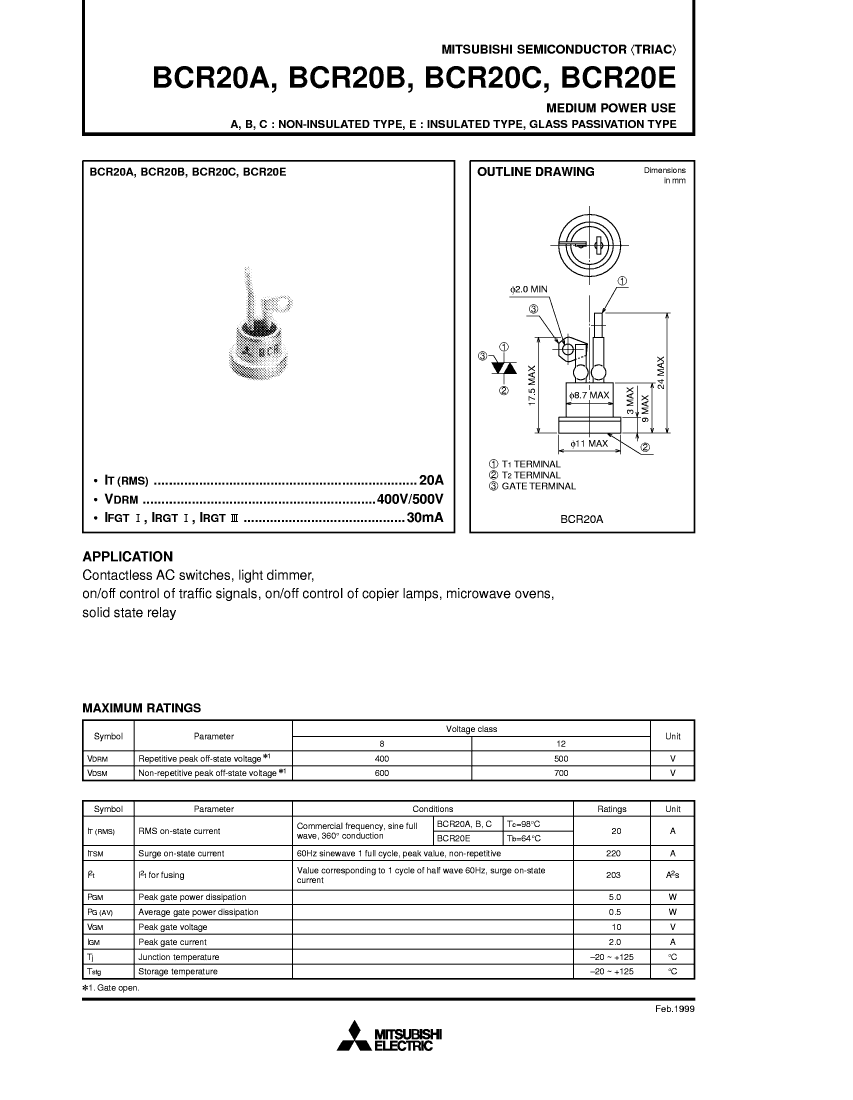

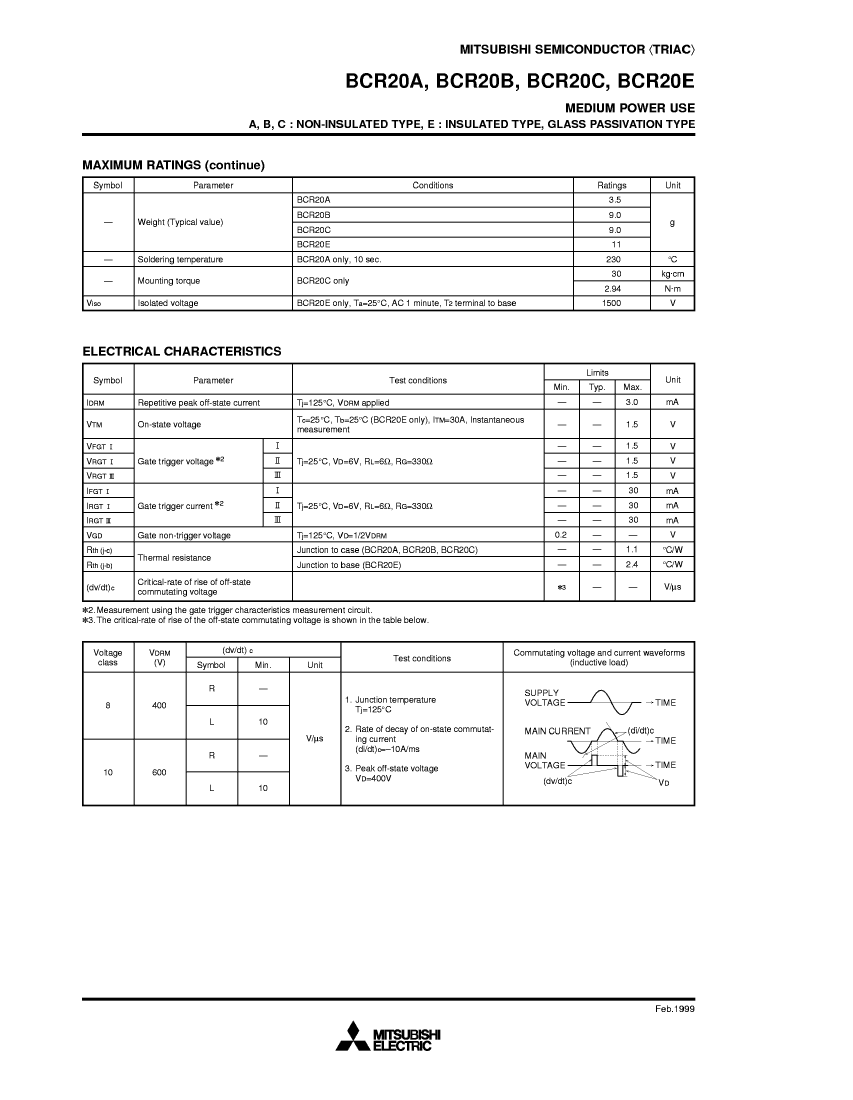

BCR20A8R Overview

TRIAC, 400V V(DRM), 20A I(T)RMS

Parameter Name	Attribute value
Maker	Mitsubishi
package instruction	,
Reach Compliance Code	unknown
Maximum DC gate trigger current	30 mA
Maximum DC gate trigger voltage	1.5 V
Maximum leakage current	3 mA
Maximum operating temperature	125 °C
Minimum operating temperature	-25 °C
Maximum rms on-state current	20 A
Off-state repetitive peak voltage	400 V
surface mount	NO
Trigger device type	TRIAC

	BCR20A8R	BCR20A10R	BCR20A10L	BCR20A8L
Description	TRIAC, 400V V(DRM), 20A I(T)RMS	TRIAC, 500V V(DRM), 20A I(T)RMS	TRIAC, 500V V(DRM), 20A I(T)RMS	TRIAC, 400V V(DRM), 20A I(T)RMS
Maker	Mitsubishi	Mitsubishi	Mitsubishi	Mitsubishi
Reach Compliance Code	unknown	unknown	unknown	unknown
Maximum DC gate trigger current	30 mA	30 mA	30 mA	30 mA
Maximum DC gate trigger voltage	1.5 V	1.5 V	1.5 V	1.5 V
Maximum leakage current	3 mA	3 mA	3 mA	3 mA
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C
Maximum rms on-state current	20 A	20 A	20 A	20 A
Off-state repetitive peak voltage	400 V	500 V	500 V	400 V
surface mount	NO	NO	NO	NO
Trigger device type	TRIAC	TRIAC	TRIAC	TRIAC
