AD390TD datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> AD390TD

Preview

AD390TD: DescriptionPARALLEL, WORD INPUT LOADING, 4 us SETTLING TIME, 12-BIT DAC, CDIP28, HYBRID, SIDE BRAZED, CERAMIC, DIP-28; CategoryAnalog mixed-signal IC converter; File Size2MB，4 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric View All

AD390TD Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	AD390TD	-	-	View	Buy Now

AD390TD Overview

PARALLEL, WORD INPUT LOADING, 4 us SETTLING TIME, 12-BIT DAC, CDIP28, HYBRID, SIDE BRAZED, CERAMIC, DIP-28

AD390TD Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Rochester Electronics
Parts packaging code	DIP
package instruction	DIP,
Contacts	28
Reach Compliance Code	unknown
Maximum analog output voltage	10 V
Minimum analog output voltage	-10 V
Converter type	D/A CONVERTER
Enter bit code	OFFSET BINARY
Input format	PARALLEL, WORD
JESD-30 code	R-CDIP-T28
JESD-609 code	e4
length	35.56 mm
Maximum linear error (EL)	0.0122%
Humidity sensitivity level	NOT SPECIFIED
Nominal negative supply voltage	-15 V
Number of digits	12
Number of functions	1
Number of terminals	28
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	COMMERCIAL
Maximum seat height	5.72 mm
Nominal settling time (tstl)	4 µs
Nominal supply voltage	15 V
surface mount	NO
Temperature level	MILITARY
Terminal surface	GOLD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm

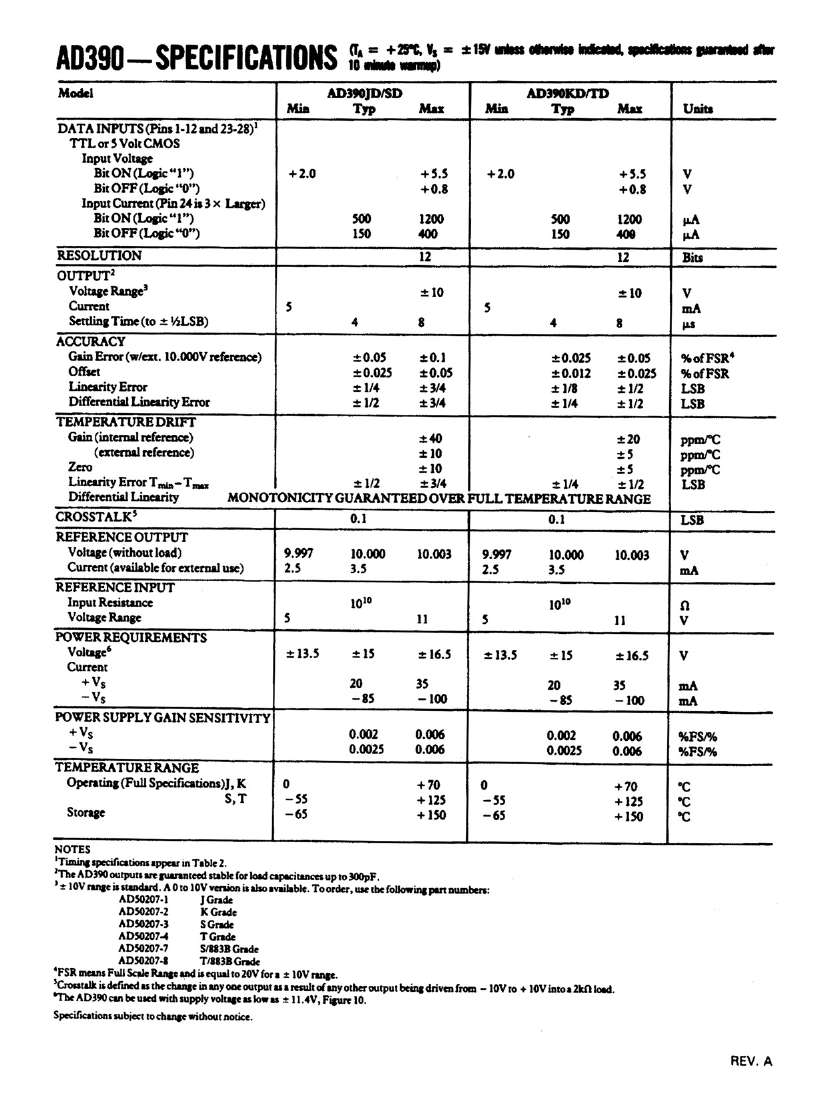

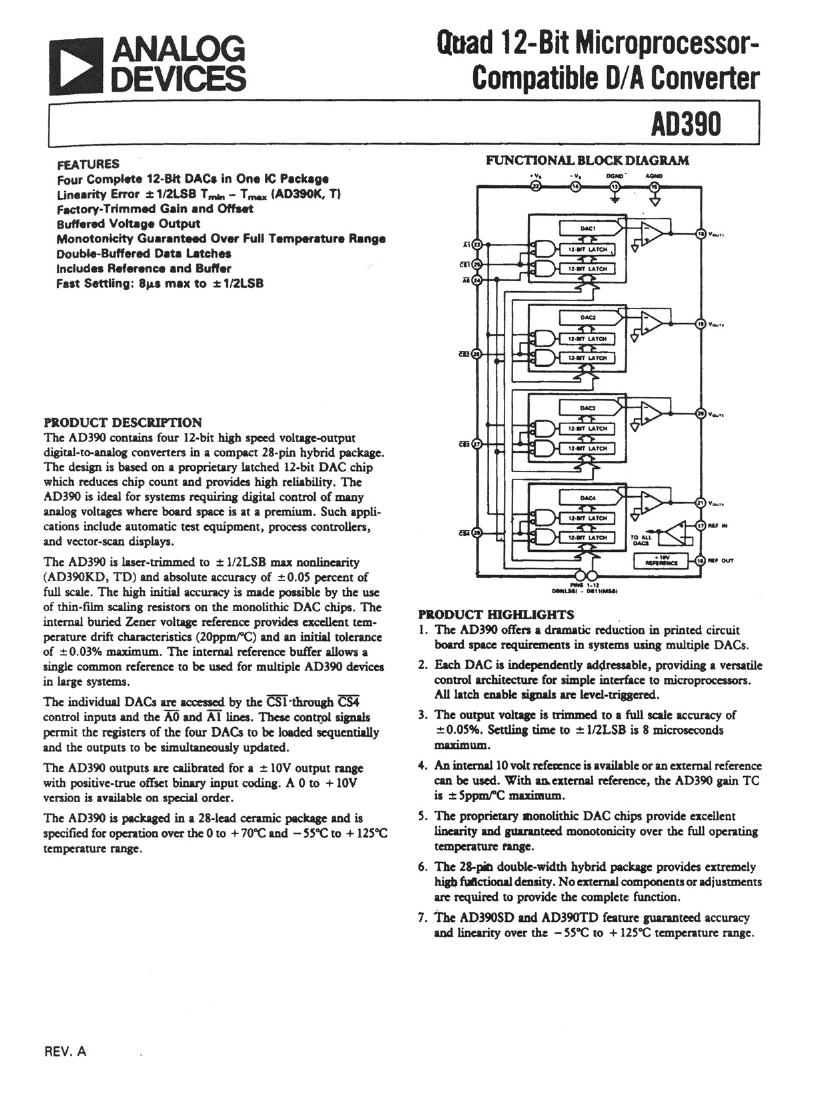

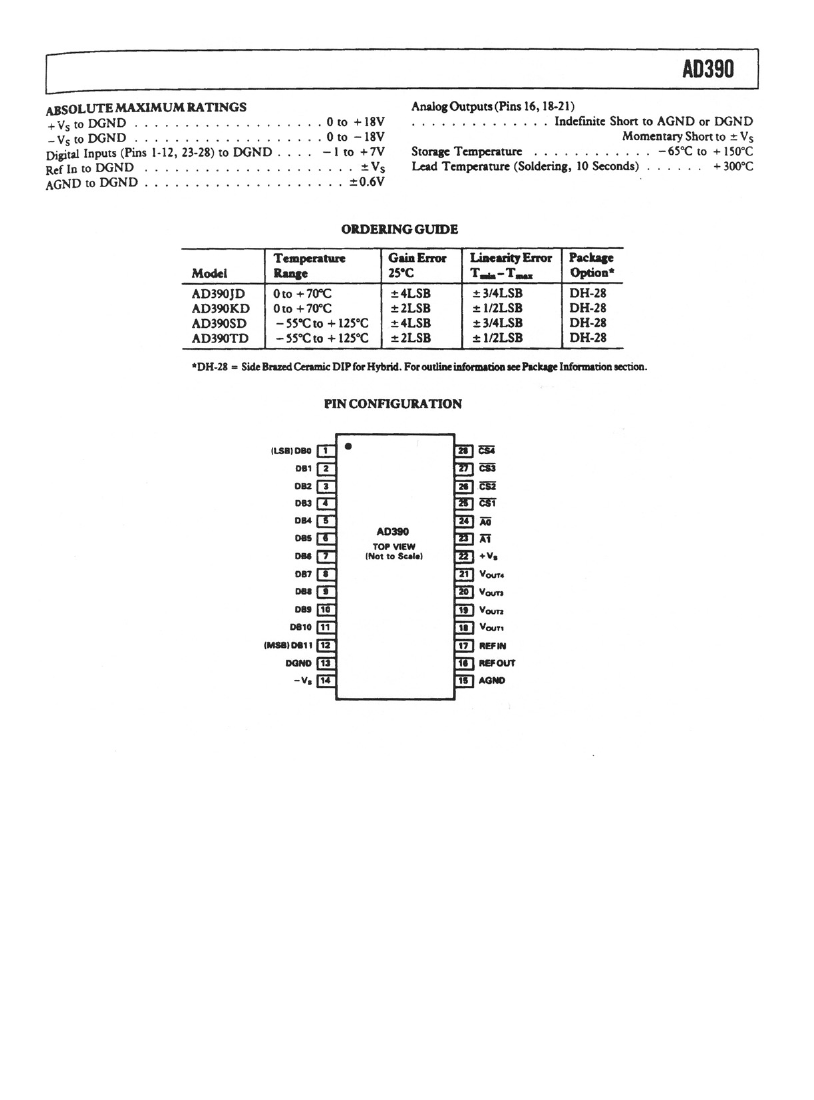

AD390TD Preview
