BTW50-800 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Trigger device> BTW50-800

BTW50-800: Description63A, 800V, SCR, TO-65; CategoryAnalog mixed-signal IC Trigger device; File Size90KB，4 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

BTW50-800 Overview

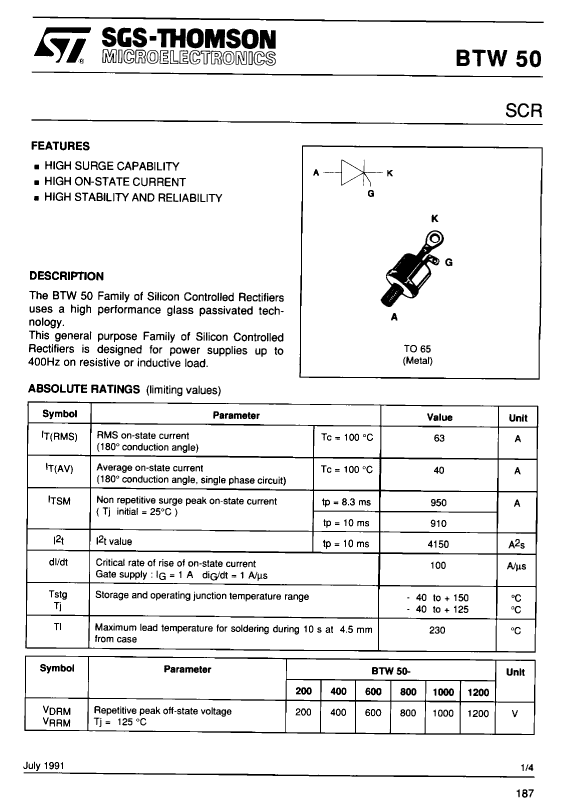

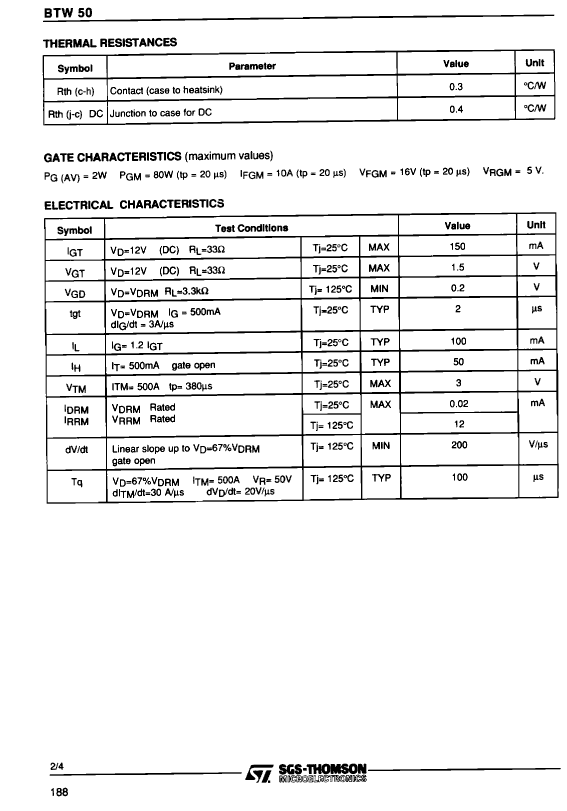

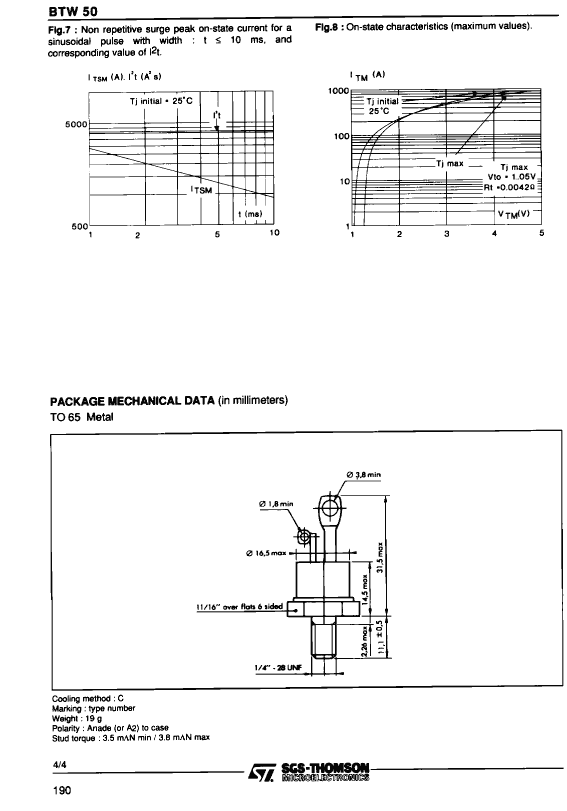

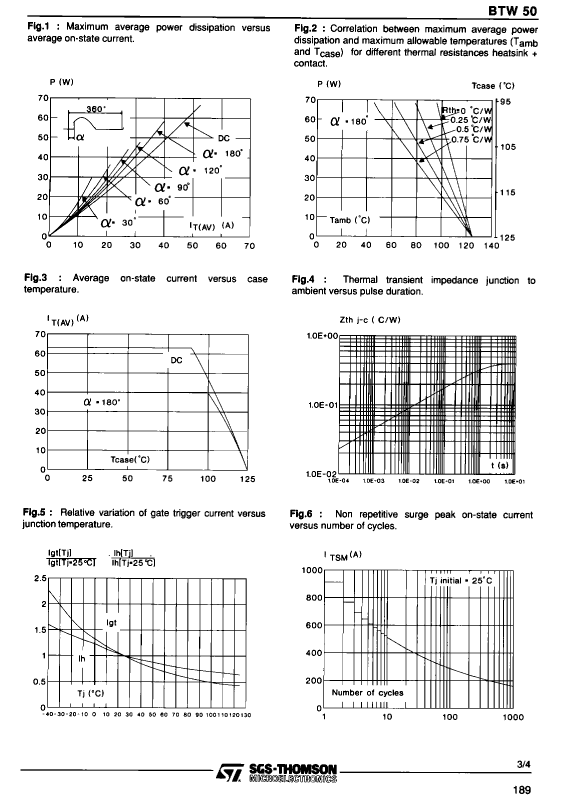

63A, 800V, SCR, TO-65

BTW50-800 Parametric

Parameter Name	Attribute value
Maker	STMicroelectronics
package instruction	POST/STUD MOUNT, O-MUPM-D2
Reach Compliance Code	compliant
Shell connection	ANODE
Nominal circuit commutation break time	100 µs
Configuration	SINGLE
Critical rise rate of minimum off-state voltage	200 V/us
Maximum DC gate trigger current	150 mA
Maximum DC gate trigger voltage	1.5 V
JEDEC-95 code	TO-65
JESD-30 code	O-MUPM-D2
Maximum leakage current	12 mA
On-state non-repetitive peak current	800 A
Number of components	1
Number of terminals	2
Maximum on-state current	63000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Certification status	Not Qualified
Maximum rms on-state current	63 A
Maximum repetitive peak off-state leakage current	20 µA
Off-state repetitive peak voltage	800 V
Repeated peak reverse voltage	800 V
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	UPPER
Trigger device type	SCR

Preview

Download Datasheet

View All

BTW50-800 Related Products

	BTW50-800	BTW50-600	BTW50-400	BTW50-1000	BTW50-200
Description	63A, 800V, SCR, TO-65	63A, 600V, SCR, TO-65	63A, 400V, SCR, TO-65	63A, 1000V, SCR, TO-65	63A, 200V, SCR, TO-65
Maker	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics
package instruction	POST/STUD MOUNT, O-MUPM-D2	POST/STUD MOUNT, O-MUPM-D2	POST/STUD MOUNT, O-MUPM-D2	POST/STUD MOUNT, O-MUPM-D2	POST/STUD MOUNT, O-MUPM-D2
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
Shell connection	ANODE	ANODE	ANODE	ANODE	ANODE
Nominal circuit commutation break time	100 µs	100 µs	100 µs	100 µs	100 µs
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Critical rise rate of minimum off-state voltage	200 V/us	200 V/us	200 V/us	200 V/us	200 V/us
Maximum DC gate trigger current	150 mA	150 mA	150 mA	150 mA	150 mA
Maximum DC gate trigger voltage	1.5 V	1.5 V	1.5 V	1.5 V	1.5 V
JEDEC-95 code	TO-65	TO-65	TO-65	TO-65	TO-65
JESD-30 code	O-MUPM-D2	O-MUPM-D2	O-MUPM-D2	O-MUPM-D2	O-MUPM-D2
Maximum leakage current	12 mA	12 mA	12 mA	12 mA	12 mA
On-state non-repetitive peak current	800 A	800 A	800 A	800 A	800 A
Number of components	1	1	1	1	1
Number of terminals	2	2	2	2	2
Maximum on-state current	63000 A	63000 A	63000 A	63000 A	63000 A
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	METAL	METAL	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum rms on-state current	63 A	63 A	63 A	63 A	63 A
Maximum repetitive peak off-state leakage current	20 µA	20 µA	20 µA	20 µA	20 µA
Off-state repetitive peak voltage	800 V	600 V	400 V	1000 V	200 V
Repeated peak reverse voltage	800 V	600 V	400 V	1000 V	200 V
surface mount	NO	NO	NO	NO	NO
Terminal form	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER
Trigger device type	SCR	SCR	SCR	SCR	SCR
