BCR8CS8R datasheet, PDF - EEWORLD Datasheet

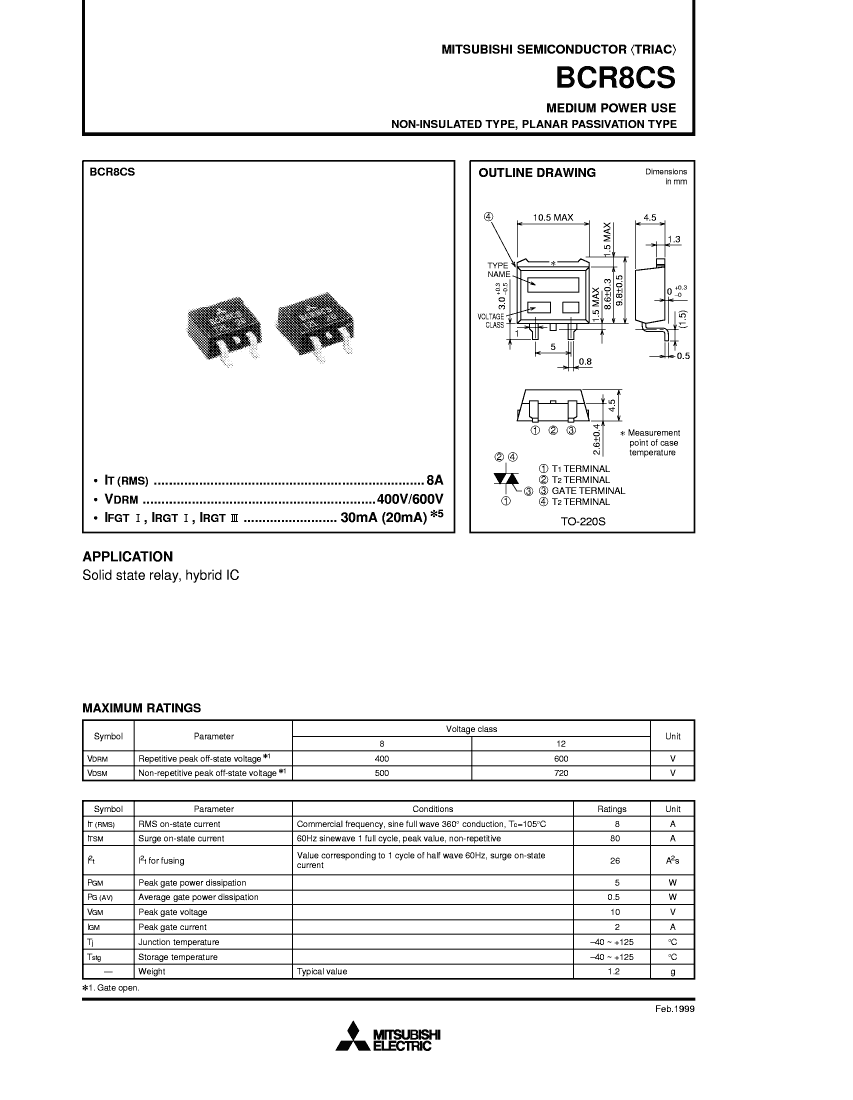

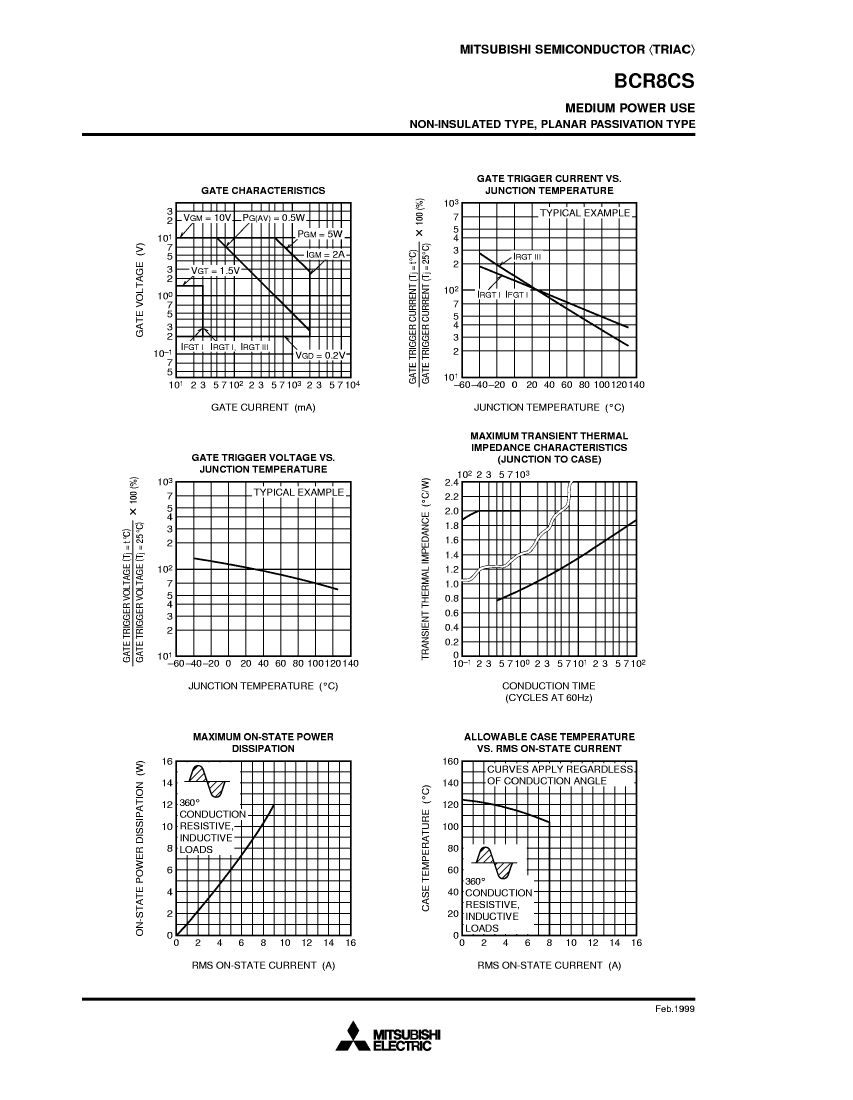

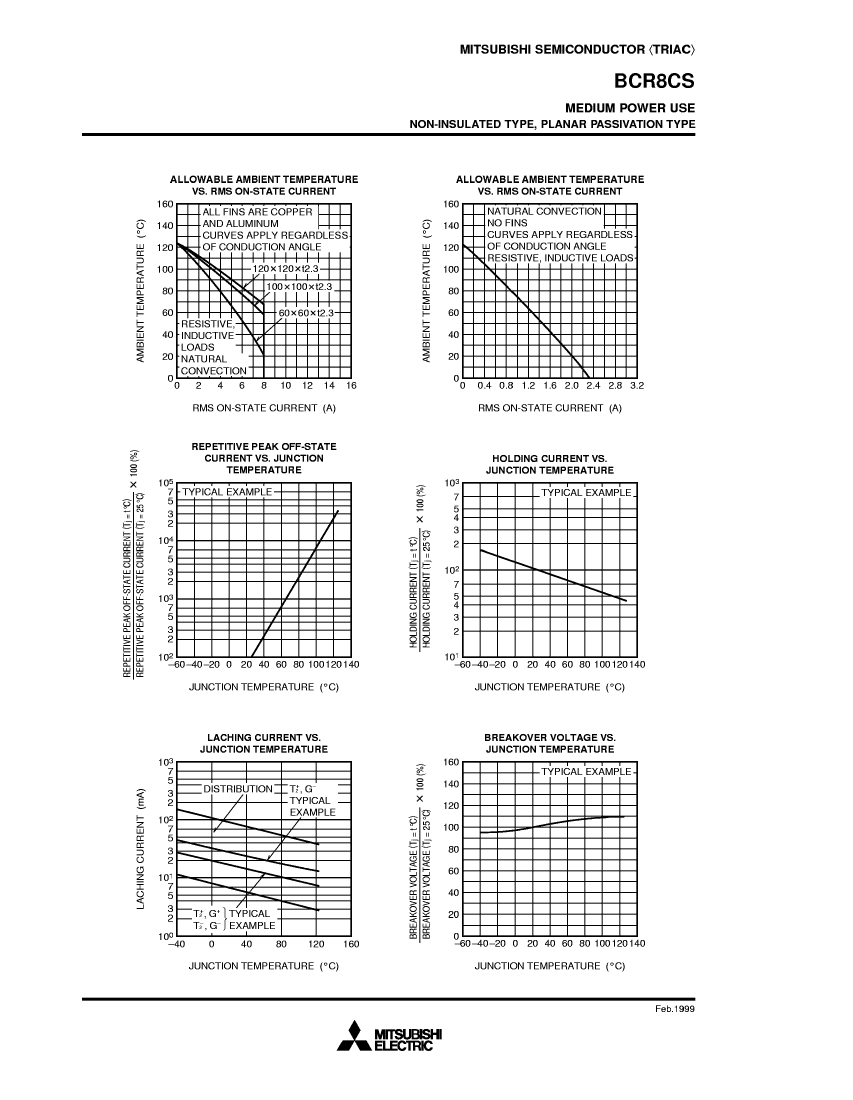

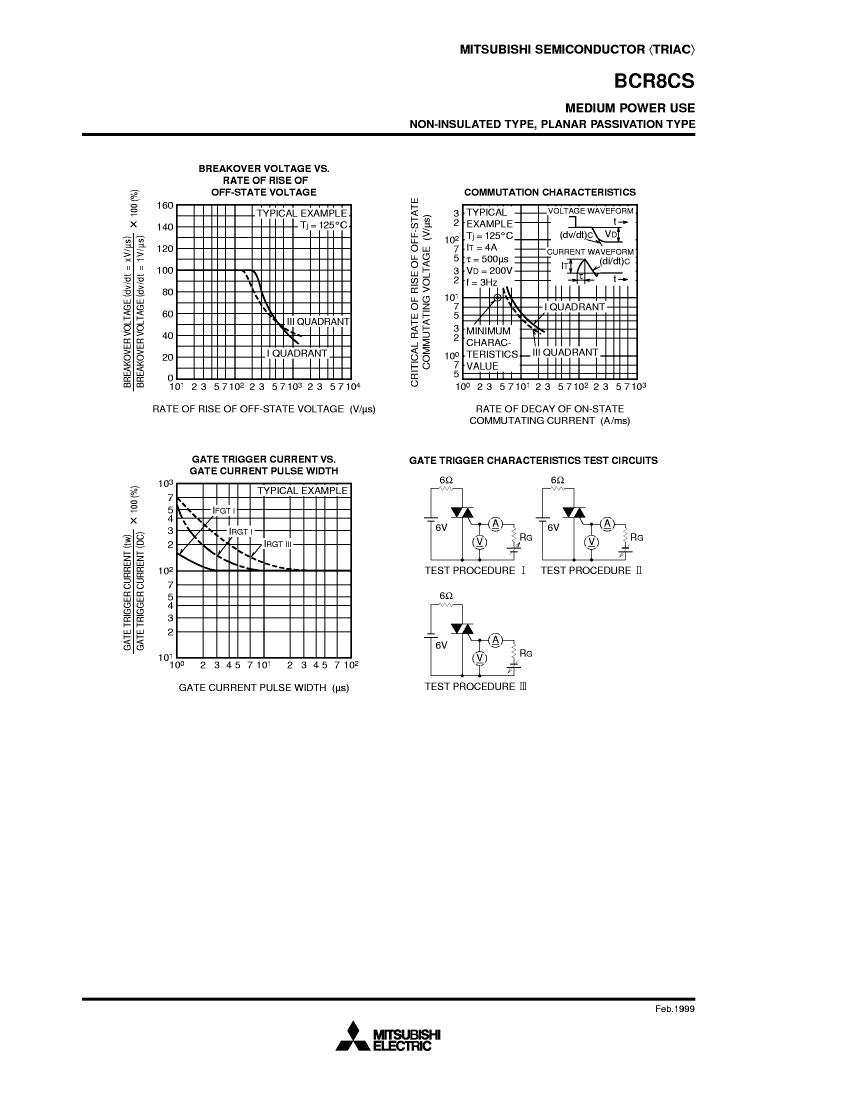

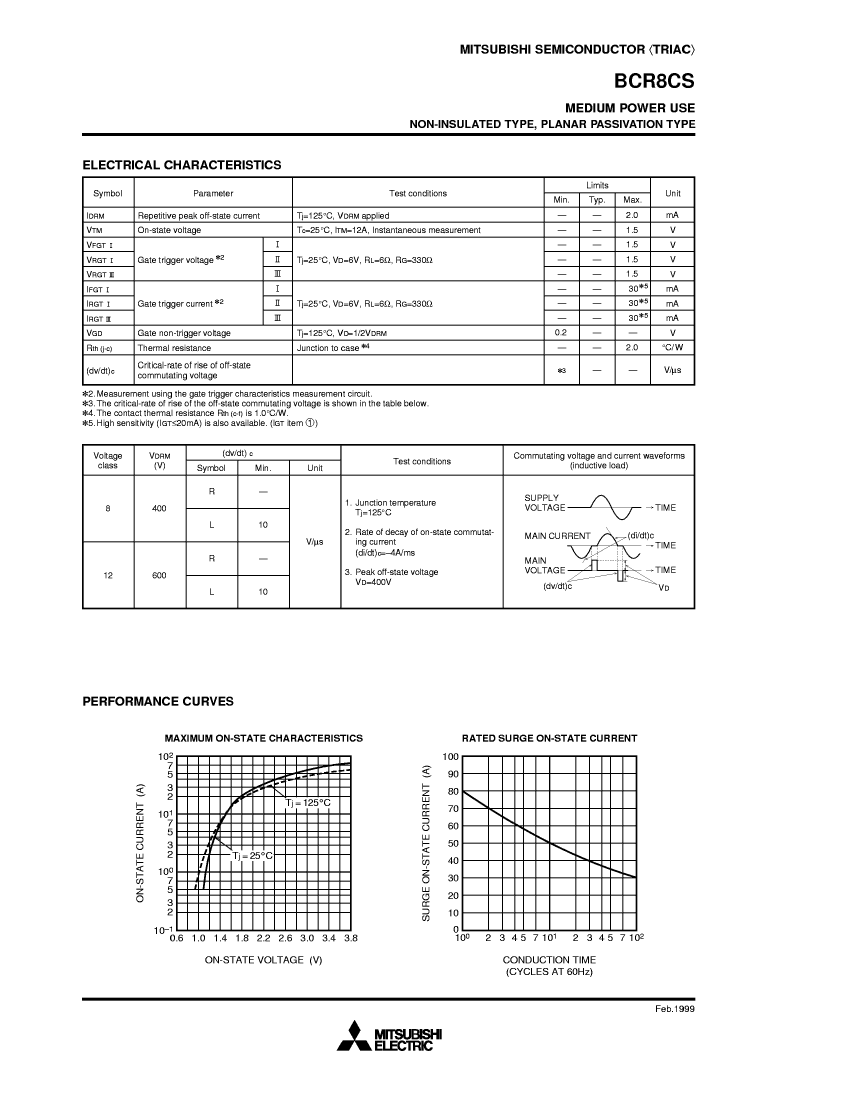

BCR8CS8R: DescriptionTRIAC, 400V V(DRM), 8A I(T)RMS,; CategoryAnalog mixed-signal IC Trigger device; File Size245KB，5 Pages; ManufacturerMitsubishi; Websitehttp://www.mitsubishielectric.com/semiconductors/

Download Datasheet Parametric Compare View All

BCR8CS8R Overview

TRIAC, 400V V(DRM), 8A I(T)RMS,

Parameter Name	Attribute value
Maker	Mitsubishi
package instruction	,
Reach Compliance Code	unknown
Maximum DC gate trigger current	30 mA
Maximum DC gate trigger voltage	1.5 V
Maximum leakage current	2 mA
Maximum on-state voltage	1.5 V
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Maximum rms on-state current	8 A
Off-state repetitive peak voltage	400 V
surface mount	YES
Trigger device type	TRIAC

	BCR8CS8R	BCR8CS12R
Description	TRIAC, 400V V(DRM), 8A I(T)RMS,	TRIAC, 600V V(DRM), 8A I(T)RMS,
Maker	Mitsubishi	Mitsubishi
Reach Compliance Code	unknown	unknown
Maximum DC gate trigger current	30 mA	30 mA
Maximum DC gate trigger voltage	1.5 V	1.5 V
Maximum leakage current	2 mA	2 mA
Maximum on-state voltage	1.5 V	1.5 V
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C
Maximum rms on-state current	8 A	8 A
Off-state repetitive peak voltage	400 V	600 V
surface mount	YES	YES
Trigger device type	TRIAC	TRIAC
