MD321000FKX-10/AD4 datasheet, PDF

Datasheet> All Categories > storage> storage> MD321000FKX-10/AD4

MD321000FKX-10/AD4: DescriptionFast Page DRAM Module, 1MX32, 100ns, CMOS, PDIP48, PLASTIC, DIP-48; Categorystorage storage; File Size461KB，8 Pages; ManufacturerMOSAIC; Websitehttp://www.mosaicsemi.com/

Download Datasheet Parametric Compare View All

MD321000FKX-10/AD4 Overview

Fast Page DRAM Module, 1MX32, 100ns, CMOS, PDIP48, PLASTIC, DIP-48

MD321000FKX-10/AD4 Parametric

Parameter Name	Attribute value
Maker	MOSAIC
Parts packaging code	DIP
package instruction	,
Contacts	48
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	FAST PAGE
Maximum access time	100 ns
Other features	RAS/CBR REFRESH; FOR TRANSPUTER SPEED 20MHZ
JESD-30 code	R-PDIP-T48
memory density	33554432 bit
Memory IC Type	FAST PAGE DRAM MODULE
memory width	32
Number of functions	1
Number of ports	1
Number of terminals	48
word count	1048576 words
character code	1000000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	1MX32
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
refresh cycle	1024
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal location	DUAL

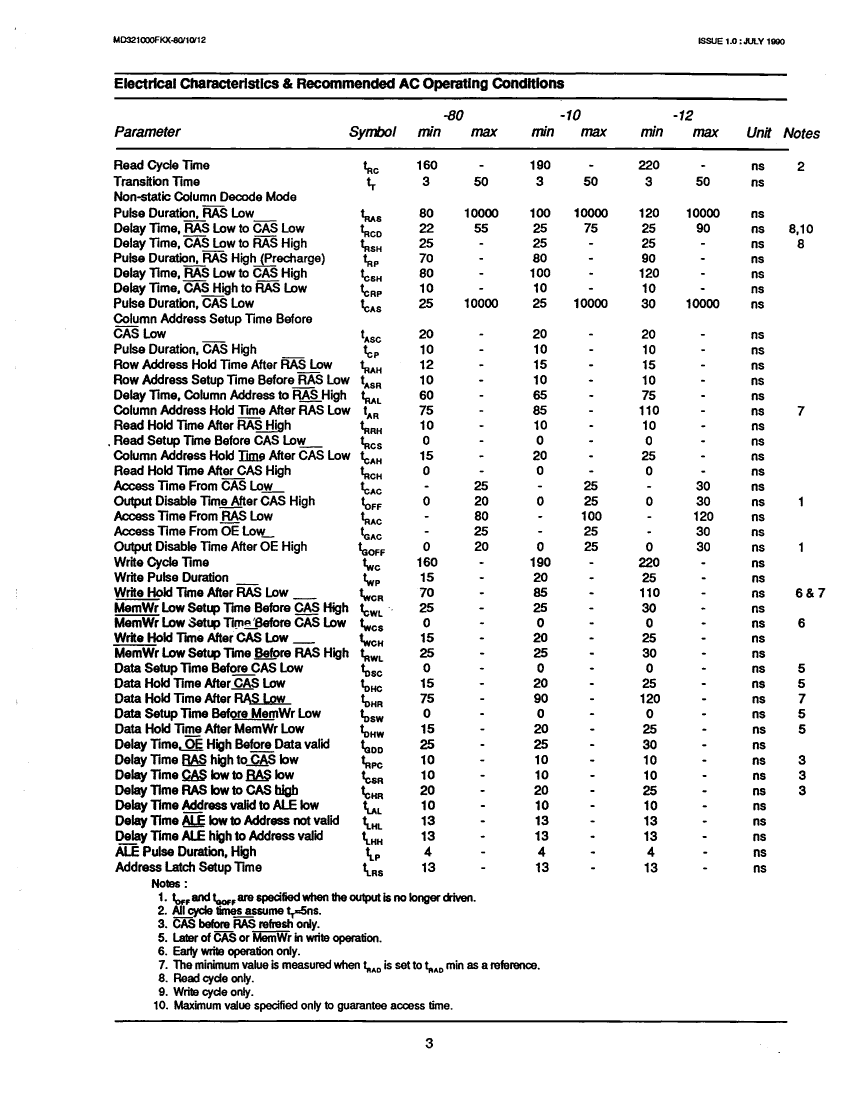

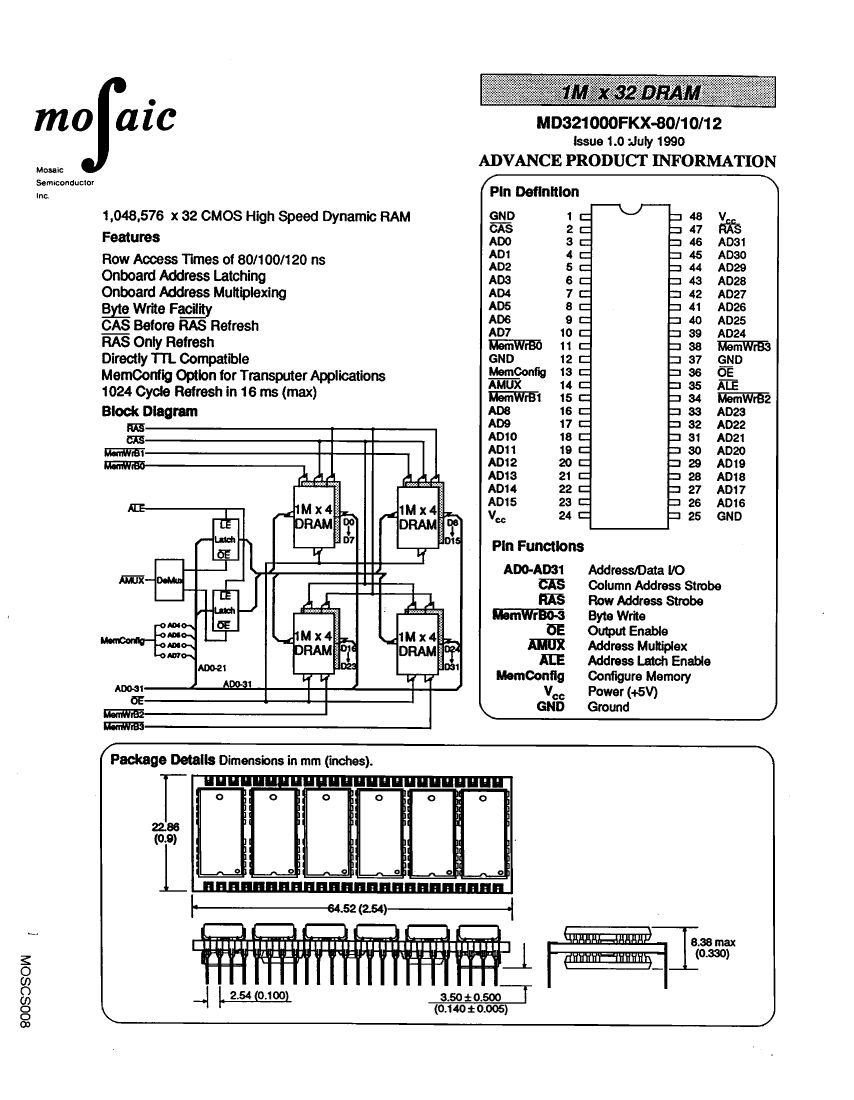

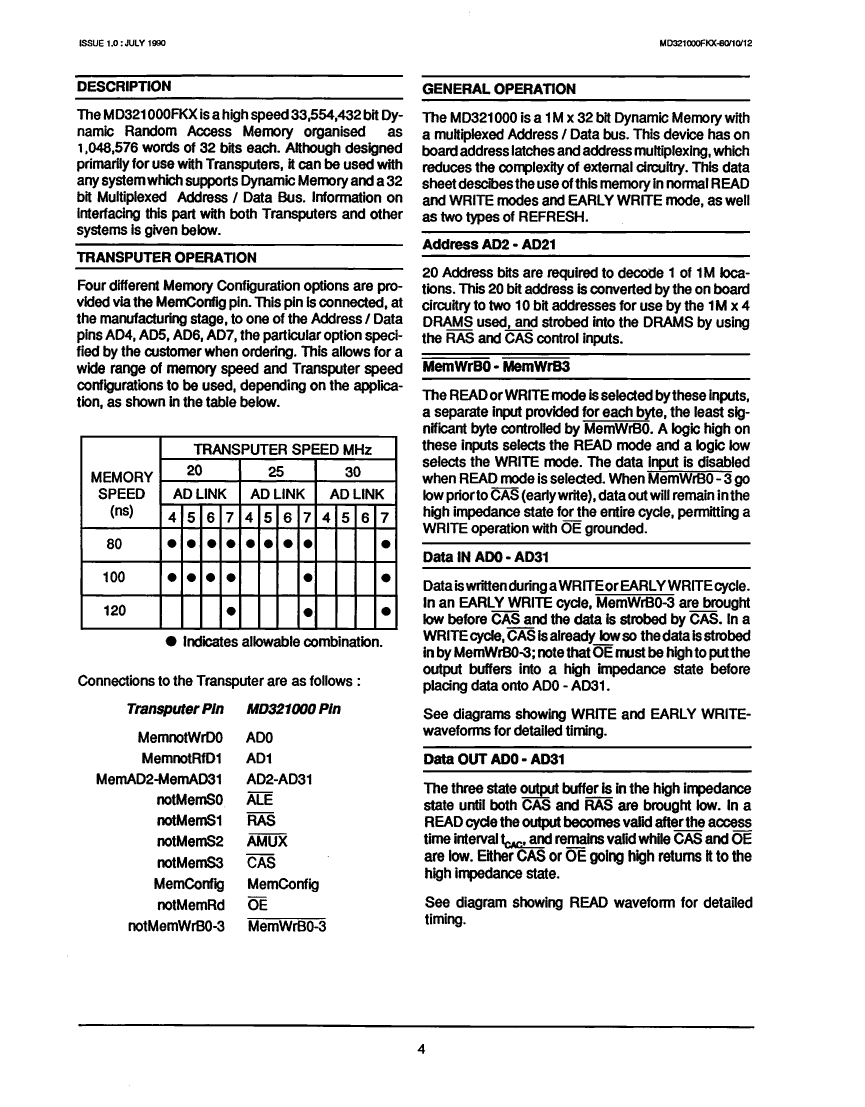

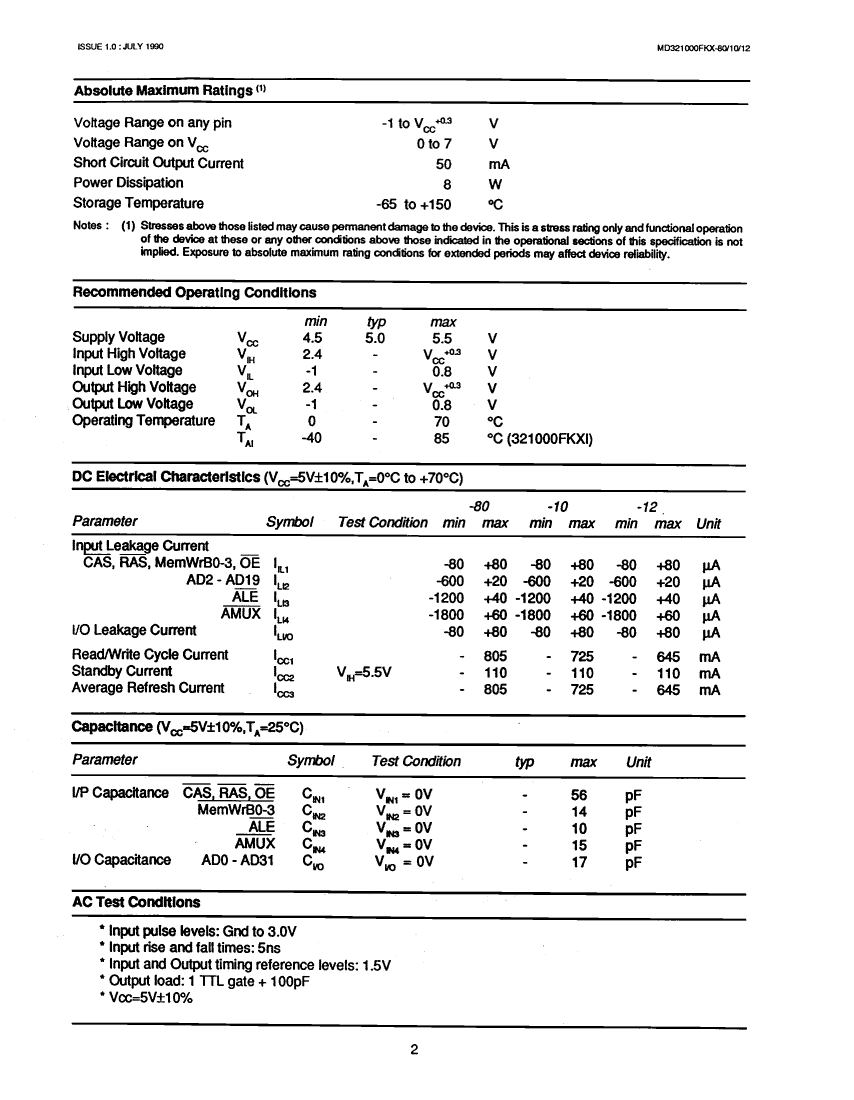

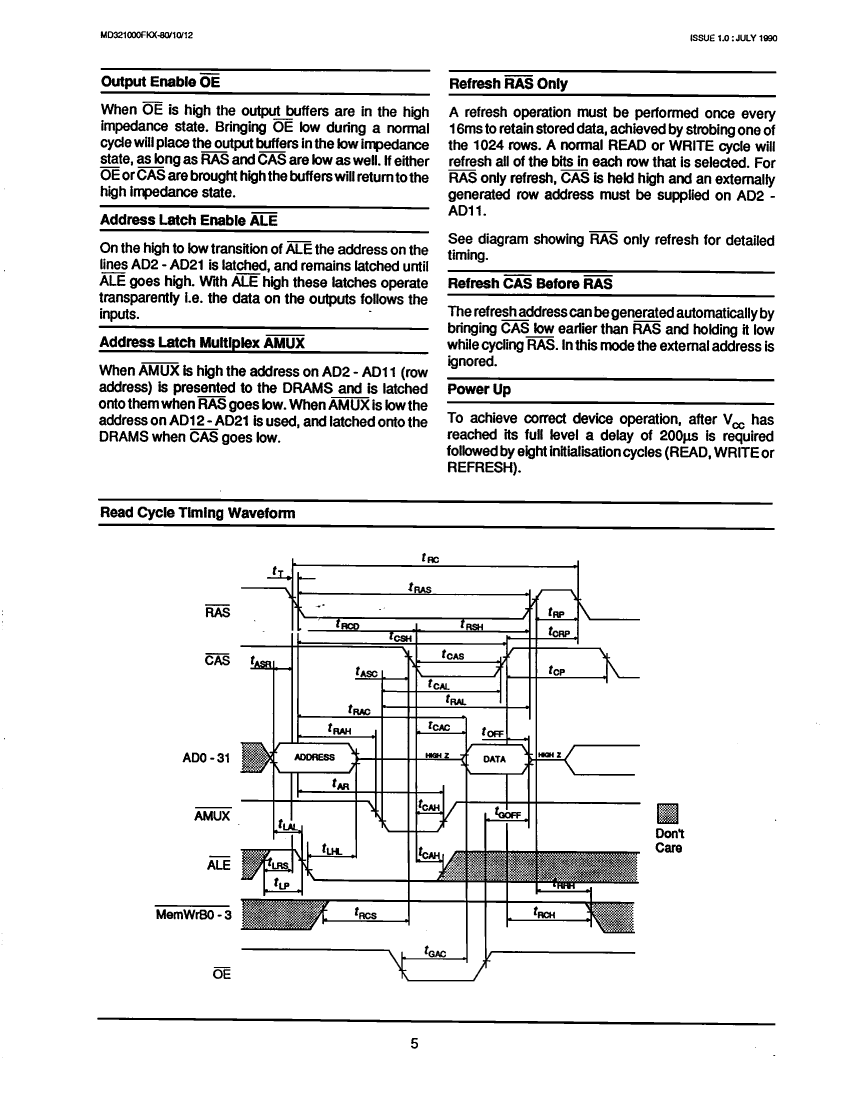

Preview

Download Datasheet

View All

MD321000FKX-10/AD4 Related Products

	MD321000FKX-10/AD4	MD321000FKX-10/AD6	MD321000FKX-80/AD7	MD321000FKX-12/AD7	MD321000FKX-80/AD4
Description	Fast Page DRAM Module, 1MX32, 100ns, CMOS, PDIP48, PLASTIC, DIP-48	Fast Page DRAM Module, 1MX32, 100ns, CMOS, PDIP48, PLASTIC, DIP-48	Fast Page DRAM Module, 1MX32, 80ns, CMOS, PDIP48, PLASTIC, DIP-48	Fast Page DRAM Module, 1MX32, 120ns, CMOS, PDIP48, PLASTIC, DIP-48	Fast Page DRAM Module, 1MX32, 80ns, CMOS, PDIP48, PLASTIC, DIP-48
Parts packaging code	DIP	DIP	DIP	DIP	DIP
Contacts	48	48	48	48	48
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
access mode	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE	FAST PAGE
Maximum access time	100 ns	100 ns	80 ns	120 ns	80 ns
Other features	RAS/CBR REFRESH; FOR TRANSPUTER SPEED 20MHZ	RAS/CBR REFRESH; FOR TRANSPUTER SPEED 20MHZ	RAS/CBR REFRESH; FOR TRANSPUTER SPEED 20/25/30MHZ	RAS/CBR REFRESH; FOR TRANSPUTER SPEED 20/25/30MHZ	RAS/CBR REFRESH; FOR TRANSPUTER SPEED 20/25MHZ
JESD-30 code	R-PDIP-T48	R-PDIP-T48	R-PDIP-T48	R-PDIP-T48	R-PDIP-T48
memory density	33554432 bit	33554432 bit	33554432 bit	33554432 bit	33554432 bit
Memory IC Type	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE
memory width	32	32	32	32	32
Number of functions	1	1	1	1	1
Number of ports	1	1	1	1	1
Number of terminals	48	48	48	48	48
word count	1048576 words	1048576 words	1048576 words	1048576 words	1048576 words
character code	1000000	1000000	1000000	1000000	1000000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C
organize	1MX32	1MX32	1MX32	1MX32	1MX32
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	1024	1024	1024	1024	1024
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	MOSAIC	-	-	MOSAIC	MOSAIC
