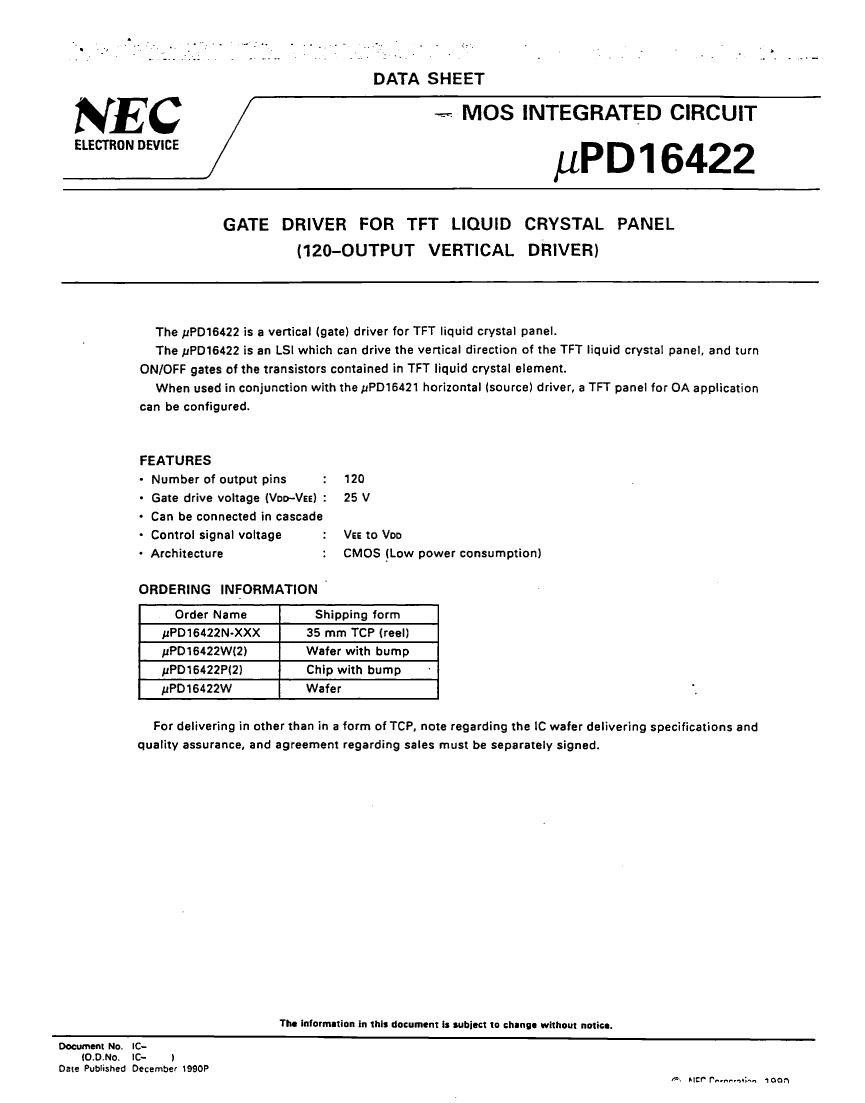

UPD16422W datasheet, PDF - EEWORLD Datasheet

UPD16422W: DescriptionLiquid Crystal Driver, 120-Segment, CMOS, WAFER-128; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size215KB，8 Pages; ManufacturerNEC Electronics

Download Datasheet Parametric Compare View All

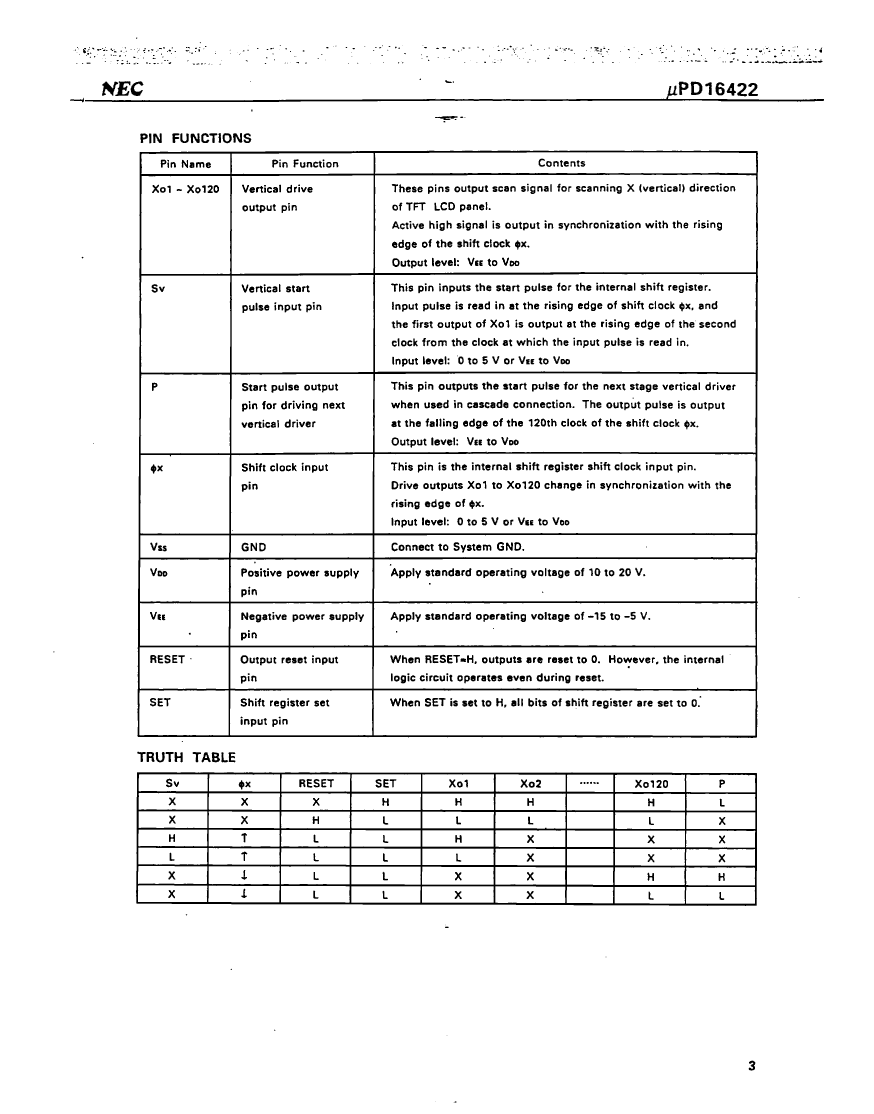

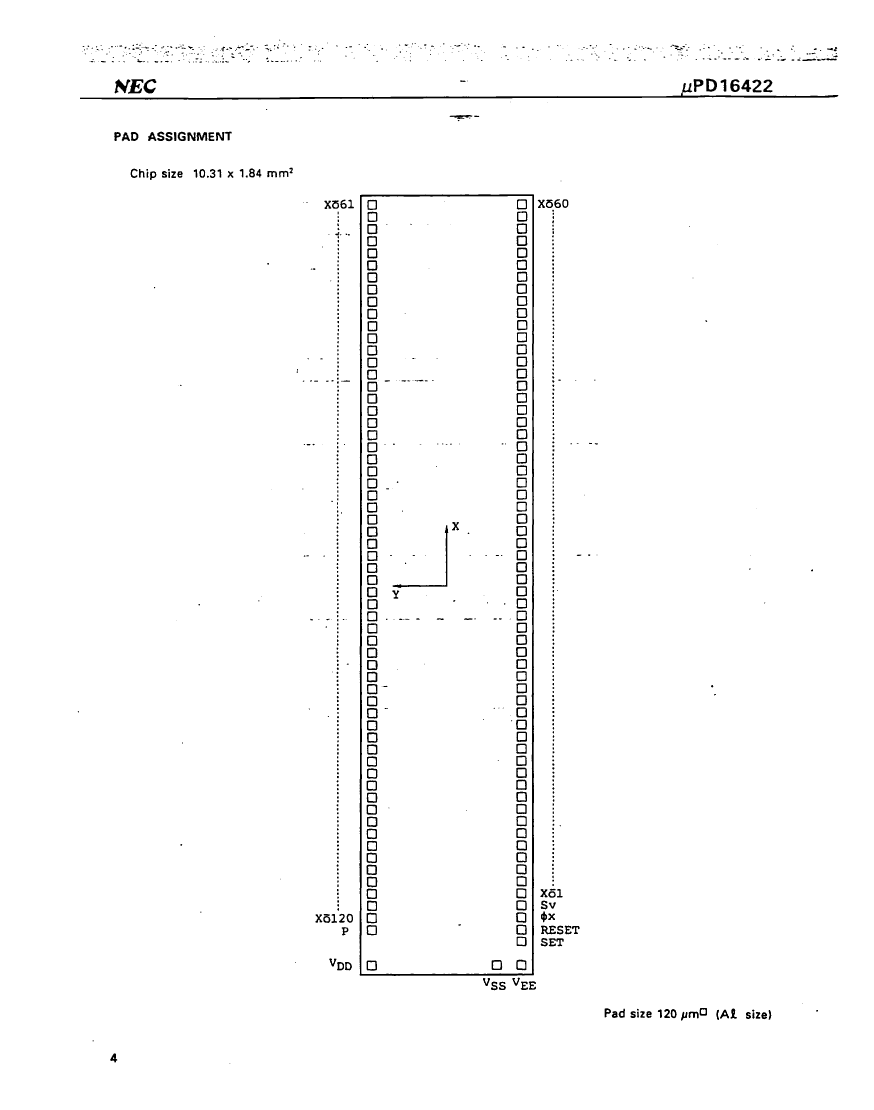

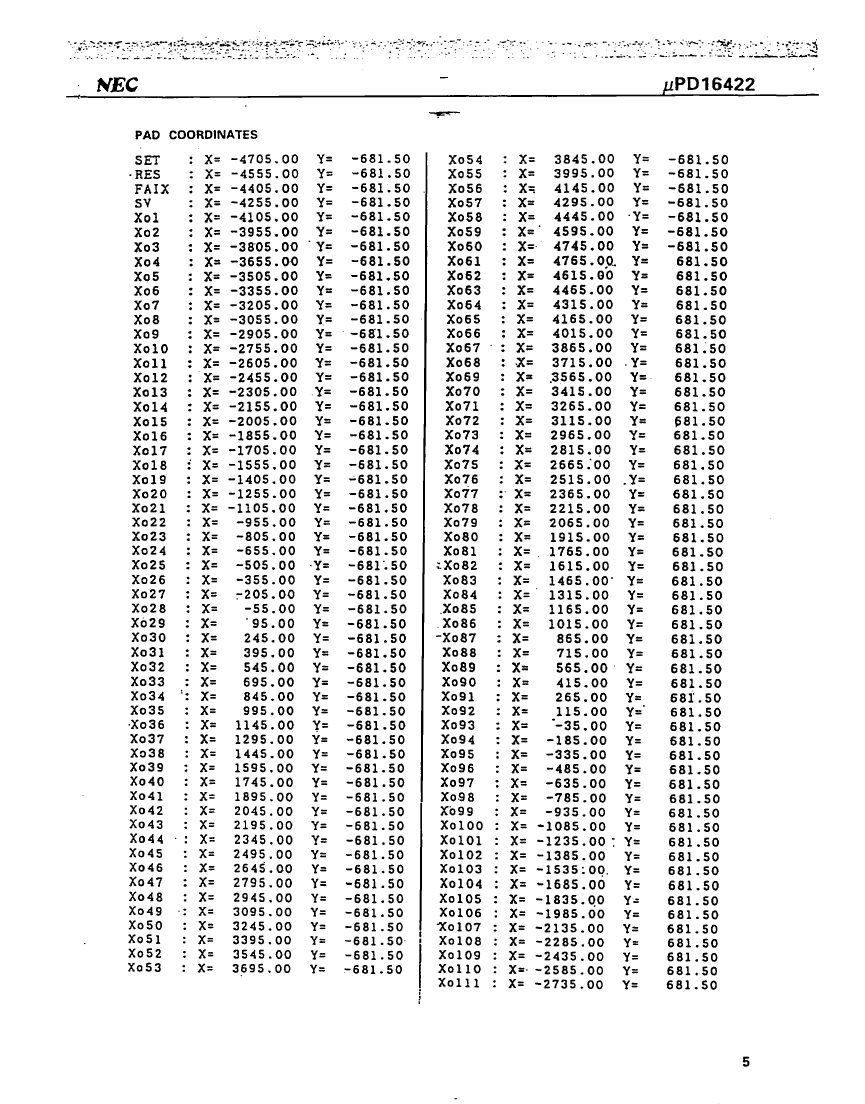

UPD16422W Overview

Liquid Crystal Driver, 120-Segment, CMOS, WAFER-128

Parameter Name	Attribute value
Maker	NEC Electronics
package instruction	WAFER-128
Reach Compliance Code	unknown
data entry mode	SERIAL
display mode	DOT MATRIX
Interface integrated circuit type	LIQUID CRYSTAL DISPLAY DRIVER
JESD-30 code	X-XUUC-N128
Multiplex display function	NO
Nominal negative supply voltage	-7 V
Number of functions	1
Number of segments	120
Number of terminals	128
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	UNSPECIFIED
encapsulated code	DIE
Package shape	UNSPECIFIED
Package form	UNCASED CHIP
Certification status	Not Qualified
Maximum supply voltage	20 V
Minimum supply voltage	10 V
Nominal supply voltage	13 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal location	UPPER

	UPD16422W	UPD16422N-057	UPD16422W(2)
Description	Liquid Crystal Driver, 120-Segment, CMOS, WAFER-128	Liquid Crystal Driver, 120-Segment, CMOS, TCP-128	Liquid Crystal Driver, 120-Segment, CMOS, BUMP, WAFER-128
package instruction	WAFER-128	TCP-128	BUMP, WAFER-128
Reach Compliance Code	unknown	unknown	unknown
data entry mode	SERIAL	SERIAL	SERIAL
display mode	DOT MATRIX	DOT MATRIX	DOT MATRIX
Interface integrated circuit type	LIQUID CRYSTAL DISPLAY DRIVER	LIQUID CRYSTAL DISPLAY DRIVER	LIQUID CRYSTAL DISPLAY DRIVER
JESD-30 code	X-XUUC-N128	R-XUUC-N128	X-XUUC-N128
Multiplex display function	NO	NO	NO
Nominal negative supply voltage	-7 V	-7 V	-7 V
Number of functions	1	1	1
Number of segments	120	120	120
Number of terminals	128	128	128
Maximum operating temperature	70 °C	70 °C	70 °C
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	DIE	DIE	DIE
Package shape	UNSPECIFIED	RECTANGULAR	UNSPECIFIED
Package form	UNCASED CHIP	UNCASED CHIP	UNCASED CHIP
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage	20 V	20 V	20 V
Minimum supply voltage	10 V	10 V	10 V
Nominal supply voltage	13 V	13 V	13 V
surface mount	YES	YES	YES
technology	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	NO LEAD	NO LEAD
Terminal location	UPPER	UPPER	UPPER
Maker	NEC Electronics	-	NEC Electronics
