AD579JN datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> AD579JN

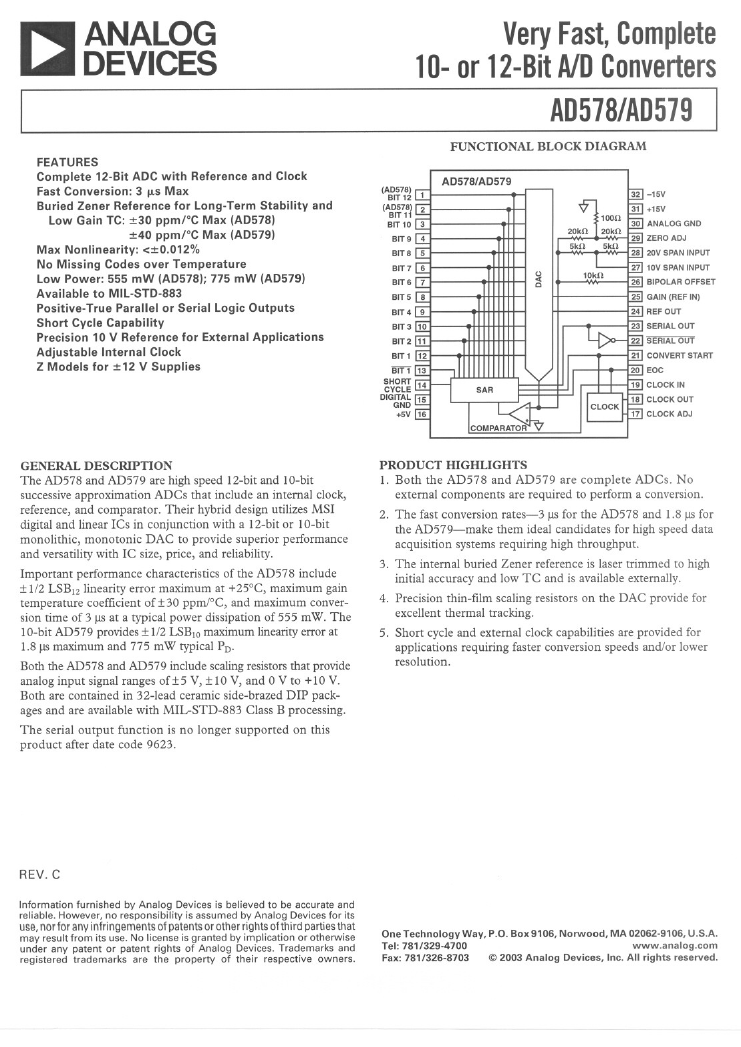

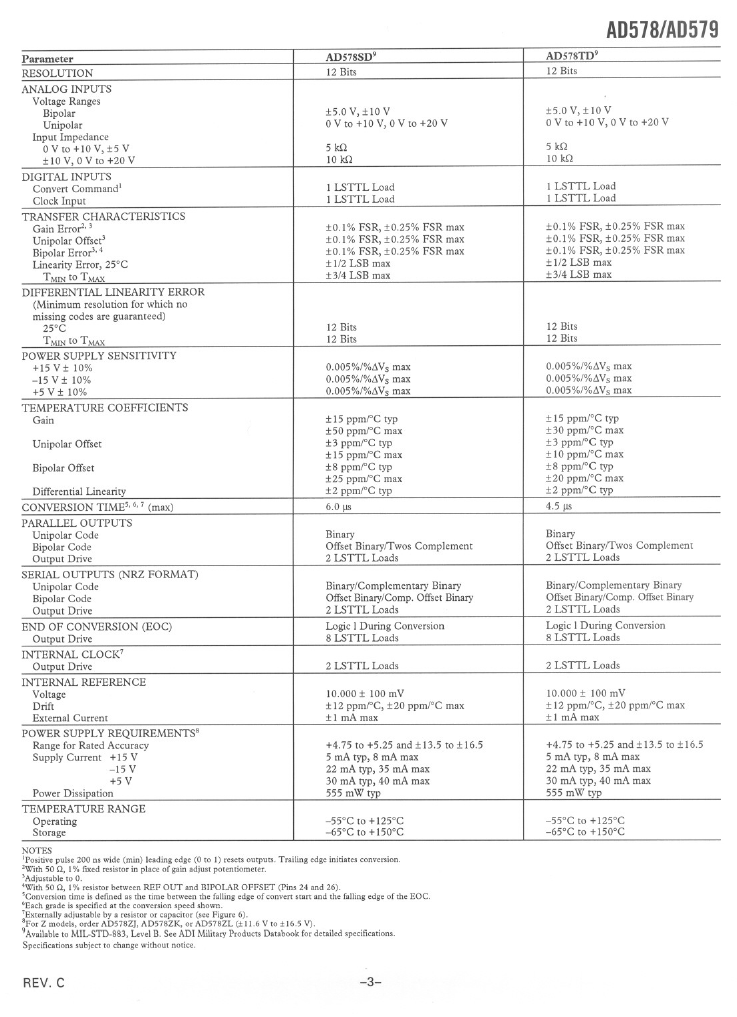

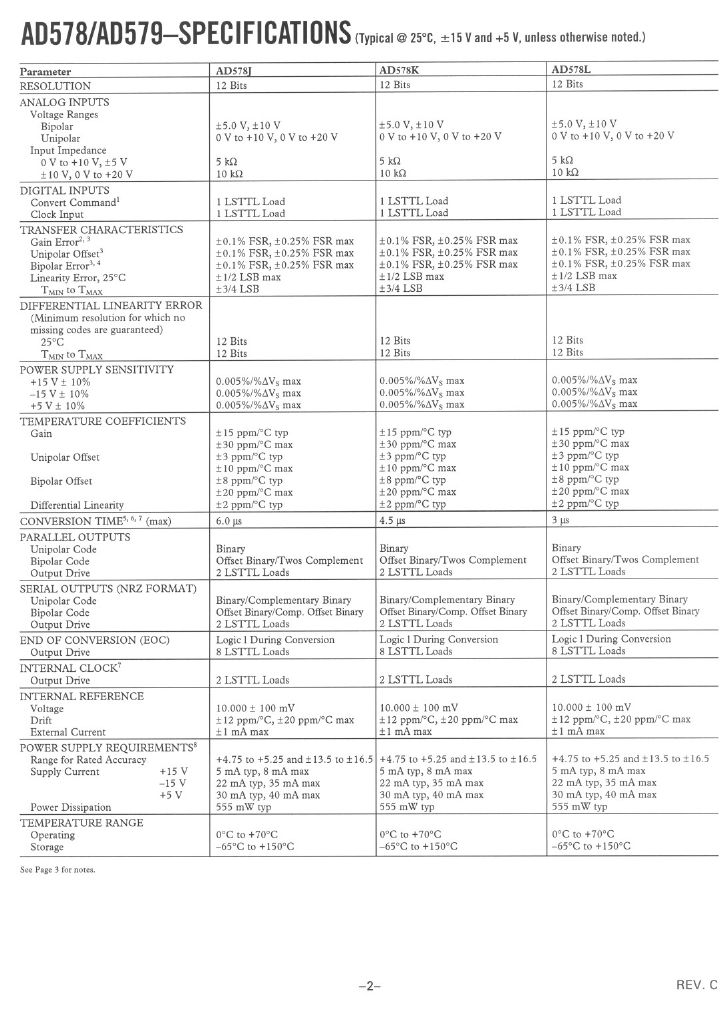

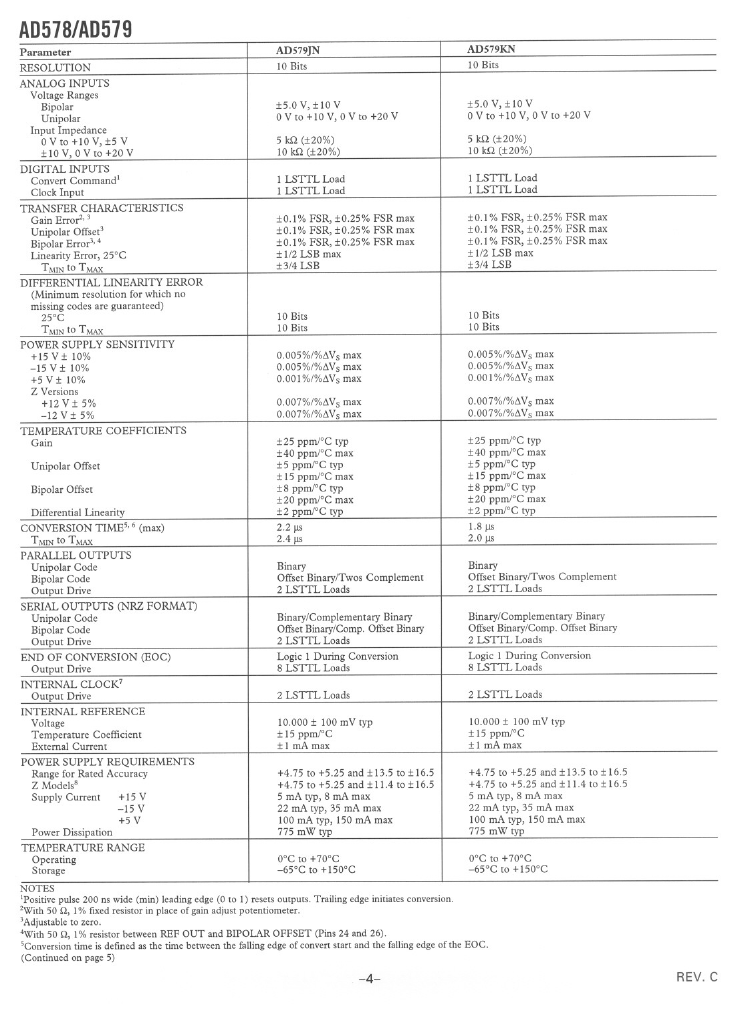

AD579JN: Description2-CH 10-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, CDIP32, SIDE BRAZED, CERAMIC, DIP-32; CategoryAnalog mixed-signal IC converter; File Size4MB，12 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/

Download Datasheet Parametric View All

AD579JN Overview

2-CH 10-BIT SUCCESSIVE APPROXIMATION ADC, PARALLEL ACCESS, CDIP32, SIDE BRAZED, CERAMIC, DIP-32

AD579JN Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Rochester Electronics
Parts packaging code	DIP
package instruction	DIP,
Contacts	32
Reach Compliance Code	unknown
Maximum analog input voltage	10 V
Minimum analog input voltage	-10 V
Maximum conversion time	2.4 µs
Converter type	ADC, SUCCESSIVE APPROXIMATION
JESD-30 code	R-CDIP-T32
JESD-609 code	e0
length	40.945 mm
Maximum linear error (EL)	0.0732%
Humidity sensitivity level	NOT SPECIFIED
Nominal negative supply voltage	-15 V
Number of analog input channels	2
Number of digits	10
Number of functions	1
Number of terminals	32
Maximum operating temperature	70 °C
Minimum operating temperature
Output bit code	BINARY, OFFSET BINARY, COMPLEMENTARY BINARY, 2\'S COMPLEMENT BINARY, COMPLEMENTARY OFFSET BINARY
Output format	PARALLEL, WORD
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum seat height	6.98 mm
Nominal supply voltage	15 V
surface mount	NO
Temperature level	COMMERCIAL
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm

Preview

Download Datasheet

View All
