OP200EZ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> OP200EZ

OP200EZ: DescriptionOperational Amplifier, 2 Func, 100uV Offset-Max, BIPolar, CDIP8,; CategoryAnalog mixed-signal IC Amplifier circuit; File Size569KB，10 Pages; ManufacturerPrecision Monolithics Inc; Related ProductsFound4parts with similar functions to OP200EZ

Download Datasheet Parametric Compare View All

OP200EZ Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	OP200EZ	-	-	View	Buy Now

OP200EZ Overview

Operational Amplifier, 2 Func, 100uV Offset-Max, BIPolar, CDIP8,

OP200EZ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Precision Monolithics Inc
package instruction	DIP, DIP8,.3
Reach Compliance Code	unknown
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.005 µA
Maximum bias current (IIB) at 25C	0.002 µA
Minimum Common Mode Rejection Ratio	115 dB
Nominal Common Mode Rejection Ratio	130 dB
frequency compensation	YES
Maximum input offset current (IIO)	0.001 µA
Maximum input offset voltage	100 µV
JESD-30 code	R-GDIP-T8
JESD-609 code	e0
length	10.29 mm
low-bias	NO
low-dissonance	YES
micropower	YES
Negative supply voltage upper limit	-20 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	2
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power	NO
power supply	+-15 V
Programmable power	NO
Certification status	Not Qualified
Maximum seat height	5.08 mm
minimum slew rate	0.1 V/us
Nominal slew rate	0.15 V/us
Maximum slew rate	1.55 mA
Supply voltage upper limit	20 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Nominal Uniform Gain Bandwidth	500 kHz
Minimum voltage gain	2000000
broadband	NO
width	7.62 mm

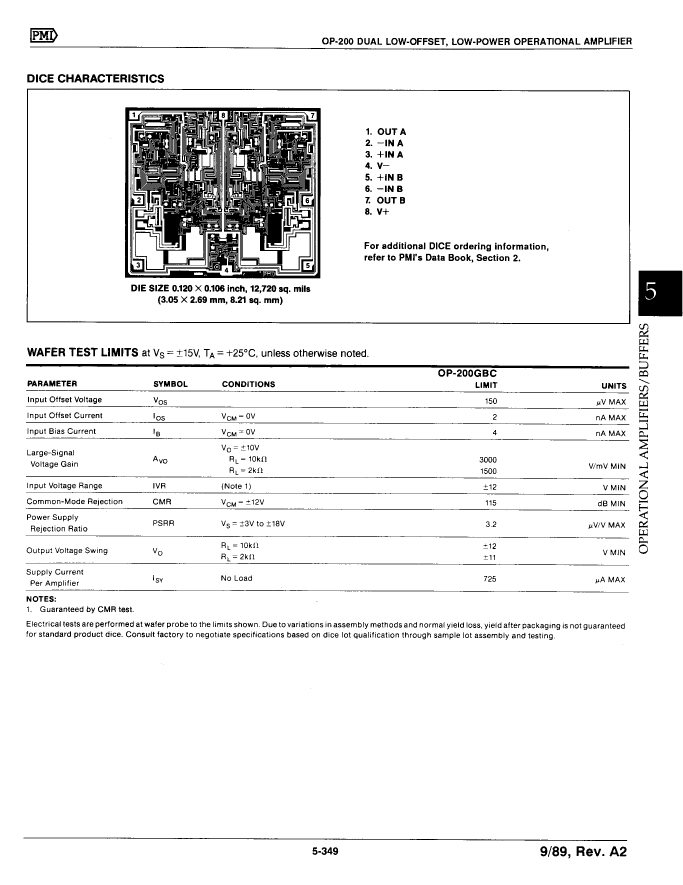

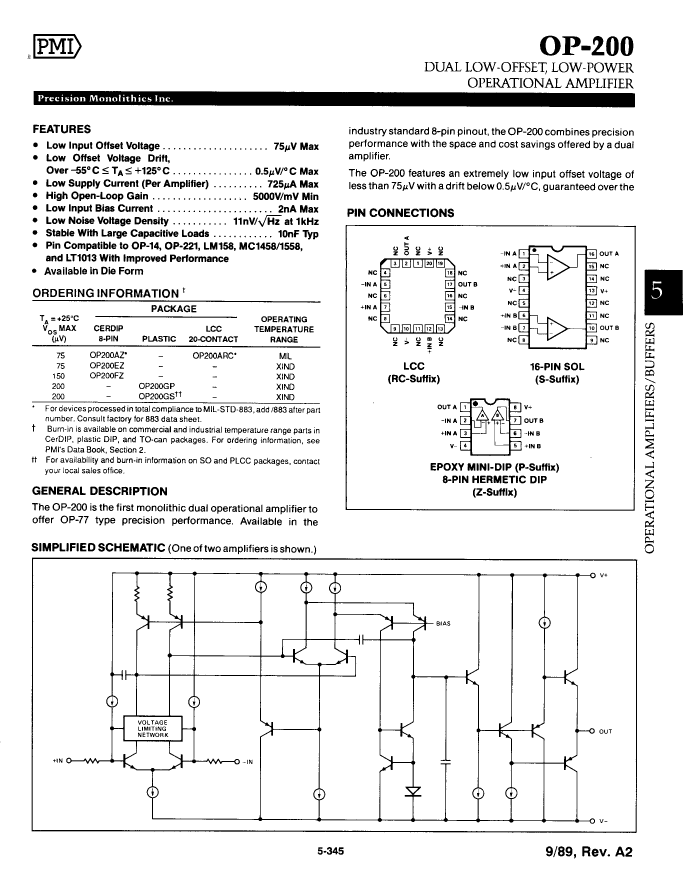

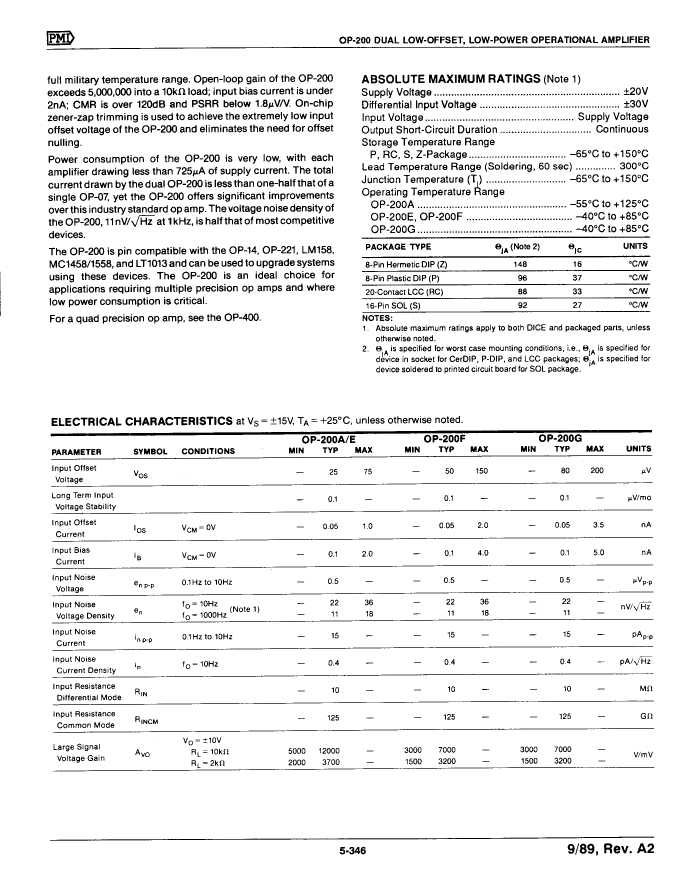

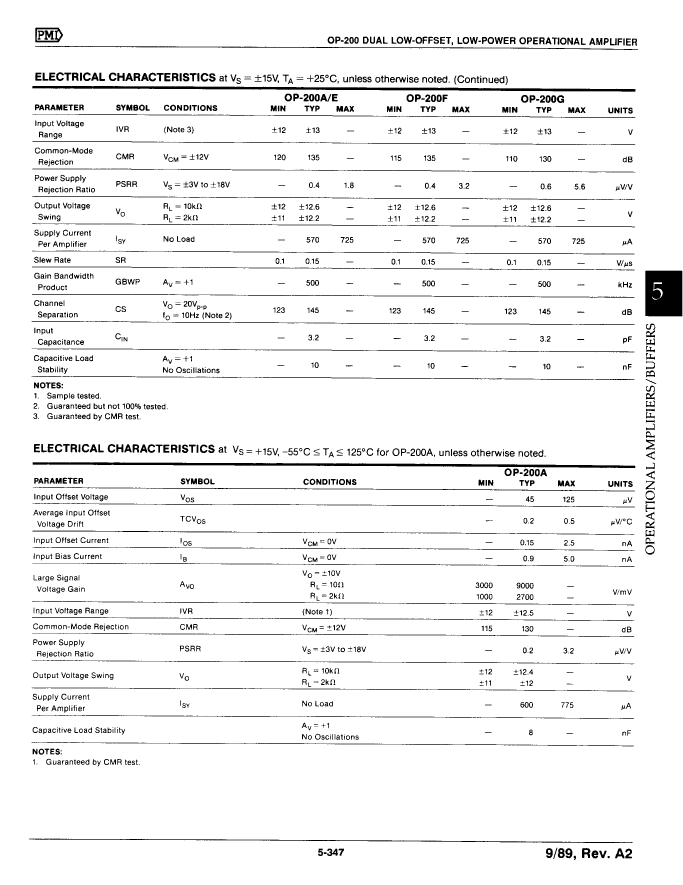

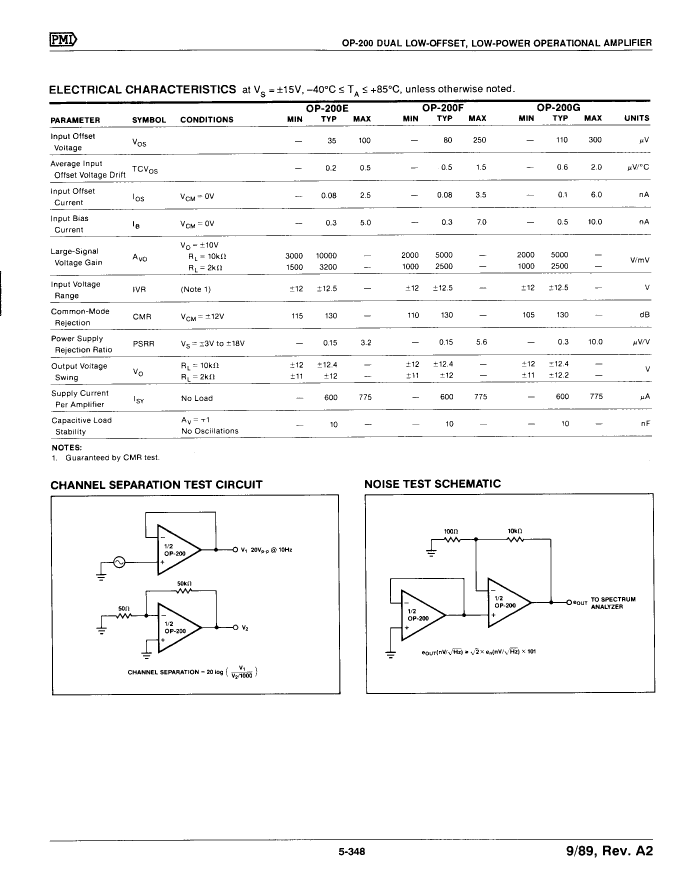

OP200EZ Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

OP200EZ Related Products

	OP200EZ	OP200AZ	OP200AZ/883	OP200FZ	OP200GP	OP200GS	OP-200GBC	OP200ARC/883	OP200ARC
Description	Operational Amplifier, 2 Func, 100uV Offset-Max, BIPolar, CDIP8,	Operational Amplifier, 2 Func, 125uV Offset-Max, BIPolar, CDIP8, HERMETIC SEALED, DIP-8	Operational Amplifier, 2 Func, 125uV Offset-Max, BIPolar, CDIP8, HERMETIC SEALED, DIP-8	Operational Amplifier, 2 Func, 250uV Offset-Max, BIPolar, CDIP8,	Operational Amplifier, 2 Func, 300uV Offset-Max, BIPolar, PDIP8, MINI, PLASTIC, DIP-8	Operational Amplifier, 2 Func, 300uV Offset-Max, BIPolar, PDSO16,	Operational Amplifier, 2 Func, 150uV Offset-Max, BIPolar,	Operational Amplifier, 2 Func, 125uV Offset-Max, BIPolar, PQCC20, LCC-20	Operational Amplifier, 2 Func, 125uV Offset-Max, BIPolar, PQCC20, LCC-20
Maker	Precision Monolithics Inc	Precision Monolithics Inc	Precision Monolithics Inc	Precision Monolithics Inc	Precision Monolithics Inc	Precision Monolithics Inc	Precision Monolithics Inc	Precision Monolithics Inc	Precision Monolithics Inc
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
Maximum average bias current (IIB)	0.005 µA	0.005 µA	0.005 µA	0.07 µA	0.01 µA	0.01 µA	0.004 µA	0.005 µA	0.005 µA
Maximum bias current (IIB) at 25C	0.002 µA	0.002 µA	0.002 µA	0.004 µA	0.005 µA	0.005 µA	0.004 µA	0.002 µA	0.002 µA
Nominal Common Mode Rejection Ratio	130 dB	130 dB	130 dB	130 dB	130 dB	130 dB	115 dB	130 dB	130 dB
frequency compensation	YES	YES	YES	YES	YES	YES	YES	YES	YES
Maximum input offset voltage	100 µV	125 µV	125 µV	250 µV	300 µV	300 µV	150 µV	125 µV	125 µV
JESD-30 code	R-GDIP-T8	R-GDIP-T8	R-GDIP-T8	R-GDIP-T8	R-PDIP-T8	R-PDSO-G16	X-XUUC-N8	S-XQCC-N20	S-XQCC-N20
low-dissonance	YES	YES	YES	YES	YES	YES	YES	YES	YES
micropower	YES	YES	YES	YES	YES	YES	YES	YES	YES
Negative supply voltage upper limit	-20 V	-20 V	-20 V	-20 V	-20 V	-20 V	-20 V	-20 V	-20 V
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
Number of functions	2	2	2	2	2	2	2	2	2
Number of terminals	8	8	8	8	8	16	8	20	20
Maximum operating temperature	85 °C	125 °C	125 °C	85 °C	85 °C	85 °C	25 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-55 °C	-55 °C	-40 °C	-40 °C	-40 °C	25 °C	-55 °C	-55 °C
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	DIP	DIP	DIP	DIP	DIP	SOP	DIE	QCCN	QCCN
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	UNSPECIFIED	SQUARE	SQUARE
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE	UNCASED CHIP	CHIP CARRIER	CHIP CARRIER
power supply	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
minimum slew rate	0.1 V/us	0.1 V/us	0.1 V/us	0.1 V/us	0.1 V/us	0.1 V/us	0.1 V/us	0.1 V/us	0.1 V/us
Maximum slew rate	1.55 mA	1.55 mA	1.55 mA	1.55 mA	1.55 mA	0.775 mA	0.725 mA	1.55 mA	1.55 mA
Supply voltage upper limit	20 V	20 V	20 V	20 V	20 V	20 V	20 V	20 V	20 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V	15 V	15 V	15 V	15 V
surface mount	NO	NO	NO	NO	NO	YES	YES	YES	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	INDUSTRIAL	MILITARY	MILITARY	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	OTHER	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING	NO LEAD	NO LEAD	NO LEAD
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	UPPER	QUAD	QUAD
Minimum voltage gain	2000000	2000000	2000000	1500000	1500000	1000000	1500000	2000000	2000000
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	-	incompatible	incompatible
package instruction	DIP, DIP8,.3	DIP, DIP8,.3	DIP, DIP8,.3	DIP, DIP8,.3	DIP,	-	-	QCCN, LCC20,.35SQ	QCCN, LCC20,.35SQ
Minimum Common Mode Rejection Ratio	115 dB	115 dB	115 dB	110 dB	105 dB	-	-	115 dB	115 dB
Maximum input offset current (IIO)	0.001 µA	0.001 µA	0.001 µA	0.002 µA	0.0035 µA	-	-	0.001 µA	0.001 µA
JESD-609 code	e0	e0	e0	e0	e0	e0	-	e0	e0
length	10.29 mm	10.29 mm	10.29 mm	10.29 mm	-	-	-	8.89 mm	8.89 mm
low-bias	NO	NO	NO	NO	NO	-	-	NO	NO
Encapsulate equivalent code	DIP8,.3	DIP8,.3	DIP8,.3	DIP8,.3	-	SOP16,.4	DIE OR CHIP	LCC20,.35SQ	LCC20,.35SQ
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT APPLICABLE	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
power	NO	NO	NO	NO	NO	-	-	NO	NO
Programmable power	NO	NO	NO	NO	NO	-	-	NO	NO
Maximum seat height	5.08 mm	5.08 mm	5.08 mm	5.08 mm	-	-	-	2.54 mm	2.54 mm
Nominal slew rate	0.15 V/us	0.15 V/us	0.15 V/us	0.15 V/us	0.15 V/us	0.15 V/us	-	0.15 V/us	0.15 V/us
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	-	1.27 mm	-	1.27 mm	1.27 mm
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED
Nominal Uniform Gain Bandwidth	500 kHz	500 kHz	500 kHz	500 kHz	500 kHz	500 kHz	-	500 kHz	500 kHz
broadband	NO	NO	NO	NO	NO	-	-	NO	NO
width	7.62 mm	7.62 mm	7.62 mm	7.62 mm	-	-	-	8.89 mm	8.89 mm
