The ECG003 is a general-purpose buffer amplifier that
offers high dynamic range in a low-cost surface-mount
package. At 1000 MHz, the ECG003 typically provides 20
dB of gain, +39 dBm Output IP3, and +24 dBm P1dB.
The ECG003 consists of Darlington pair amplifiers using
the high reliability InGaP/GaAs HBT process technology
and only requires DC-blocking capacitors, a bias resistor,
and an inductive RF choke for operation. The device is
ideal for wireless applications and is available in a low-
cost, surface-mountable SOT-89 package. ECG003 is also
available in a lead-free/green/RoHS-compliant SOT-89
package All devices are 100% RF and DC tested.
The broadband MMIC amplifier can be directly applied to
various current and next generation wireless technologies
such as GPRS, GSM, CDMA, and W-CDMA. In addition,
the ECG003 will work for other various applications within
the DC to 6 GHz frequency range such as CATV and fixed
wireless.
Functional Diagram
GND
4
1
RF IN
2
GND
3
RF OUT
ECG003B / ECG003B-G
Applications
•
•
•
•
•
•
Mobile Infrastructure
CATV / DBS
W-LAN / ISM
RFID
Defense / Homeland Security
Fixed Wireless
Specifications
(1)
Parameter
Operational Bandwidth
Test Frequency
Gain
Output P1dB
Output IP3
(3)
Typical Performance
(3)
Units
MHz
MHz
dB
dBm
dBm
dB
MHz
dB
dB
dB
dBm
dBm
dB
V
mA
VSWR
Min
DC
Typ
1000
20
+24
+39
3.5
2000
19
15
10
+23
+36
3.6
7.2
110
10:1
Max
6000
Parameter
Frequency
S21
S11
S22
Output P1dB
Output IP3
Noise Figure
Units
MHz
dB
dB
dB
dBm
dBm
dB
500
21
-19
-14
+24.4
+39
3.5
Typical
900
20
-18
-13
+24
+39
3.5
1900
19
-16
-10
+23
+36
3.6
2140
18.7
-15
-10
+22.5
+35
3.7
Noise Figure
Test Frequency
Gain
Input Return Loss
Output Return Loss
Output P1dB
Output IP3
(2)
Noise Figure
Device Voltage
Device Current
Output mismatch w/o spurs
18
3. Test conditions: T = 25º C, Supply Voltage = +9 V, Device Voltage = +7.2V, R
bias
= 16Ω, 50
Ω
System.
+34
6.7
7.6
1. Test conditions unless otherwise noted: 25º C, Supply Voltage = +9 V, R
bias
= 16
Ω,
50
Ω
System.
2. 3OIP measured with two tones at an output power of +11 dBm/tone separated by 1 MHz. The
suppression on the largest IM3 product is used to calculate the 3OIP using a 2:1 rule.
Absolute Maximum Rating
Parameter
Operating Case Temperature
Storage Temperature
RF Input Power (continuous)
Device Current
Junction Temperature
-40 to +85
°C
-65 to +150
°C
+10 dBm
160 mA
+250
°C
Ordering Information
Part No.
ECG003B
ECG003B-G
ECG003B-PCB
Rating
Description
InGaP HBT Gain Block
(leaded SOT-89 Pkg)
InGaP HBT Gain Block
(lead-free/green/RoHS-compliant SOT-89 Pkg)
700 –2400 MHz Fully Assembled Eval. Board
Specifications and information are subject to change without notice
Operation of this device above any of these parameters may cause permanent damage.
WJ Communications, Inc
•
Phone 1-800-WJ1-4401
•
FAX: 408-577-6621
•
e-mail: sales@wj.com
•
Web site: www.wj.com
September 2004
ECG003
Frequency
S21
S11
S22
Output P1dB
Output IP3
Noise Figure
The Communications Edge
TM
Product Information
InGaP HBT Gain Block
Typical Device RF Performance
(3)
Supply Bias = +9 V, R
bias
= 16
Ω,
I
cc
= 110 mA
MHz
dB
dB
dB
dBm
dBm
dB
100
21
-20
-15
+24.4
+38
3.9
500
21
-19
-14
+24.4
+39
3.6
900
20.4
-18
-13
+24
+39
3.5
1900
19
-16
-10
+23
+36
3.6
2140
18.7
-15
-10
+22.5
+35
3.7
2400
18.2
-13
-8
+20.5
+34
3.7
3500
17.4
-12
-7
+18.7
+31
4.2
5800
14
-6
-3
12
1. Test conditions: T = 25º C, Supply Voltage = +9 V, Device Voltage = 7.2 V, Rbias = 16
Ω,
Icc = 110 mA typical, 50
Ω
System.
2. 3OIP measured with two tones at an output power of +11 dBm/tone separated by 1 MHz. The suppression on the largest IM3 product is used to calculate the 3OIP using a 2:1 rule.
3. Data is shown as device performance only. Actual implementation for the desired frequency band will be determined by external components shown in the application circuit. The performance data does not
account for losses attributed to recommended input and output series resistances shown in the application circuit on page 3.
Gain vs. Frequency
22
20
Gain (dB)
18
S11, S22 vs. Frequency
0
-5
Icc (mA)
Icc vs. Vde
140
120
100
80
60
40
20
+25C
-10
-15
16
+25C
14
500
1000
-40C
+85C
2500
3000
-20
S11
-25
0
1
2
3
4
Frequency (GHz)
5
6
S22
1500
2000
Frequency (MHz)
OIP3 vs. Frequency
0
0.0
2.0
4.0
Vde (V)
6.0
8.0
10.0
Noise Figure vs. Frequency
4
3.5
3
2.5
2
P1dB (dBm)
P1dB vs. Frequency
30
25
20
15
+25C
-40C
-85C
2500
3000
10
500
45
40
35
30
+25C
25
500
1000
-40C
+85C
2500
3000
OIP3 (dBm)
NF (dB)
1500
2000
Frequency (MHz)
1.5
500
1000
1500
Frequency (MHz)
2000
1000
1500
2000
Frequency (MHz)
S-Parameters (V
device
= +7.2 V, I
CC
= 110 mA, T = 25°C, calibrated to device leads)
Freq (MHz)
S11 (dB)
S11 (ang)
S21 (dB)
S21 (ang)
S12 (dB)
S12 (ang)
S22 (dB)
S22 (ang)
50
500
1000
1500
2000
2500
3000
3500
4000
4500
5000
5500
6000
-20.36
-19.29
-17.78
-16.23
-14.71
-13.16
-12.14
-11.24
-10.30
-9.20
-7.76
-6.63
-5.54
-0.18
-24.13
-51.50
-75.63
-98.28
-118.71
-139.91
-161.53
174.59
147.71
120.30
92.76
70.28
20.46
20.19
19.84
19.40
19.06
18.65
18.23
17.77
17.32
16.71
15.97
14.85
13.49
177.69
157.68
136.88
117.06
97.71
78.13
59.26
40.27
20.70
0.41
-19.87
-40.81
-59.45
-23.19
-23.08
-22.93
-22.61
-22.16
-21.61
-20.91
-20.11
-19.35
-18.62
-18.16
-18.05
-18.34
-0.38
-2.33
-4.52
-7.13
-9.76
-13.40
-17.67
-23.92
-31.44
-41.28
-52.98
-66.03
-79.15
-13.95
-13.44
-12.45
-11.26
-9.96
-8.82
-7.63
-6.59
-5.32
-4.19
-3.10
-2.28
-1.78
-2.86
-35.26
-68.47
-97.26
-123.04
-145.90
-167.85
171.00
150.44
128.81
107.78
87.09
67.70
Device S-parameters are available for download off of the website at: http://www.wj.com
Specifications and information are subject to change without notice
WJ Communications, Inc
•
Phone 1-800-WJ1-4401
•
FAX: 408-577-6621
•
e-mail: sales@wj.com
•
Web site: www.wj.com
September 2004
ECG003
The Communications Edge
TM
Product Information
InGaP HBT Gain Block

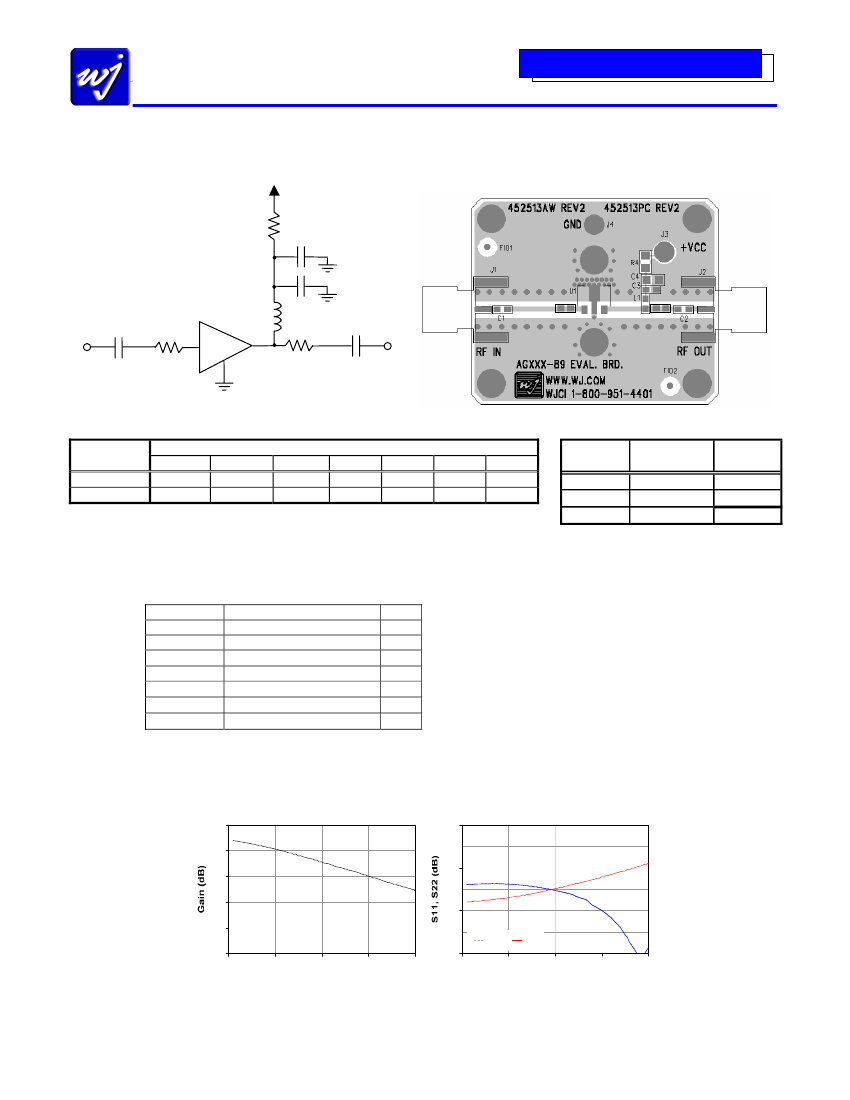

Recommended Application Circuit
Vcc
Icc = 110 mA
R4
Bias
Resistor
C4
Bypass
Capacitor
C3
0.018 µF
L1
RF Choke
RF OUT
ECG003B
C1
Blocking
Capacitor
R2
18
Ω
R3
4.7
Ω
C2
Blocking
Capacitor
R2
R3
RF IN
Reference
Designator
L1
C1, C2, C4
50
820 nH
.018 µF
Recommended Component Values
Frequency (MHz)
500
900
1900
2200
220 nH
68 nH
27 nH
22 nH
1000 pF
100 pF
68 pF
68 pF
2500
18 nH
56 pF
3500
15 nH
39 pF
1. The proper values for the components are dependent upon the intended frequency of operation.
2. The component values in the table below are contained on the evaluation board to achieve optimal broadband
performance.
3. R2 and R3 are shown in the circuit diagram to avoid potential instabilities. The configuration shown above assures
of unconditional stability with the use of the device. It is expected that linearity parameters (OIP3 and P1dB) to
degrade about only 0.5 dB, while overall gain will be about 2 dB less than the performance shown in page 1 and 2 of
this datasheet. Input and output return loss is expected to improve with the use of the I/O series resistances at 2 GHz.
Recommended Bias Resistor Values
Supply
R1 value
Size
Voltage
9V
16 ohms
2010
10 V
25 ohms
2512
12 V
44 ohms
2512
The proper value for R1 is dependent upon the supply
voltage and allows for bias stability over temperature.
WJ recommends a minimum supply bias of +9 V. A
1% tolerance resistor is recommended.
Ref. Desig.
L1
C1, C2
C3
C4
R2
R3
R4
Value / Type
39 nH wirewound inductor
56 pF chip capacitor
0.018
µF
chip capacitor
Do Not Place
18
Ω
chip resistor
4.7
Ω
chip resistor
16
Ω
1% tolerance
Size
0603
0603
0603
0603
0603
2010
ECG003B-PCB Performance Data
(WJ’s evaluation board uses the circuit shown above.)
Gain
20
18
16
14
12
S11
10
S22
Return Loss
0
-10
-20
-30
0
1
2
Frequency (GHz)
3
4
0
1
2
Frequency (GHz)
3
4
Specifications and information are subject to change without notice
WJ Communications, Inc
•
Phone 1-800-WJ1-4401
•
FAX: 408-577-6621
•
e-mail: sales@wj.com
•
Web site: www.wj.com
September 2004
ECG003
The Communications Edge
TM
Product Information
InGaP HBT Gain Block

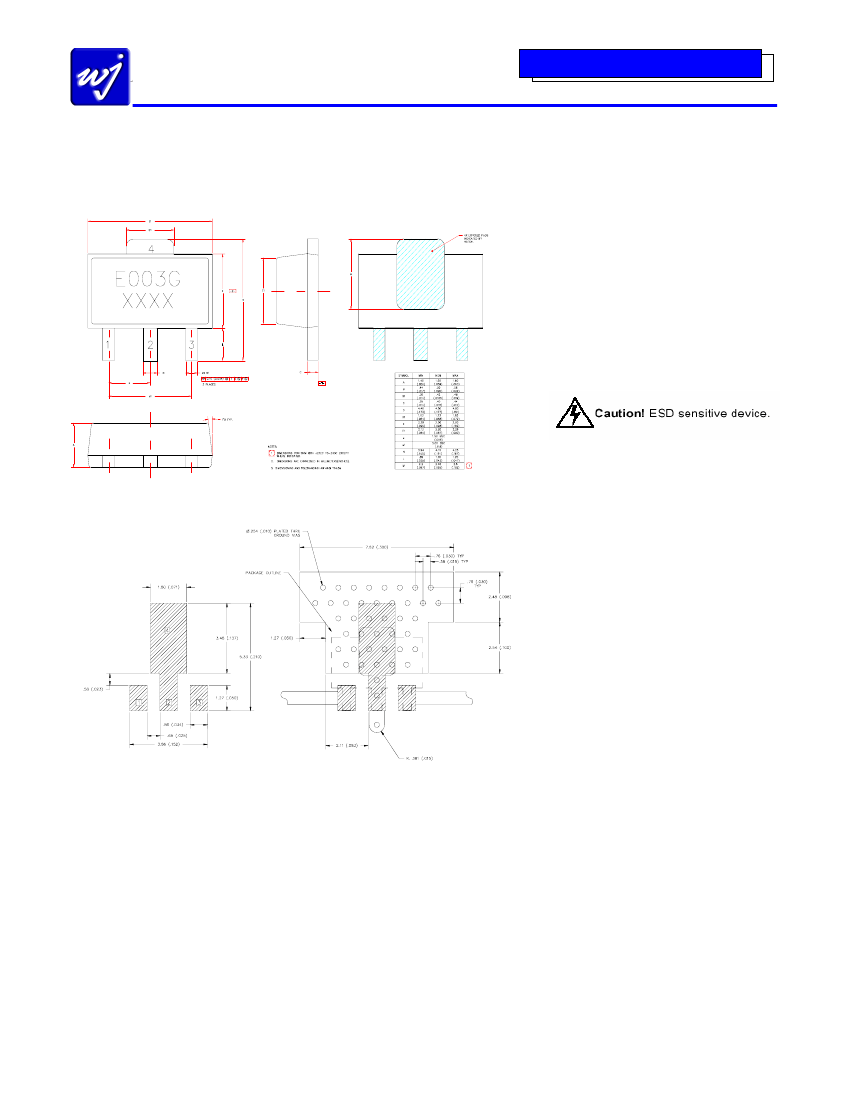

ECG003B (SOT-89 Package) Mechanical Information
This package may contain lead-bearing materials. The plating material on the leads is SnPb.
Outline Drawing
Product Marking
The component will be marked with an
“E003” designator with an alphanumeric lot
code on the top surface of the package.
Tape and reel specifications for this part are
located on the website in the “Application
Notes” section.
MSL / ESD Rating
ESD Rating:
Value:
Test:
Standard:
Class 1A
Passes between 250 and 500V
Human Body Model (HBM)
JEDEC Standard JESD22-A114
MSL Rating: Level 3 at +235° C convection reflow
Standard:
JEDEC Standard J-STD-020
Land Pattern
Mounting Config. Notes
1. Ground / thermal vias are critical for the proper
performance of this device. Vias should use a .35mm
(#80 / .0135”) diameter drill and have a final plated
thru diameter of .25 mm (.010”).
2. Add as much copper as possible to inner and outer
layers near the part to ensure optimal thermal
performance.
3. Mounting screws can be added near the part to fasten
the board to a heatsink. Ensure that the ground /
thermal via region contacts the heatsink.
4. Do not put solder mask on the backside of the PC board
in the region where the board contacts the heatsink.
5. RF trace width depends upon the PC board material
and construction.
6. Use 1 oz. Copper minimum.
7. All dimensions are in millimeters (inches). Angles are
in degrees.
Specifications and information are subject to change without notice
WJ Communications, Inc
•
Phone 1-800-WJ1-4401
•
FAX: 408-577-6621
•
e-mail: sales@wj.com
•
Web site: www.wj.com
September 2004
ECG003
The Communications Edge
TM
Product Information
InGaP HBT Gain Block
ECG003B-G (Green / Lead-free SOT-89 Package) Mechanical Information
This package is lead-free/Green/RoHS-compliant. It is compatible with both lead-free (maximum 260°C reflow temperature) and leaded
(maximum 245°C reflow temperature) soldering processes. The plating material on the leads is NiPdAu.
Outline Drawing
Product Marking
The component will be marked with an
“E003G” designator with an alphanumeric lot
code on the top surface of the package.
Tape and reel specifications for this part are
located on the website in the “Application
Notes” section.
MSL / ESD Rating
ESD Rating:
Value:
Test:
Standard:
Class 1A
Passes between 250 and 500V
Human Body Model (HBM)
JEDEC Standard JESD22-A114
Land Pattern
MSL Rating: Level 3 at +260° C convection reflow
Standard:
JEDEC Standard J-STD-020
Mounting Config. Notes
1. Ground / thermal vias are critical for the proper
performance of this device. Vias should use a .35mm
(#80 / .0135”) diameter drill and have a final plated
thru diameter of .25 mm (.010”).
2. Add as much copper as possible to inner and outer
layers near the part to ensure optimal thermal
performance.
3. Mounting screws can be added near the part to fasten
the board to a heatsink. Ensure that the ground /
thermal via region contacts the heatsink.
4. Do not put solder mask on the backside of the PC board
in the region where the board contacts the heatsink.
5. RF trace width depends upon the PC board material
and construction.
6. Use 1 oz. Copper minimum.
7. All dimensions are in millimeters (inches). Angles are
in degrees.
Specifications and information are subject to change without notice
The PB-02-Kit Bluetooth development board is developed based on the PB-01 module of the Anxinke, and its main target is smart lighting. The PB-02-Kit comes with an onboard antenna, RGB lamp beads and ...
Hello everyone! When the PCB drawn by 99se is opened with AD14, the pad display is different. How can I set AD14 to display the same as 99se? Thank you...
[align=left][font=宋体]To use Bluetooth Low Energy (BLE), the most important thing is to choose a low-power Bluetooth product. Otherwise, there are many wireless solutions to choose from. There are many...
I would like to ask how to display the voltage value calculated in real time with a digital tube, for example, how to display the voltage of 220V with a digital tube, what is the principle of realizin...
The rapid development of the Internet has realized high-speed information transmission and resource sharing, greatly facilitating people's lives. Embedded systems are widely used in various electr...[Details]
Hardware designers have begun to adopt FPGA technology in high-performance DSP designs because it can provide 10-100 times faster computing than PC-based or microcontroller-based solutions. Previou...[Details]
introduction
1 The significance of using RTOS on MSP430
It is understandable that it is meaningless to use RTOS on MSP430. Because the hardware resources of MSP430 are limited (for exampl...[Details]
introduction
Solar cells and LED lighting are typical applications of new energy and energy-saving and efficient technologies. Solar LED lighting uses solar cells to convert solar energy...[Details]
Images in science fiction movies often break through the limits of reality, such as in the movie "Minority Report." Tom Cruise uses a multi-touch screen to browse information. Capacitive sensing te...[Details]
1. Overview
The Virtual CAN Interface (VCI) function library is an application program interface specifically provided for the use of ZLGCAN devices on PCs. The functions in the library ar...[Details]
1. Project Introduction
Shandong Dezhou Xingtai Paper Co., Ltd. is a newly built high-end paperboard production enterprise with domestic leading level established by Shandong Zhaodongfang Pape...[Details]
Xiaomi, a well-known Internet phone in mainland China, won a million-unit order contract from China Unicom on November 20 last year, which made Xiaomi famous in mainland China. In April this year...[Details]
1. Overview
At present, an information revolution is in the ascendant around the world, led by microelectronics, computers and communication technologies, and centered on information technolog...[Details]
1 Introduction
With the improvement of people's quality of life, lamps are no longer just basic indoor lighting tools, but also a kind of practical art for architectural decoration. When ther...[Details]
Overview
By transmitting ultrasonic energy into the human body and receiving and processing the returning reflected signals, phased array ultrasound systems can generate images of organs and s...[Details]
a. Keep the battery clean, wipe off the spilled electrolyte, contaminated dirt and dust in time; keep the poles and terminal clamps clean and in good contact, and apply vaseline or butter to preven...[Details]
Synchronous buck designs are becoming increasingly difficult, and the selection of suitable ICs is becoming quite narrow. This Design Idea combines a current-mode PWM IC used in a flyback regulator...[Details]
During the global semiconductor industry recession, the automotive electronics market has performed strongly, especially the application of car remote control systems has become more and more wides...[Details]
1 Features
1.1 Single cell operating voltage up to 3.7V
It is three times that of nickel-cadmium batteries and nickel-metal hydride batteries, and nearly twice that of lead-acid batteries...[Details]
Microcontroller MCU
京公网安备 11010802033920号
EEWORLD
