37TNC-50-0-1/133(45) datasheet, PDF

Datasheet> All Categories > The connector> The connector> 37TNC-50-0-1/133(45)

37TNC-50-0-1/133(45): DescriptionRF Connector Adapter, TNC-TNC, Panel Mount, Female-Female, Jack-jack; CategoryThe connector The connector; File Size1MB，21 Pages; ManufacturerHUBER+SUHNER

Download Datasheet Parametric Compare View All

37TNC-50-0-1/133(45) Overview

RF Connector Adapter, TNC-TNC, Panel Mount, Female-Female, Jack-jack

37TNC-50-0-1/133(45) Parametric

Parameter Name	Attribute value
Maker	HUBER+SUHNER
Reach Compliance Code	compliant
Adapter type	TNC-TNC
Other features	STANDARD: IEC 169-17, CAPTIVATED CENTER CONTACT
Body/casing type	JACK-JACK
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR ADAPTER
Contact point gender	FEMALE-FEMALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	YES
Insertion loss	0.3 dB
insulator material	PTFE
MIL compliance	NO
Manufacturer's serial number	TNC
Maximum operating frequency	9 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
voltage standing wave ratio	2.53

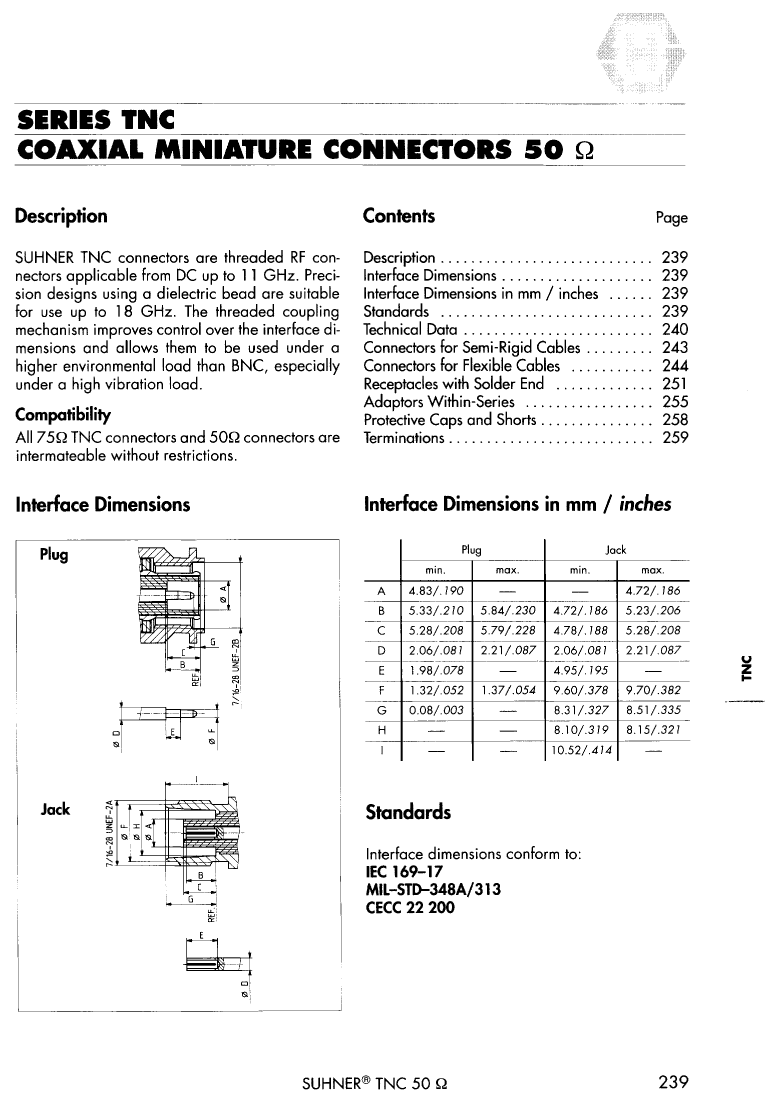

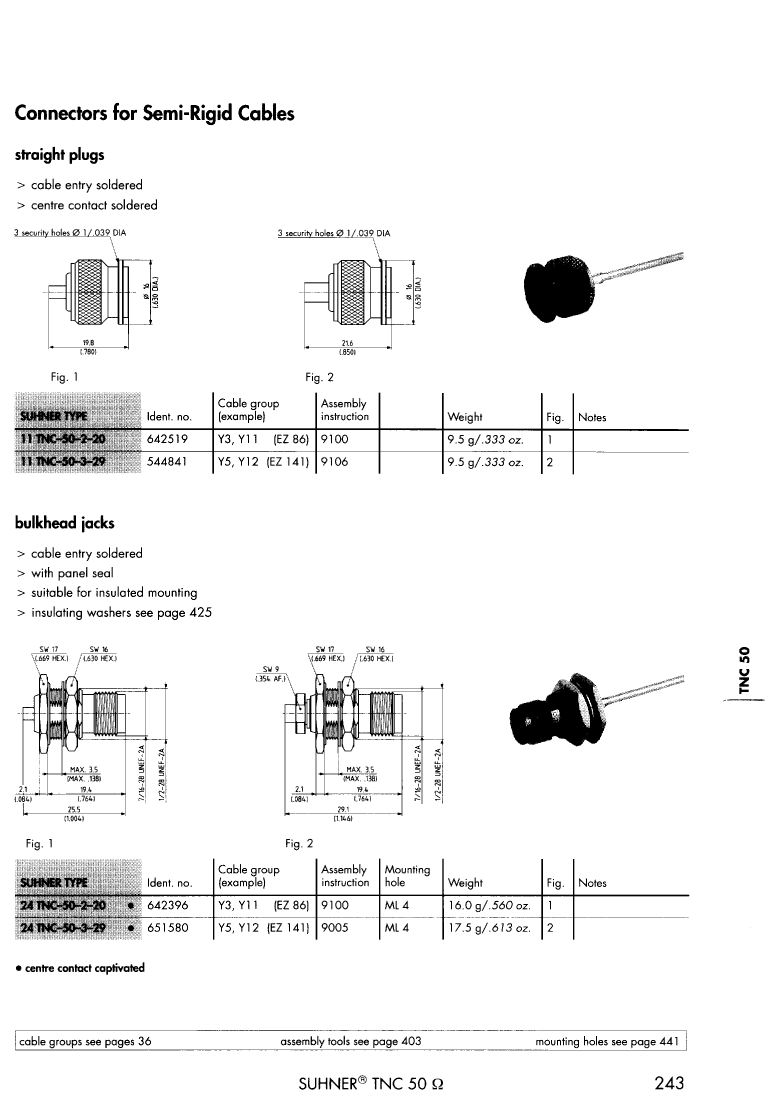

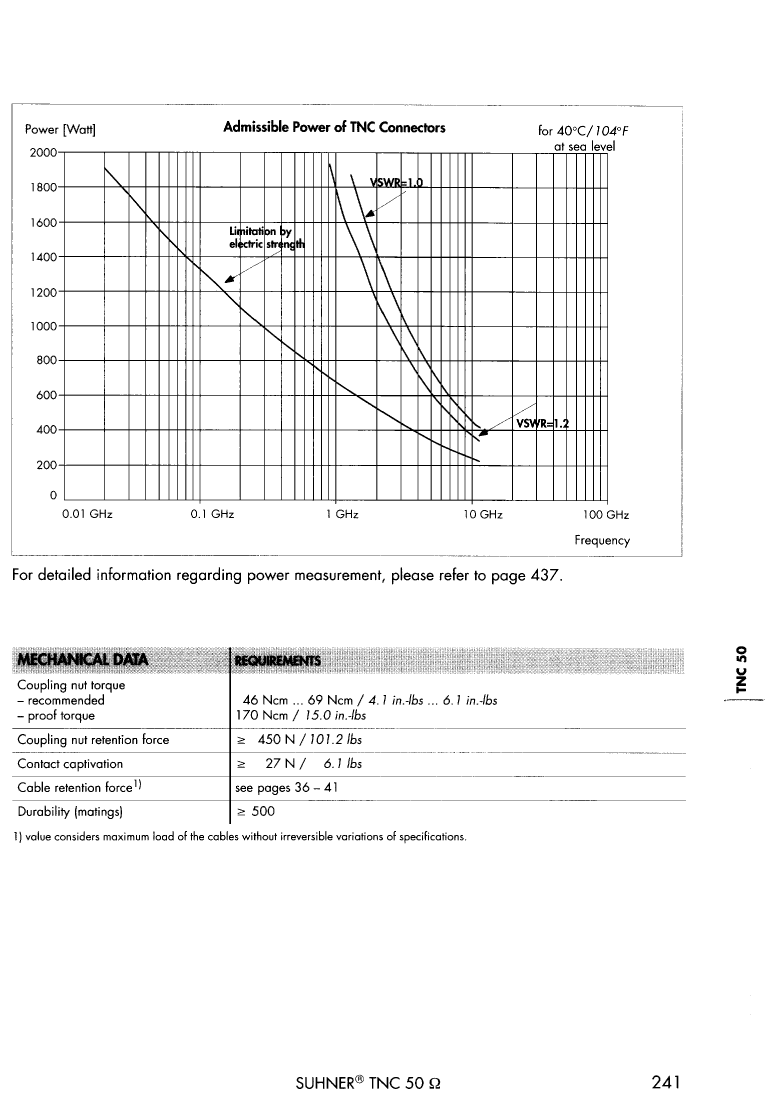

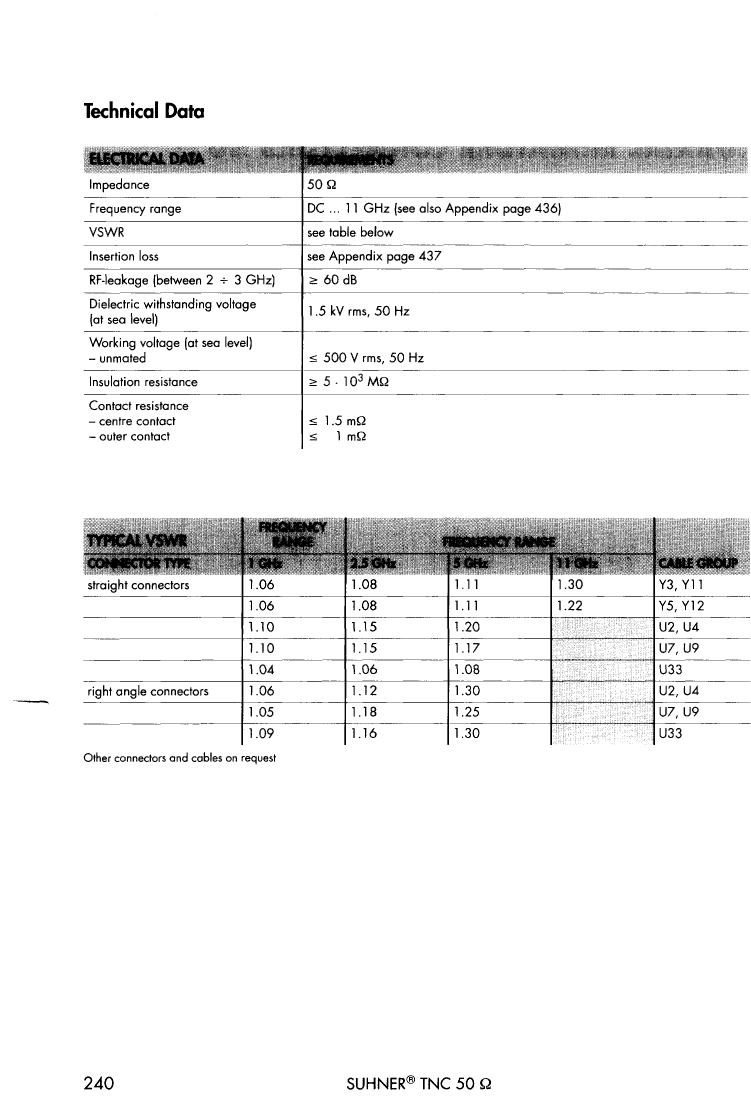

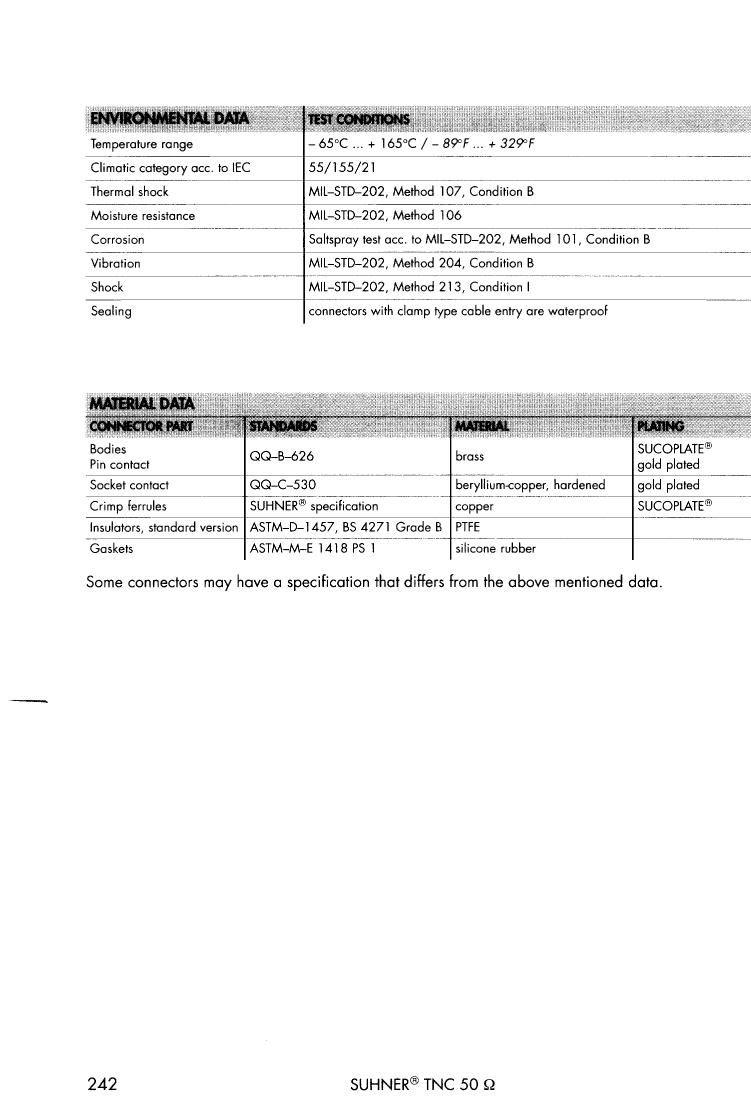

Preview

Download Datasheet

View All

37TNC-50-0-1/133(45) Related Products

	37TNC-50-0-1/133(45)	46TNC-50-0-1/133(45)	32TNC-50-0-1/133(45)	31TNC-50-0-1/133(45)	43TNC-50-0-1/133(45)	34TNC-50-0-1/133(45)	37TNC-50-0-2/133(45)	53TNC-50-0-1/133(45)
Description	RF Connector Adapter, TNC-TNC, Panel Mount, Female-Female, Jack-jack	RF Connector Adapter, TNC-TNC-TNC, Female-Female-Female, Jack-jack-jack	RF Connector Adapter, TNC-TNC, Female-Female, Jack-jack	RF Connector Adapter, TNC-TNC, Female-Female, Jack-jack	RF Connector Adapter, TNC-TNC-TNC, Female-Female-Female, Jack-jack-jack	RF Connector Adapter, TNC-TNC, Panel Mount, Female-Female, Jack-jack	RF Connector Adapter, TNC-TNC, Panel Mount, Female-Female, Jack-jack	RF Connector Adapter, TNC-TNC, Male-Female, Plug-jack
Reach Compliance Code	compliant	compli	compliant	compliant	compliant	compliant	compliant	compliant
Adapter type	TNC-TNC	TNC-TNC-TNC	TNC-TNC	TNC-TNC	TNC-TNC-TNC	TNC-TNC	TNC-TNC	TNC-TNC
Other features	STANDARD: IEC 169-17, CAPTIVATED CENTER CONTACT	STANDARD: IEC 169-17, CAPTIVATED CENTER CONTACT	STANDARD: IEC 169-17, CAPTIVATED CENTER CONTACT	STANDARD: IEC 169-17, CAPTIVATED CENTER CONTACT	STANDARD: IEC 169-17, CAPTIVATED CENTER CONTACT	STANDARD: IEC 169-17, CAPTIVATED CENTER CONTACT, VSWR MAX AT 2GHZ: 1.05; VSWR MAX AT 8GHZ: 1.5	STANDARD: IEC 169-17, CAPTIVATED CENTER CONTACT	STANDARD: IEC 169-17, CAPTIVATED CENTER CONTACT
Body/casing type	JACK-JACK	JACK-JACK-JACK	JACK-JACK	JACK-JACK	JACK-JACK-JACK	JACK-JACK	JACK-JACK	PLUG-JACK
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER
Contact point gender	FEMALE-FEMALE	FEMALE-FEMALE-FEMALE	FEMALE-FEMALE	FEMALE-FEMALE	FEMALE-FEMALE-FEMALE	FEMALE-FEMALE	FEMALE-FEMALE	MALE-FEMALE
Coupling type	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED	THREADED
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	YES	YES	YES	YES	YES	YES	YES	YES
Insertion loss	0.3 dB	0.33 dB	0.33 dB	0.33 dB	0.33 dB	0.33 dB	0.33 dB	0.33 dB
insulator material	PTFE	PTFE	PTFE	PTFE	PTFE	PTFE	PTFE	PTFE
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	TNC	TNC	TNC	TNC	TNC	TNC	TNC	TNC
Maximum operating frequency	9 GHz	11 GHz	11 GHz	11 GHz	11 GHz	11 GHz	11 GHz	11 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	YES	NO	NO	NO	NO	YES	YES	NO
voltage standing wave ratio	2.53	2	1.3	2.27	2	1.9	1.3	1.58
Maker	HUBER+SUHNER	-	-	HUBER+SUHNER	HUBER+SUHNER	HUBER+SUHNER	HUBER+SUHNER	HUBER+SUHNER
