8100616EA datasheet, PDF - EEWORLD Datasheet

8100616EA: Description4PST, 1 Func, 4 Channel, CMOS, CDIP16; CategoryAnalog mixed-signal IC The signal circuit; File Size287KB，12 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

8100616EA Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8100616EA	-	-	View	Buy Now

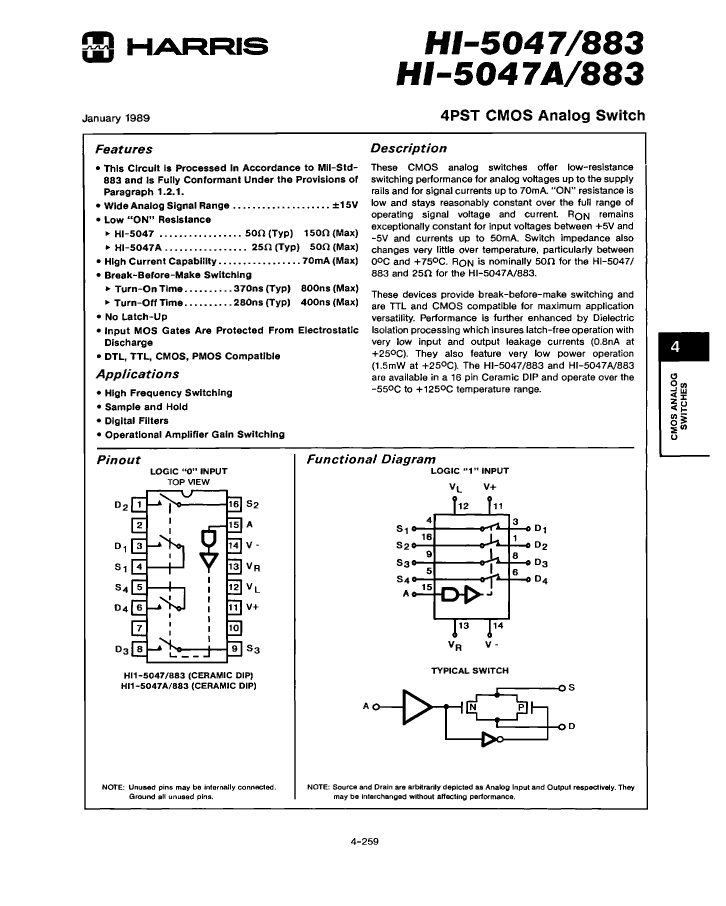

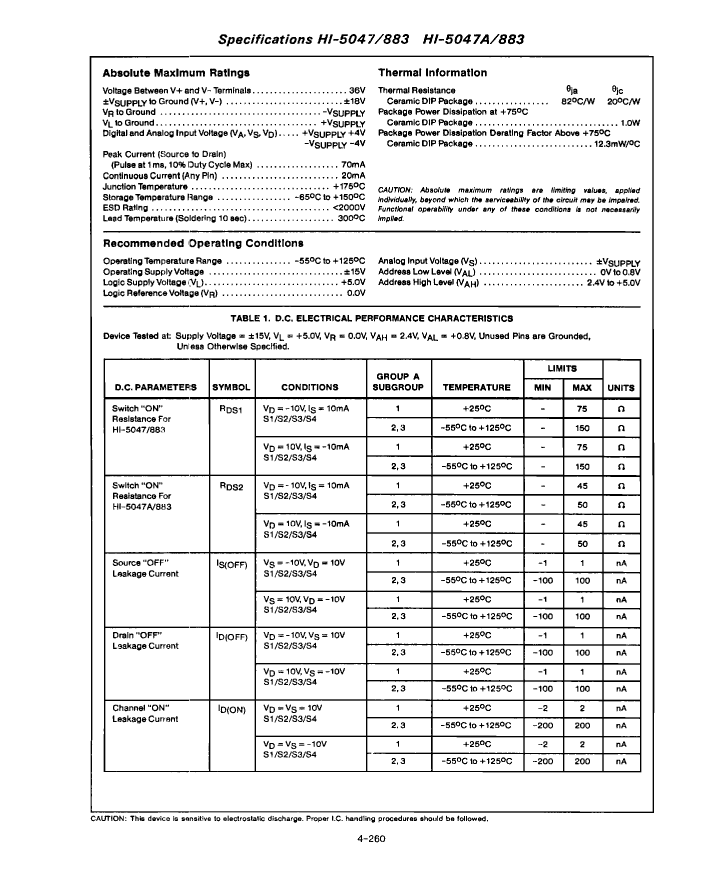

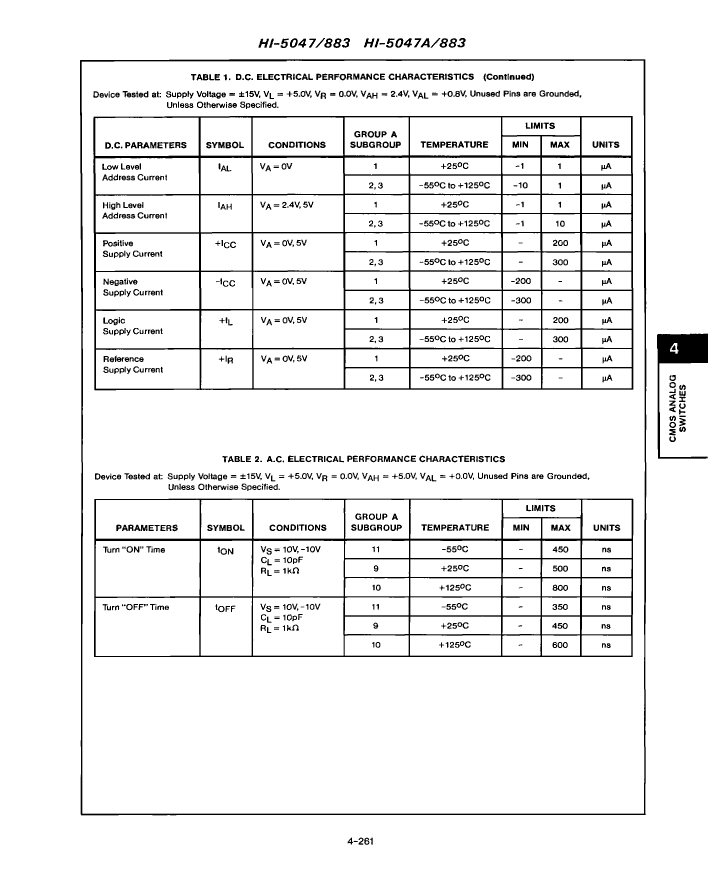

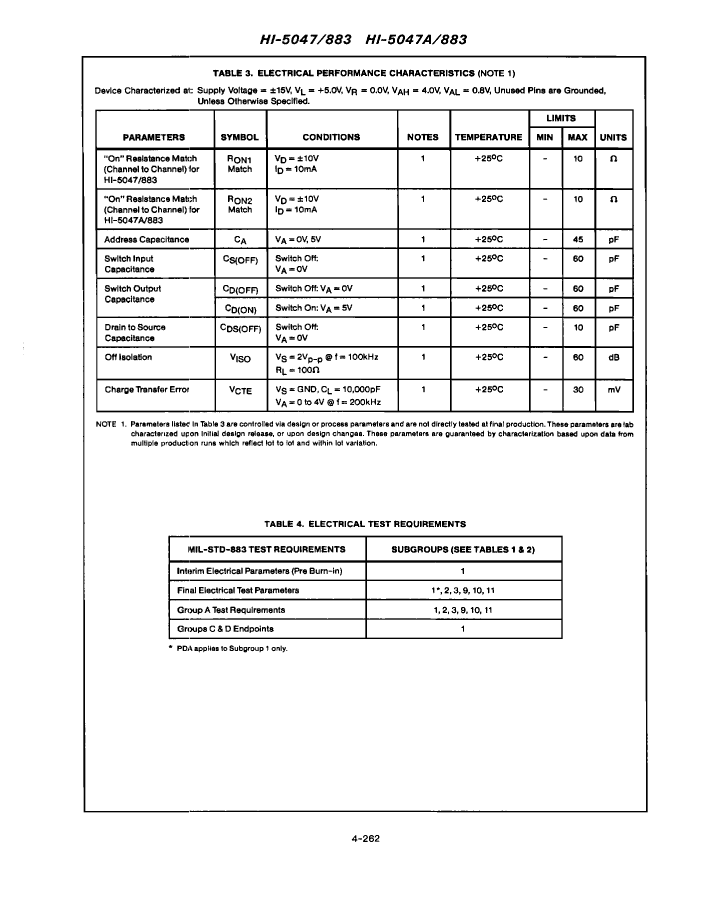

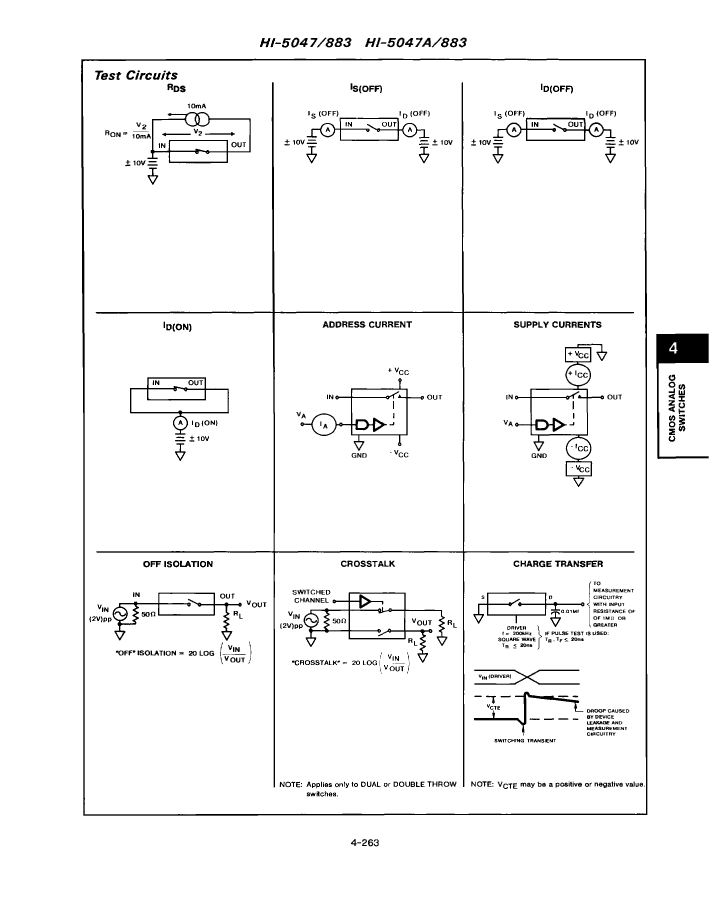

4PST, 1 Func, 4 Channel, CMOS, CDIP16

Parameter Name	Attribute value
Maker	Harris
package instruction	,
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	4PST
JESD-30 code	R-GDIP-T16
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	4
Number of functions	1
Number of terminals	16
Nominal off-state isolation	60 dB
On-state resistance matching specifications	10 Ω
Maximum on-state resistance (Ron)	75 Ω
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum supply current (Isup)	0.3 mA
Nominal supply voltage (Vsup)	15 V
surface mount	NO
Maximum disconnect time	450 ns
Maximum connection time	500 ns
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL

	8100616EA	8100616EX	8100618EX	8100618EA
Description	4PST, 1 Func, 4 Channel, CMOS, CDIP16	4PST, 1 Func, 1 Channel, CMOS, CDIP16, CERAMIC, DIP-16	4PST, 1 Func, 4 Channel, CMOS, CDIP16, CERAMIC, DIP-16	4PST, 1 Func, 4 Channel, CMOS, CDIP16
Maker	Harris	Harris	Harris	Harris
Reach Compliance Code	unknown	unknown	unknown	unknown
Analog Integrated Circuits - Other Types	4PST	4PST	4PST	4PST
JESD-30 code	R-GDIP-T16	R-CDIP-T16	R-GDIP-T16	R-GDIP-T16
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V
Number of channels	4	1	4	4
Number of functions	1	1	1	1
Number of terminals	16	16	16	16
Maximum on-state resistance (Ron)	75 Ω	75 Ω	45 Ω	45 Ω
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V
surface mount	NO	NO	NO	NO
Maximum disconnect time	450 ns	350 ns	450 ns	450 ns
Maximum connection time	500 ns	450 ns	500 ns	500 ns
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL
Nominal off-state isolation	60 dB	-	60 dB	60 dB
On-state resistance matching specifications	10 Ω	-	10 Ω	10 Ω
Base Number Matches	-	1	1	1
