SAF-C501-L20P datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> SAF-C501-L20P

SAF-C501-L20P: DescriptionMicrocontroller, 8-Bit, 8051 CPU, 20MHz, CMOS, PDIP40, PLASTIC, DIP-40; CategoryThe embedded processor and controller Microcontrollers and processors; File Size489KB，18 Pages; ManufacturerInfineon; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

SAF-C501-L20P Overview

Microcontroller, 8-Bit, 8051 CPU, 20MHz, CMOS, PDIP40, PLASTIC, DIP-40

SAF-C501-L20P Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Infineon
Parts packaging code	DIP
package instruction	PLASTIC, DIP-40
Contacts	40
Reach Compliance Code	unknown
Has ADC	NO
Address bus width	16
bit size	8
CPU series	8051
maximum clock frequency	20 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
JESD-30 code	R-PDIP-T40
JESD-609 code	e0
length	50.9 mm
Number of I/O lines	32
Number of terminals	40
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PWM channel	NO
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP40,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	256
rom(word)	0
Maximum seat height	5.1 mm
speed	20 MHz
Maximum supply voltage	5.5 V
Minimum supply voltage	4.25 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

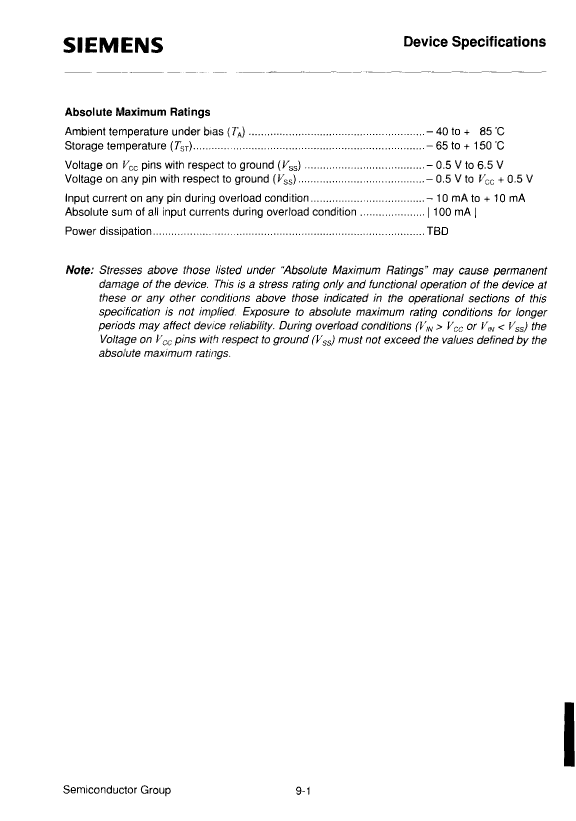

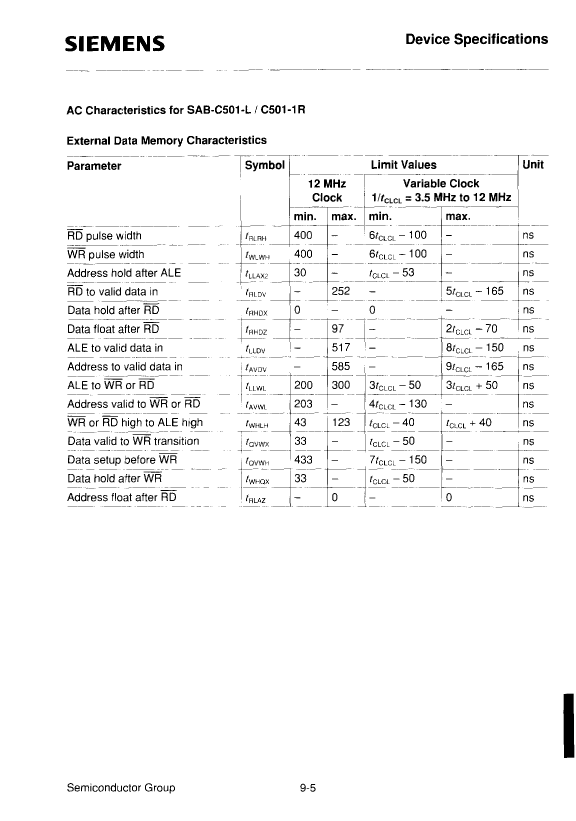

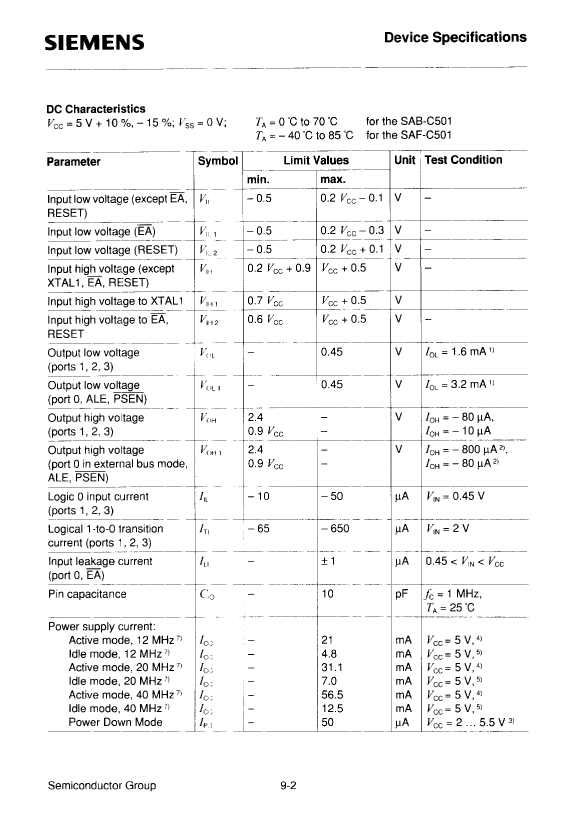

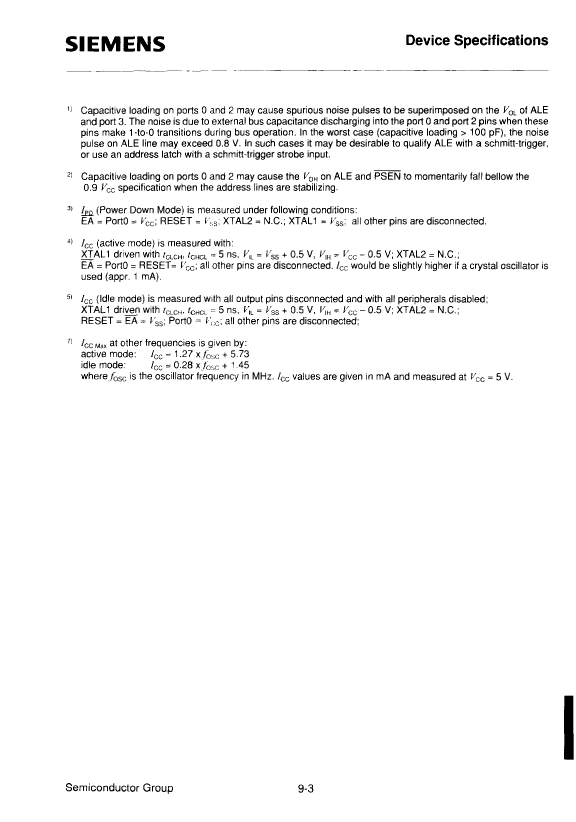

Preview

Download Datasheet

View All

SAF-C501-L20P Related Products

	SAF-C501-L20P	SAB-C501-L20P	SAF-C501-1R40P	SAF-C501-1R40N	SAB-C501-L20N
Description	Microcontroller, 8-Bit, 8051 CPU, 20MHz, CMOS, PDIP40, PLASTIC, DIP-40	Microcontroller, 8-Bit, 8051 CPU, 20MHz, CMOS, PDIP40, PLASTIC, DIP-40	Microcontroller, 8-Bit, MROM, 8051 CPU, 40MHz, CMOS, PDIP40, PLASTIC, DIP-40	Microcontroller, 8-Bit, MROM, 8051 CPU, 40MHz, CMOS, PQCC44, PLASTIC, LCC-44	Microcontroller, 8-Bit, 8051 CPU, 20MHz, CMOS, PQCC44, PLASTIC, LCC-44
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Infineon	Infineon	Infineon	Infineon	Infineon
Parts packaging code	DIP	DIP	DIP	LCC	LCC
package instruction	PLASTIC, DIP-40	PLASTIC, DIP-40	PLASTIC, DIP-40	PLASTIC, LCC-44	PLASTIC, LCC-44
Contacts	40	40	40	44	44
Reach Compliance Code	unknown	unknown	unknown	unknown	not_compliant
Has ADC	NO	NO	NO	NO	NO
Address bus width	16	16	16	16	16
bit size	8	8	8	8	8
CPU series	8051	8051	8051	8051	8051
maximum clock frequency	20 MHz	20 MHz	40 MHz	40 MHz	20 MHz
DAC channel	NO	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO	NO
External data bus width	8	8	8	8	8
JESD-30 code	R-PDIP-T40	R-PDIP-T40	R-PDIP-T40	S-PQCC-J44	S-PQCC-J44
JESD-609 code	e0	e0	e0	e0	e0
length	50.9 mm	50.9 mm	50.9 mm	16.6 mm	16.6 mm
Number of I/O lines	32	32	32	32	32
Number of terminals	40	40	40	44	44
Maximum operating temperature	85 °C	70 °C	85 °C	85 °C	70 °C
Minimum operating temperature	-40 °C	-	-40 °C	-40 °C	-
PWM channel	NO	NO	NO	NO	NO
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	QCCJ	QCCJ
Encapsulate equivalent code	DIP40,.6	DIP40,.6	DIP40,.6	LDCC44,.7SQ	LDCC44,.7SQ
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE
Package form	IN-LINE	IN-LINE	IN-LINE	CHIP CARRIER	CHIP CARRIER
power supply	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
RAM (bytes)	256	256	256	256	256
Maximum seat height	5.1 mm	5.1 mm	5.1 mm	4.57 mm	4.57 mm
speed	20 MHz	20 MHz	40 MHz	40 MHz	20 MHz
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.25 V	4.25 V	4.25 V	4.25 V	4.25 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	INDUSTRIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	J BEND	J BEND
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	QUAD	QUAD
width	15.24 mm	15.24 mm	15.24 mm	16.6 mm	16.6 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
