SRM9TX: DescriptionRectifier Diode, 1 Phase, 1 Element, 20A, 900V V(RRM), Silicon, HERMETIC SEALED PACKAGE-2; CategoryDiscrete semiconductor diode; File Size154KB，2 Pages; ManufacturerSSDI; Websitehttp://www.ssdi-power.com/

Download Datasheet Parametric Compare View All

SRM9TX Overview

Rectifier Diode, 1 Phase, 1 Element, 20A, 900V V(RRM), Silicon, HERMETIC SEALED PACKAGE-2

SRM9TX Parametric

Parameter Name	Attribute value
Maker	SSDI
package instruction	E-XALF-W2
Contacts	2
Reach Compliance Code	compliant
ECCN code	EAR99
application	GENERAL PURPOSE
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	E-XALF-W2
Maximum non-repetitive peak forward current	375 A
Number of components	1
Phase	1
Number of terminals	2
Maximum output current	20 A
Package body material	UNSPECIFIED
Package shape	ELLIPTICAL
Package form	LONG FORM
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	900 V
Maximum reverse recovery time	5 µs
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL

Preview

Download Datasheet

View All

Solid State Devices, Inc.

14701 Firestone Blvd * La Mirada, Ca 90638

Phone: (562) 404-4474 * Fax: (562) 404-1773

ssdi@ssdi-power.com * www.ssdi-power.com

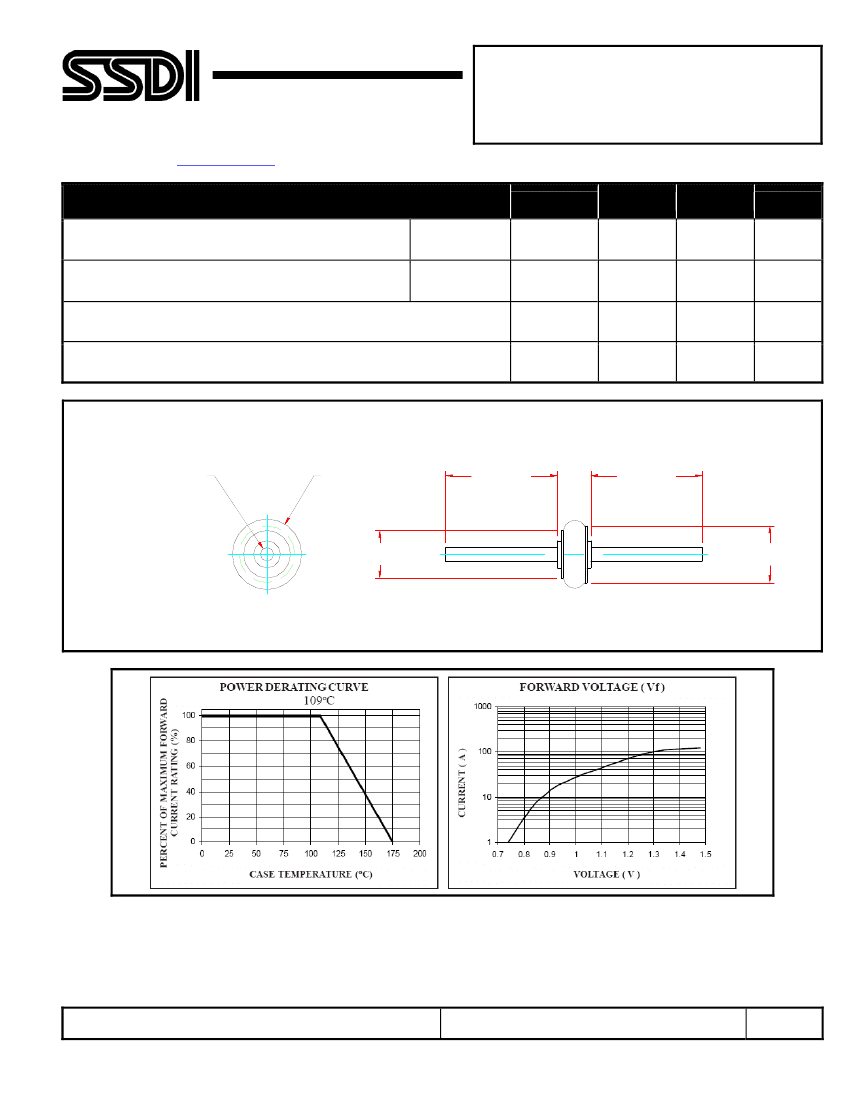

SRM5

thru

SRM10

20 AMPS

500 - 1000 VOLTS

5

μsec

STANDARD RECOVERY

RECTIFIER

FEATURES:

•

Replace DO-4 or DO-5

Standard Recovery: 5μsec maximum

PIV to 1000 Volts

Low Reverse Leakage Current

Hermetically Sealed Void-Free Construction

Monolithic Single Chip Construction

High Surge Rating

Low Thermal Resistance

Available in Surface Mount Version

Equivalent to 5961-94022

TX, TXV, and Space Level Screening Available

2/

Designer’s Data Sheet

Part Number/Ordering Information

1/

SRM

__ __

│

└

Screening

2/

│

└

__

= Not Screened

TX = TX Level

TXV = TXV Level

S = S Level

Voltage

5 = 500V

6 = 600V

7 = 700V

8 = 800V

9 = 900V

10 = 1000V

•

MAXIMUM RATINGS

Peak Repetitive Reverse Voltage and

DC Blocking Voltage

SRM5

SRM6

SRM7

SRM8

SRM9

SRM10

Symbol

V

RRM

V

RWM

V

R

Value

500

600

700

800

900

1000

20

375

-65 to +175

3

Units

Volts

Average Rectified Forward Current

(Resistive Load, 60 Hz Sine Wave, T

A

= 25

o

C)

Peak Surge Current

(8.3 ms Pulse, Half Sine Wave, Superimposed on I

O

, Allow

Junction to Reach Equilibrium Between Pulses, T

A

= 25

o

C)

Operating and Storage Temperature

Maximum Thermal Resistance

Junction to Lead, L = 3/8”

NOTES:

1/ For Ordering Information, Price, and Availability – Contact Factory.

2/ PIND Testing not required on Void-Free Devices per MIL-PRF-19500

Screening Based on MIL-PRF-19500. Screening Flows Available on Request.

I

O

I

FSM

T

OP

& T

stg

R

θJL

Amps

o

C

C/W

Axial

NOTE:

All specifications are subject to change without notification.

SCD's for these devices should be reviewed by SSDI prior to release.

DATA SHEET #: RC0046G

DOC
