MC146818AP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> MC146818AP

MC146818AP: Description1 TIMER(S), REAL TIME CLOCK, PDIP24, PLASTIC, DIP-24; CategoryThe embedded processor and controller Microcontrollers and processors; File Size2MB，20 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

MC146818AP Overview

1 TIMER(S), REAL TIME CLOCK, PDIP24, PLASTIC, DIP-24

MC146818AP Parametric

Parameter Name	Attribute value
Maker	NXP
Parts packaging code	DIP
package instruction	DIP,
Contacts	24
Reach Compliance Code	unknown
ECCN code	EAR99
maximum clock frequency	4.2 MHz
External data bus width	8
Information access methods	PARALLEL, MUXED BUS
JESD-30 code	R-PDIP-T24
length	31.75 mm
Number of terminals	24
Number of timers	1
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply voltage	6 V
Minimum supply voltage	3 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	TIMER, REAL TIME CLOCK

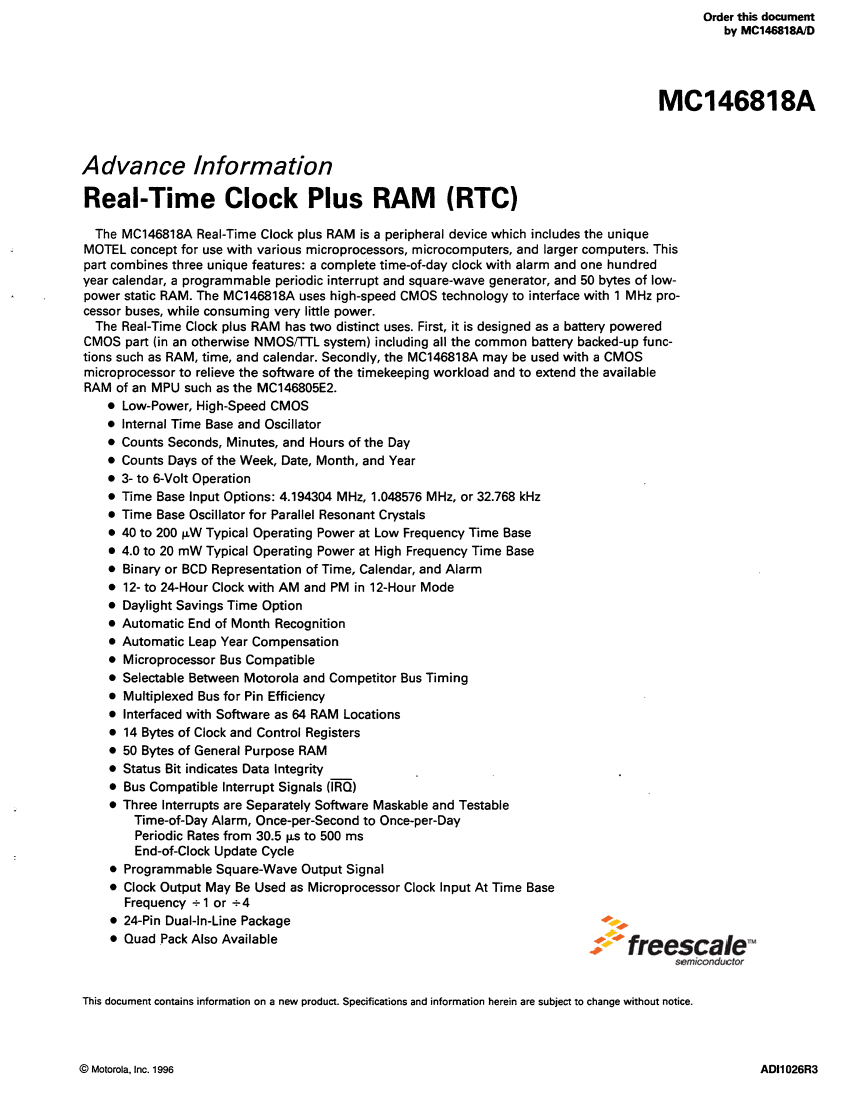

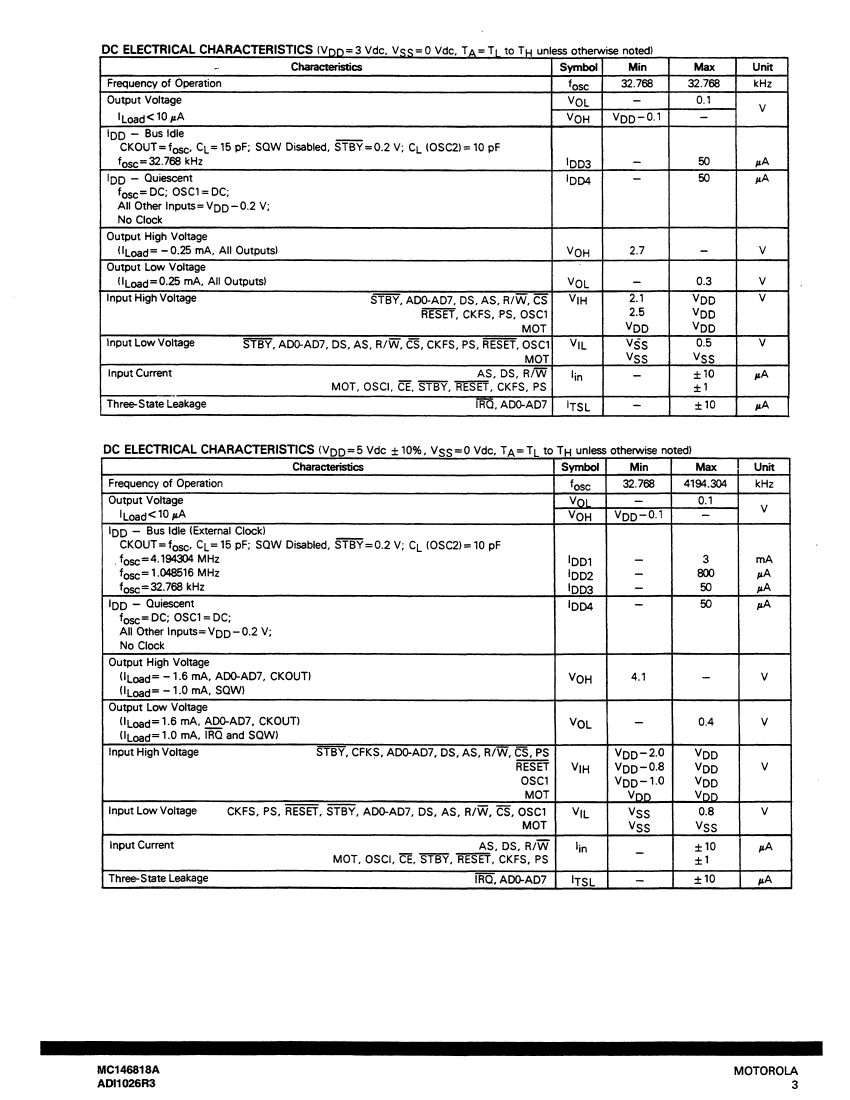

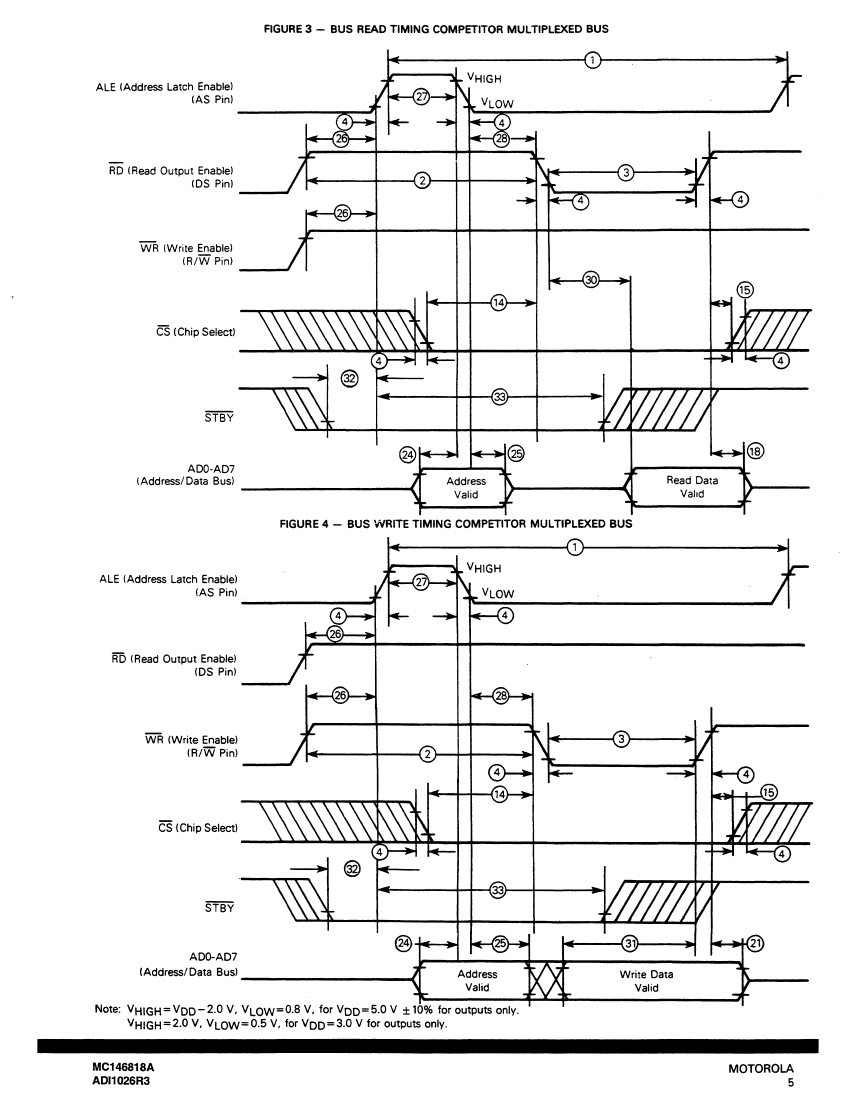

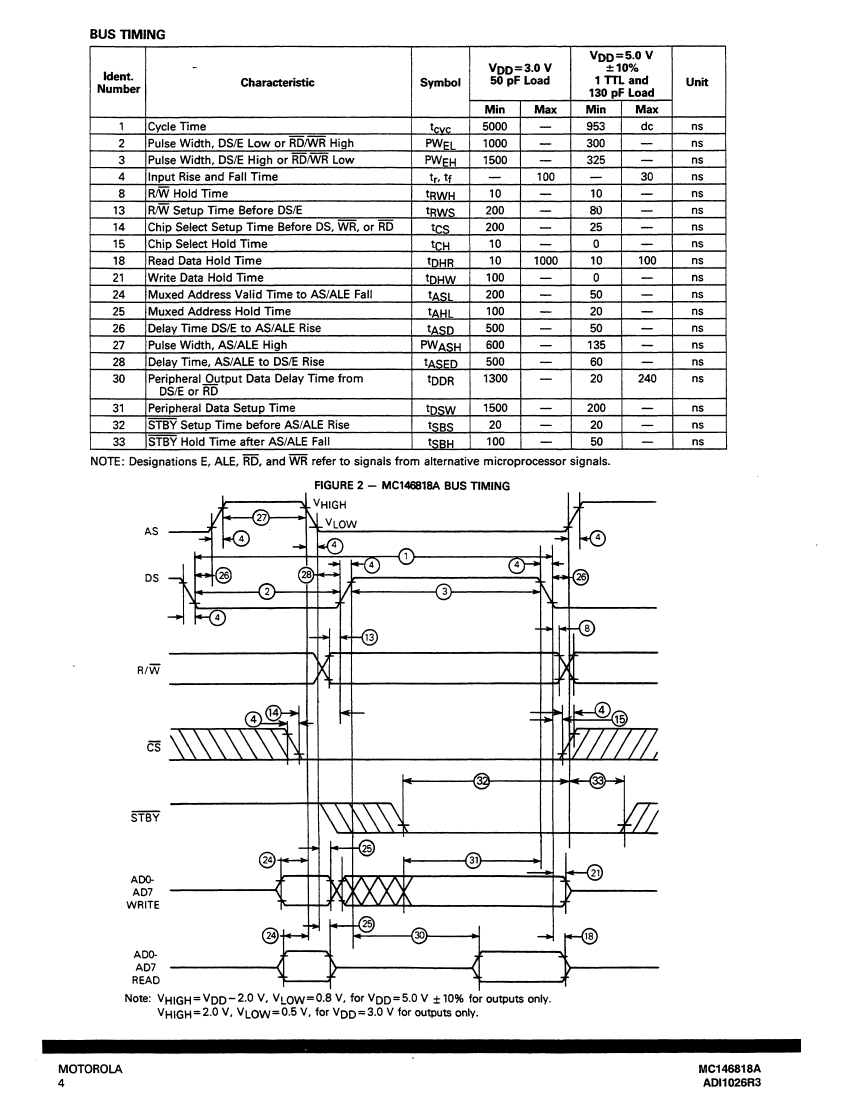

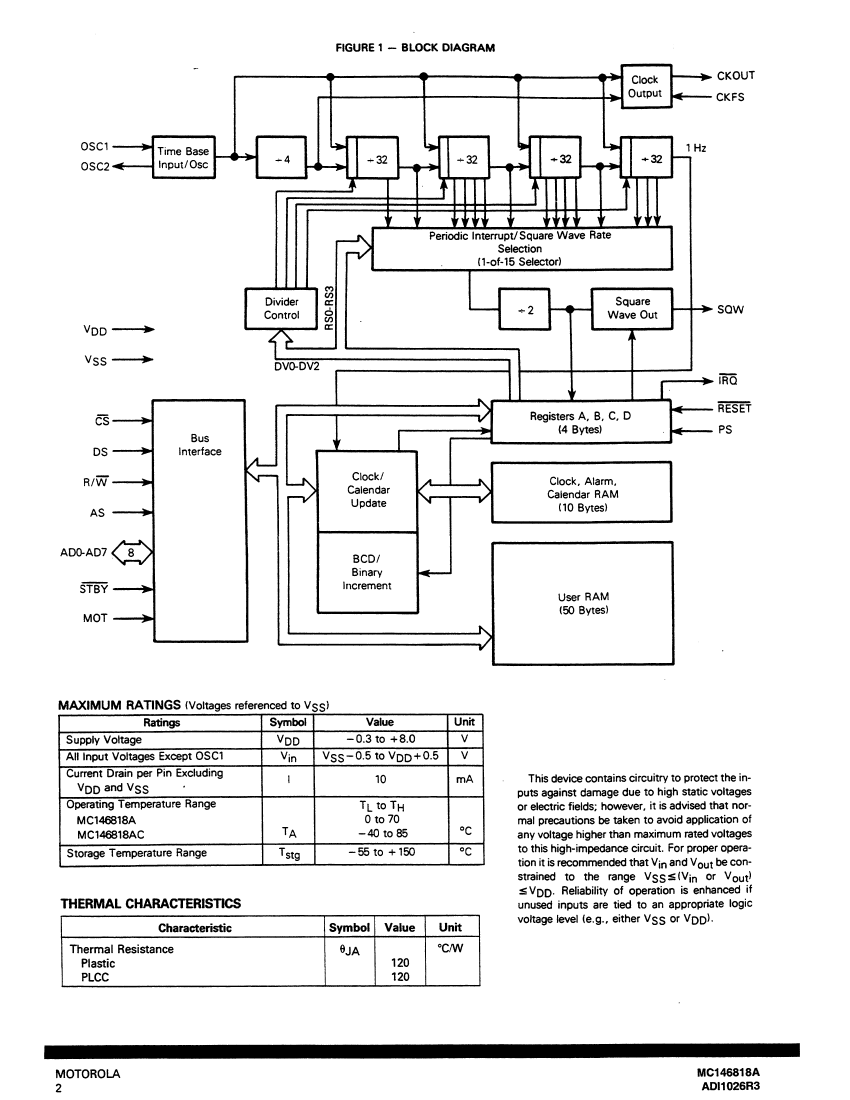

Preview

Download Datasheet

View All

Freescale Semiconductor, Inc.

Freescale Semiconductor, Inc...

For More Information On This Product,

Go to: www.freescale.com

MC146818AP Related Products

	MC146818AP	MC146818ACP	MC146818AFN	MC146818ACFN
Description	1 TIMER(S), REAL TIME CLOCK, PDIP24, PLASTIC, DIP-24	1 TIMER(S), REAL TIME CLOCK, PDIP24, PLASTIC, DIP-24	IC,REAL-TIME CLOCK,CMOS,LDCC,28PIN,PLASTIC	IC,REAL-TIME CLOCK,CMOS,LDCC,28PIN,PLASTIC
Parts packaging code	DIP	DIP	QLCC	QLCC
package instruction	DIP,	DIP,	QCCJ,	QCCJ,
Contacts	24	24	28	28
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
maximum clock frequency	4.2 MHz	4.2 MHz	4.2 MHz	4.2 MHz
External data bus width	8	8	8	8
Information access methods	PARALLEL, MUXED BUS	PARALLEL, MUXED BUS	PARALLEL, MUXED BUS	PARALLEL, MUXED BUS
JESD-30 code	R-PDIP-T24	R-PDIP-T24	S-PQCC-J28	S-PQCC-J28
length	31.75 mm	31.75 mm	11.505 mm	11.505 mm
Number of terminals	24	24	28	28
Number of timers	1	1	1	1
Maximum operating temperature	70 °C	85 °C	70 °C	85 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	QCCJ	QCCJ
Package shape	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE
Package form	IN-LINE	IN-LINE	CHIP CARRIER	CHIP CARRIER
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	5.08 mm	4.57 mm	4.57 mm
Maximum supply voltage	6 V	6 V	6 V	6 V
Minimum supply voltage	3 V	3 V	3 V	3 V
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	NO	NO	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	INDUSTRIAL	COMMERCIAL	INDUSTRIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	J BEND	J BEND
Terminal pitch	2.54 mm	2.54 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	QUAD	QUAD
width	15.24 mm	15.24 mm	11.505 mm	11.505 mm
uPs/uCs/peripheral integrated circuit type	TIMER, REAL TIME CLOCK	TIMER, REAL TIME CLOCK	TIMER, REAL TIME CLOCK	TIMER, REAL TIME CLOCK
Maker	NXP	-	NXP	NXP
