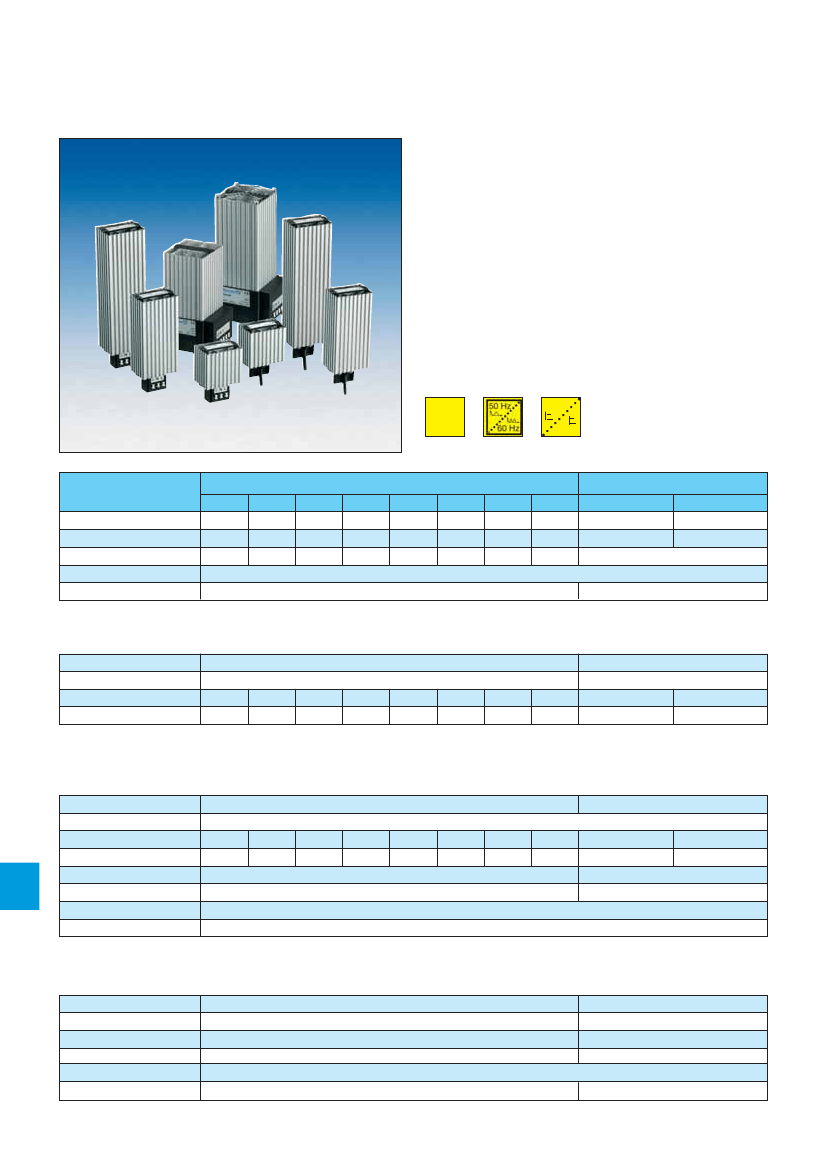

Radiant Heater and
Fan Heater series FLH
Heat generated by electrical equipment operating under load
will prevent the accumulation of condensation. After the equip-
ment has been switched off however it cools down and gra-
dually adapts to the ambient temperature, thus dropping below
the dew point. This is the signal that triggers the radiant heater!
These sources of heat prevent the formation of condensation
by raising the internal temperature a few degrees above the
ambient temperature.
In the interest of evenly distributing the heat, we recommend
that the requirement of heating capacity is divided among
several small heaters.
IP 44
Level of
protection
suitable for both
50 Hz and 60 Hz
▲
230 V
▲
▲
▲
115 V
115 V … 230 V
(FLH 010-150)
▲
▲
Thermal data:
FLH 010
Heater power (Tu = + 20 °C)
Max. surface temperature approx.
Airflow
Duty cycle
Heating element
10 Watt
55 °C
FLH 015
15 Watt
65 °C
FLH 030
30 Watt
90 °C
Radiant Heater
FLH 045
45 Watt
105 °C
FLH 060
60 Watt
105 °C
FLH 075
75 Watt
120 °C
FLH100
100 Watt
130 °C
FLH 150
150 Watt
150 °C
FLH 250
250 Watt
70 °C
Fan Heater
FLH 400
400 Watt
85 °C
50 m
3
/h (50 Hz) 61 m
3
/h (60 Hz)
100 %
PTC (positive temperature coefficient), temperature refulating
resistance type with temperature monitor
Electrical data:
Rated voltage
1
)
Rated frequency
Power consumption
10 Watt
Starting current approx.
1,0A
1
)
other voltages (24V DC, 48V DC) on request
15 Watt
1,1A
30 Watt
1,2A
230 V (50 / 60 Hz)
110 - 250 V
45 Watt
1,8A
60 Watt
2,5A
75 Watt
4,5A
100 Watt
5,0A
150 Watt
7,5A
115 V or 230 V
104 - 126 V or 207 - 258 V
260 Watt
2,2A / 1,1A
410 Watt
3,6A / 1,8A

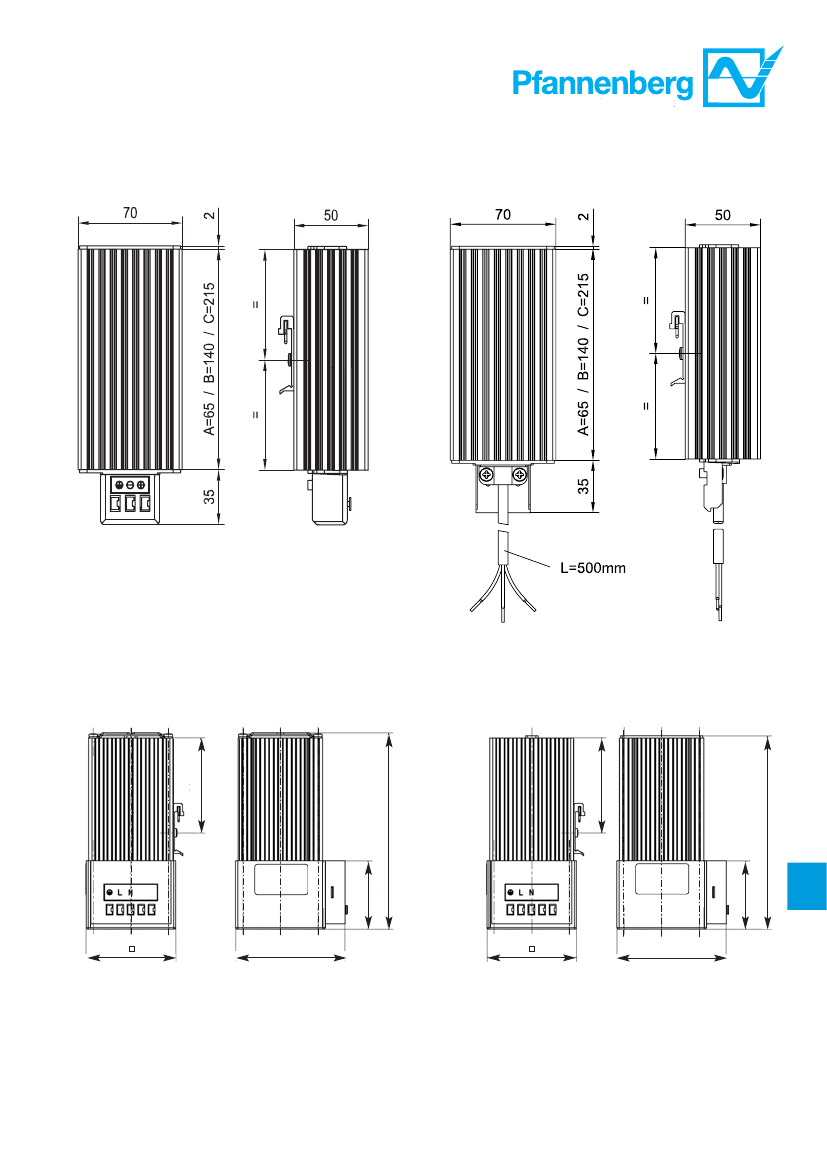

Mechanical data:
Fitting position
Construction
Weight
Dimensions
Protection class
Connection
Binding post clambing area
Mounting method
250 g
A
250 g
A
250 g
A
250 g
A
any, vertical position preferred
aluminium section, anodised (light-coloured)
450 g
B
510 g
B
510 g
B
770 g
C
1.035 g
D
I
plug-in terminal
1.200 g
E
We reserve the right to technical alterations.Subject to correction. 075000031
airflow vertical, exit at top
I
cable end or plug-in terminal
snap-in mounting for 35mm profile bar in accordance with EN 50022
single filament: 2 x 0,5 - 2,5 mm
2
, fine multi-filament: (soldered, wire and sleeve, pin terminal) 2 x 0,5 - 1,5 mm
2
Supplementary data:
Operating temperature
Storage temperature
System of protection
Accessories
Approvals
Optional extra
- 40 °C (- 40 °F) ... + 70 °C (+ 158 °F)
- 40 °C (- 40 °F) ... + 70 °C (+ 158 °F)
IP 44 (cable end), IP 20 (plug-in terminal), when installed as specified
thermostat FLZ 510, FLZ 520, FLZ 530, hygrostat FLZ 600
UL approval
- 20 °C (- 4 °F) ... + 70 °C (+ 158 °F)
- 40 °C (- 40 °F) ... + 70 °C (+ 158 °F)
IP 20, when installed as specified
2nd protection guard
