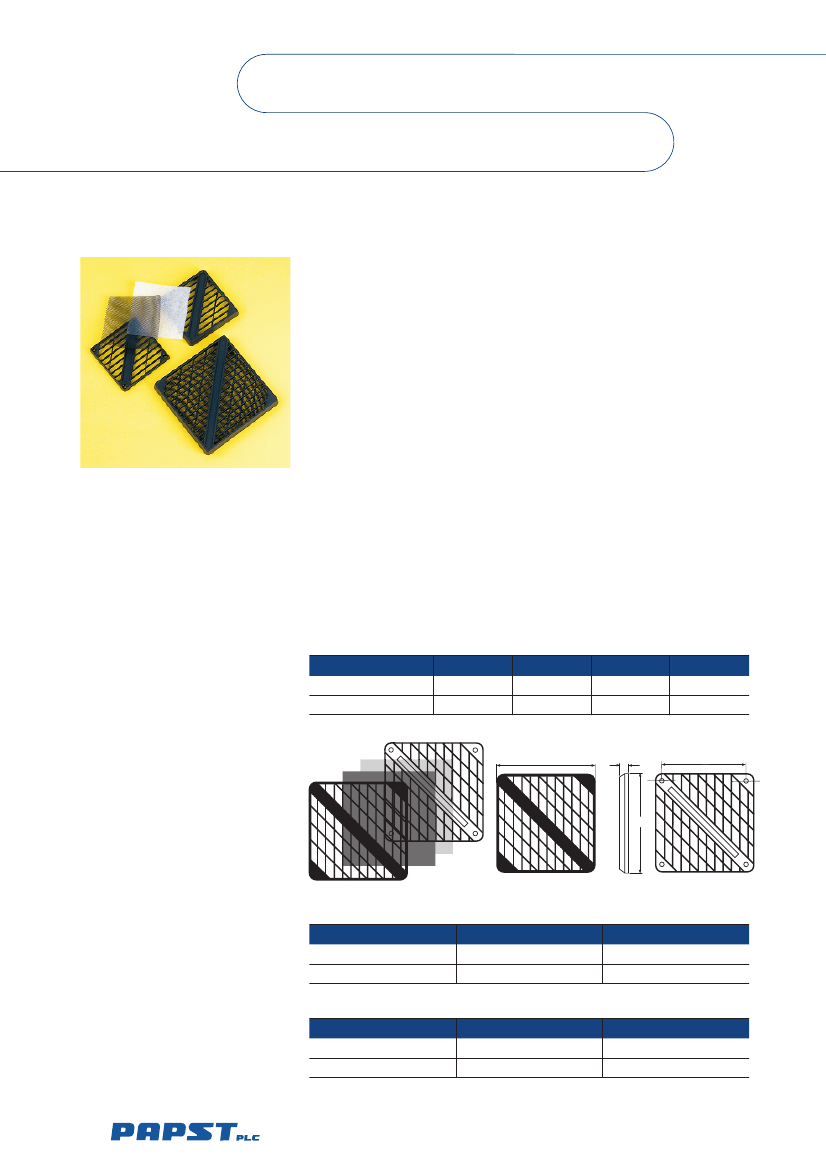

air filters
fan filter assemblies –
PMFA ‘T’ Series
Description
A family of low profile filter assemblies
designed for use with both 80mm
2
and
119mm
2
PAPST axial fans. In both cases,
the filter assemblies mount directly on to the
existing fixing locations. The ‘T’ series is a
compact design yet very robust for where
space is at a premium.
Construction
The assembly consists of four parts, an outer
cover, a filter pad, a mesh screen and
a finger guard. The cover, mesh and finger
guard are moulded in ‘Zytel’ nylon resin.
The inclusion of a finger guard as part of the
assembly will allow the filter medium to be
Dimensions
Fan size
80mm
2
119mm
2
Finger Guard
Filter
Pad
Mesh
Cover
changed without the equipment having to be
switched off. The pad is manufactured from
white polyester type KS-22.
Filter Performance
The KS-22 pad will achieve a 60% dust
particle retention and is heat resistant to
100°C. A reduction in airflow of around
10-30% can be expected in some applications
when fitting the filter assembly.
Features
• Compact, low profile design
• Rigged construction
• Quick change filter pad
• Fits both 80mm
2
and 119mm
2
fans
• Utilise existing hole fixing positions
• Filter pad can be changed without switching
off fan as the finger guard remains in place.
A
86.5
126
B
86.5
126
C
11
13.5
D
71.5
104.8
A
C
D
B
Cover
Finger Guard
Ordering information (filter assemblies)
Fan series
8000
4000
Size
80mm
2
119mm
2
Part number
PMFA80T
PMFA120T
Ordering information (spare filter pads)
Filter assembly
PMFA80T
PMFA120T
Pack details
Pack of 5
Pack of 5
Part number
FP80T
FP120T
All measurements in mm.
Papst plc East Portway Andover Hampshire SP10 3RT
Tel +44 (0)1264 333388 Fax +44 (0)1264 332182 www.papstplc.com
Fit it. Forget it.
air filters
fan filter assemblies –
PMFA Series
Description
A family of filters for use with the main sizes
of axial fans, i.e. 60mm
2
, 80mm
2
, 92mm
2
,
119mm
2
and 150/172mm diameter.
protection when the filter pad is changed
with the fan still running.
The filter pad is made of white synthetic
bonded fibre to specification P15/150R.
Filter Performance
The filter pad will achieve a 75% dust particle
retention down to 5-10 microns in size and
can withstand temperatures of up to 100°C.
The pad is also flame resistant to BS2963.
A reduction in airflow of around 20-30% can
be expected with a clean filter assembly fitted.
Features
• Tough, durable construction
• Quick change filter pad
• Fit fans from 60mm
2
to Ø172mm
• Utilise existing hole fixing positions on most
PAPST fans
• Filter pad can be changed without switching
off fan.
All filter assemblies mount directly on
to the existing fixing locations. The 60mm
2
assembly is compact and low profile by
design, with a similar version also available
in the 80mm model.
2
Construction
The assembly consists of three parts; an outer
grill cover, an inner fixing plate and a filter pad.
The grill cover is moulded in polycarbonate
with a matt finish. It incorporates quick release
fasteners to assist easy changing of the filter
pad. The inner fixing plate is constructed of
steel sheet, with a matt black epoxy powder
finish. A welded wire screen provides
Inner Plate
Ordering Information (filter assemblies)
Part No.
PMFA60L
Filter Pad
Fan size
60mm
2
80mm
2
80mm
2
92mm
2
119mm
2
150/172Ø
A
65
85
125
125
162
226
B
65
85
105
105
136
190
C
13.5
14
17.5
17.5
18.5
19.5
D
50
71.5
71.5
82.5
104.8
162
PMFA80L
PMFA80
Grill Cover
PMFA90
PMFA120
PMFA160
Ordering Information (spare filter pads)
Pad Part No.
FP60L
FP80L
FP80
FP90
PMFA120
PMFA160
Assembly Part No.
PMFA60L
PMFA80L
PMFA80
PMFA90
PMFA120
PMFA160
Pack Qty
5
5
5
5
5
5
All measurements in mm.
Papst plc East Portway Andover Hampshire SP10 3RT
Tel +44 (0)1264 333388 Fax +44 (0)1264 332182 www.papstplc.com
Fit it. Forget it.
