Datasheet - BNS 303-11ZG 2,0M
Safety sensors / BNS 303

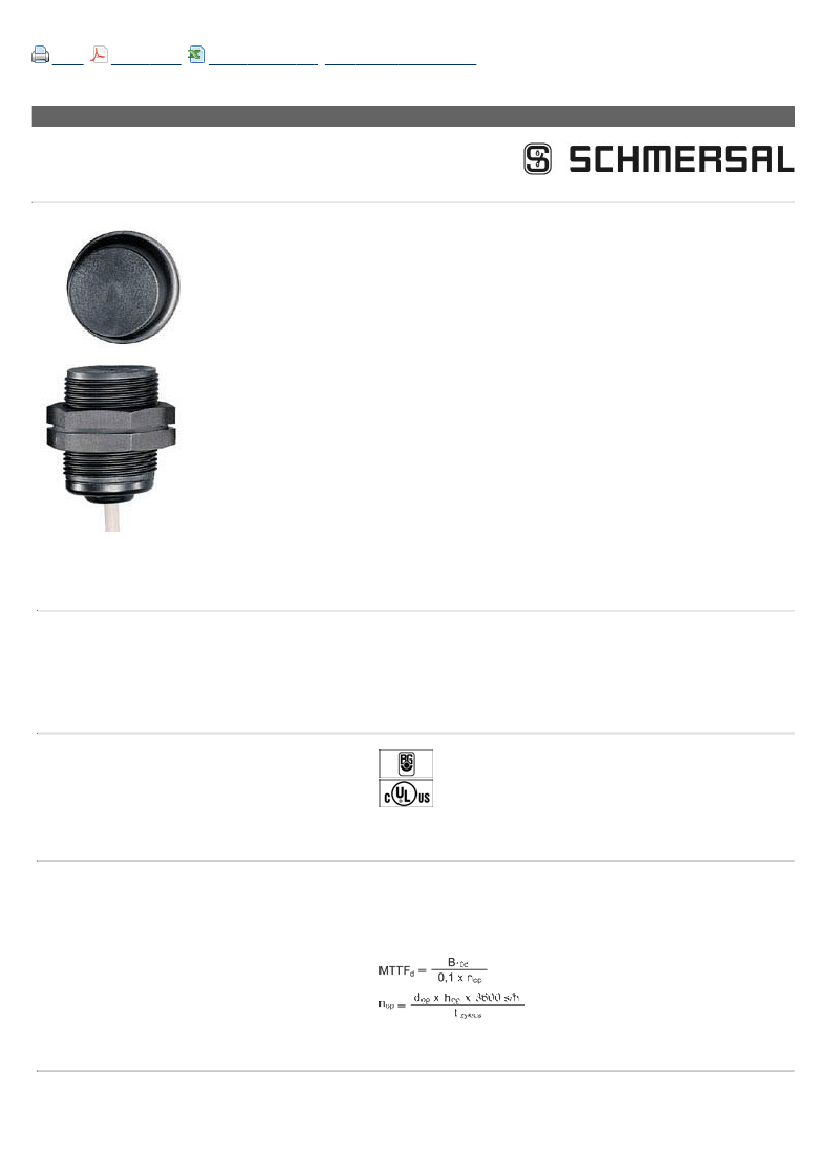

• LED version
• thermoplastic enclosure
• Long life
• no mechanical wear
• Ø M30
• Suitable for food processing industry
• Insensitive to transverse misalignment
• Insensitive to soiling
(Minor differences between the printed image and the original product
may exist!)
Ordering details
Product type description
Article number
EAN code
BNS 303-11ZG 2,0M
1148174
4030661145839
Approval
Approval
BG
USA/CAN
Classification
Standards
B
10d
Normally-closed contact/Normally open contact (NC/NO)
- notice
Mission time
notice
EN ISO 13849-1
25.000.000
at max. 20% contact load
20 Years
Global Properties
Product name
Standards
BNS 303
IEC 60947-5-3, BG-GS-ET-14
Compliance with the Directives (Y/N)
Materials
- Material of the housings
- Material of the nuts
- Material of the cable mantle
Weight
Coding available (Y/N)
Monitoring function of downstream devices (Y/N)
Prerequisite evaluation unit
Recommended safety-monitoring module
Yes
Plastic, glass-fibre reinforced thermoplastic
thermoplastic
PVC
95 g
Yes
No
AES,
SRB 202C., SRB 400C.,
SRB 211AN, SRB 207AN
BPS 300 , BPS 303 , BPS 303 SS
Recommended actuator
Mechanical data
Design of electrical connection
Cable length
Conductors
AWG-Number
mechanical installation conditions
Active area
Ensured switch distance ON
Ensured switch distance OFF
Type of actuation
Direction of motion
restistance to shock
Resistance to vibration
Tightening torque for nuts
5 mm
15 mm
Magnet
head-on with regard to the active surface
30 g / 11 ms
10 ... 55 Hz, Amplitude 1 mm
A/F 36 max. 300 Ncm
Cable
2m
4 x 0,25 mm²
23
quasi-flush
Ambient conditions
Ambient temperature
Storage and transport temperature
Protection class
IP67
Electrical data
Integrated Safety monitoring module available (Y/N)
Cross circuit/short circuit recognition possible (Y/N)
Voltage type
Switch frequency
Switching voltage
Switching current
Switching capacity
No
Yes
VDC
max. 5 Hz
max. 24 VDC
max. 10 mA
max. 240 mW
Outputs
Design of control output
Number of shutters
Number of openers
Design of output signal switching device
Other, Reed contakts
1 piece
1 piece
Electrical data - Safety outputs
Number of secure semi-conductor outputs
Number of secure outputs with contact
0 piece
2 piece
Electrical data - Diagnostic output
Number of semi-conductor outputs with signaling function
Number of outputs with signaling function that already have a
contact
0 piece
0 piece
LED switching conditions display
LED switching conditions display (Y/N)
- The LED is illuminated when the guard door is open.
Yes
ATEX
Explosion protection categories for gases
Explosion protected category for dusts
None
None
Dimensions
Dimensions of the sensor
- Length of sensor
- Diameter of sensor
44 mm
M30
notice
Contact symbols shown for the closed condition of the guard device.
The contact configuration for versions with or without LED is identical.
Included in delivery
Actuators must be ordered separately.
Mounting accessories - Nuts M 30 x 1,5
2 piece
Diagram
Note Diagram
positive break NC contact
active
no active
Normally-open contact
Normally-closed contact
Ordering suffix
The applicable ordering suffix is added at the end of the part number of the safety switch.
Order example: BNS 303-11ZG 2,0M-2211
...-2211
higher switching distance
S
ar
: 8 mm
S
ao
: 18 mm
Ordering code
BNS 303-(1)Z(2)-(3)-(4)
(1)
11
12
02
03
(2)
without
without LED switching conditions display
G
(3)
without
with cable
ST
(4)
2187
2211
Individual contact outlet
higher switching distance
with connector M12
with LED switching conditions display
1 Normally open contact (NO) / 1 Opener (NC)
1 Normally open contact (NO) / 2 Opener (NC)
- / 2 Opener (NC)
- / 3 Opener (NC)
Documents
Operating instructions and Declaration of conformity
(en) 964 kB, 21.06.2010
http://127.0.0.1/Bilddata/Si_senso/Pdf/Bns303/bedien/en/mrl_bns303_en.pdf
Operating instructions and Declaration of conformity
(es) 887 kB, 21.06.2010
http://127.0.0.1/Bilddata/Si_senso/Pdf/Bns303/bedien/es/mrl_bns303_es.pdf
Operating instructions and Declaration of conformity
(fr) 887 kB, 21.06.2010
http://127.0.0.1/Bilddata/Si_senso/Pdf/Bns303/bedien/fr/mrl_bns303_fr.pdf
Operating instructions and Declaration of conformity
(it) 886 kB, 21.06.2010
http://127.0.0.1/Bilddata/Si_senso/Pdf/Bns303/bedien/it/mrl_bns303_it.pdf
Operating instructions and Declaration of conformity
(nl) 889 kB, 21.06.2010
http://127.0.0.1/Bilddata/Si_senso/Pdf/Bns303/bedien/nl/mrl_bns303_nl.pdf
Operating instructions and Declaration of conformity
(de) 966 kB, 21.06.2010
http://127.0.0.1/Bilddata/Si_senso/Pdf/Bns303/bedien/de/mrl_bns303_de.pdf
Operating instructions and Declaration of conformity
(jp) 1 MB, 02.11.2010
http://127.0.0.1/Bilddata/Si_senso/Pdf/Bns303/bedien/jp/mrl_bns303_jp.pdf
Images

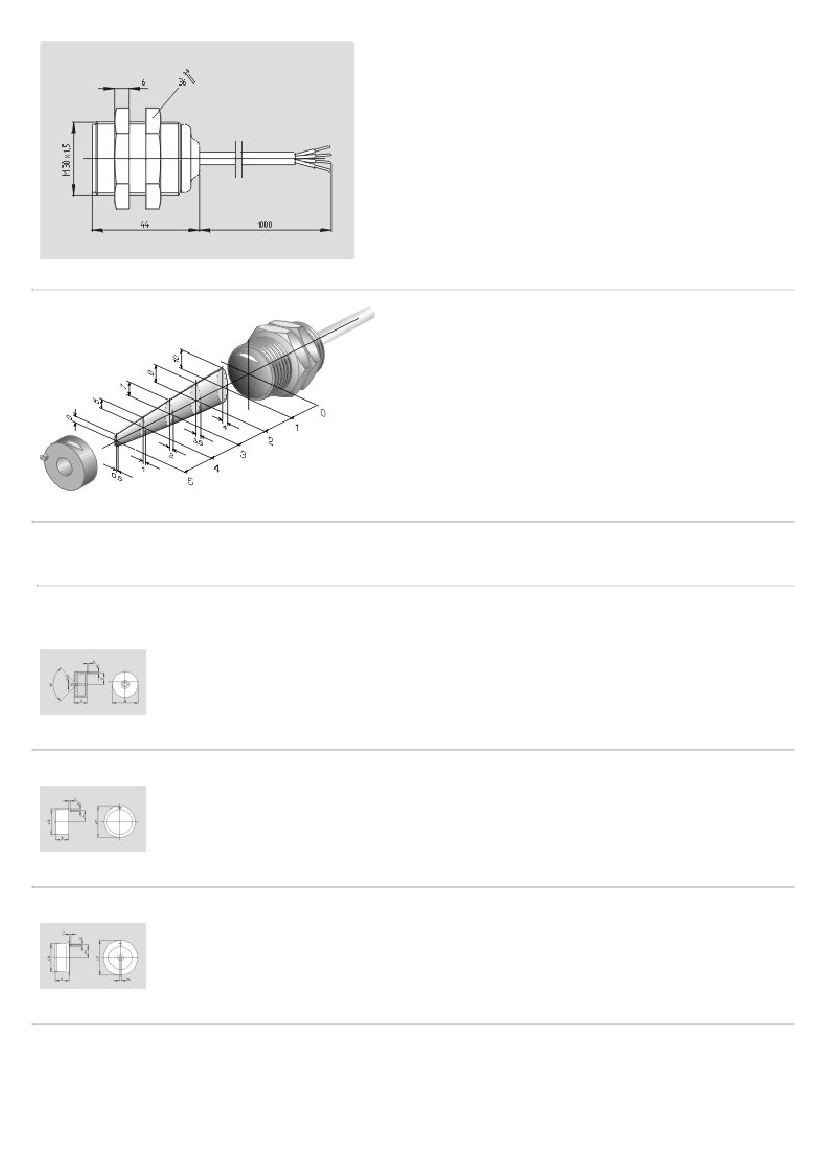

Dimensional drawing (basic component)
Characteristic curve
System components
Actuator
1113734 - BPS 300
1117076 - BPS 303
• Suitable for food processing industry
1141156 - BPS 303 SS
• Suitable for food processing industry
Mounting accessories
1068520 - MOUNTING CLAMP H 30
• For a smooth fitting of the proximity switches with cylindric shape Ø 30 mm or
thread M30
