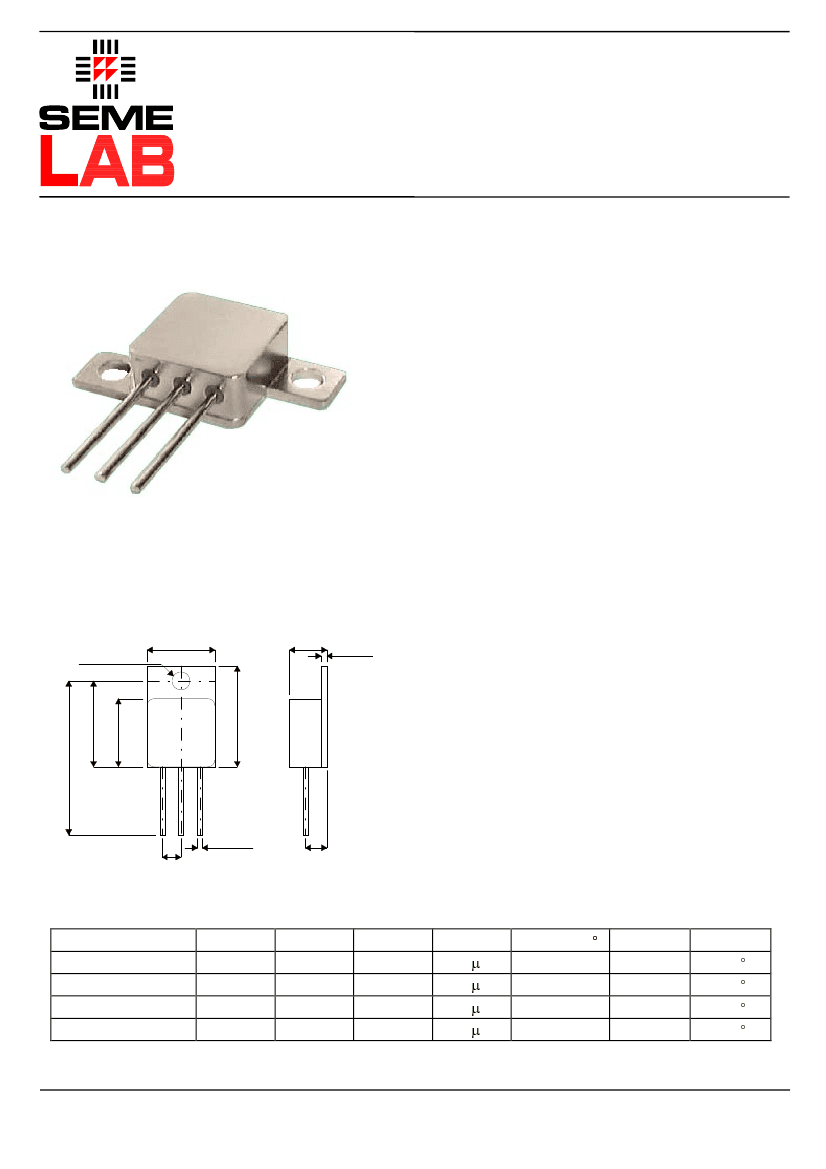

15A, SILICON, RECTIFIER DIODE, TO-254AA, TO-254, 3 PIN
| Parameter Name | Attribute value |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Maker | SEMELAB |
| Parts packaging code | TO-254AA |
| package instruction | S-MSFM-P3 |
| Contacts | 3 |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| application | HIGH VOLTAGE ULTRA FAST RECOVERY |
| Configuration | COMMON CATHODE, 2 ELEMENTS |
| Diode component materials | SILICON |
| Diode type | RECTIFIER DIODE |
| JEDEC-95 code | TO-254AA |
| JESD-30 code | S-MSFM-P3 |
| JESD-609 code | e1 |
| Number of components | 2 |
| Phase | 1 |
| Number of terminals | 3 |
| Maximum operating temperature | 175 °C |
| Maximum output current | 15 A |
| Package body material | METAL |
| Package shape | SQUARE |
| Package form | FLANGE MOUNT |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Certification status | Not Qualified |
| Maximum reverse recovery time | 0.06 µs |
| surface mount | NO |
| Terminal surface | TIN SILVER COPPER |
| Terminal form | PIN/PEG |
| Terminal location | SINGLE |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| SML800UF15DR1 | SML800UF25DR1 | SML500UF15DR1 | SML500UF25DR1 | SML800UF15D | |
|---|---|---|---|---|---|
| Description | 15A, SILICON, RECTIFIER DIODE, TO-254AA, TO-254, 3 PIN | 25A, SILICON, RECTIFIER DIODE, TO-254AA, TO-254, 3 PIN | 15A, SILICON, RECTIFIER DIODE, TO-254AA, TO-254, 3 PIN | 25A, SILICON, RECTIFIER DIODE, TO-254AA, TO-254, 3 PIN | 15A, SILICON, RECTIFIER DIODE, TO-254AA, TO-254, 3 PIN |
| Is it lead-free? | Lead free | Lead free | Lead free | Lead free | Contains lead |
| Is it Rohs certified? | conform to | conform to | conform to | conform to | incompatible |
| Maker | SEMELAB | SEMELAB | SEMELAB | SEMELAB | SEMELAB |
| Parts packaging code | TO-254AA | TO-254AA | TO-254AA | TO-254AA | TO-254AA |
| package instruction | S-MSFM-P3 | S-MSFM-P3 | S-MSFM-P3 | S-MSFM-P3 | S-MSFM-P3 |
| Contacts | 3 | 3 | 3 | 3 | 3 |
| Reach Compliance Code | compliant | compliant | compliant | compliant | compliant |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| application | HIGH VOLTAGE ULTRA FAST RECOVERY | HIGH VOLTAGE ULTRA FAST RECOVERY | HIGH VOLTAGE ULTRA FAST RECOVERY | HIGH VOLTAGE ULTRA FAST RECOVERY | HIGH VOLTAGE ULTRA FAST RECOVERY |
| Configuration | COMMON CATHODE, 2 ELEMENTS | COMMON CATHODE, 2 ELEMENTS | COMMON CATHODE, 2 ELEMENTS | COMMON CATHODE, 2 ELEMENTS | COMMON CATHODE, 2 ELEMENTS |
| Diode component materials | SILICON | SILICON | SILICON | SILICON | SILICON |
| Diode type | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE |
| JEDEC-95 code | TO-254AA | TO-254AA | TO-254AA | TO-254AA | TO-254AA |
| JESD-30 code | S-MSFM-P3 | S-MSFM-P3 | S-MSFM-P3 | S-MSFM-P3 | S-MSFM-P3 |
| Number of components | 2 | 2 | 2 | 2 | 2 |
| Phase | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 3 | 3 | 3 | 3 | 3 |
| Maximum operating temperature | 175 °C | 175 °C | 175 °C | 175 °C | 175 °C |
| Maximum output current | 15 A | 25 A | 15 A | 25 A | 15 A |
| Package body material | METAL | METAL | METAL | METAL | METAL |
| Package shape | SQUARE | SQUARE | SQUARE | SQUARE | SQUARE |
| Package form | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum reverse recovery time | 0.06 µs | 0.07 µs | 0.045 µs | 0.05 µs | 0.06 µs |
| surface mount | NO | NO | NO | NO | NO |
| Terminal form | PIN/PEG | PIN/PEG | PIN/PEG | PIN/PEG | PIN/PEG |
| Terminal location | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| JESD-609 code | e1 | e1 | e1 | e1 | - |
| Terminal surface | TIN SILVER COPPER | TIN SILVER COPPER | TIN SILVER COPPER | TIN SILVER COPPER | - |
