L4P43A-PDMDF-12M-X Overview

Interconnection Device, ROHS COMPLIANT

L4P43A-PDMDF-12M-X Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	CommScope Inc
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
Connector type	INTERCONNECTION DEVICE

L4P43A-PDMDF-12M-X Preview

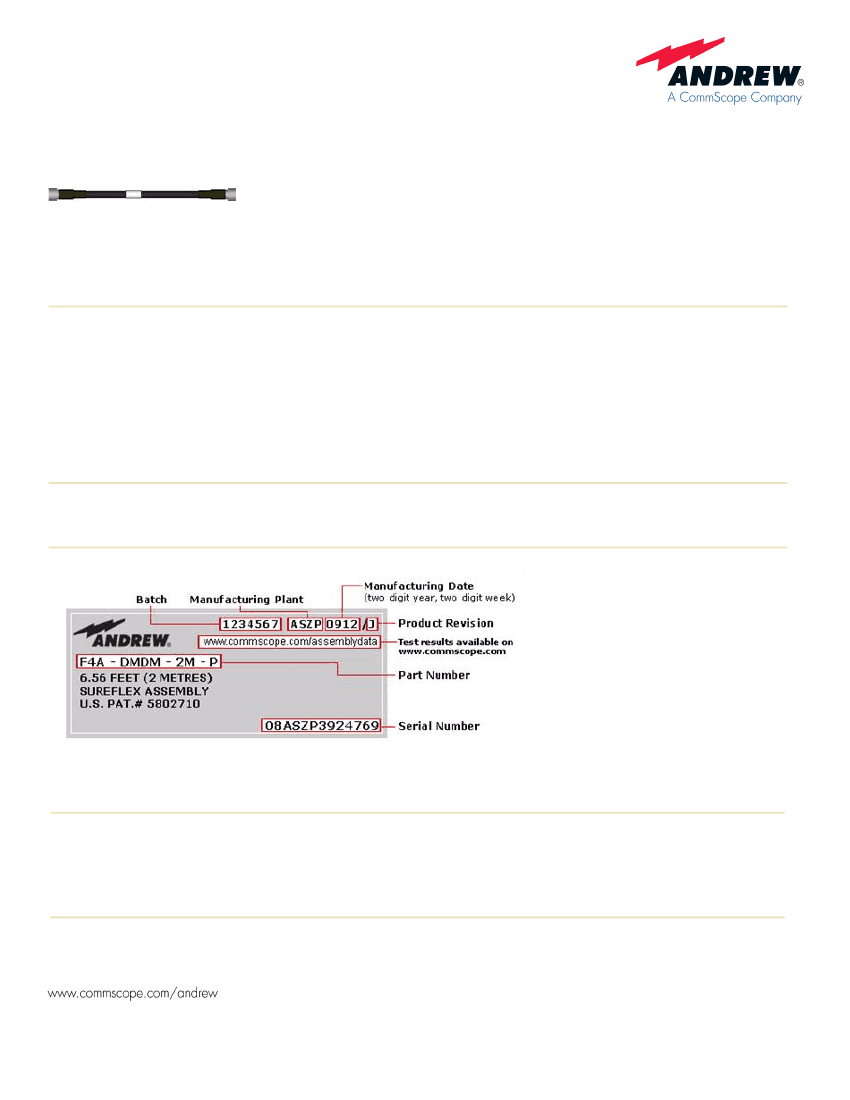

Product Specifications

L4P43A-PDMDF-12M-X

LDF450A SureFlex™ Jumper with interface types 716 DIN Male and 716 DIN Female, 12 m

CHARACTERISTICS

General Specifications

Body Style, Connector A Straight

Body Style, Connector B Straight

Cable Family

Interface, Connector A

Interface, Connector B

Length

LDF450A

716 DIN Male

716 DIN Female

12.000 m | 39.370 ft

Attachment, Connector B Field attachment

Electrical Specifications

DTF, Connector A

32.00 dB

Jumper Assembly Sample Label

Return Loss/VSWR

Frequency Band

800–970 MHz

1420–1530 MHz

1700–2180 MHz

VSWR

1.15

Return Loss (dB)

23.13

Regulatory Compliance/Certifications

Agency

Classification

All trademarks identified by ® or ™ are registered trademarks or trademarks, respectively, of CommScope.All specifications are subject to change.

See www.commscope.com/andrew for the most current information.

page 1 of 2

6/9/2011

Product Specifications

L4P43A-PDMDF-12M-X

RoHS 2002/95/EC

China RoHS SJ/T 113642006

ISO 9001:2008

Compliant by Exemption

Above Maximum Concentration Value (MCV)

Designed, manufactured and/or distributed under this quality management system

INCLUDED PRODUCTS

LDF450A

LDF450A, HELIAX® Low Density Foam Coaxial Cable, corrugated copper, 1/2 in, black PE jacket

L4TDFPS

716 DIN Female Positive Stop™ for 1/2 in LDF450A cable

L4TDFPSA

716 DIN Female Positive Stop™ for 1/2 in AL4RPV50, LDF450A cable

All trademarks identified by ® or ™ are registered trademarks or trademarks, respectively, of CommScope.All specifications are subject to change.

See www.commscope.com/andrew for the most current information.

page 2 of 2

6/9/2011
