PEL12T-4231F-S124 datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> PEL12T-4231F-S124

PEL12T-4231F-S124: DescriptionRotary Position Encoder, Single, 2 Channels, ROHS COMPLIANT PACKAGE-8; CategoryLED optoelectronic/LED photoelectric; File Size294KB，3 Pages; ManufacturerBourns; Websitehttp://www.bourns.com; Environmental Compliance

Download Datasheet Parametric Compare View All

PEL12T-4231F-S124 Overview

Rotary Position Encoder, Single, 2 Channels, ROHS COMPLIANT PACKAGE-8

PEL12T-4231F-S124 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Bourns
package instruction	ROHS COMPLIANT PACKAGE-8
Reach Compliance Code	compliant
Configuration	SINGLE, 2 CHANNELS
Number of functions	1
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Optoelectronic device types	ROTARY POSITION ENCODER

Preview

Download Datasheet

View All

Features

■

Compact design, long life and high

■

reliability

Vertical and horizontal mount versions

Momentary switch

Triple LED design

Flatted and knurled shaft styles

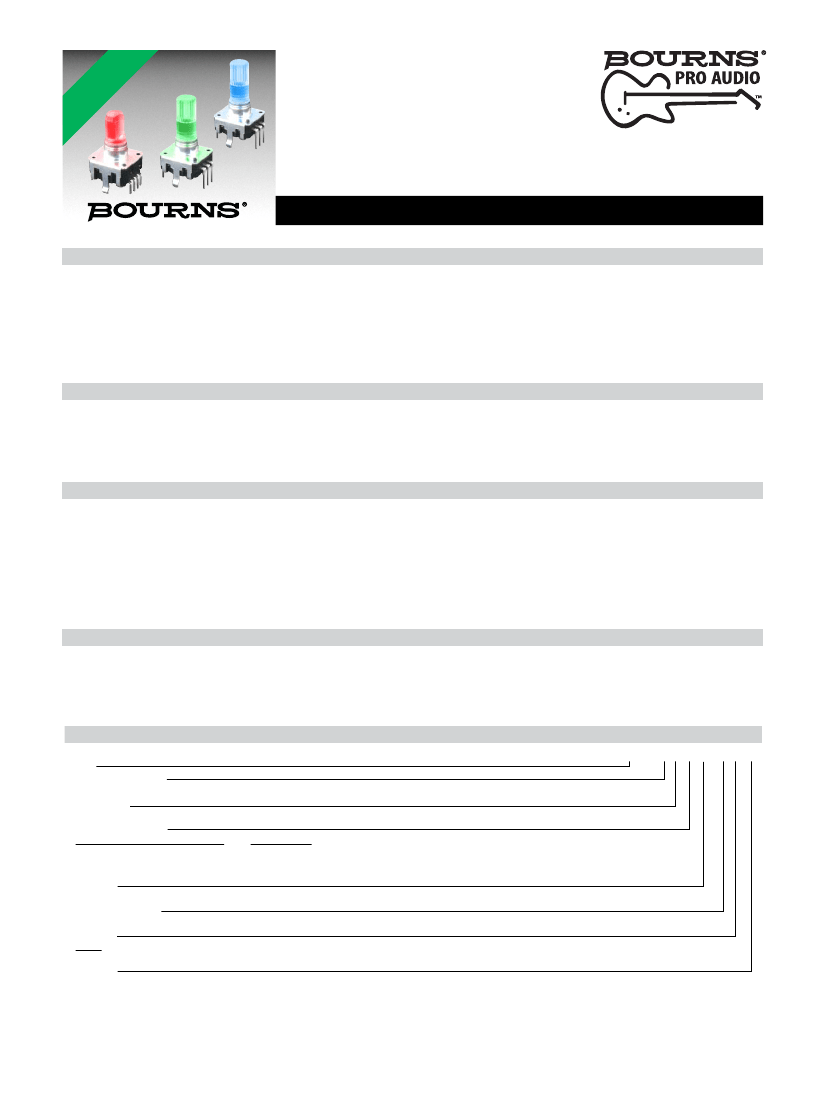

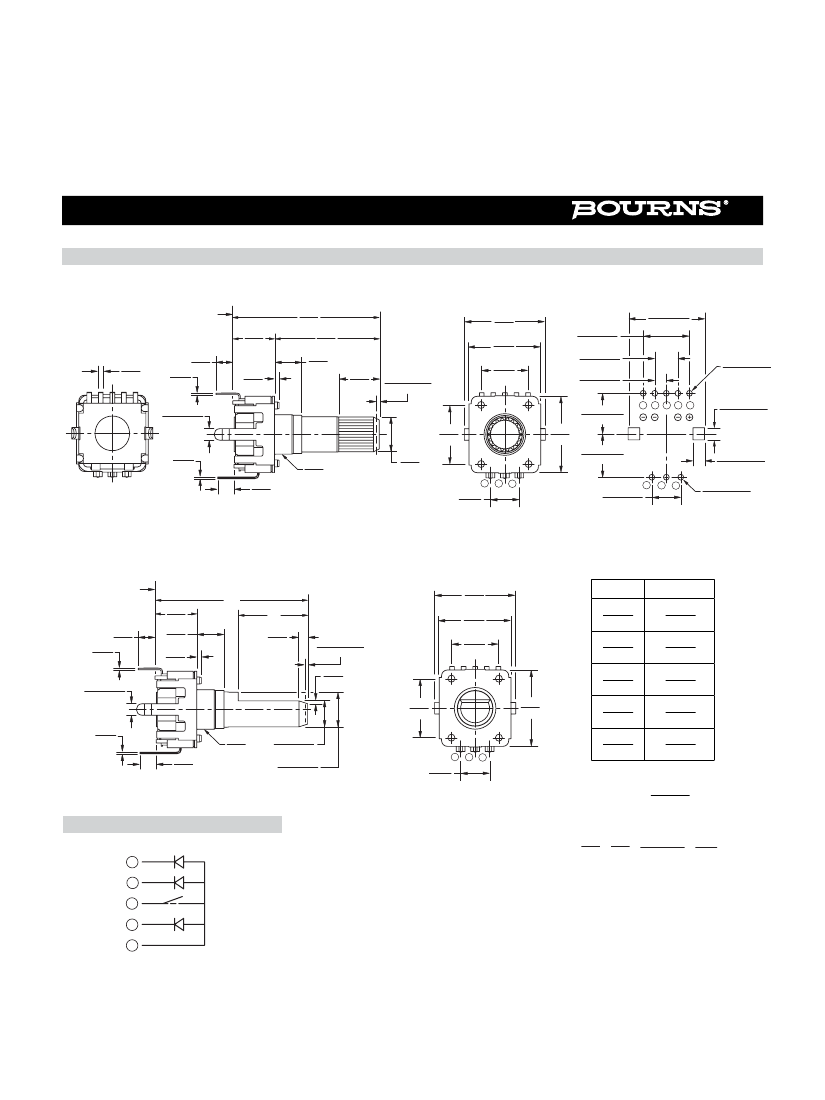

PEL12T - 12 mm Encoder with Switch and Illuminated Shaft

Electrical Characteristics

Output ............................................................................................................................................................................................. 2-bit gray code

Closed Circuit Resistance ........................................................................................................................................................... 3 ohms maximum

Contact Rating .............................................................................................................................................................................. 0.5 mA @ 5 VDC

Insulation Resistance .....................................................................................................................................................100 megohms @ 250 VDC

Dielectric Withstanding Voltage

Sea Level ................................................................................................................................................................................ 300 VAC minimum

Electrical Travel...................................................................................................................................................................................... Continuous

Contact Bounce (15 RPM).........................................................................................................................................................2.0 ms. maximum**

RPM (Operating) ............................................................................................................................................................................. 100 maximum**

Environmental Characteristics

Operating Temperature Range .......................................................................................................................-10 °C to +70 °C (+14 °F to +158 °F)

Storage Temperature Range .......................................................................................................................... -40 °C to +85 °C (-40 °F to +185 °F)

Operating Humidity ................................................................................................................................................................... 25 % to 85 % R.H.

Rotational Life ....................................................................................................................................................................30,000 cycles minimum

Switch Life ..........................................................................................................................................................................20,000 cycles minimum

IP Rating .......................................................................................................................................................................................................... IP 40

Mechanical Characteristics

Mechanical Angle ......................................................................................................................................................................... 360 ° continuous

Detent Torque ................................................................................................................................................. 30 to 200 g-cm (0.42 to 2.77 oz.-in.)

Running Torque .....................................................................................................................................................50 g-cm (0.69 oz.-in.) maximum

Shaft Strength (Push-Pull) ............................................................................................................................................................... 5 kgf (11.0 lbs.)

Weight ............................................................................................................................................................................... 3 gm (0.1 oz.) maximum

Terminals ................................................................................................................................................................. Printed circuit board terminals

Soldering Condition

Wave Soldering ....................................................................Sn95.5/Ag2.8/Cu0.7 solder with no-clean ﬂux: 260 °C max. for 5 ± 1 seconds

Hand Soldering ..................................................................................................................................................................Not recommended

Hardware .............................................................................................................................................................................. No hardware supplied

Switch Characteristics

Switch Type .................................................................................................................................................... Contact Push ON Momentary SPST

Power Rating (Resistive Load) ...................................................................................................................................................... 10 mA at 5 V DC

Contact Resistance ............................................................................................................................................................................100 milliohms

Switch Travel ................................................................................................................................................................................0.5 +0.0/-0.3 mm

Switch Actuation Force ................................................................................................................................................450 ± 200 gf (15.9 ±7.0 oz.)

How To Order

PEL12T - 4 0 21 F - S 1 024

Model

Terminal Conﬁguration

4 = Horizontal Mount/Rear Exit PC Pin

Detent Option

0 = No Detents

2 = 24 Detents

Standard Shaft Length

Flatted:

16 = 16.0 mm

26 = 26.0 mm

18 = 18.5 mm

31 = 31.0 mm

21 = 21.0 mm

Shaft Style

F = Insulated Flatted Shaft

Switch Conﬁguration

S = Push Momentary Switch

LED Color

Triple:

1 = Red/Green/Blue

Resolution

024 = 24 Pulses per 360 ° Rotation

Knurled:

25 = 25.0 mm

S = Insulated Knurled Shaft (18 Teeth)

*RoHS Directive 2002/95/EC Jan 27, 2003 including Annex.

**Devices are tested using standard noise reduction ﬁlters. For optimum performance, designers should use noise reduction ﬁlters in their circuits.

Speciﬁcations are subject to change without notice.

Customers should verify actual device performance in their speciﬁc applications.

PEL12T-4231F-S124 Related Products

	PEL12T-4231F-S124	PEL12T-4025S-S124	PEL12T-4225S-S124	PEL12T-4216F-S124	PEL12T-4021F-S124	PEL12T-4226F-S124	PEL12T-4031F-S124	PEL12T-4018F-S124	PEL12T-4026F-S124	PEL12T-4218F-S124
Description	Rotary Position Encoder, Single, 2 Channels, ROHS COMPLIANT PACKAGE-8	Rotary Position Encoder, Single, 2 Channels, ROHS COMPLIANT PACKAGE-8	Rotary Position Encoder, Single, 2 Channels, ROHS COMPLIANT PACKAGE-8	Rotary Position Encoder, Single, 2 Channels, ROHS COMPLIANT PACKAGE-8	Rotary Position Encoder, Single, 2 Channels, ROHS COMPLIANT PACKAGE-8	Rotary Position Encoder, Single, 2 Channels, ROHS COMPLIANT PACKAGE-8	Rotary Position Encoder, Single, 2 Channels, ROHS COMPLIANT PACKAGE-8	Rotary Position Encoder, Single, 2 Channels, ROHS COMPLIANT PACKAGE-8	Rotary Position Encoder, Single, 2 Channels, ROHS COMPLIANT PACKAGE-8	Rotary Position Encoder, Single, 2 Channels, ROHS COMPLIANT PACKAGE-8
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT PACKAGE-8	ROHS COMPLIANT PACKAGE-8	ROHS COMPLIANT PACKAGE-8	ROHS COMPLIANT PACKAGE-8	ROHS COMPLIANT PACKAGE-8	ROHS COMPLIANT PACKAGE-8	ROHS COMPLIANT PACKAGE-8	ROHS COMPLIANT PACKAGE-8	ROHS COMPLIANT PACKAGE-8	ROHS COMPLIANT PACKAGE-8
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Configuration	SINGLE, 2 CHANNELS	SINGLE, 2 CHANNELS	SINGLE, 2 CHANNELS	SINGLE, 2 CHANNELS	SINGLE, 2 CHANNELS	SINGLE, 2 CHANNELS	SINGLE, 2 CHANNELS	SINGLE, 2 CHANNELS	SINGLE, 2 CHANNELS	SINGLE, 2 CHANNELS
Number of functions	1	1	1	1	1	1	1	1	1	1
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C
Optoelectronic device types	ROTARY POSITION ENCODER	ROTARY POSITION ENCODER	ROTARY POSITION ENCODER	ROTARY POSITION ENCODER	ROTARY POSITION ENCODER	ROTARY POSITION ENCODER	ROTARY POSITION ENCODER	ROTARY POSITION ENCODER	ROTARY POSITION ENCODER	ROTARY POSITION ENCODER
Maker	Bourns	-	-	Bourns	Bourns	Bourns	Bourns	Bourns	Bourns	Bourns
