ATLV750B-15KC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Programmable logic devices> Programmable logic> ATLV750B-15KC

ATLV750B-15KC: DescriptionUV PLD, 15ns, CMOS, CQCC28, WINDOWED, CERAMIC, MO-087AA, JLCC-28; CategoryProgrammable logic devices Programmable logic; File Size60KB，2 Pages; ManufacturerAtmel (Microchip)

Download Datasheet Parametric Compare View All

ATLV750B-15KC Overview

UV PLD, 15ns, CMOS, CQCC28, WINDOWED, CERAMIC, MO-087AA, JLCC-28

ATLV750B-15KC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Atmel (Microchip)
Parts packaging code	QFJ
package instruction	WQCCJ,
Contacts	28
Reach Compliance Code	compliant
Other features	10 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK; VARIABLE PRODUCT TERMS
JESD-30 code	S-CQCC-J28
length	11.5062 mm
Dedicated input times	11
Number of I/O lines	10
Number of terminals	28
Maximum operating temperature	70 °C
Minimum operating temperature
organize	11 DEDICATED INPUTS, 10 I/O
Output function	MACROCELL
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	WQCCJ
Package shape	SQUARE
Package form	CHIP CARRIER, WINDOW
Programmable logic type	UV PLD
propagation delay	15 ns
Certification status	Not Qualified
Maximum seat height	4.57 mm
Maximum supply voltage	5.25 V
Minimum supply voltage	3 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
width	11.5062 mm

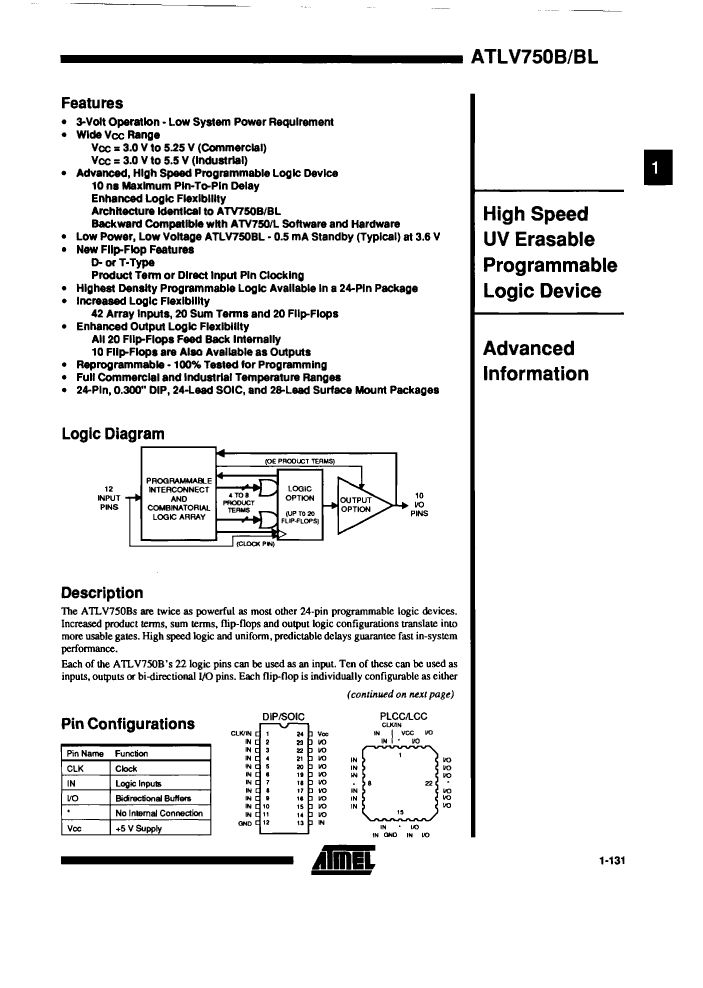

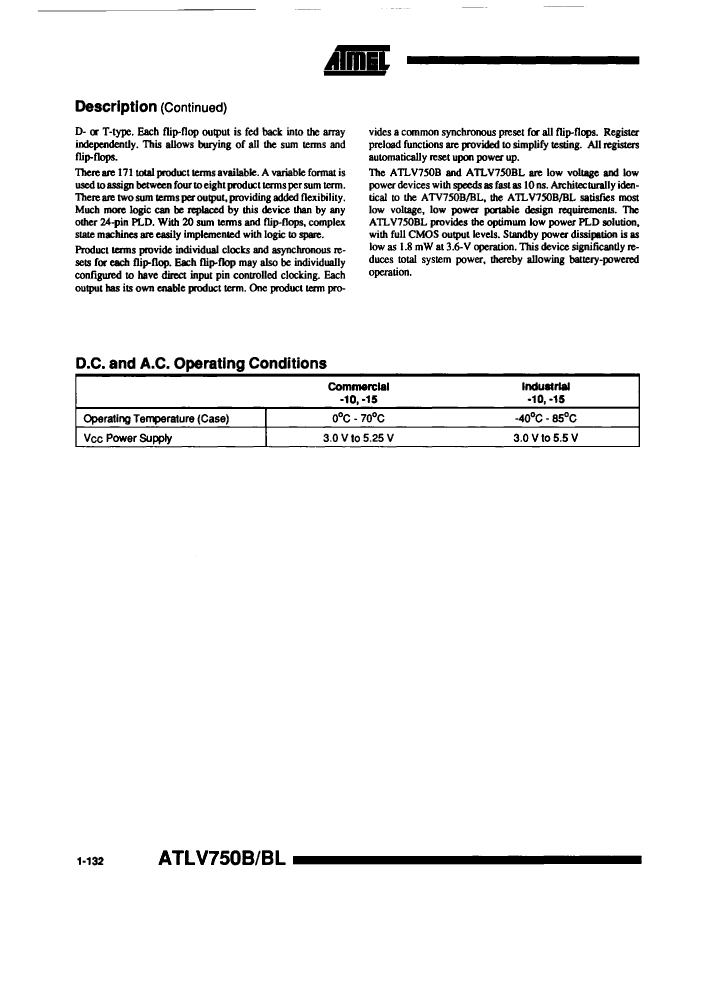

ATLV750B-15KC Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

ATLV750B-15KC Related Products

	ATLV750B-15KC	ATLV750B-15KI	ATLV750B-10KC	ATLV750BL-10KC	ATLV750B-10KI	ATLV750BL-10KI	ATLV750BL-15KC	ATLV750BL-15KI
Description	UV PLD, 15ns, CMOS, CQCC28, WINDOWED, CERAMIC, MO-087AA, JLCC-28	UV PLD, 15ns, CMOS, CQCC28, WINDOWED, CERAMIC, MO-087AA, JLCC-28	UV PLD, 10ns, CMOS, CQCC28, WINDOWED, CERAMIC, MO-087AA, JLCC-28	UV PLD, 10ns, CMOS, CQCC28, WINDOWED, CERAMIC, MO-087AA, JLCC-28	UV PLD, 10ns, CMOS, CQCC28, WINDOWED, CERAMIC, MO-087AA, JLCC-28	UV PLD, 10ns, CMOS, CQCC28, WINDOWED, CERAMIC, MO-087AA, JLCC-28	UV PLD, 15ns, CMOS, CQCC28, WINDOWED, CERAMIC, MO-087AA, JLCC-28	UV PLD, 15ns, CMOS, CQCC28, WINDOWED, CERAMIC, MO-087AA, JLCC-28
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Atmel (Microchip)	Atmel (Microchip)	Atmel (Microchip)	Atmel (Microchip)	Atmel (Microchip)	Atmel (Microchip)	Atmel (Microchip)	Atmel (Microchip)
Parts packaging code	QFJ	QFJ	QFJ	QFJ	QFJ	QFJ	QFJ	QFJ
package instruction	WQCCJ,	WQCCJ,	WQCCJ,	WQCCJ,	WQCCJ,	WQCCJ,	WQCCJ,	WQCCJ,
Contacts	28	28	28	28	28	28	28	28
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	10 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK; VARIABLE PRODUCT TERMS	10 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK; VARIABLE PRODUCT TERMS	10 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK; VARIABLE PRODUCT TERMS	10 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK; VARIABLE PRODUCT TERMS	10 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK; VARIABLE PRODUCT TERMS	10 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK; VARIABLE PRODUCT TERMS	10 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK; VARIABLE PRODUCT TERMS	10 MACROCELLS; 1 EXTERNAL CLOCK; SHARED INPUT/CLOCK; VARIABLE PRODUCT TERMS
JESD-30 code	S-CQCC-J28	S-CQCC-J28	S-CQCC-J28	S-CQCC-J28	S-CQCC-J28	S-CQCC-J28	S-CQCC-J28	S-CQCC-J28
length	11.5062 mm	11.5062 mm	11.5062 mm	11.5062 mm	11.5062 mm	11.5062 mm	11.5062 mm	11.5062 mm
Dedicated input times	11	11	11	11	11	11	11	11
Number of I/O lines	10	10	10	10	10	10	10	10
Number of terminals	28	28	28	28	28	28	28	28
Maximum operating temperature	70 °C	85 °C	70 °C	70 °C	85 °C	85 °C	70 °C	85 °C
organize	11 DEDICATED INPUTS, 10 I/O	11 DEDICATED INPUTS, 10 I/O	11 DEDICATED INPUTS, 10 I/O	11 DEDICATED INPUTS, 10 I/O	11 DEDICATED INPUTS, 10 I/O	11 DEDICATED INPUTS, 10 I/O	11 DEDICATED INPUTS, 10 I/O	11 DEDICATED INPUTS, 10 I/O
Output function	MACROCELL	MACROCELL	MACROCELL	MACROCELL	MACROCELL	MACROCELL	MACROCELL	MACROCELL
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	WQCCJ	WQCCJ	WQCCJ	WQCCJ	WQCCJ	WQCCJ	WQCCJ	WQCCJ
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	CHIP CARRIER, WINDOW	CHIP CARRIER, WINDOW	CHIP CARRIER, WINDOW	CHIP CARRIER, WINDOW	CHIP CARRIER, WINDOW	CHIP CARRIER, WINDOW	CHIP CARRIER, WINDOW	CHIP CARRIER, WINDOW
Programmable logic type	UV PLD	UV PLD	UV PLD	UV PLD	UV PLD	UV PLD	UV PLD	UV PLD
propagation delay	15 ns	15 ns	10 ns	10 ns	10 ns	10 ns	15 ns	15 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.57 mm	4.57 mm	4.57 mm	4.57 mm	4.57 mm	4.57 mm	4.57 mm	4.57 mm
Maximum supply voltage	5.25 V	5.5 V	5.25 V	5.25 V	5.5 V	5.5 V	5.25 V	5.5 V
Minimum supply voltage	3 V	3 V	3 V	3 V	3 V	3 V	3 V	3 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	INDUSTRIAL
Terminal form	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
width	11.5062 mm	11.5062 mm	11.5062 mm	11.5062 mm	11.5062 mm	11.5062 mm	11.5062 mm	11.5062 mm
