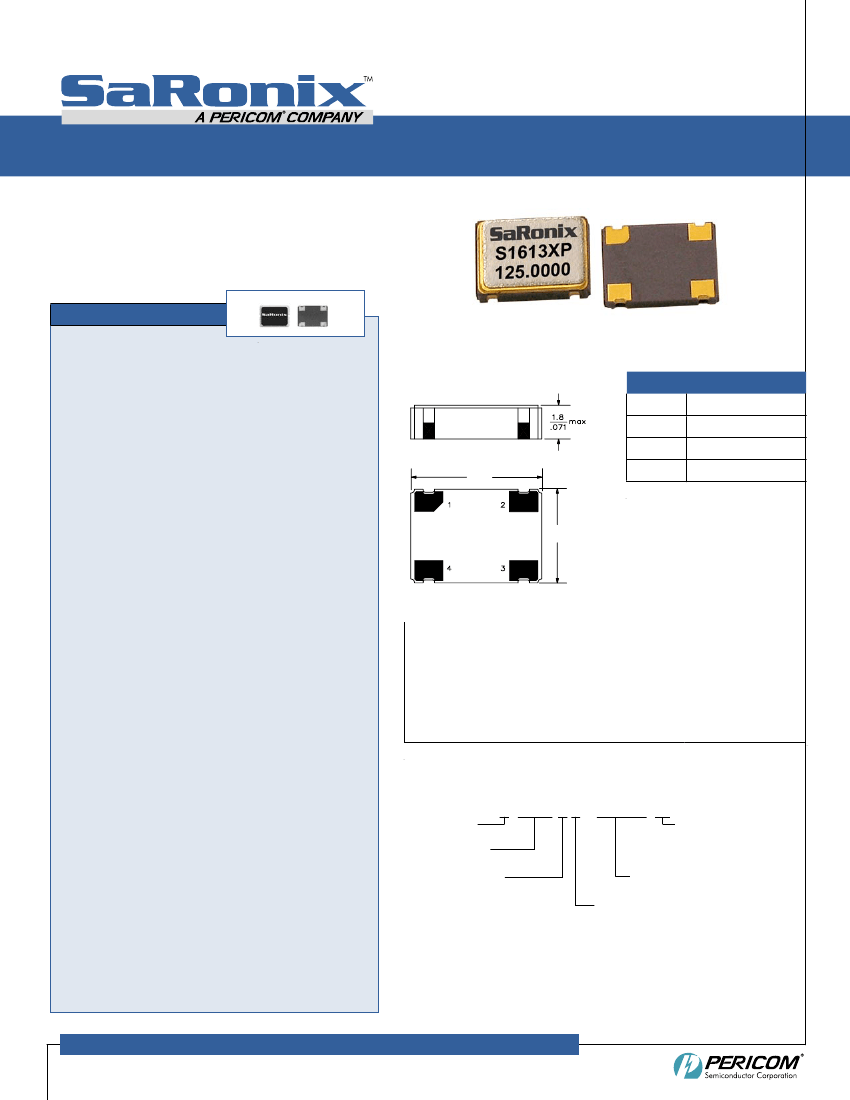

S1613XP Series
3.3V CMOS Low Jitter, High Frequency
Crystal Clock Oscillator (XO)
Actual Size = 5 x 7mm
Product Features
• Thicker crystal for improved reliability
• Less than 1 ps RMS jitter with advanced non-PLL,
patent-pending design
• ±50ppM accuracy (all rated conditions including
aging) standard for commercial or industrial operating
conditions
• 3.3V CMOS/TTL compatible logic levels
• Pin-compatible with standard 5x7mm packages
• Designed for standard reflow and washing techniques
• IBIS model available
• Pb-free and RoHS/Green compliant**
(**per #7, Annex of Directive 2002/05/EC)
Packaging Outline
Pin Functions
Pin
Function
1
2
3
7mm
OE Function
Ground
Clock Output
V
DD
4
5mm
Common Frequencies
Contact SaRonix for additional frequencies
Product Description
The S1613XP Series is an enhanced high-frequency
version of the popular S1613 series, a 3.3V crystal clock
oscillator that achieves superb jitter and stability over a
broad range of operating conditions and frequencies.
The output clock signal, generated internally with a non-
PLL oscillator design, is compatible with LVCMOS/LVTTL
logic levels. The device, available on tape and reel, is
contained in a 5x7mm surface-mount ceramic package.
100.0000 MHz
106.2500 MHz
125.0000 MHz
127.0000 MHz
133.0000 MHz
150.0000 MHz
155.5200 MHz
156.2500 MHz
159.3750 MHz
Ordering Information
SaRonix
Product Series
Frequency Stability
*AA = ±20 ppM (-10 to +70 °C)
*A = ±25 ppM (-10 to +70 °C)
B = ±50 ppM (-10 to +70 °C)
E = ±50 ppM (-40 to +85°C)
S 1613 B P - 156.2500 (T)
Applications
The S1613XP Series is an ideal reference clock for high-
speed applications requiring low jitter, including:
• 1/10 Gigabit Ethernet
• FibreChannel
• Serial Attached SCSI (SAS)
• Server & Storage platforms
• SONET/SDH linecards
Packaging
(T) = Tape & Reel
full reel increments
Blank = Bulk packaged
Output Frequency
(MHz)
Series Version Code
* Availability varies by frequency. Please consult SaRonix.
Pericom Semiconductor Corporation • 1-800-435-2336 • http://www.pericom.com/saronix
1
All specifications are subject to change without notice.
DS 263 Rev B | 08/19/05
S1613XP Series
3.3V CMOS Low Jitter, High Frequency
Crystal Clock Oscillator (XO)
Electrical Performance
Parameter
Min.
Typ.
Max.
Units
Notes
Output frequency
Supply voltage
Supply current, output enabled
Supply current, output disabled
Frequency stability
Operating temperature
Output logic 0, VOL
Output logic 1, VOH
Output load
Duty cycle
Duty cycle
Rise and fall time
Jitter, phase
Jitter, accumulated
Jitter, total
Subharmonic Level
100
+2.97
+3.3
160
+3.63
30
10
±20 to
±50
MHz
V
mA
mA
ppM
°C
V
V
As specified
Output Hi-Z
See Note 1 below
As specified
-40
+85
10%
V
DD
90%
V
DD
15 pF (max) or 10 LSTTL
45
40
55
60
2
0.25
1
7
40
-40
%
%
ns
ps RMS
(1-σ)
ps RMS
(1-σ)
ps
pk-pk
dBc
-10 to +70°C measured 50%VDD
-40 to -10°C, +70 to +85°C measured
50%VDD
measured 20/80% of waveform
12kHz to 40MHz frequency band
20,000 adjacent periods
100,000 random periods
Notes:
1. As specified. Stability includes all combinations of operating temperature, load changes, rated input (supply) voltage changes, initial calibration
tolerance (25°C), aging (1 year at 25°C average effective ambient temperature), shock and vibration.
Output Enable / Disable Function
Parameter
Min.
Typ.
Max.
Units
Notes
Input Voltage (pin 1), Output
Enable
Input voltage (pin 1), Output
Disable
Internal pullup resistance
Output disable delay
Output enable delay
2.2
0.8
50
100
1
V
V
kΩ
ns
ms
or open
Output is Hi-Z
Pericom Semiconductor Corporation • 1-800-435-2336 • http://www.pericom.com/saronix
2
All specifications are subject to change without notice.
DS 263 Rev B | 08/19/05
S1613XP Series
3.3V CMOS Low Jitter, High Frequency
Crystal Clock Oscillator (XO)

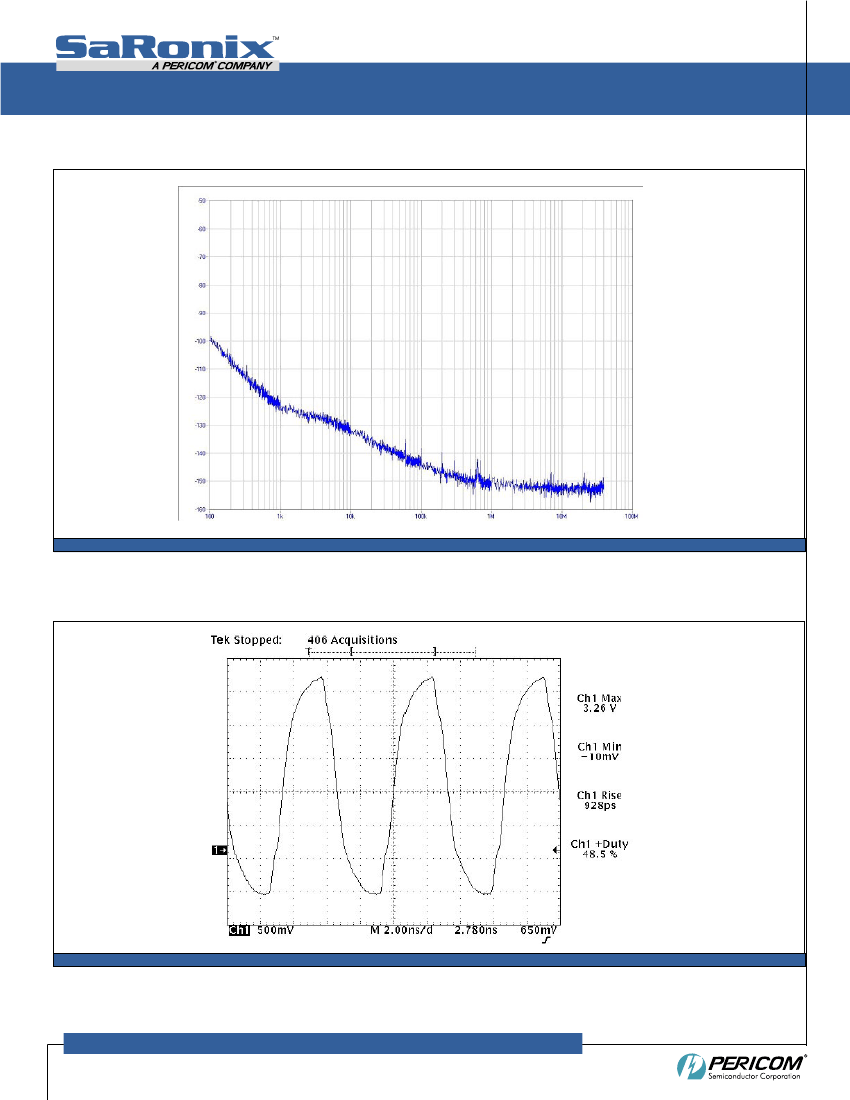

Typical Phase Noise
Typical Output Waveform (150 MHz output)
Pericom Semiconductor Corporation • 1-800-435-2336 • http://www.pericom.com/saronix
3
All specifications are subject to change without notice.
DS 263 Rev B | 08/19/05
S1613XP Series
3.3V CMOS Low Jitter, High Frequency
Crystal Clock Oscillator (XO)
Absolute Maximum Ratings
Parameter
Min.
Typ.
Max.
Units
Notes
Storage temperature
-55
+125
°C
Test Circuit
Test Point
4
0.1µF
or
0.01µF
1
Power
Supply
3
2
15 pF
(Including probe
and fixture
capacitance)
Output Enable / Disable Function
Reliability Test Ratings
This product is rated to meet the following test conditions:
Type
Parameter
Test Condition
Mechanical
Mechanical
Mechanical
Mechanical
Mechanical
Mechanical
Environmental
Environmental
Environmental
Environmental
Shock
Solderability
Terminal strength
Gross leak
Fine leak
Solvent resistance
Thermal shock
Moisture resistance
Vibration
Resistance to soldering heat
MIL-STD-883, Method 2002, Condition B
JESD22-B102-D Method 2 (Preconditioning E)
MIL-STD-883, Method 2004, Condition D
MIL-STD-883, Method 1014, Condition C
MIL-STD-883, Method 1014, Condition A2 (R
1
= 2x10
-8
atm cc/s)
MIL-STD-202, Method 215
MIL-STD-883, Method 1011, Condition A
MIL-STD-883, Method 1004
MIL-STD-883, Method 2007, Condition A
J-STD-020C Table 5-2 Pb-free devices (2 cycles max)
Pericom Semiconductor Corporation • 1-800-435-2336 • http://www.pericom.com/saronix
4
All specifications are subject to change without notice.
DS 263 Rev B | 08/19/05
S1613XP Series
3.3V CMOS Low Jitter, High Frequency
Crystal Clock Oscillator (XO)
Output Waveform
t
f
t
r
VOH
80%
50%
20%
VOL
t
A
Duty cycle = 100%
x
(t
A
)
/
(t
A
+ t
B
)
t
B
Reflow Soldering Profile
As per IPC/JEDEC J-STD-020C
260
217
1 to 3°C/sec max
Peak 260°C for 10 sec max
1 to 3°C/sec
Temperature – °C
Time
60 to 90 sec
4 to 6 minutes max
Pericom Semiconductor Corporation • 1-800-435-2336 • http://www.pericom.com/saronix
5
All specifications are subject to change without notice.
DS 263 Rev B | 08/19/05
