426-13-212-41-003 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> socket> 426-13-212-41-003

Preview

426-13-212-41-003: DescriptionIC Socket, SIP12, 12 Contact(s); CategoryThe connector socket; File Size173KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

426-13-212-41-003 Overview

IC Socket, SIP12, 12 Contact(s)

426-13-212-41-003 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Mill-Max
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	SIP SOCKET
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	GOLD (10) OVER NICKEL
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
Type of equipment used	SIP12
Shell material	GLASS FILLED POLYETHYLENE POLYESTER
JESD-609 code	e4
Manufacturer's serial number	426
Number of contacts	12

Preview

Download Datasheet

View All

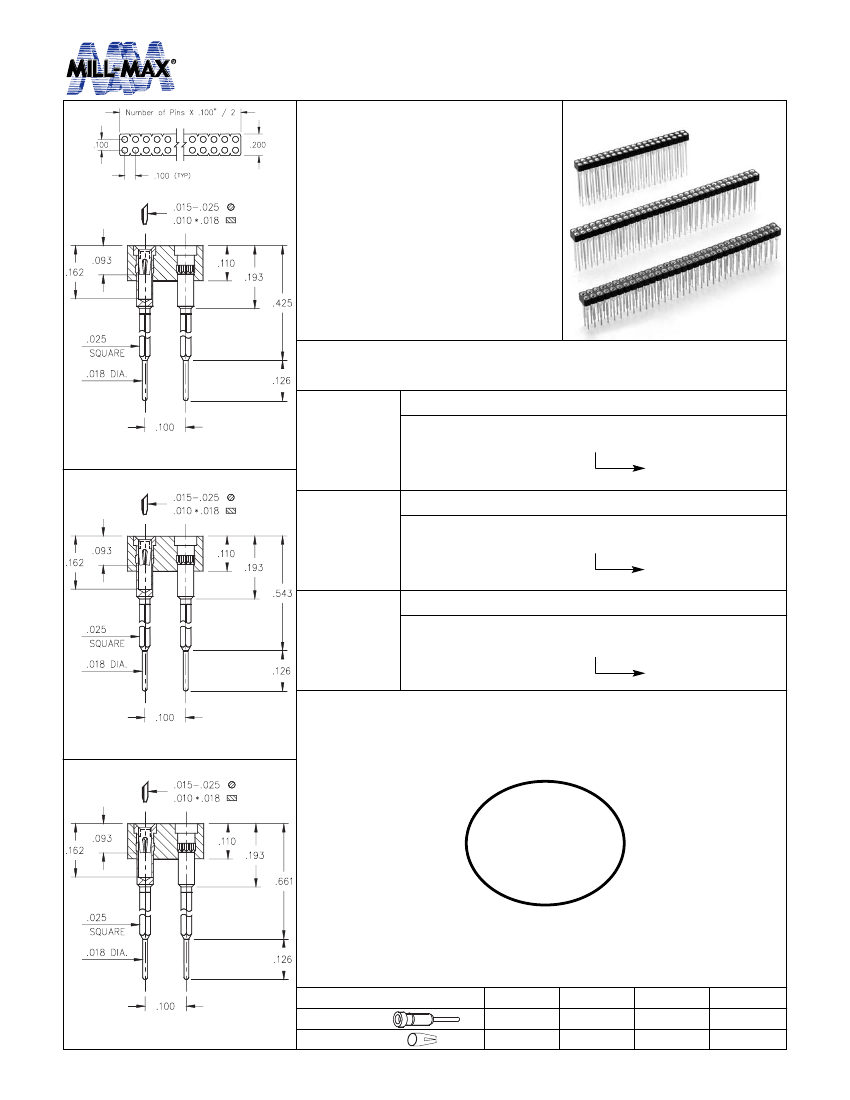

SINGLE-IN-LINE SOCKETS

Wrapost with Solder Tail

Double Row

Series 426

•

Wrapost/ solder tail combination for

interconnect purposes: M-M# 2601,

2602 or 2603 pin receptacles. See

page 163 for details.

•

Hi-Rel, 4-finger #30 BeCu contact is

rated at 3 amps. See page 208 for

details.

Ordering Information

Series 426...001

1 Level Wrapost

Fig. 1

426-XX-2_ _-41-001

Specify # of pins

Series 426...002

02-64

2 Level Wrapost

Fig. 2

426-XX-2_ _-41-002

Specify # of pins

Series 426...003

02-64

3 Level Wrapost

Fig. 3

426-XX-2_ _-41-003

Specify # of pins

02-64

Fig. 2

XX= Plating Code

See Below

SPECIFY PLATING CODE XX=

13

10µ” Au

30µ” Au

93

200µ” Sn/Pb

30µ” Au

Sleeve (Pin)

Fig. 3

Contact (Clip)

w w w. m i l l - m a x . c o m

54

516-922-6000
